YR22RG-PQEQ (1985)

Toyota Model-F

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

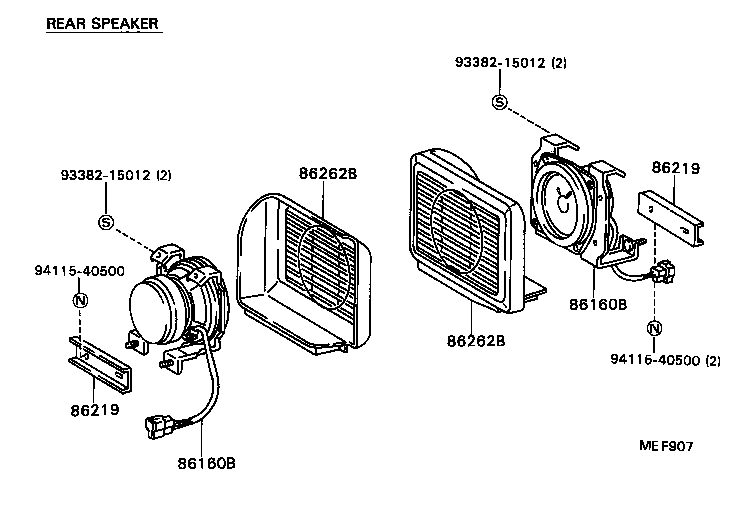

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 86160B 86160B 86219 86219 86262B 86262B 9338215012 9338215012 9411540500 9411540500
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86150-87016

YR2#,31..RHD..GL

RH

 1
86160-87018

YR2#,31..RHD..GL

LH

 1
86150-87015

YR2#..RHD..GL

RH

 1
86160B - SPEAKER ASSY, REAR
86150-87016

YR2#,31..RHD..GL

RH

 1
86160-87018

YR2#,31..RHD..GL

LH

 1
86150-87015

YR2#..RHD..GL

RH

 1
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86211-87004

CR21,YR2#,31..RHD..(ARL,GEN)

 1
86219-87014

YR2#,31..RHD..GL

RR SPEAKER

 2
86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1
86211-87004

CR21,YR2#,31..RHD..(ARL,GEN)

 1
86219-87014

YR2#,31..RHD..GL

RR SPEAKER

 2
86262B - COVER, SPEAKER, REAR
64384-8700104

YR2#,31..RHD..GL

LH,BLUE,BLUE,TRIM8#

 1
64384-8700106

YR2#,31..RHD..GL

LH,BROWN,BROWN,TRIM4#

 1
64383-8700106

YR2#,31..RHD..GL

RH,BROWN,BROWN,TRIM4#

 1
64383-8700104

YR2#,31..RHD..GL

RH,BLUE,BLUE,TRIM8#

 1
86262B - COVER, SPEAKER, REAR
64384-8700104

YR2#,31..RHD..GL

LH,BLUE,BLUE,TRIM8#

 1
64384-8700106

YR2#,31..RHD..GL

LH,BROWN,BROWN,TRIM4#

 1
64383-8700106

YR2#,31..RHD..GL

RH,BROWN,BROWN,TRIM4#

 1
64383-8700104

YR2#,31..RHD..GL

RH,BLUE,BLUE,TRIM8#

 1
Common parts
93382-15012
94115-40500
