YR22LG-MDEW (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

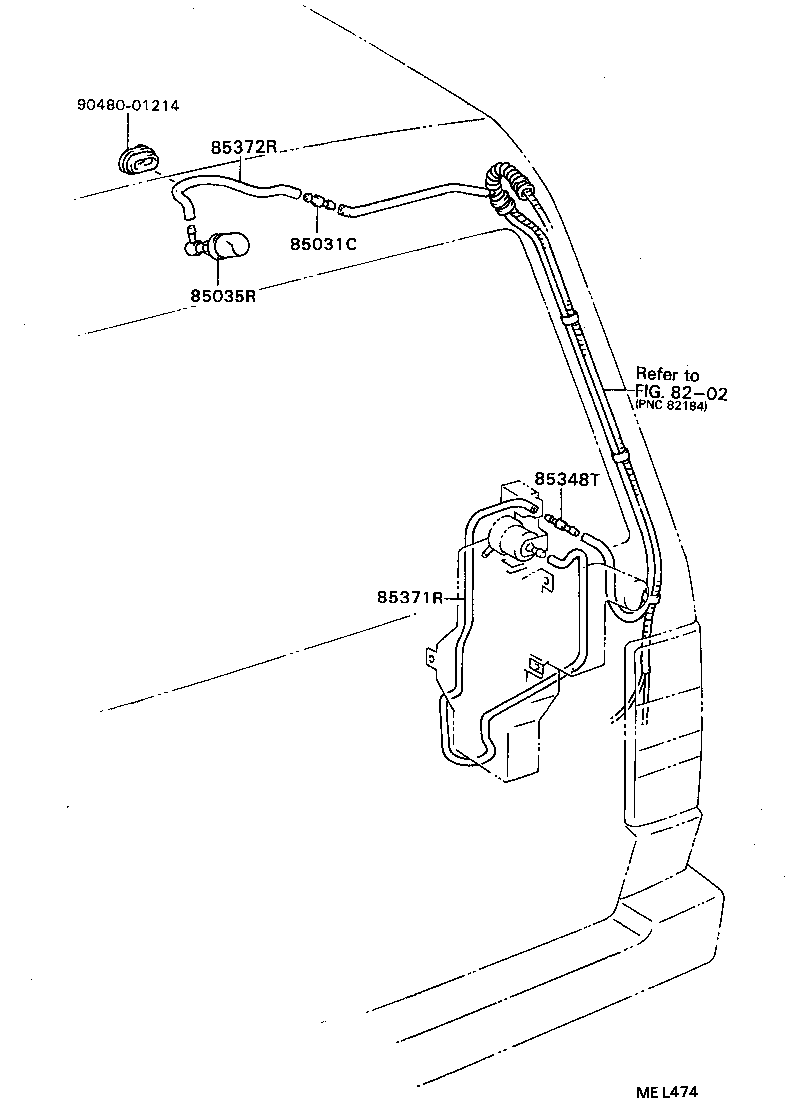

Click highlighted areas on diagram

diagram 8202 85031C 85035R 85348T 85371R 85372R 9048001214
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

YR2#,31

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85035-16040

YR2#,31..DLX

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

YR2#,31

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

YR2#,31

*H,L=940

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

YR2#,31

L=1000

 1
Common parts
90480-01214
Linked diagrams
8202
