YR21RG-PQQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

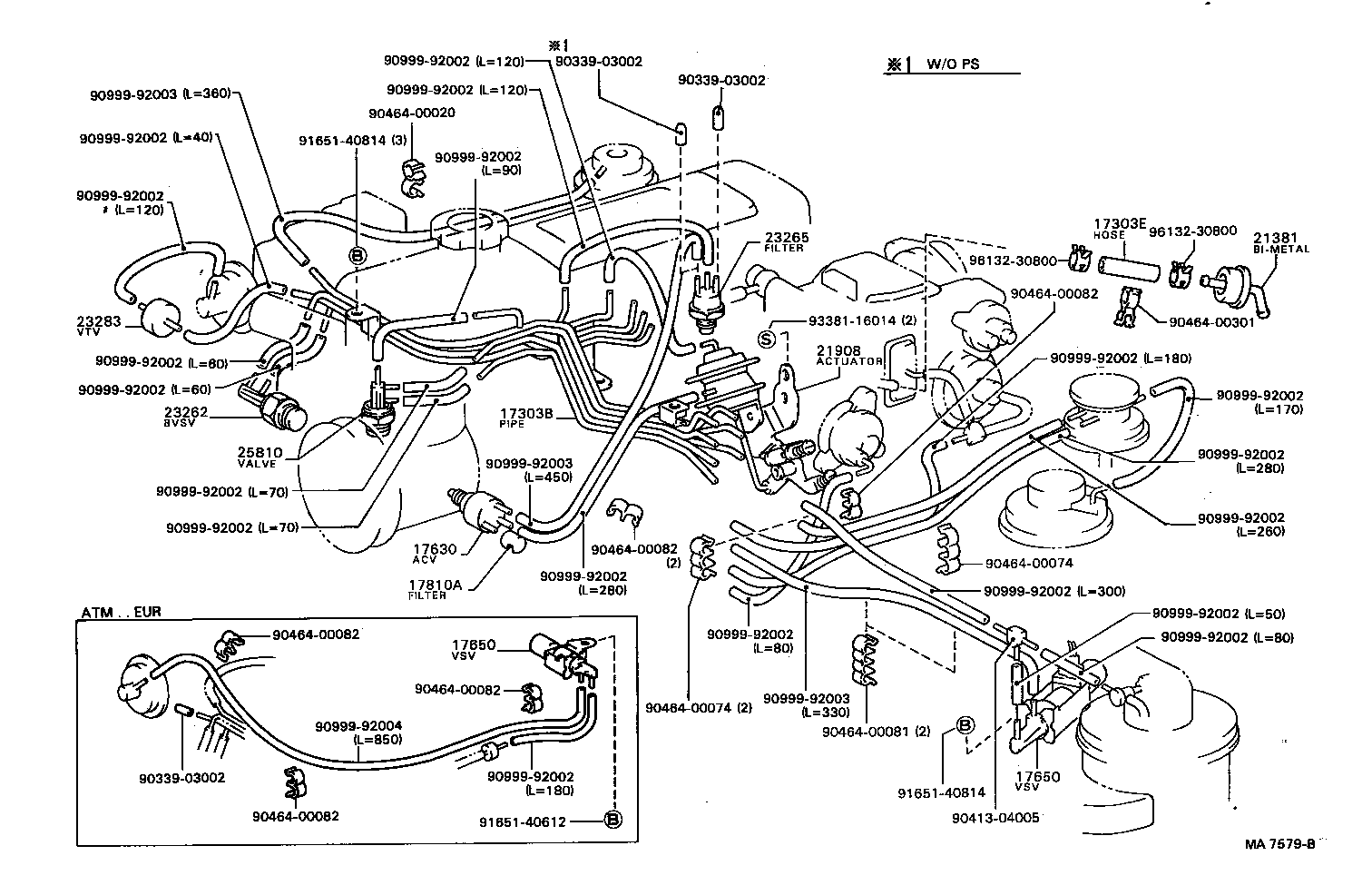

(8211-8408)2Y..EUR ; (8401-8408)3Y

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17650 17810A 21381 21908 23265 23281 23283 23288 25810 9033903002 9041304005 9046400074 9046400074 9046400080 9046400081 9046400082 9046400082 9046400082 9046400082 9046400082 9046400112 9046400301 9092901060 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992003 9099992004 9165140814 9165140814 9338116014 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y#..YR21..ARL

 1
17303-71040

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17303-71030

3Y..YR21;2Y..YR20..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90910-05181

3Y#..YR21..ARL

 1
90445-14079

2Y#,3Y#..YR2#..ARL,EUR

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

2Y#,3Y#..YR20,21

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28050

2Y..YR20..4FC;2YC,3Y#..YR2#..ARL

 1
89570-28050

3Y#..YR21..ARL

 1
17810A - FILTER ASSY, AIR
90925-06007

2Y#,3Y#..YR20,21

W/PS

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3Y#..YR21..ARL

 1
21381-13010

2Y,3Y#..YR2#..ARL,EUR

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

3Y#..YR21..ARL;3Y..YR21..LHD..EUR

W/PS

 1
21908-71020

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
21908-71010

3Y..YR21..ARL;2Y#,3YC..YR2#..ARL,GEN

W/PS

 1
21908-71010

3Y..YR21..ARL

NEW ZEALAND SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y#,3Y#..YR20,21

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

3Y#..YR21..ARL

 1
90925-01075

3Y..YR21;2Y..YR20..5F..EUR

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YC,3Y#..YR2#;2Y..YR20..LHD..EUR

 1
90925-01027

3Y#..YR21..ARL,EUR

 1
23288 - JET, NO.1
90925-04004

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
90925-04006

3Y#..YR21..ARL

 1
90925-04004

3Y#..YR21..ARL

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
Common parts
90339-03002
90413-04005
90464-00074
90464-00080
90464-00081
90464-00082
90464-00112
90464-00301
90929-01060
90999-92002
90999-92003
90999-92004
91651-40814
93381-16014
96132-30800

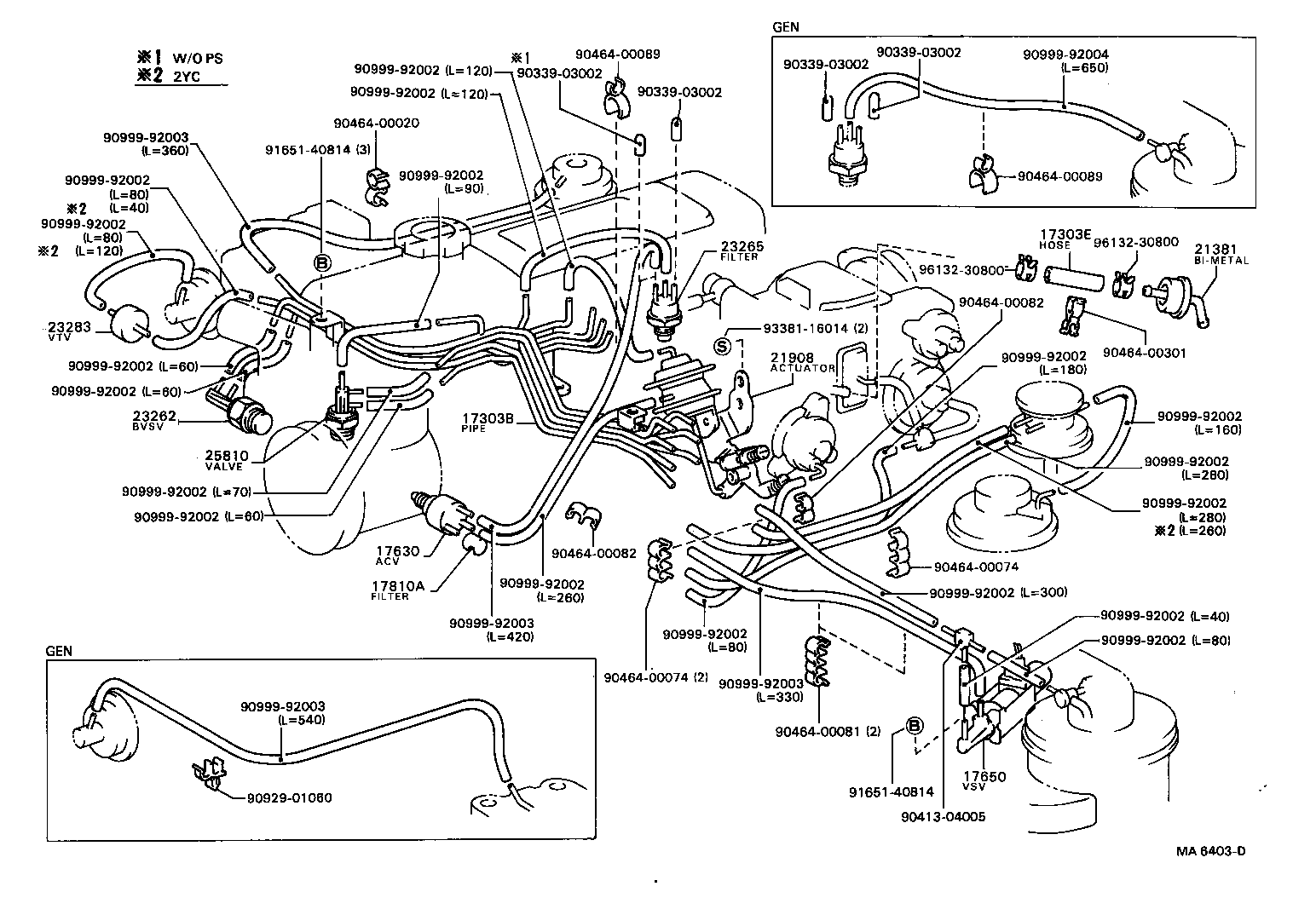

(8211-8408)3Y..ARL ; (8211-8408)2Y..GEN ; (8211-8408)2Y..LHD..EUR

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17650 17810A 21381 21908 23262 23265 23283 25810 9033903002 9033903002 9033903002 9033903002 9041304005 9046400020 9046400074 9046400074 9046400081 9046400082 9046400082 9046400089 9046400089 9046400301 9092901060 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992004 9165140814 9165140814 9338116014 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y#..YR21..ARL

 1
17303-71040

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17303-71030

3Y..YR21;2Y..YR20..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90910-05181

3Y#..YR21..ARL

 1
90445-14079

2Y#,3Y#..YR2#..ARL,EUR

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

2Y#,3Y#..YR20,21

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28050

2Y..YR20..4FC;2YC,3Y#..YR2#..ARL

 1
89570-28050

3Y#..YR21..ARL

 1
17810A - FILTER ASSY, AIR
90925-06007

2Y#,3Y#..YR20,21

W/PS

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3Y#..YR21..ARL

 1
21381-13010

2Y,3Y#..YR2#..ARL,EUR

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

3Y#..YR21..ARL;3Y..YR21..LHD..EUR

W/PS

 1
21908-71020

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
21908-71010

3Y..YR21..ARL;2Y#,3YC..YR2#..ARL,GEN

W/PS

 1
21908-71010

3Y..YR21..ARL

NEW ZEALAND SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05017

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y#,3Y#..YR20,21

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YC,3Y#..YR2#;2Y..YR20..LHD..EUR

 1
90925-01027

3Y#..YR21..ARL,EUR

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
Common parts
90339-03002
90413-04005
90464-00020
90464-00074
90464-00081
90464-00082
90464-00089
90464-00301
90929-01060
90999-92002
90999-92003
90999-92004
91651-40814
93381-16014
96132-30800

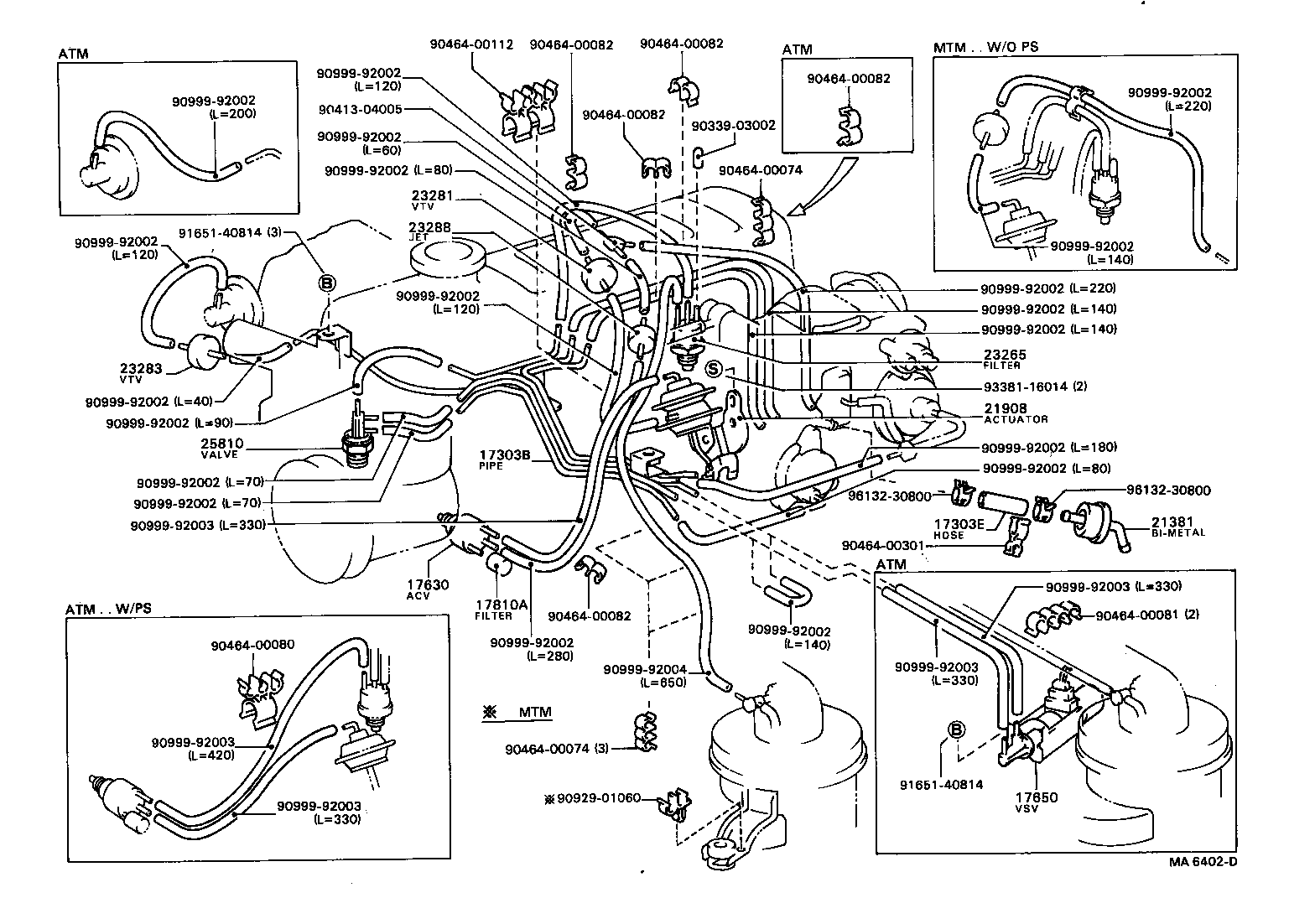

(8408- )3Y

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17810A 21381 21908 23265 23281 23283 23288 25810 9033903002 9041304005 9046400074 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400102 9046400301 9092901060 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9165140814 9338116014 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y#..YR21..ARL

 1
17303-71040

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17303-71030

3Y..YR21;2Y..YR20..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90910-05181

3Y#..YR21..ARL

 1
90445-14079

2Y#,3Y#..YR2#..ARL,EUR

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

2Y#,3Y#..YR20,21

W/PS

 1
17810A - FILTER ASSY, AIR
90925-06007

2Y#,3Y#..YR20,21

W/PS

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3Y#..YR21..ARL

 1
21381-13010

2Y,3Y#..YR2#..ARL,EUR

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

3Y#..YR21..ARL;3Y..YR21..LHD..EUR

W/PS

 1
21908-71020

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
21908-71010

3Y..YR21..ARL;2Y#,3YC..YR2#..ARL,GEN

W/PS

 1
21908-71010

3Y..YR21..ARL

NEW ZEALAND SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y#,3Y#..YR20,21

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

3Y#..YR21..ARL

 1
90925-01075

3Y..YR21;2Y..YR20..5F..EUR

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YC,3Y#..YR2#;2Y..YR20..LHD..EUR

 1
90925-01027

3Y#..YR21..ARL,EUR

 1
23288 - JET, NO.1
90925-04004

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
90925-04006

3Y#..YR21..ARL

 1
90925-04004

3Y#..YR21..ARL

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
Common parts
90339-03002
90413-04005
90464-00074
90464-00082
90464-00102
90464-00301
90929-01060
90999-92002
90999-92003
91651-40814
93381-16014
96132-30800

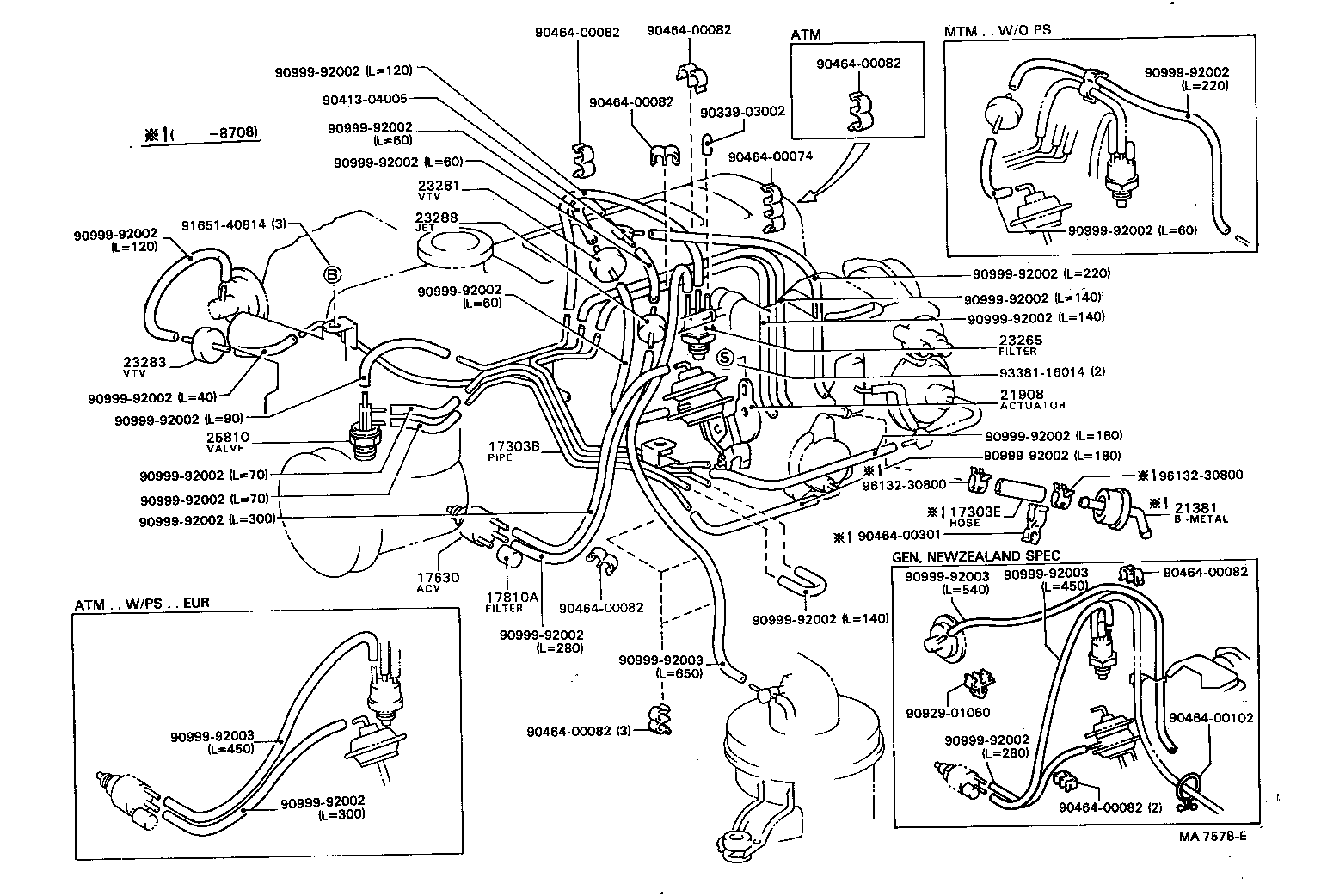

(8408-8508)3YC ; (8508-8701)3Y..LHD..EUR

Click highlighted areas on diagram

diagram 17303B 17303E 17630 17650 17650 17810A 21381 21908 23262 23265 23283 25810 9033903002 9033903002 9033903002 9041304005 9046400020 9046400074 9046400074 9046400081 9046400082 9046400082 9046400082 9046400082 9046400082 9046400301 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992004 9165140612 9165140814 9165140814 9338116014 9613230800 9613230800
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y#..YR21..ARL

 1
17303-71040

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17303-71030

3Y..YR21;2Y..YR20..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90910-05181

3Y#..YR21..ARL

 1
90445-14079

2Y#,3Y#..YR2#..ARL,EUR

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

2Y#,3Y#..YR20,21

W/PS

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28050

2Y..YR20..4FC;2YC,3Y#..YR2#..ARL

 1
89570-28050

3Y#..YR21..ARL

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-28050

2Y..YR20..4FC;2YC,3Y#..YR2#..ARL

 1
89570-28050

3Y#..YR21..ARL

 1
17810A - FILTER ASSY, AIR
90925-06007

2Y#,3Y#..YR20,21

W/PS

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3Y#..YR21..ARL

 1
21381-13010

2Y,3Y#..YR2#..ARL,EUR

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

3Y#..YR21..ARL;3Y..YR21..LHD..EUR

W/PS

 1
21908-71020

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
21908-71010

3Y..YR21..ARL;2Y#,3YC..YR2#..ARL,GEN

W/PS

 1
21908-71010

3Y..YR21..ARL

NEW ZEALAND SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05017

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y#,3Y#..YR20,21

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YC,3Y#..YR2#;2Y..YR20..LHD..EUR

 1
90925-01027

3Y#..YR21..ARL,EUR

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
Common parts
90339-03002
90413-04005
90464-00020
90464-00074
90464-00081
90464-00082
90464-00301
90999-92002
90999-92003
90999-92004
91651-40612
91651-40814
93381-16014
96132-30800

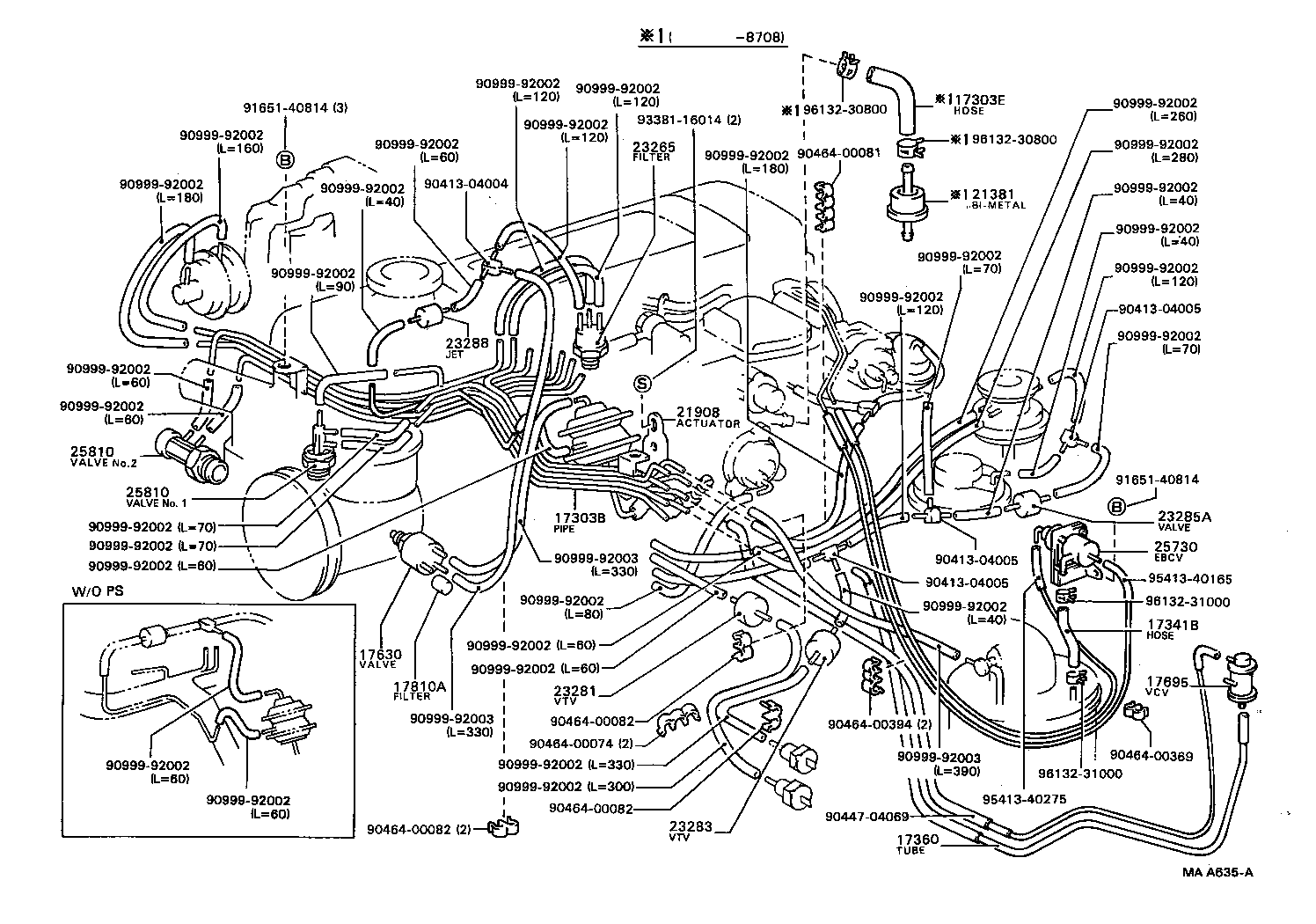

(8508- )3YC

Click highlighted areas on diagram

diagram 17303B 17303E 17341B 17360 17630 17695 17810A 21381 21908 23265 23281 23283 23285A 23288 25730 25810 25810 9041304004 9041304005 9041304005 9041304005 9044704069 9046400074 9046400081 9046400082 9046400082 9046400082 9046400369 9046400394 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9165140814 9165140814 9338116014 9541340165 9541340275 9613230800 9613230800 9613231000 9613231000
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y#..YR21..ARL

 1
17303-71040

2YC,3Y#..YR2#..ARL;2Y,3Y..YR2#..LHD..EUR

 1
17303-71030

3Y..YR21;2Y..YR20..EUR

 1
17303E - HOSE, NO.1(FOR AIR PIPE)
90910-05181

3Y#..YR21..ARL

 1
90445-14079

2Y#,3Y#..YR2#..ARL,EUR

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-72030

3Y#..YR21..ARL

 1
17360 - TUBE ASSY, AIR
17360-72020

3Y#..YR21..ARL

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

2Y#,3Y#..YR20,21

W/PS

 1
17695 - VALVE ASSY, VACUUM CONTROL
90925-03165

3Y#..YR21..4FC..ARL

 1
90925-03182

3Y#..YR21..4FC..ARL

 1
17810A - FILTER ASSY, AIR
90925-06007

2Y#,3Y#..YR20,21

W/PS

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

3Y#..YR21..ARL

 1
21381-13010

2Y,3Y#..YR2#..ARL,EUR

 1
21908 - ACTUATOR SUB-ASSY, IDLE-UP
21908-71010

3Y#..YR21..ARL;3Y..YR21..LHD..EUR

W/PS

 1
21908-71020

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
21908-71010

3Y..YR21..ARL;2Y#,3YC..YR2#..ARL,GEN

W/PS

 1
21908-71010

3Y..YR21..ARL

NEW ZEALAND SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11024

2Y#,3Y#..YR20,21

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01027

3Y#..YR21..ARL

 1
90925-01075

3Y..YR21;2Y..YR20..5F..EUR

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

2YC,3Y#..YR2#;2Y..YR20..LHD..EUR

 1
90925-01027

3Y#..YR21..ARL,EUR

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3Y#..YR21..ARL

 1
23288 - JET, NO.1
90925-04004

3Y..YR21;2Y..YR20..5F..EUR

W/PS

 1
90925-04006

3Y#..YR21..ARL

 1
90925-04004

3Y#..YR21..ARL

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-72010

3Y#..YR21..ARL

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
25810 - VALVE ASSY, BIMETAL
25810-27010

3Y#..YR21..ARL

NO.1

 1
25810-27010

3Y#..YR21..ARL,EUR

 1
25810-27010

3Y..YR21;2Y#,3YC..YR2#..ARL,EUR

 1
25820-37010

3Y#..YR21..ARL

NO.2

 1
Common parts
90413-04004
90413-04005
90447-04069
90464-00074
90464-00081
90464-00082
90464-00369
90464-00394
90999-92002
90999-92003
91651-40814
93381-16014
95413-40165
95413-40275
96132-30800
96132-31000
