YR21RG-MDQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ARL

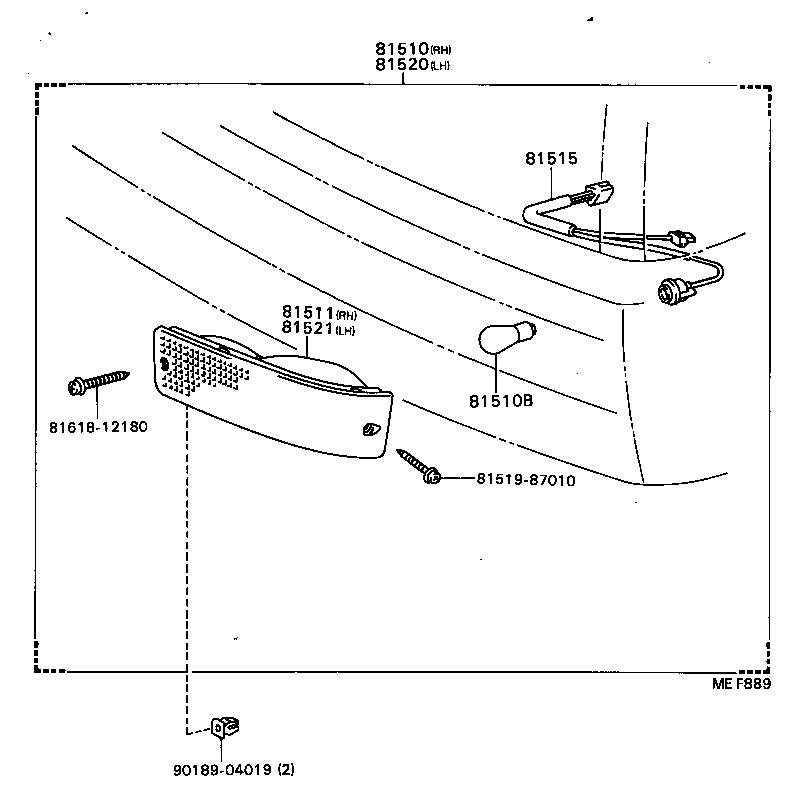

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 8151987010 81520 81521 8161812180 9018904019
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29815

CR21,YR2#

 1
81510-80035

CR21,YR2#,31..ARL

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

CR21,YR2#,31..ARL

12V 23W,12V 23W

 2
99132-11210

CR21,YR2#

12V 21W,12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-87012

CR21,YR2#,31..ARL

 1
81511-87004

CR21,YR2#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-87012

CR21,YR2#,31..ARL

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29805

CR21,YR2#

 1
81520-80035

CR21,YR2#,31..ARL

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-87003

CR21,YR2#

 1
81521-87011

CR21,YR2#,31..ARL

 1
Common parts
81519-87010
81618-12180
90189-04019
