YR21RG-MDQ (1984)
Toyota Model-F
Production
Jan 1984
-
Aug 1988
Engine
3YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8211-8501)YR2#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78011 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT | ||||
| 78011-87004 |
YR2#..RHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR21,YR2#,31..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR21,YR2#,31 |
1 | ||
| 78120 - ROD, ACCELERATOR LINK | ||||
| 78103-87003 |
YR2#..RHD |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-20061 |
CR21,YR20,21..RHD |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-87008 |
YR20,21..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-40835 |
YR2#,31..RHD |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90468-06009 | ||||
| 90480-24013 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 96160-00800 | ||||
(8501- )YR2#,31..RHD

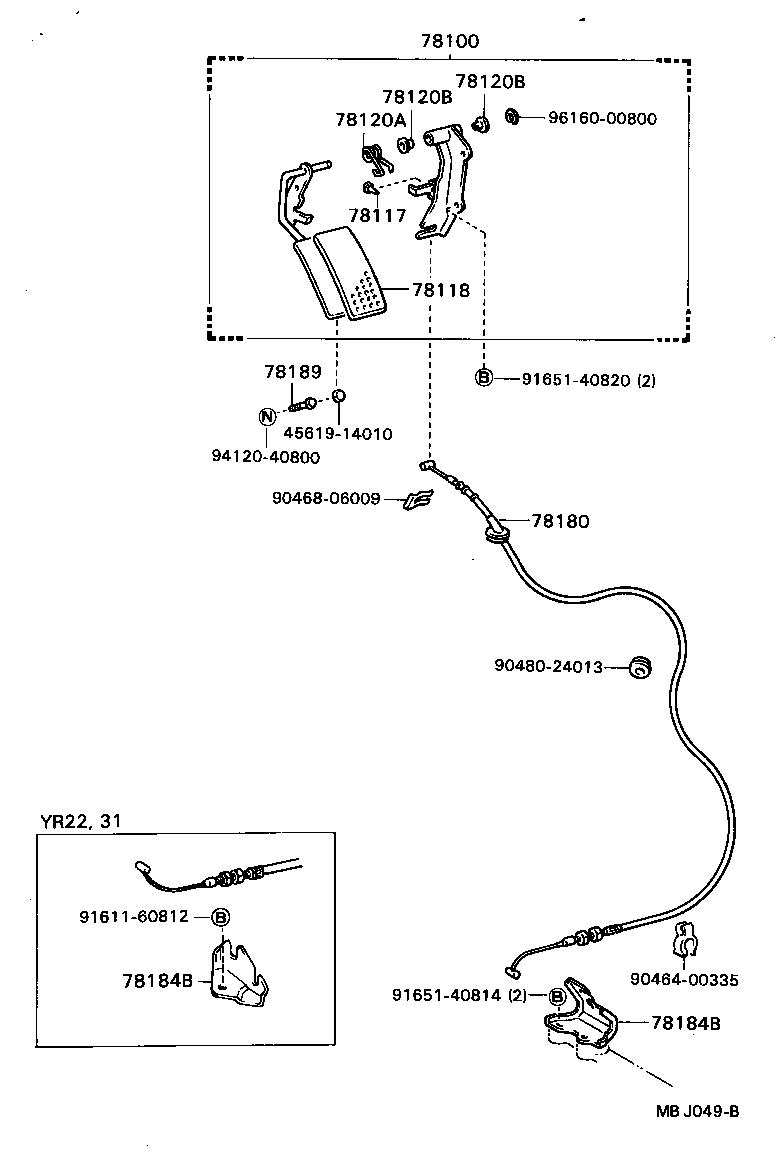

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-87004 |
YR21..RHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR21,YR2#,31..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR21,YR2#,31 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-20061 |
CR21,YR20,21..RHD |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
CR21,YR2#,31..RHD |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-87008 |
YR20,21..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-95J00 |
YR20,21 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-40835 |
YR2#,31..RHD |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90464-00335 | ||||
| 90468-06009 | ||||
| 90480-24013 | ||||
| 91611-60812 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 96160-00800 | ||||
