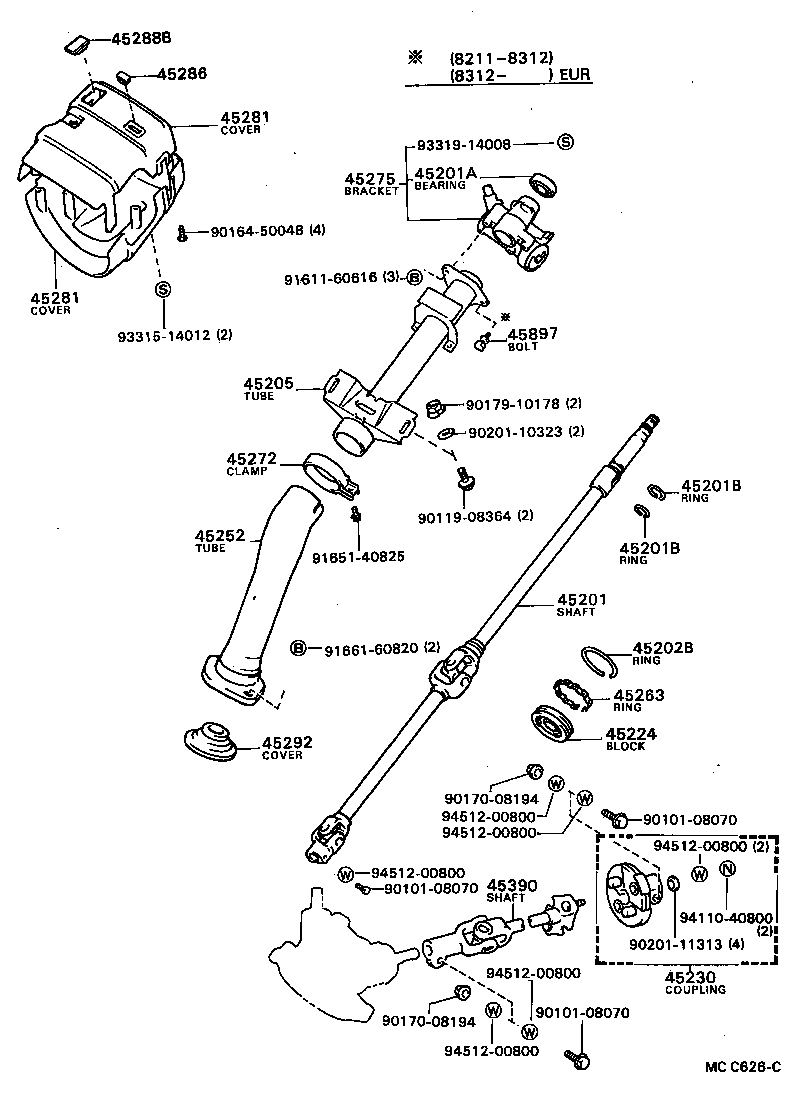

YR21RG-MDQ (1984)
Toyota Model-F
(8211-8508)DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28030 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90363-30007 |
CR21,YR2# |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-28010 |
CR21,YR2# |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
CR21,YR2#,31 L=16 |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45252-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28041 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45280-28051 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805102 |
CR21,YR21..RHD LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR21..RHD UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806005 |
CR21,YR2#..DLX..ARL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805115 |
CR21,YR2#,31..RHD UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806005 |
CR21,YR2#..DLX..ARL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2805115 |
CR21,YR2#,31..RHD LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805102 |
CR21,YR21..RHD LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR21..RHD UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806005 |
CR21,YR2#..DLX..ARL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805115 |
CR21,YR2#,31..RHD UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806005 |
CR21,YR2#..DLX..ARL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2805115 |
CR21,YR2#,31..RHD LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2810002 |
CR21,YR21..RHD WINE,RED/MAROON,TRIM1# |
1 | ||
| 45286-2810014 |
CR21,YR2#,31..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2810002 |
CR21,YR2#..RHD..DLX WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2810015 |
CR21,YR2#,31..ARL BEIGE,BEIGE,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40616 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||

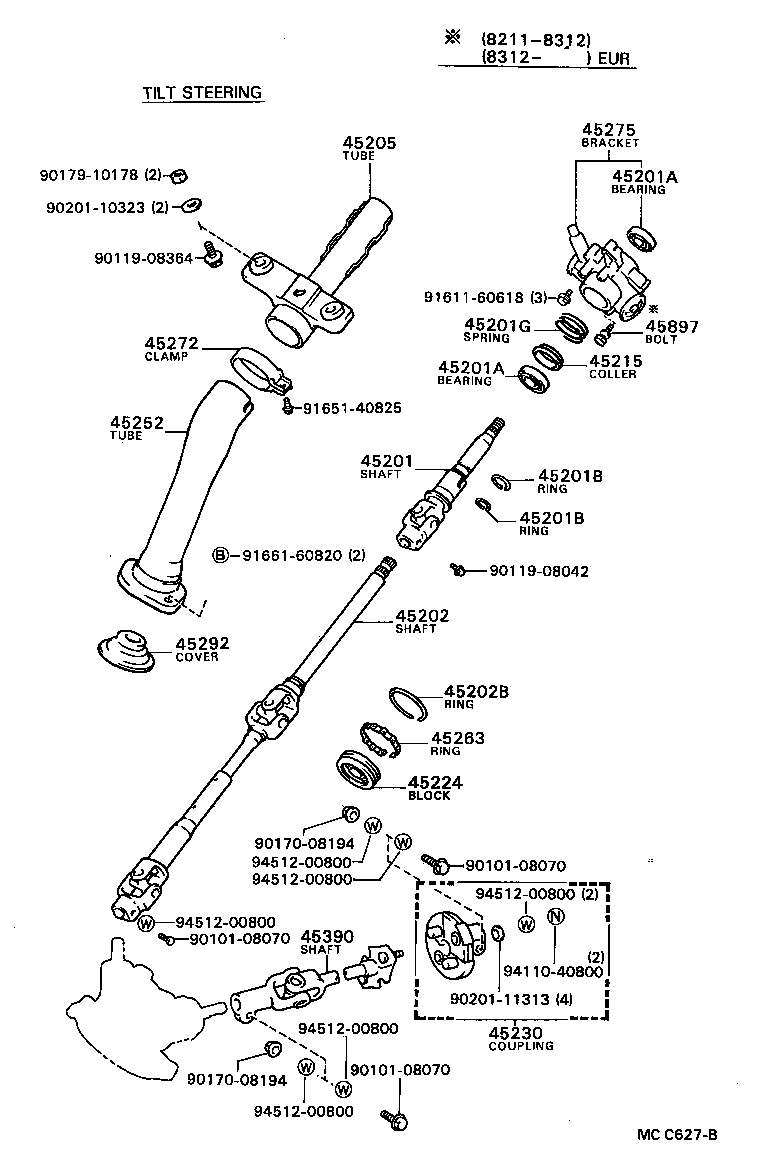

(8211-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28030 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CR21,YR2#,31 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90363-30007 |
CR21,YR2# |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-28010 |
CR21,YR2# |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CR21,YR2#,31 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
CR21,YR2#,31 L=16 |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45252-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28041 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45280-28051 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90119-06165 | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
ILLUST NO. 3 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CR21,YR2#,31 |
2 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
CR21,YR2#,31 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CR21,YR2#,31 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
CR21,YR2#,31 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-28010 |
CR21,YR2#,31..RHD |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-27010 |
CR21,YR2#,31..RHD W/POWER STEERING |
1 | ||
| 45380-28010 |
CR21,YR21..RHD |
1 | ||
| 45380A - WASHER(FOR STEERING BEVEL GEAR) | ||||
| 90209-18006 |
CR21,YR2#,31 T=2.10,MARK 6,T=2.10 |
1 | ||
| 90209-18008 |
CR21,YR2#,31 T=2.20,MARK 8,T=2.20 |
1 | ||
| 90209-18007 |
CR21,YR2#,31 T=2.15,MARK 7,T=2.15 |
1 | ||
| 90209-18002 |
CR21,YR2#,31 T=1.90,MARK 2,T=1.90 |
1 | ||
| 90209-18005 |
CR21,YR2#,31 T=2.05,MARK 5,T=2.05 |
1 | ||
| 90209-18004 |
CR21,YR2#,31 T=2.00,MARK 4,T=2.00 |
1 | ||
| 90209-18003 |
CR21,YR2#,31 T=1.95,MARK 3,T=1.95 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CR21,YR2#,31 RR |
1 | ||
| 90501-20080 |
CR21,YR2#,31 FR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
CR21,YR2#,31 RR |
1 | ||
| 90501-20080 |
CR21,YR2#,31 FR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
CR21,YR2#,31 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
CR21,YR2#,31 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
CR21,YR2#,31 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
CR21,YR2#,31 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
CR21,YR2#,31 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27020 |
CR21,YR2# RR |
1 | ||
| 45389-27010 |
CR21,YR2#,31 FR |
1 | ||
| 45389-27021 |
CR21,YR2#,31 RR |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27020 |
CR21,YR2# RR |
1 | ||
| 45389-27010 |
CR21,YR2#,31 FR |
1 | ||
| 45389-27021 |
CR21,YR2#,31 RR |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
CR21,YR2#,31 |
1 | ||
| 45545-27020 |
CR21,YR2# |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90101-10081 | ||||
| 90101-10439 | ||||
| 90119-06255 | ||||
| 90170-08021 | ||||
| 91111-51025 | ||||
| 91111-51035 | ||||
| 94512-01000 | ||||
ILLUST NO. 1 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28030 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
CR21,YR2#,31 L=16 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27030 |
CR21,YR2# W/POWER STEERING |
1 | ||
| 45230-27020 |
CR21,YR2#..MRF |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45252-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28041 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45280-28051 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805102 |
CR21,YR21..RHD LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR21..RHD UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806005 |
CR21,YR2#..DLX..ARL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805115 |
CR21,YR2#,31..RHD UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806005 |
CR21,YR2#..DLX..ARL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2805115 |
CR21,YR2#,31..RHD LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805102 |
CR21,YR21..RHD LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR21..RHD UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806005 |
CR21,YR2#..DLX..ARL UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805115 |
CR21,YR2#,31..RHD UPR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806005 |
CR21,YR2#..DLX..ARL LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2805115 |
CR21,YR2#,31..RHD LWR,W/TILT STEERING,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2810002 |
CR21,YR21..RHD WINE,RED/MAROON,TRIM1# |
1 | ||
| 45286-2810014 |
CR21,YR2#,31..ARL BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2810002 |
CR21,YR2#..RHD..DLX WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2810015 |
CR21,YR2#,31..ARL BEIGE,BEIGE,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-28010 |
CR21,YR2#..MRF |
1 | ||
| 45390-28020 |
CR21,YR2# W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08364 | ||||
| 90164-50048 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90201-11313 | ||||
| 91611-60616 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 3(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28030 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CR21,YR2#,31 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CR21,YR2#,31 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
CR21,YR2#,31 L=16 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-27030 |
CR21,YR2# W/POWER STEERING |
1 | ||
| 45230-27020 |
CR21,YR2#..MRF |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45252-28070 |
CR21,YR2#,31..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28041 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45280-28051 |
CR21,YR2#..DLX..ARL |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-28010 |
CR21,YR2#..MRF |
1 | ||
| 45390-28020 |
CR21,YR2# W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90170-08194 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90201-11313 | ||||
| 91611-60618 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
