YR21RG-MDQ (1984)
Toyota Model-F

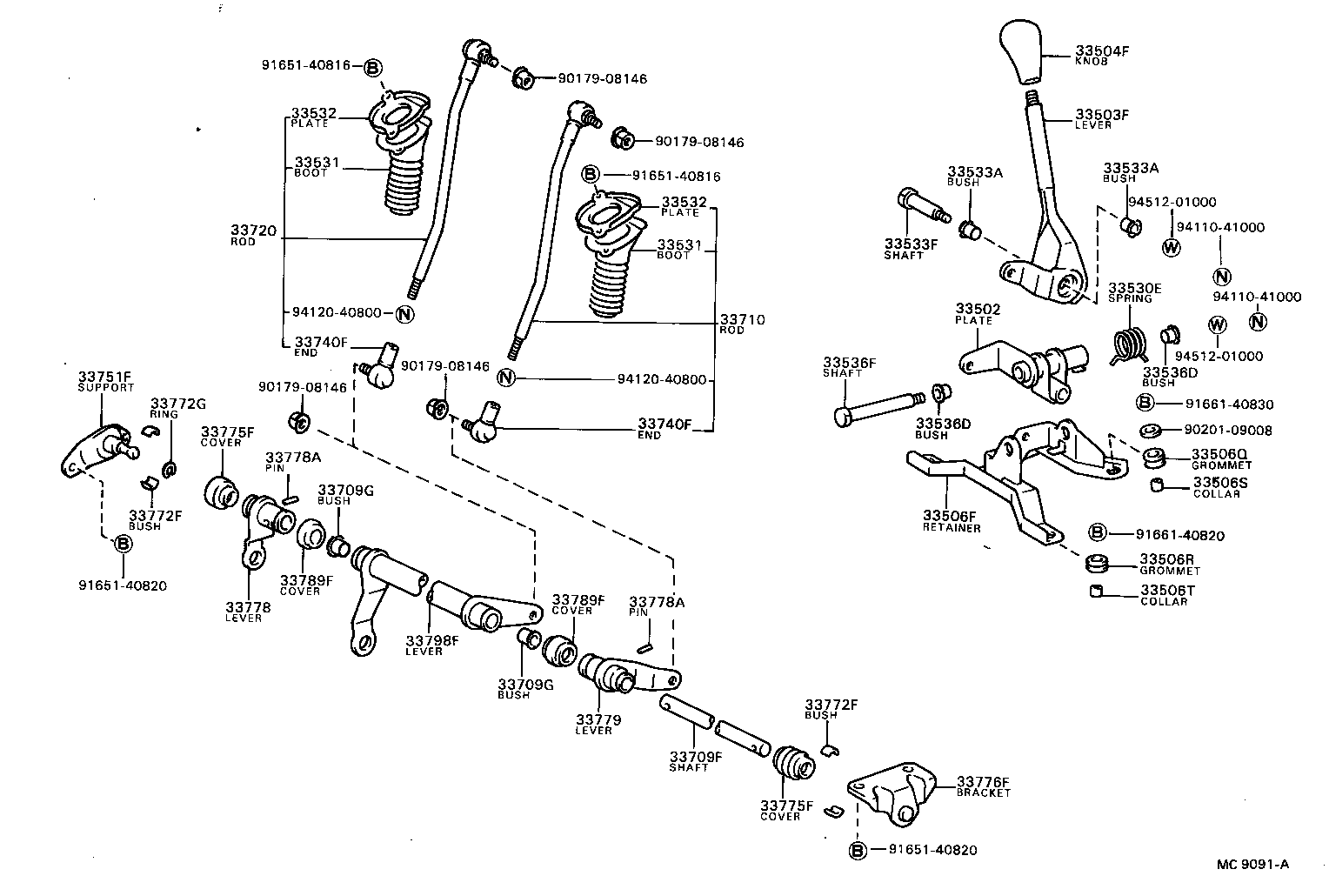

ILLUST NO. 1 OF 2(8211-8408)YR2#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-28030 |
YR2#..5F |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-28061 |
CR21,YR2#,31..RHD..5F |
1 | ||
| 33503-28050 |
YR2#..RHD..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401005 |
CR21,YR2#..5F URETHAN,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2401012 |
CR21,YR21..5F URETHAN,WINE,RED/MAROON,TRIM4# |
1 | ||
| 33504-2401025 |
CR21,YR2#,31..5F URETHAN,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2401023 |
CR21,YR2#..5F URETHAN,GRAY,GRAY,TRIM1# |
1 | ||
| 33504-2401025 |
CR21,YR21,31..5F URETHAN,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-28040 |
CR21,YR21..5F |
1 | ||
| 33506-28030 |
YR2#..5F |
1 | ||
| 33506-28090 |
CR21,YR2#,31..RHD..5F |
1 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13012 |
CR21,YR2#,31..5F |
4 | ||
| 33506R - GROMMET, NO.2(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13014 |
YR2#..5F |
2 | ||
| 33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09011 |
CR21,YR2#,31..5F |
4 | ||
| 33506T - COLLAR, NO.2(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90387-09013 |
YR2#..5F |
2 | ||
| 33530E - SPRING, TENSION (FOR SELECT RETURN) | ||||
| 90508-32013 |
YR2#..5F |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-28010 |
YR2#..5F |
2 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-28010 |
YR2#..5F |
2 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-28010 |
YR2#..5F |
2 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-28010 |
YR2#..5F |
2 | ||
| 33533A - BUSH (FOR BELLCRANK SHAFT) | ||||
| 90386-13007 |
YR2#..5F |
2 | ||
| 33533A - BUSH (FOR BELLCRANK SHAFT) | ||||
| 90386-13007 |
YR2#..5F |
2 | ||
| 33533F - SHAFT, BELLCRANK (FOR FLOOR SHIFT) | ||||
| 33533-28020 |
YR2#..5F |
1 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
CR21,YR2#,31..5F |
2 | ||
| 90386-13007 |
YR2#..5F |
2 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-12013 |
CR21,YR2#,31..5F |
2 | ||
| 90386-13007 |
YR2#..5F |
2 | ||
| 33536F - SHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT) | ||||
| 33536-28020 |
YR2#..5F |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33771-28050 |
YR2#..5F |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90386-15110 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90386-15110 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-28050 |
YR2#..5F |
1 | ||
| 33720 - ROD ASSY, SHIFT LEVER HOUSING | ||||
| 33720-28040 |
YR2#..5F |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
YR2#..5F |
2 | ||
| 33740-35011 |
YR2#..5F |
2 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
YR2#..5F |
2 | ||
| 33740-35011 |
YR2#..5F |
2 | ||
| 33751F - SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT) | ||||
| 33751-28030 |
YR2#..5F |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
YR2#..5F |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
YR2#..5F |
4 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
YR2#..5F |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
YR2#..5F CROSS SHAFT NO.1,RH;CROSS SHAFT NO.2,LH |
1 | ||
| 33775-28030 |
YR2#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775-20040 |
YR2#..5F CROSS SHAFT NO.1,LH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
YR2#..5F CROSS SHAFT NO.1,RH;CROSS SHAFT NO.2,LH |
1 | ||
| 33775-28030 |
YR2#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775-20040 |
YR2#..5F CROSS SHAFT NO.1,LH |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-28030 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33776-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33778 - LEVER, CROSS SHAFT, NO.1 | ||||
| 33778-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33778-28060 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33778A - PIN(FOR CROSS SHAFT LEVER, NO.1) | ||||
| 90256-06001 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90256-08001 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33778A - PIN(FOR CROSS SHAFT LEVER, NO.1) | ||||
| 90256-06001 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90256-08001 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33779 - ARM, SHIFT LEVER HOUSING, NO.2 | ||||
| 33779-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33779-28060 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36010 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 33789-36030 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36010 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 33789-36030 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33798F - LEVER, CROSS SHAFT, NO.3 | ||||
| 33798-28030 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33798-28050 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-09008 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91661-40820 | ||||
| 91661-40830 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||

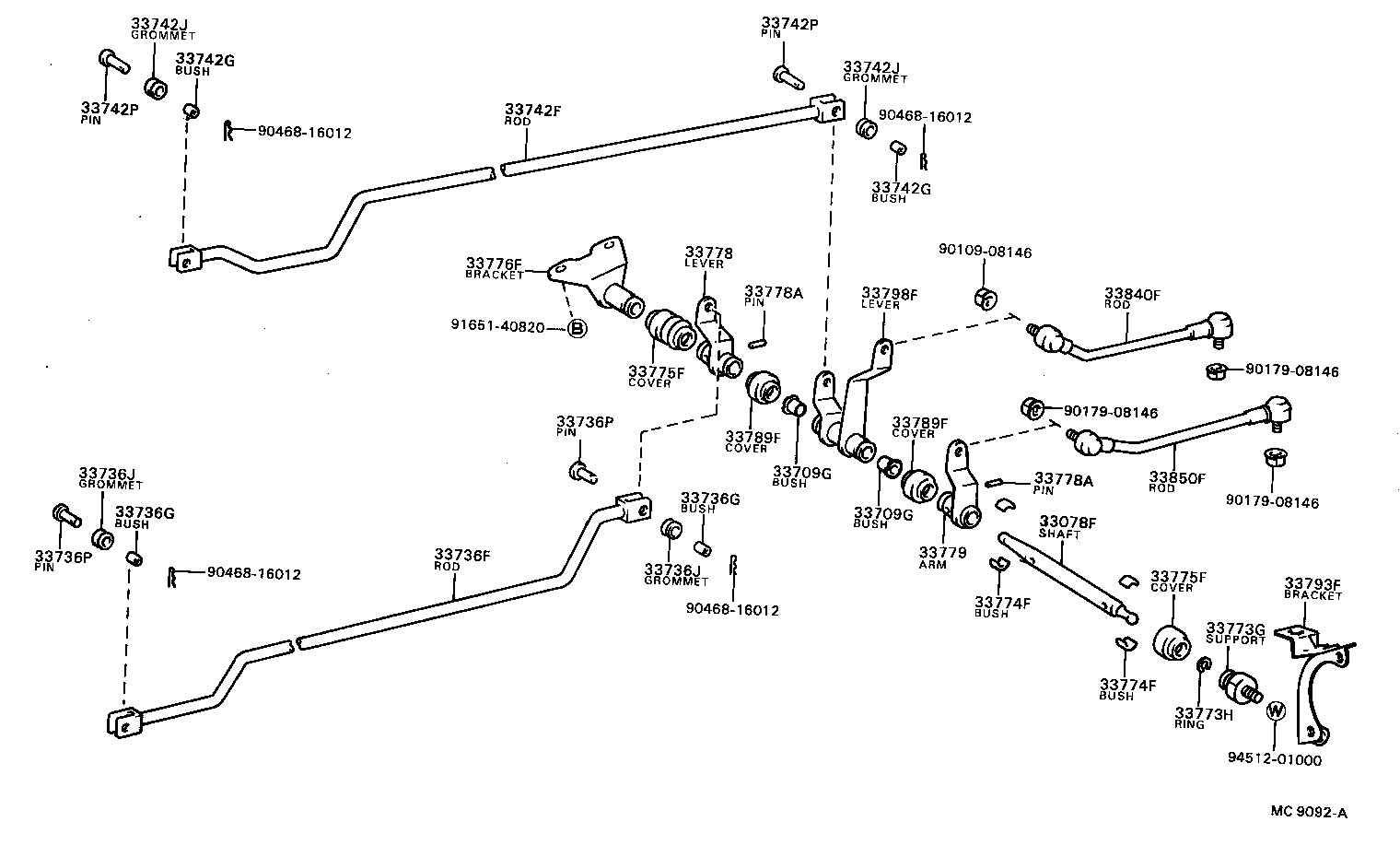

ILLUST NO. 2 OF 2(8211-8408)YR2#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33078F - SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT) | ||||
| 33771-28030 |
YR2#..5F |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90386-15110 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90386-15110 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33075-28050 |
YR2#..5F |
1 | ||
| 33736G - BUSH(FOR SELECTING NO.2 ROD) | ||||
| 90389-08005 |
YR2#..5F |
2 | ||
| 33736G - BUSH(FOR SELECTING NO.2 ROD) | ||||
| 90389-08005 |
YR2#..5F |
2 | ||
| 33736J - GROMMET(FOR SELECTING NO.2 ROD) | ||||
| 90480-17015 |
YR2#..5F |
2 | ||
| 33736J - GROMMET(FOR SELECTING NO.2 ROD) | ||||
| 90480-17015 |
YR2#..5F |
2 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08034 |
YR2#..5F |
2 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08034 |
YR2#..5F |
2 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33703-28050 |
YR2#..5F |
1 | ||
| 33742G - BUSH(FOR SHIFTING, NO.2 ROD) | ||||
| 90389-08005 |
YR2#..5F |
2 | ||
| 33742G - BUSH(FOR SHIFTING, NO.2 ROD) | ||||
| 90389-08005 |
YR2#..5F |
2 | ||
| 33742J - GROMMET(FOR SHIFTING NO.2 ROD) | ||||
| 90480-17015 |
YR2#..5F |
2 | ||
| 33742J - GROMMET(FOR SHIFTING NO.2 ROD) | ||||
| 90480-17015 |
YR2#..5F |
2 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
YR2#..5F |
2 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
YR2#..5F |
2 | ||
| 33773G - SUPPORT, CROSS SHAFT | ||||
| 33773-20020 |
YR2#..5F |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
YR2#..5F |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
YR2#..5F |
4 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
YR2#..5F |
4 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
YR2#..5F CROSS SHAFT NO.1,RH;CROSS SHAFT NO.2,LH |
1 | ||
| 33775-28030 |
YR2#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775-20040 |
YR2#..5F CROSS SHAFT NO.1,LH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
YR2#..5F CROSS SHAFT NO.1,RH;CROSS SHAFT NO.2,LH |
1 | ||
| 33775-28030 |
YR2#..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775-20040 |
YR2#..5F CROSS SHAFT NO.1,LH |
1 | ||
| 33776F - BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33776-28030 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33776-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33778 - LEVER, CROSS SHAFT, NO.1 | ||||
| 33778-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33778-28060 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33778A - PIN(FOR CROSS SHAFT LEVER, NO.1) | ||||
| 90256-06001 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90256-08001 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33778A - PIN(FOR CROSS SHAFT LEVER, NO.1) | ||||
| 90256-06001 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 90256-08001 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33779 - ARM, SHIFT LEVER HOUSING, NO.2 | ||||
| 33779-28050 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33779-28060 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36010 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 33789-36030 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36010 |
YR2#..5F CROSS SHAFT NO.2 |
2 | ||
| 33789-36030 |
YR2#..5F CROSS SHAFT NO.1 |
2 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-27010 |
YR2#..5F |
1 | ||
| 33798F - LEVER, CROSS SHAFT, NO.3 | ||||
| 33798-28030 |
YR2#..5F CROSS SHAFT NO.1 |
1 | ||
| 33798-28050 |
YR2#..5F CROSS SHAFT NO.2 |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-28050 |
YR2#..5F |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-28020 |
YR2#..5F |
1 | ||
| Common parts | ||||
| 90109-08146 | ||||
| 90179-08146 | ||||
| 90468-16012 | ||||
| 91651-40820 | ||||
| 94512-01000 | ||||
