YR21RG-MD (1984)

Toyota Model-F

Production Aug 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

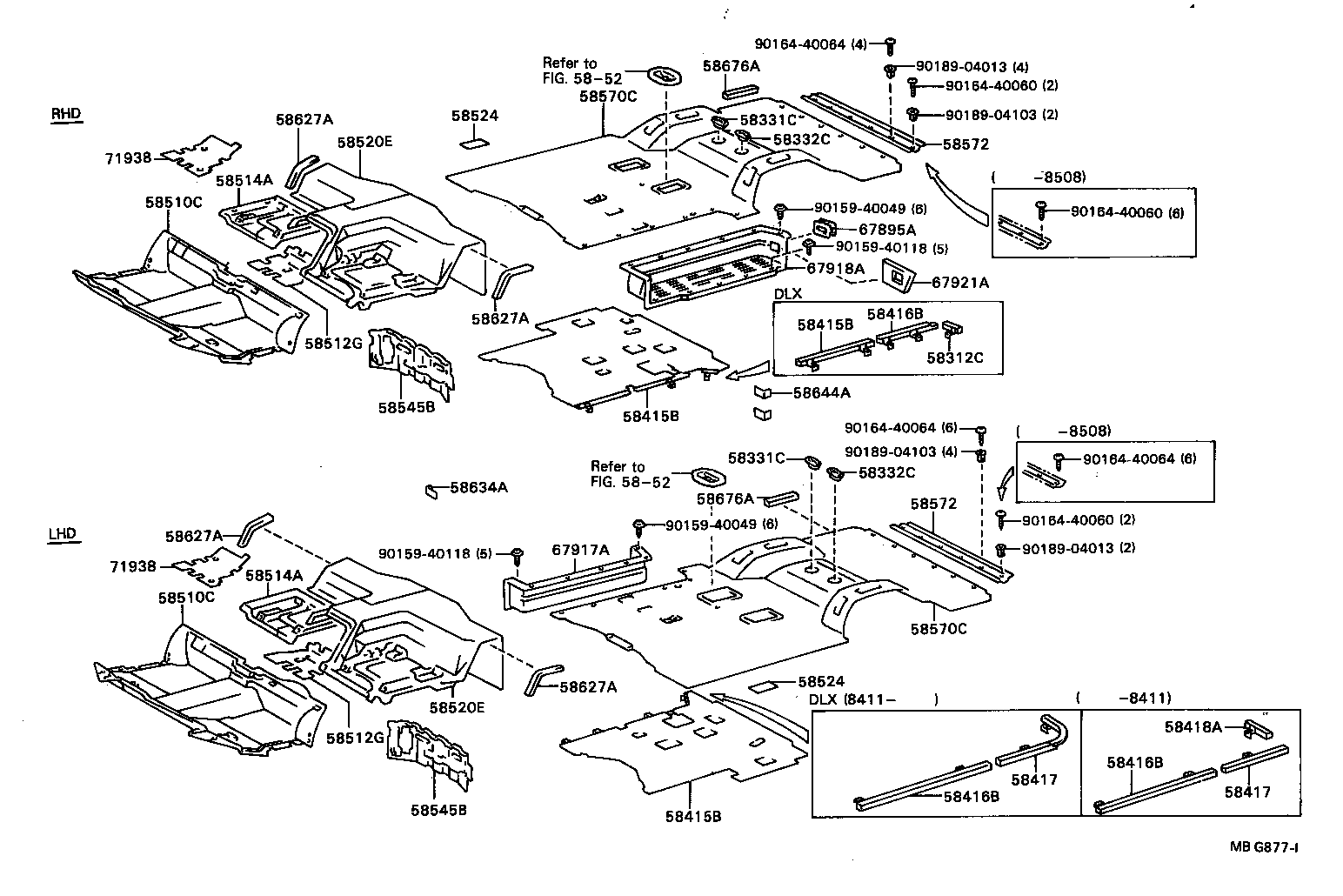

Click highlighted areas on diagram

diagram 58312C 58331C 58331C 58332C 58332C 58415B 58415B 58415B 58416B 58416B 58416B 58417 58417 58418A 58510C 58510C 58512G 58512G 58514A 58514A 5852 5852 58520E 58520E 58524 58524 58545B 58545B 58570C 58570C 58572 58572 58627A 58627A 58627A 58627A 58634A 58644A 58676A 58676A 67895A 67917A 67918A 67921A 71938 71938 9015940049 9015940049 9015940118 9015940118 9016440060 9016440060 9016440060 9016440064 9016440064 9016440064 9018904013 9018904013 9018904103 9018904103
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-87040

CR21,YR2#..RHD..DLX

 1
58510-87042

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX

 1
58510-87043

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX,*WS

 1
58510-8706002

CR21,YR21..RHD..DLX

WINE,WINE,TRIM4#

 1
58510-8706202

CR21,YR21..RHD..DLX

W/COOL BOX,WINE,WINE,TRIM4#

 1
58510-8706402

CR21,YR21..RHD..DLX

W/COOL BOX,*WS,WINE,WINE,TRIM4#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-87040

CR21,YR2#..RHD..DLX

 1
58510-87042

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX

 1
58510-87043

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/COOL BOX,*WS

 1
58510-8706002

CR21,YR21..RHD..DLX

WINE,WINE,TRIM4#

 1
58510-8706202

CR21,YR21..RHD..DLX

W/COOL BOX,WINE,WINE,TRIM4#

 1
58510-8706402

CR21,YR21..RHD..DLX

W/COOL BOX,*WS,WINE,WINE,TRIM4#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87004

CR21,YR2#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87004

CR21,YR2#

 1
58514A - CARPET, FLOOR, CENTER
58530-8707902

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58530-87G0102

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58514A - CARPET, FLOOR, CENTER
58530-8707902

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58530-87G0102

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58520E - CARPET ASSY, FRONT FLOOR, FRONT NO.2
58520-87030

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,BEIGE

 1
58520-8704602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58520-8704502

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8705002

CR21,YR21..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8704902

CR21,YR21..RHD..GEN

W/RR COOLER,WINE,WINE,TRIM4#

 1
58520-8704702

CR21,YR21..RHD..DLX

W/*REH,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8704802

CR21,YR21..RHD..GEN

W/*REH,WINE,WINE,TRIM4#

 1
58520-87G1502

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58520-87G1802

CR21,YR21..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-87G1702

CR21,YR21..RHD..GEN

W/RR COOLER,WINE,WINE,TRIM4#

 1
58520-87G1602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58520E - CARPET ASSY, FRONT FLOOR, FRONT NO.2
58520-87030

CR21,YR2#..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,BEIGE

 1
58520-8704602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58520-8704502

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8705002

CR21,YR21..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8704902

CR21,YR21..RHD..GEN

W/RR COOLER,WINE,WINE,TRIM4#

 1
58520-8704702

CR21,YR21..RHD..DLX

W/*REH,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-8704802

CR21,YR21..RHD..GEN

W/*REH,WINE,WINE,TRIM4#

 1
58520-87G1502

CR21,YR21..RHD..DLX

W/SEAT BELT,WINE,WINE,TRIM4#

 1
58520-87G1802

CR21,YR21..RHD..DLX..(ARL,GEN)

W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#

 1
58520-87G1702

CR21,YR21..RHD..GEN

W/RR COOLER,WINE,WINE,TRIM4#

 1
58520-87G1602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58524 - FASTENER, FLOOR MAT, MALE
90530-25004

CR21,YR2#,31

 2
58524 - FASTENER, FLOOR MAT, MALE
90530-25004

CR21,YR2#,31

 2
58545B - SILENCER, HEADER PANEL
58545-87001

CR21,YR2#,31

 1
58545B - SILENCER, HEADER PANEL
58545-87001

CR21,YR2#,31

 1
58570C - CARPET ASSY, REAR FLOOR
58540-8707402

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58540-87G1602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58570C - CARPET ASSY, REAR FLOOR
58540-8707402

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58540-87G1602

CR21,YR21..RHD..GEN

WINE,WINE,TRIM4#

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58574-87001

CR21,YR2#,31

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58574-87001

CR21,YR2#,31

 1
58644A - PLATE, ENGINE SERVICE HOLE MAT, LH
58634-87001

CR21,YR2#,31..RHD

 2
67918A - PLATE, REAR DOOR SCUFF, LH
67920-8700402

CR21,YR21..RHD..DLX

WINE,WINE,TRIM4#

 1
Common parts
90159-40049
90159-40118
90164-40060
90164-40064
90189-04013
90189-04103
Linked diagrams
5852
