YR21LG-MQW (1988)
Toyota Model-F

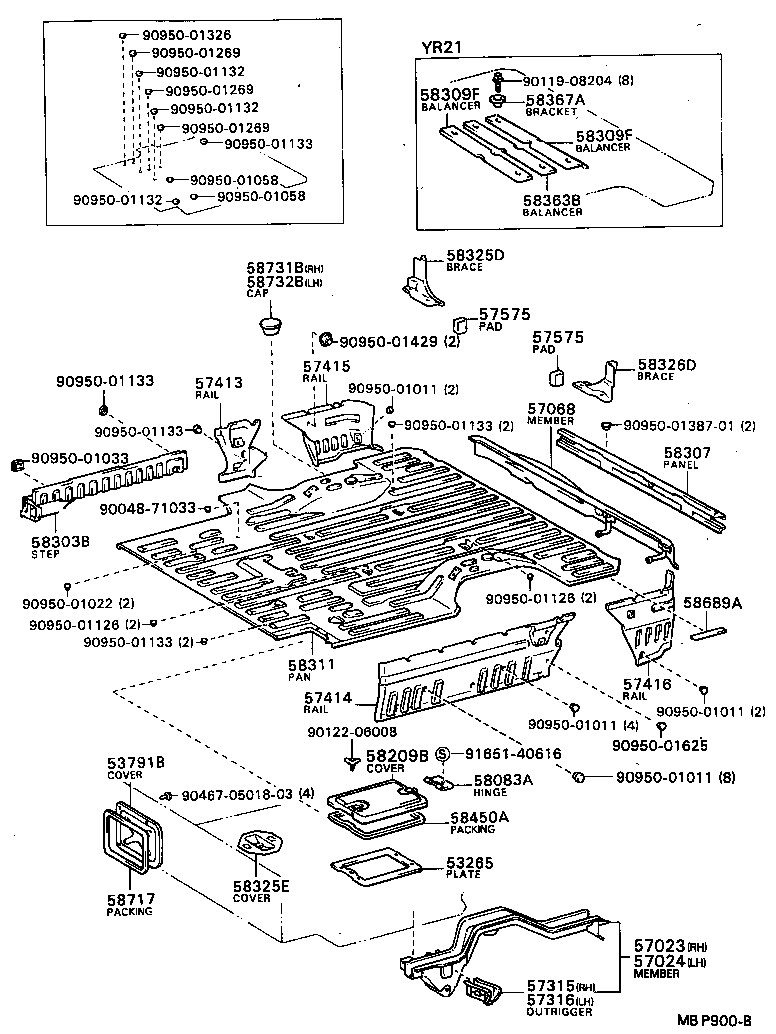

ILLUST NO. 1 OF 2(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53265 - PLATE, BATTERY CARRIER MOUNTING, NO.2 | ||||
| 53266-28020 |
YR2#..LHD |
1 | ||
| 53791B - COVER, COOL AIR INTAKE HOLE | ||||
| 53791-87003 |
YR2#,31..LHD |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-28916 |
YR2#..LHD..GL |
1 | ||
| 57023-28919 |
YR21..LHD..GL NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-28917 |
YR21..LHD..GL NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY |
1 | ||
| 57024-28915 |
YR2#..LHD |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-28040 |
YR21..LHD *FRG |
1 | ||
| 57068-87007 |
YR2# |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-28010 |
YR2#,31..LHD..GL |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57315-87004 |
YR2#,31..LHD |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-28011 |
YR2#,31..LHD |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-28041 |
YR2#,31..LHD |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-87007 |
YR2#,31 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-87009 |
YR2#,31 |
1 | ||
| 57575 - PAD, DUSTPROOF FLOOR, REAR | ||||
| 57575-87002 |
YR2#,31 |
2 | ||
| 57575 - PAD, DUSTPROOF FLOOR, REAR | ||||
| 57575-87002 |
YR2#,31 |
2 | ||
| 58083A - HINGE SUB-ASSY, BATTERY SERVICE COVER, MALE | ||||
| 58083-87002 |
YR2#,31 |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-87001 |
YR2#,31 |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-87001 |
YR2#,31..LHD |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-87004 |
YR2# |
1 | ||
| 58309F - BALANCER SUB-ASSY, REAR FLOOR | ||||
| 58309-28010 |
YR21..LHD..GL RR |
1 | ||
| 58309-28020 |
YR21..LHD..GL FR |
1 | ||
| 58309F - BALANCER SUB-ASSY, REAR FLOOR | ||||
| 58309-28010 |
YR21..LHD..GL RR |
1 | ||
| 58309-28020 |
YR21..LHD..GL FR |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-28081 |
YR2#,31..LHD |
1 | ||
| 58311-28091 |
YR2#,31..LHD..GL W(CAPTAIN SEAT) |
1 | ||
| 58311-28111 |
YR21..LHD..GL NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY |
1 | ||
| 58325D - BRACE, REAR FLOOR PANEL, RH | ||||
| 58325-87001 |
YR2#,31 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-8700216 |
YR2#,31..GL SABLE,TRIM4# |
1 | ||
| 58326D - BRACE, REAR FLOOR PANEL, LH | ||||
| 58326-87001 |
YR2#,31 |
1 | ||
| 58363B - BALANCER, REAR FLOOR, NO.1 | ||||
| 58363-28020 |
YR21..LHD..GL NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY |
1 | ||
| 58367A - BRACKET, REAR FLOOR BALANCER | ||||
| 58367-28010 |
YR21..LHD..GL |
6 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-87002 |
YR2#,31 |
1 | ||
| 58689A - WEIGHT, REAR FLOOR | ||||
| 58689-95J00 |
YR21..LHD..GL NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY |
6 | ||
| 58689-95J00 |
YR2# |
8 | ||
| 58717 - PACKING, COOLER AIR INLET COVER | ||||
| 58717-87004 |
YR2#,31..LHD |
1 | ||
| 58731B - CAP, REAR ABSORBER, RH | ||||
| 58731-87002 |
YR2#,31 |
1 | ||
| 58732B - CAP, REAR ABSORBER, LH | ||||
| 58732-87002 |
YR2#,31 |
1 | ||
| Common parts | ||||
| 90048-71033 | ||||
| 90119-08204 | ||||
| 90122-06008 | ||||
| 90467-0501803 | ||||
| 90950-01011 | ||||
| 90950-01022 | ||||
| 90950-01033 | ||||
| 90950-01058 | ||||
| 90950-01126 | ||||
| 90950-01132 | ||||
| 90950-01133 | ||||
| 90950-01269 | ||||
| 90950-01326 | ||||
| 90950-0138701 | ||||
| 90950-01429 | ||||
| 90950-01625 | ||||
| 91651-40616 | ||||

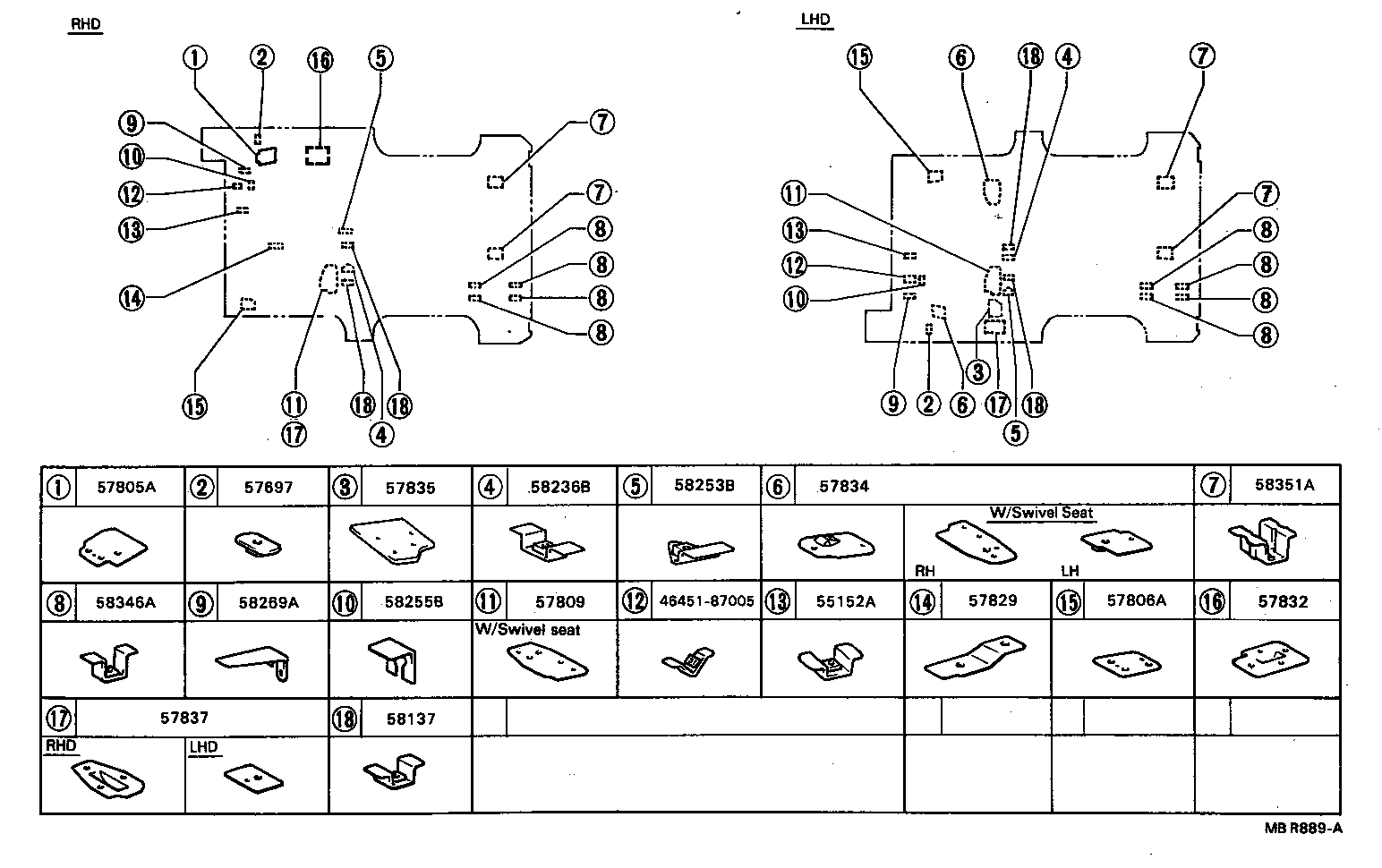

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55152A - BRACKET, 3 WAY ATTACHING | ||||
| 55152-87001 |
YR2#,31 |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-87701 |
YR2#,31 |
1 | ||
| 57697-87701 |
YR2#,31..LHD |
1 | ||
| 57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 | ||||
| 57806-28010 |
YR2#..LHD..GL |
1 | ||
| 57809 - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.5 | ||||
| 57809-28010 |
YR2#..LHD..GL |
1 | ||
| 57834 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 | ||||
| 57808-28010 |
YR2#,31..LHD |
1 | ||
| 57808-28060 |
YR2#..LHD..GL RH |
1 | ||
| 57808-28030 |
YR2#..LHD..GL LH |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-28030 |
YR2#..LHD..GL |
1 | ||
| 57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57837-28010 |
YR2#,31..LHD |
1 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
YR2#..LHD |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
YR2#,31 |
1 | ||
| 58253B - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-87002 |
YR2#,31 |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58267-87003 |
YR2#,31 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-87002 |
YR2#,31 |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-87003 |
YR2#,31 |
4 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-87003 |
YR2#,31 |
2 | ||
| Common parts | ||||
| 46451-87005 | ||||
