YR21LG-MQ (1984)

Toyota Model-F

Production Jan 1984 - Aug 1988
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8509)

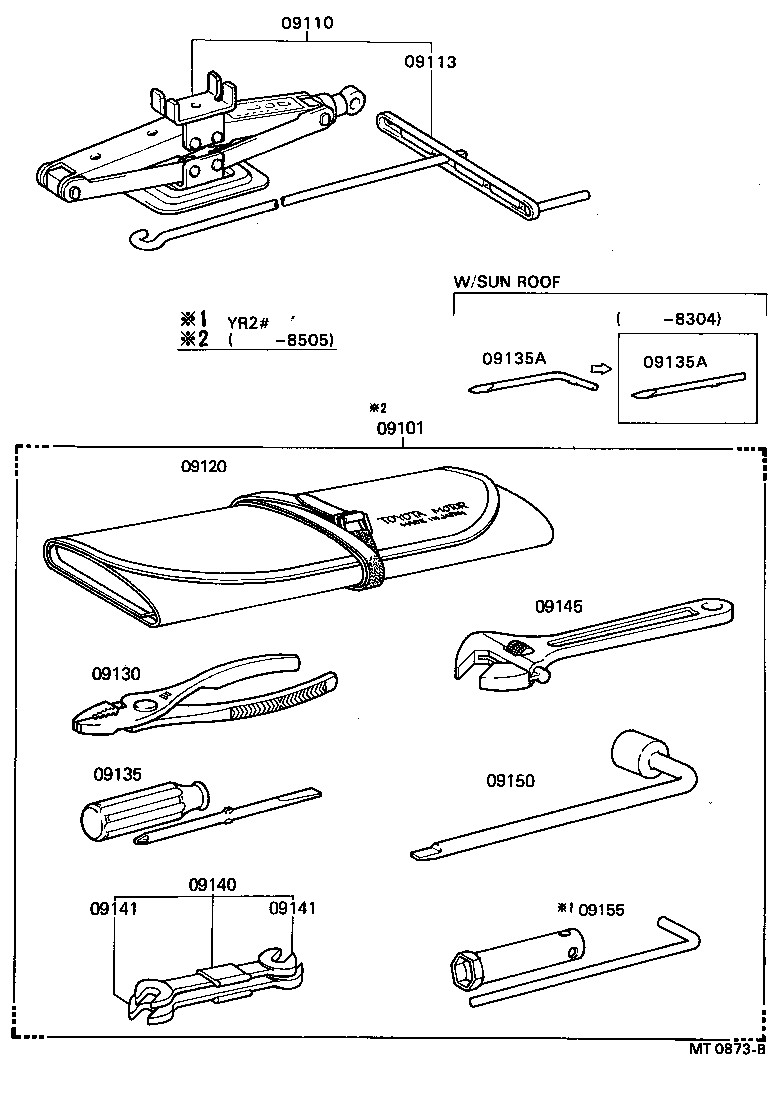

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09135A 09135A 09140 09141 09141 09145 09150 09155
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-26192

YR2#

 1
09110 - JACK ASSY
09111-27040

CR21,YR2#

 1
09110-27040

CR21,YR2#

 1
09111-28030

YR2#..EUR,GEN

 1
09111-28020

YR21..EUR,GEN

 1
09113 - HANDLE, JACK
09113-13021

CR21,YR2#

 1
09120 - BAG, TOOL
09120-26021

CR21,YR2#,31

 1
09120-26021

CR21,YR2#

 1
09130 - PLIERS
99913-11500

CR21,YR2#,31

 1
09135 - DRIVER, SCREW
99915-10700

CR21,YR2#,31

 1
09135A - BIT, SCREW DRIVER
09135-00012

YR2#..MRF..GL

W/SUN ROOF

 1
09135A - BIT, SCREW DRIVER
09135-00012

YR2#..MRF..GL

W/SUN ROOF

 1
09140 - SPANNER SET
09140-27010

CR21,YR2#,31

 1
09141 - SPANNER
99914-11417

CR21,YR2#,31

14 X 17,14X17

 1
99914-11012

CR21,YR2#,31

10 X 12,10X12

 1
99914-11214

CR21,YR2#,31

12 X 14,12X14

 1
99914-10810

CR21,YR2#,31

8 X 10,8X10

 1
09141 - SPANNER
99914-11417

CR21,YR2#,31

14 X 17,14X17

 1
99914-11012

CR21,YR2#,31

10 X 12,10X12

 1
99914-11214

CR21,YR2#,31

12 X 14,12X14

 1
99914-10810

CR21,YR2#,31

8 X 10,8X10

 1
09145 - WRENCH, MONKEY
99911-10200

CR21,YR2#

 1
99911-11200

CR21,YR2#

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CR21,YR2#,31

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YR2#,31

 1

(8509- )

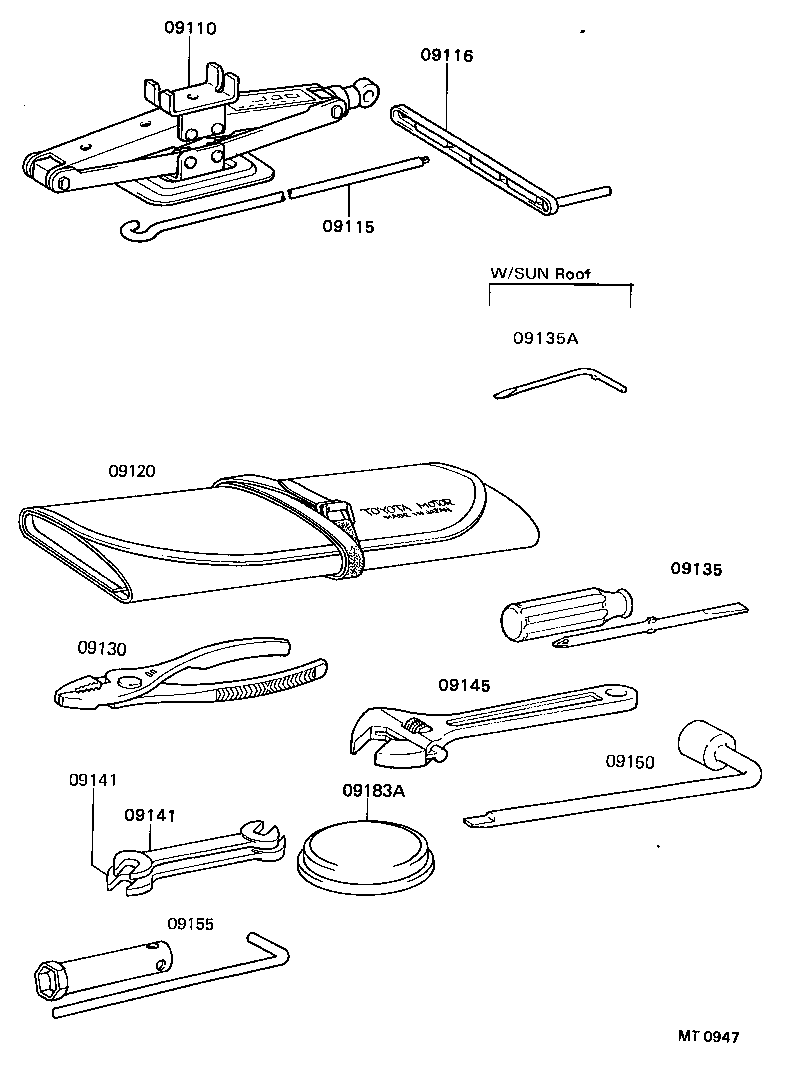

Click highlighted areas on diagram

diagram 09110 09115 09116 09120 09130 09135 09135A 09141 09141 09145 09150 09155 09183A
Part # Description Qty Price
09110 - JACK ASSY
09111-27040

CR21,YR2#

 1
09110-27040

CR21,YR2#

 1
09111-28030

YR2#..EUR,GEN

 1
09111-28020

YR21..EUR,GEN

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-27040

CR21,YR2#,31

 1
09116 - LEVER, JACK HANDLE
09116-35040

CR21,YR2#,31

 1
09120 - BAG, TOOL
09120-26021

CR21,YR2#,31

 1
09120-26021

CR21,YR2#

 1
09130 - PLIERS
99913-11500

CR21,YR2#,31

 1
09135 - DRIVER, SCREW
99915-10700

CR21,YR2#,31

 1
09135A - BIT, SCREW DRIVER
09135-00012

YR2#..MRF..GL

W/SUN ROOF

 1
09141 - SPANNER
99914-11417

CR21,YR2#,31

14 X 17,14X17

 1
99914-11012

CR21,YR2#,31

10 X 12,10X12

 1
99914-11214

CR21,YR2#,31

12 X 14,12X14

 1
99914-10810

CR21,YR2#,31

8 X 10,8X10

 1
09141 - SPANNER
99914-11417

CR21,YR2#,31

14 X 17,14X17

 1
99914-11012

CR21,YR2#,31

10 X 12,10X12

 1
99914-11214

CR21,YR2#,31

12 X 14,12X14

 1
99914-10810

CR21,YR2#,31

8 X 10,8X10

 1
09145 - WRENCH, MONKEY
99911-10200

CR21,YR2#

 1
99911-11200

CR21,YR2#

 1
09150 - WRENCH, HUB NUT BOX
09150-35020

CR21,YR2#,31

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YR2#,31

 1
