YR21LG-MDW (1988)

Toyota Model-F

Production Aug 1988 - Jan 1990
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(8808- )

Click highlighted areas on diagram

REAR CONTROL

diagram 55519R 55906R 55906R 55909R 55909R 55910R 55910R 5593328010 55937R 55937R 8271112200 8401 8401 8401 8742987001 9048012184 9048014338 9048014338 9048025001 9095001011 9095001133 9354625512
Part # Description Qty Price
55519R - PLATE, HEATER CONTROL NAME
55519-28051

YR2#,31

W(REAR HEATER)

 1
55909R - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28023

YR31;YR2#..DLX

 1
55909-28022

YR31;YR2#..DLX

 1
55909R - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28023

YR31;YR2#..DLX

 1
55909-28022

YR31;YR2#..DLX

 1
55910R - CONTROL ASSY, HEATER
55910-2802103

YR2#,31..LHD

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
55910-2802203

YR2#,31..DLX

SHADOW GRAY,TRIM1#

 1
55910R - CONTROL ASSY, HEATER
55910-2802103

YR2#,31..LHD

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
55910-2802203

YR2#,31..DLX

SHADOW GRAY,TRIM1#

 1
55937R - KNOB, HEATER CONTROL LEVER
55905-89110

YR2#,31..LHD

 2
55937R - KNOB, HEATER CONTROL LEVER
55905-89110

YR2#,31..LHD

 2
Common parts
55933-28010
82711-12200
87429-87001
90480-12184
90480-14338
90480-25001
90950-01011
90950-01133
93546-25512
Linked diagrams
8401

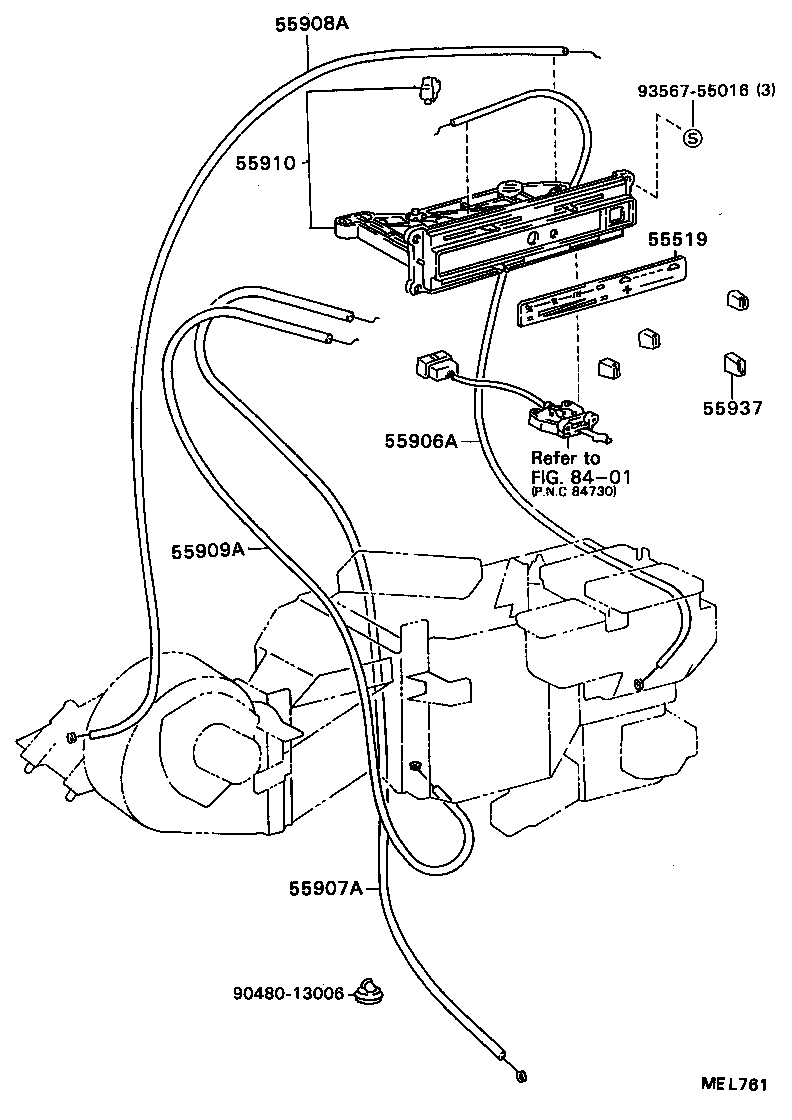

ILLUST NO. 1 OF 5(8808- )

Click highlighted areas on diagram

FRONT CONTROL

diagram 55519 55906A 55907A 55908A 55909A 55910 55937 8401 9048013006 9356755016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-28071

YR2#,31..LHD

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-28030

YR2#,31..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-28011

YR2#,31..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-87004

YR2#,31

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-28011

YR2#,31..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-28030

YR2#,31

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12080

YR2#,31

 4
Common parts
90480-13006
93567-55016
Linked diagrams
8401

ILLUST NO. 3 OF 5(8808- )LHD

Click highlighted areas on diagram

FRONT DUCT

diagram 55076B 55084C 55085 55086 55087 55088 55457A 55832B 8717387005 87211 87211A 87211B 87211C 87215B 88539F 9015960125 9356715012 9356715012 9356715012 9356715012 9356715012 9356715012 9356755016
Part # Description Qty Price
55076B - DUCT SUB-ASSY, HEATER AIR
55076-28010

YR2#,31..LHD

 1
55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-28020

YR2#,31..LHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-28020

YR2#,31..LHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-28020

YR2#,31..LHD

 1
55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55087-28020

YR2#,31..LHD

 1
55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5
55088-28010

YR2#,31..LHD

 1
55457A - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-22030

YR2#,31

 1
55832B - DUCT, HEATER TO REGISTER
55832-28010

YR2#,31..LHD

 1
87211 - DUCT, AIR, NO.1
87201-28020

YR2#,31..LHD

 1
87211A - DUCT, AIR, NO.2
87201-28010

YR2#,31..LHD

 1
87211B - DUCT, AIR, NO.3
87201-28030

YR2#,31..LHD

 1
87211C - DUCT, AIR, NO.4
87211-28010

YR2#,31..LHD

 1
87215B - DUCT, AIR, SIDE NO.3 LH
87211-28021

YR2#,31..LHD

 1
88539F - HOSE, DRAIN
88539-12010

YR2#,31

 1
Common parts
87173-87005
90159-60125
93567-15012
93567-55016

ILLUST NO. 4 OF 5(8808- )

Click highlighted areas on diagram

REAR DUCT

diagram 87203 87203A 87212 87213 87216 87226 88561B 88571B 9010906032 9017906115 9046705022 9165140616 9165140616 9321056016 9356754512 9356855016
Part # Description Qty Price
87203 - DUCT, HEATER AIR, REAR NO.1
87202-87001

YR2#..LHD

 1
87203A - DUCT ASSY, HEATER AIR, REAR
87212-87007

YR2#,31

 1
87216 - DUCT, HEATER INTERIOR AIR (TO REAR)
87213-87002

YR2#,31

 1
88561B - GRILLE, COOLER AIR INLET
88560-8700213

YR2#..LHD

SHADOW GRAY,TRIM1#

 1
88571B - GRILLE, AIR OUTLET
88571-8700113

YR2#..LHD

SHADOW GRAY,TRIM1#

 1
Common parts
90109-06032
90179-06115
90467-05022
91651-40616
93210-56016
93567-54512
93568-55016

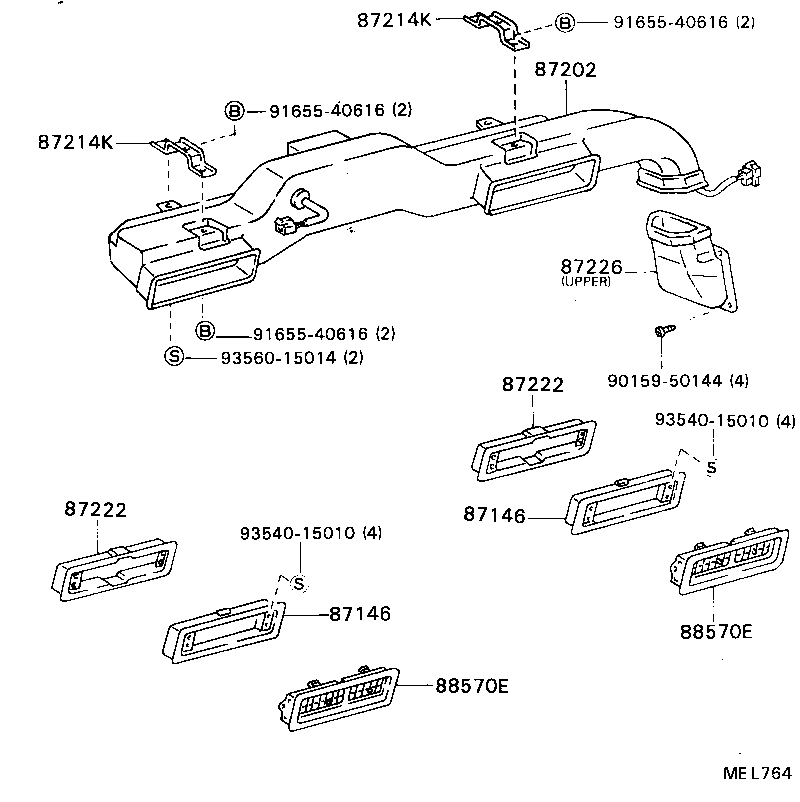

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

REAR DUCT

diagram 87146 87146 87202 87214K 87214K 87222 87222 87226 88570E 88570E 9015950144 9165540616 9165540616 9165540616 9354015010 9354015010 9356015014
Part # Description Qty Price
Common parts
90159-50144
91655-40616
93540-15010
93560-15014
