YR20RG-PQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

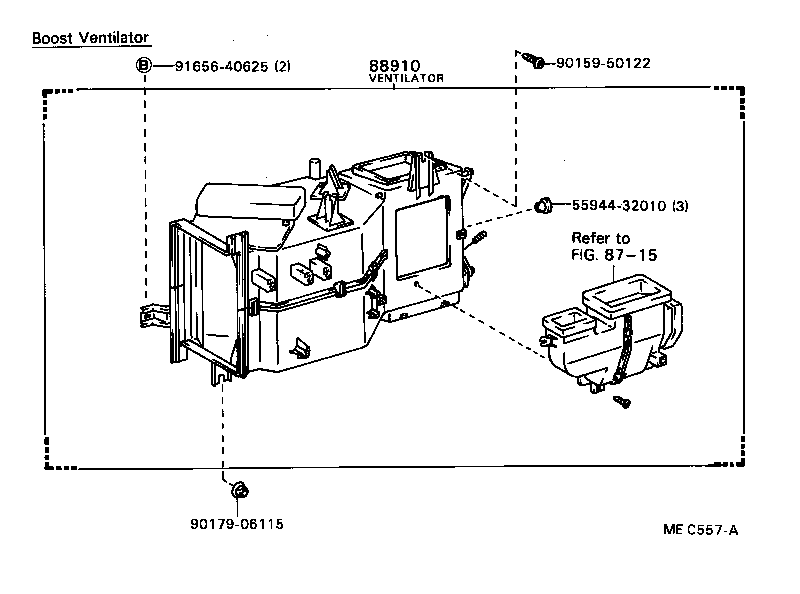

ILLUST NO. 3 OF 3(8211- )

Click highlighted areas on diagram

diagram 5594432010 8715 88910 9015950122 9017906115 9165640625
Part # Description Qty Price
Common parts
55944-32010
90159-50122
90179-06115
91656-40625
Linked diagrams
8715

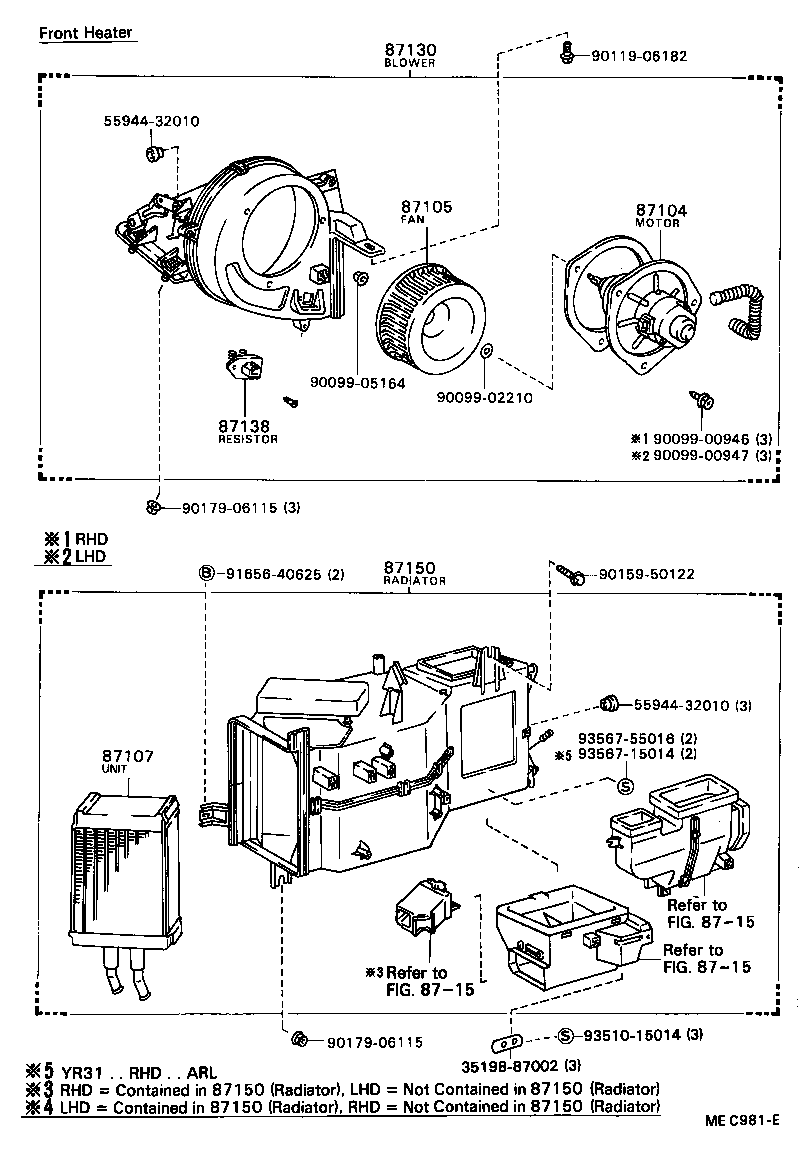

ILLUST NO. 1 OF 3(8211- )

Click highlighted areas on diagram

diagram 3519887002 5594432010 5594432010 87104 87105 87107 87130 87138 8715 8715 8715 87150 9009900946 9009900947 9009902210 9009905164 9011906182 9015950122 9017906115 9017906115 9165640625 9351015014 9356715014 9356755016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-28010

CR21,YR2#,31

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

CR21,YR2#,31..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-87009

CR21,YR20..RHD..EUR

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-87002

CR21,YR2#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-87009

CR21,YR2#,31

 1
87150 - RADIATOR ASSY, HEATER
87150-87004

CR21,YR20..RHD..EUR

 1
Common parts
35198-87002
55944-32010
90099-00946
90099-00947
90099-02210
90099-05164
90119-06182
90159-50122
90179-06115
91656-40625
93510-15014
93567-15014
93567-55016
Linked diagrams
8715

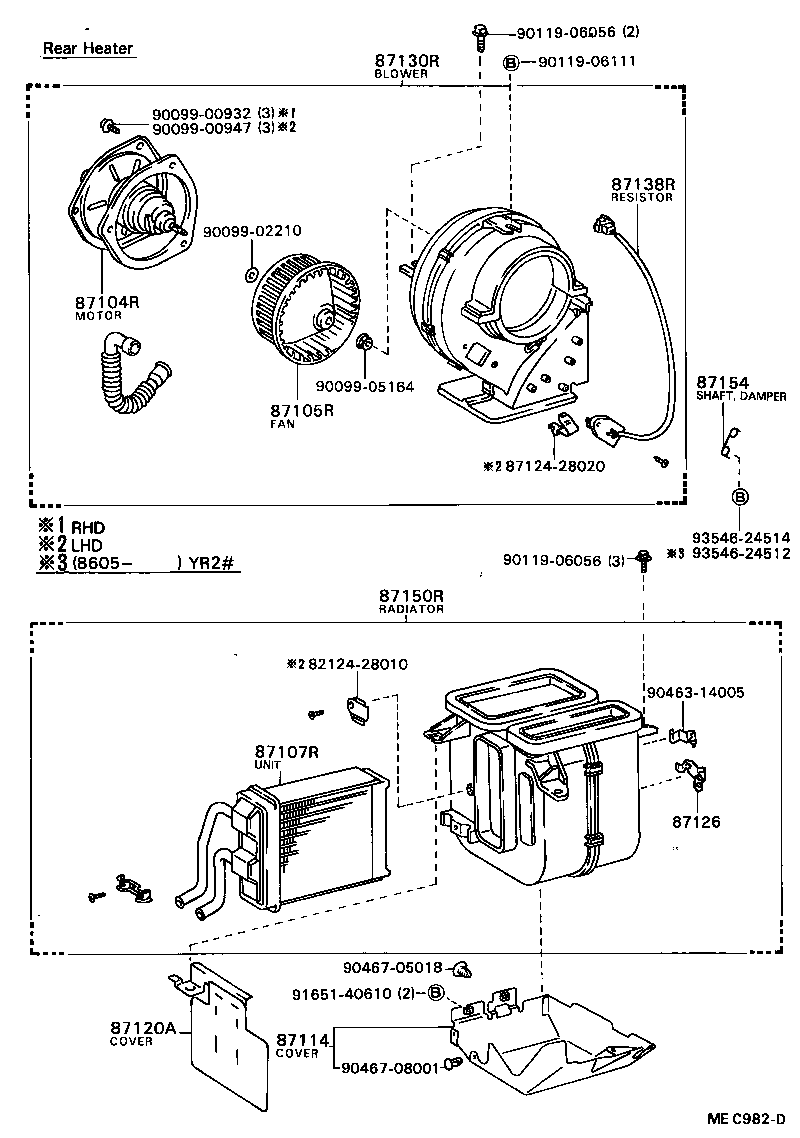

ILLUST NO. 2 OF 3(8211- )

Click highlighted areas on diagram

diagram 8212428010 87104R 87105R 87107R 87114 87120A 8712428020 87126 87130R 87138R 87150R 87154 9009900932 9009900947 9009902210 9009905164 9011906056 9011906056 9011906111 9046314005 9046705018 9046708001 9165140610 9354624512 9354624514
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87007

CR21,YR2#,31

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-14020

CR21,YR2#,31

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-87010

CR21,YR2#

 1
87114 - COVER, HEATER
55074-87002

CR21,YR20,21..EUR

 1
87120A - COVER, REAR HEATER
55077-87001

CR21,YR2#,31

 1
87130R - BLOWER ASSY, REAR HEATER
87130-87004

CR21,YR2#..RHD

W/RR HEATER,W/O ROOF DUCT

 1
87130-87003

YR20..RHD..GL;CR21,YR21..RHD..(ARL,GEN);YR20..RHD..DLX..(ARL,GEN)

W/RR HEATER,W/ROOF DUCT

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-87008

CR21,YR2#,31

 1
87150R - RADIATOR ASSY, REAR HEATER
87150-87005

CR21,YR2#..RHD

 1
Common parts
82124-28010
87124-28020
90099-00932
90099-00947
90099-02210
90099-05164
90119-06056
90119-06111
90463-14005
90467-05018
90467-08001
91651-40610
93546-24512
93546-24514
