YR20RG-PQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

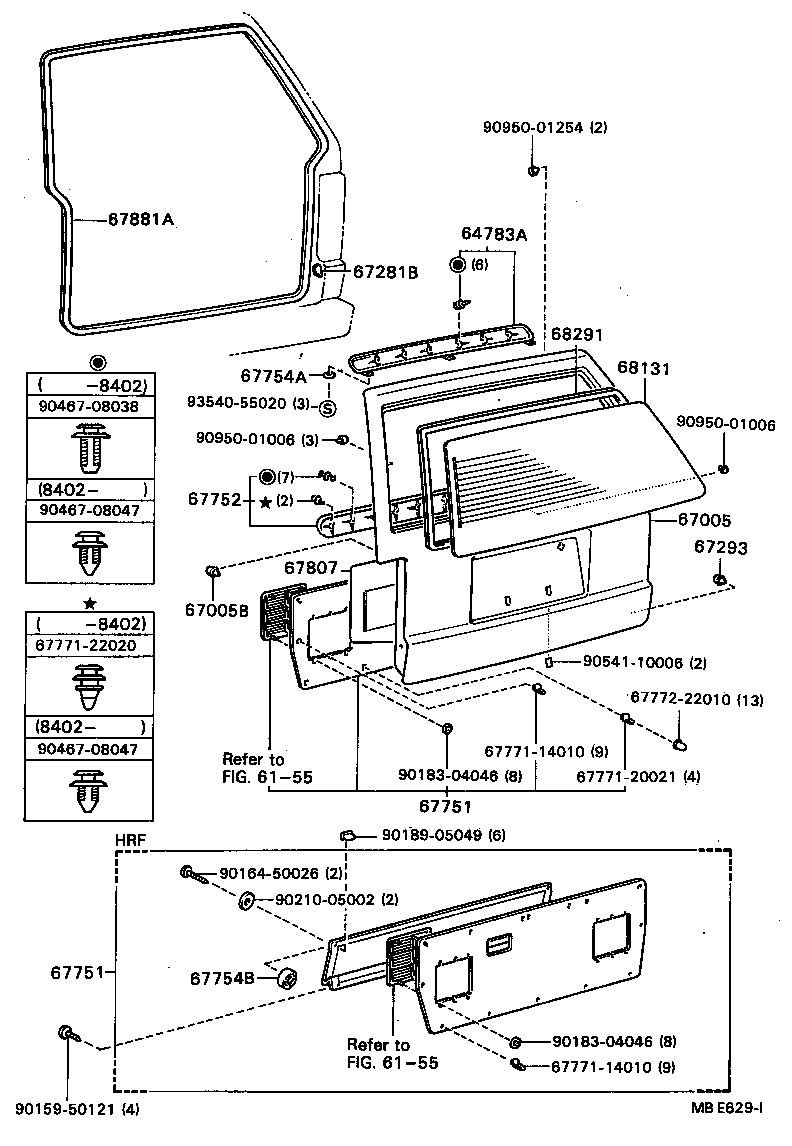

Click highlighted areas on diagram

diagram 6155 6155 64783A 67005 67005B 67281B 67293 67751 67751 67752 67754A 67754B 6777114010 6777114010 6777120021 6777122020 6777222010 67807 67881A 68131 68291 9015950121 9016450026 9018304046 9018304046 9018905049 9021005002 9046708038 9046708047 9046708047 9054110006 9095001006 9095001006 9095001254 9354055020
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-87069

CR21,YR20..GL..EUR

W/*RW

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09029

CR21,YR2#,31

 2
67281B - STOPPER, BACK DOOR, LOWER
67281-87002

CR21,YR2#,31

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
90541-09031

CR21,YR2#,31

 2
67751 - BOARD, BACK DOOR TRIM
64780-8700205

CR21,YR2#..GL

BEIGE,BEIGE,TRIM4#

 1
64780-8700203

CR21,YR2#..GL

GRAY,GRAY,TRIM1#

 1
67751 - BOARD, BACK DOOR TRIM
64780-8700205

CR21,YR2#..GL

BEIGE,BEIGE,TRIM4#

 1
64780-8700203

CR21,YR2#..GL

GRAY,GRAY,TRIM1#

 1
67752 - TRIM, BACK DOOR, UPPER
64785-8700105

CR21,YR20..GL

BEIGE,BEIGE,TRIM4#

 1
64785-8700103

CR21,YR20..GL

GRAY,GRAY,TRIM1#

 1
67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE
67807-87003

CR21,YR2#,31

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-87002

CR21,YR2#..MRF

 1
68131 - GLASS, BACK DOOR
68105-87004

CR21,YR2#

*EHTT,T=4.0,*EHTT,T=4.0

 1
68105-87006

CR21;YR2#..EUR,GEN;YR2#..DLX..ARL

*EHT,T=4.0,*EHT,T=4.0

 1
68105-87010

CR21,YR2#..GL;CR21,YR2#..DLX..GEN

*EHT,T=4.0,BRONZE,BRONZE,*EHT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-87004

CR21,YR2#,31..MRF

 1
Common parts
67771-14010
67771-20021
67771-22020
67772-22010
90159-50121
90164-50026
90183-04046
90189-05049
90210-05002
90467-08038
90467-08047
90541-10006
90950-01006
90950-01254
93540-55020
Linked diagrams
6155
