YR20RG-PQW (1982)
Toyota Model-F
Production
Nov 1982
-
Aug 1984
Engine
2Y
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

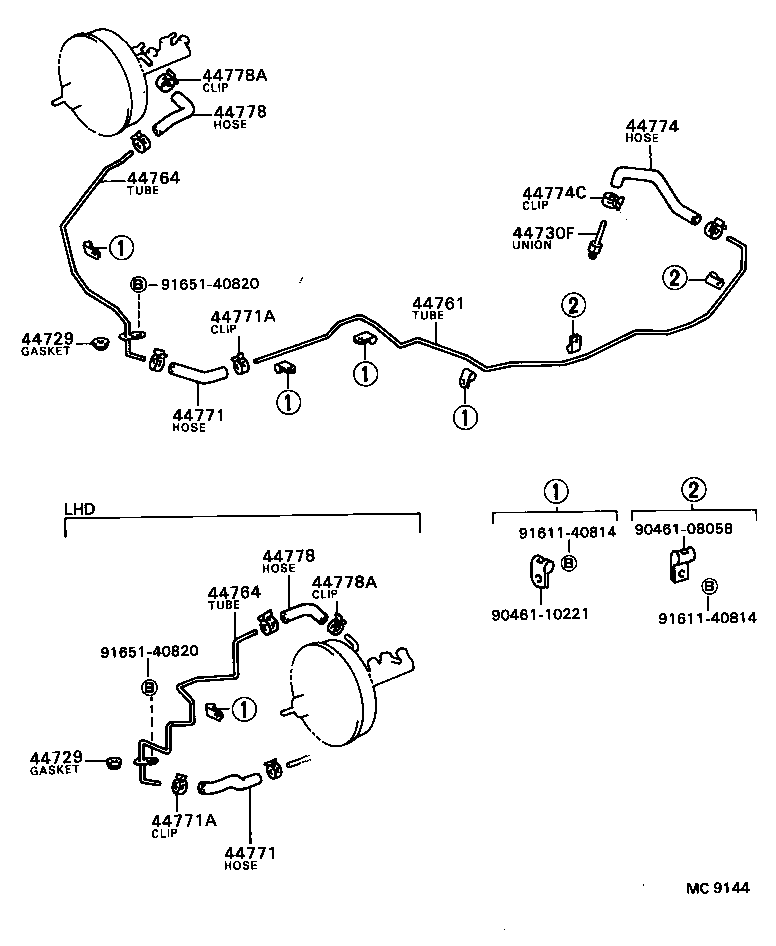

ILLUST NO. 2 OF 2(8211-8508)YR2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
CR21,YR2#,31 |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
CR21,YR2#,31 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
YR2# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-28050 |
YR20 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-28010 |
CR21,YR2#..RHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-28070 |
YR2# |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-28010 |
CR21,YR2#..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-28010 |
CR21,YR2#..RHD |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 90461-10221 | ||||
| 91611-40814 | ||||
| 91651-40820 | ||||

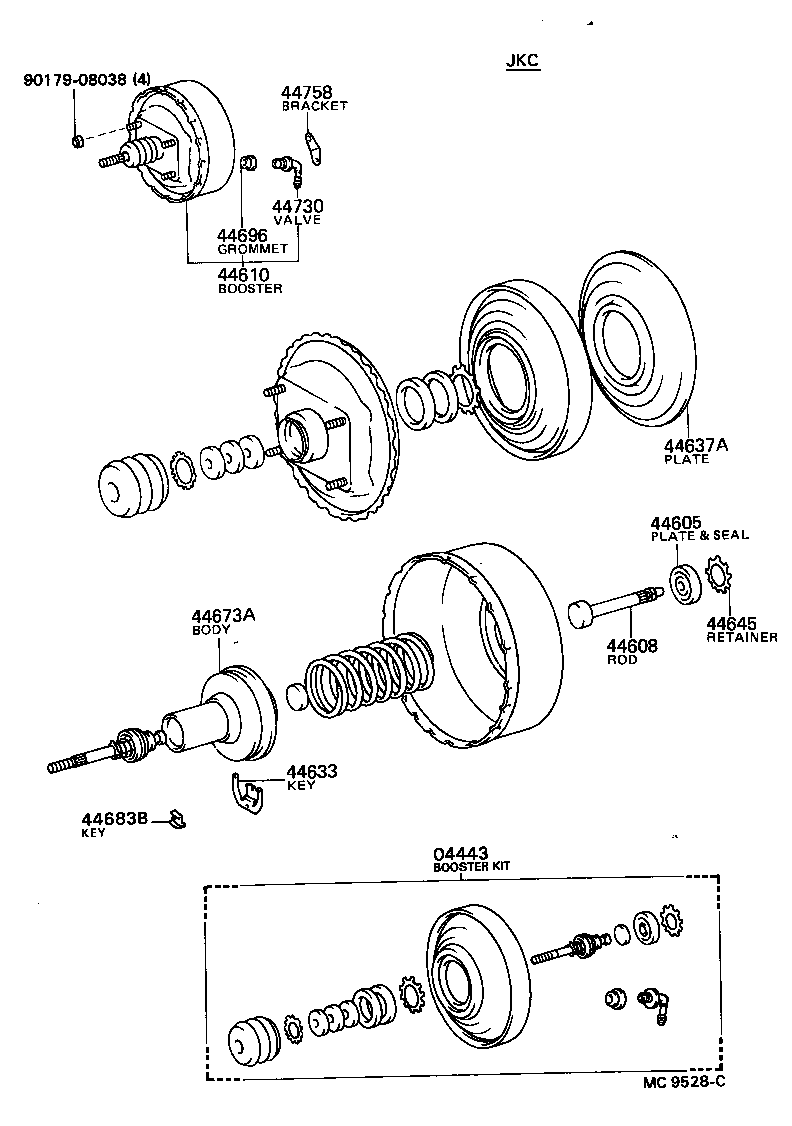

ILLUST NO. 1 OF 2(8211-8508)EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-28120 |
YR20..EUR |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
CR21,YR2#..EUR |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
CR21,YR2#..EUR |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-28190 |
YR20..RHD..EUR |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28190 |
CR21,YR2#..EUR |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
CR21,YR2#..EUR |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
CR21,YR2#..EUR |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-28191 |
CR21,YR2#..EUR |
1 | ||
| 44683B - RETAINER, BOOSTER KEY | ||||
| 44683-28190 |
CR21,YR2#..EUR |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
CR21,YR2#..EUR |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
YR2#..EUR |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-28050 |
YR2#..RHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
