YR20RG-PQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )CR21,YR20,21

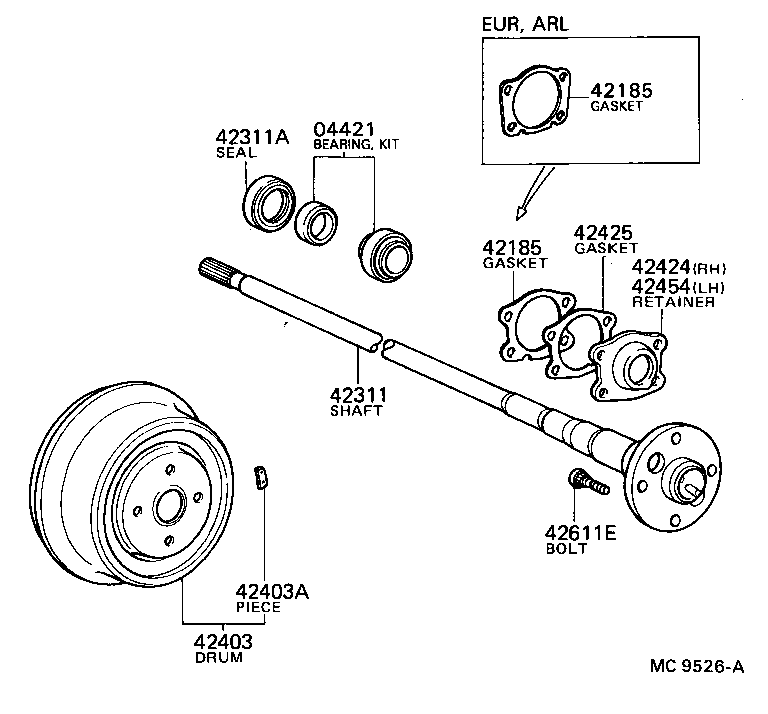

Click highlighted areas on diagram

diagram 04421 42185 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-27010

CR21,YR20,21

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-28010

CR21,YR20,21..ARL,EUR

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-28010

CR21,YR20,21..ARL,EUR

 2
42311 - SHAFT, REAR AXLE
42311-22110

CR21,YR20,21

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CR21,YR2#,31

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28020

CR21,YR2#..ARL,EUR

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01146

CR21,YR2#..ARL,EUR

25G,50G

 2
90937-01178

CR21,YR2#..ARL,EUR

56G,56G

 2
90937-01118

CR21,YR2#,31..ARL,EUR

20G,20G

 2
90937-01100

CR21,YR2#..ARL,EUR

40.5G,40.5G

 2
90937-01119

CR21,YR2#,31..ARL,EUR

30G,30G

 2
90937-01117

CR21,YR2#,31..ARL,EUR

10G,10G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

CR21,YR20,21

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

CR21,YR20,21

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

CR21,YR20,21

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02035

CR21,YR20

 8
