YR20RG-PQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

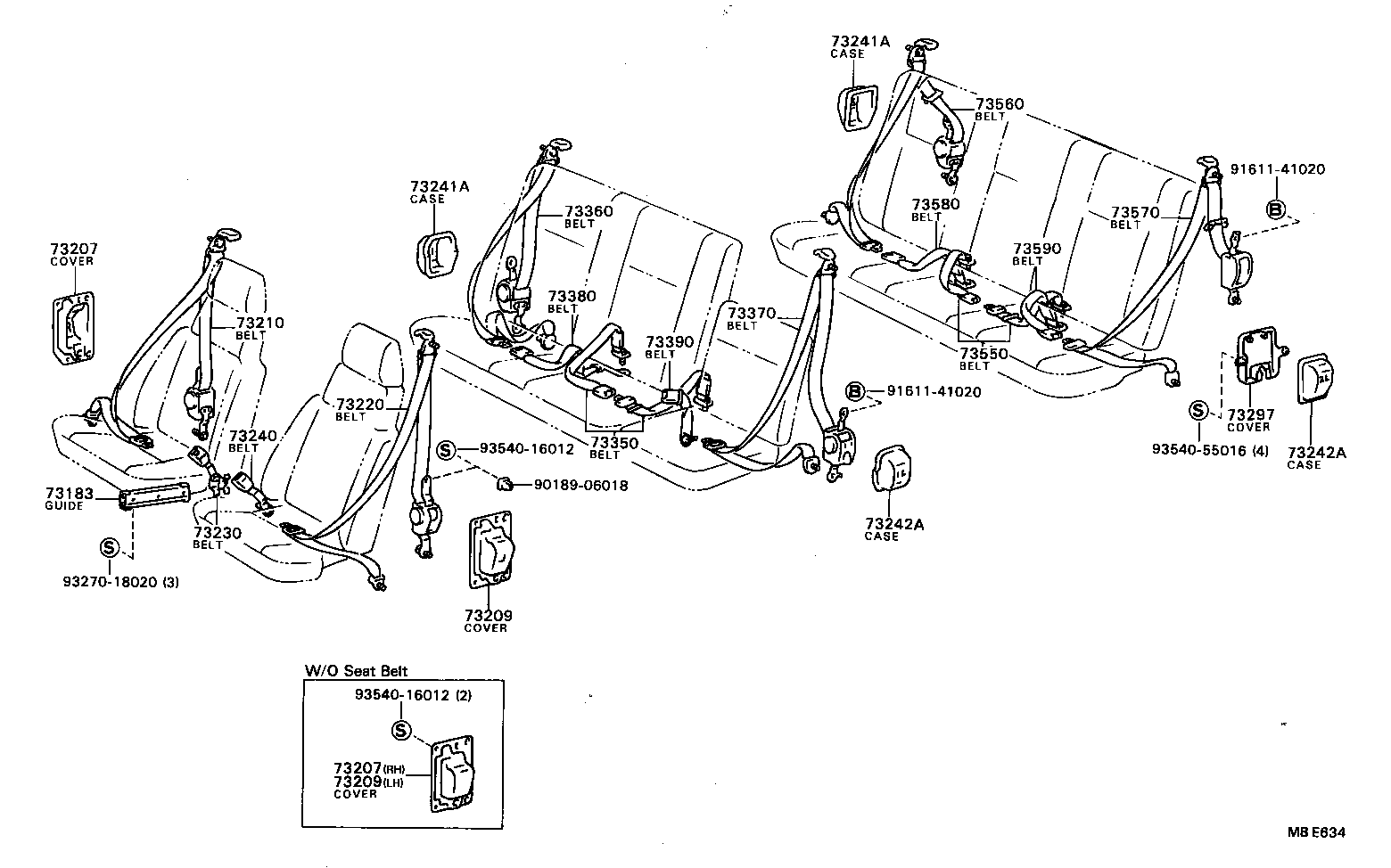

Click highlighted areas on diagram

diagram 73183 73207 73207 73209 73209 73210 73220 73230 73240 73241A 73241A 73242A 73242A 73297 73350 73360 73370 73380 73390 73550 73560 73570 73580 73590 9018906018 9161141020 9161141020 9327018020 9354016012 9354016012 9354055016
Part # Description Qty Price
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-87001

CR21,YR2#,31..RHD

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-87003

CR21,YR2#,31

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-87003

CR21,YR2#,31

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-87003

CR21,YR20

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-87003

CR21,YR20

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8701702

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73210-8701704

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8700904

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73220-8700902

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8701202

CR21,YR2#..RHD

WINE,RED/MAROON,TRIM4#

 1
73230-8701204

YR2#..RHD..GL

BLUE,BLUE,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2801002

CR21,YR2#..RHD

WINE,RED/MAROON,TRIM4#

 1
73230-2801004

YR2#..RHD..GL

BLUE,BLUE,TRIM1#

 1
73241A - CASE, SEAT BELT RETRACTOR, RH
73241-28010

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73241-28020

CR21,YR2#,31..ARL,EUR

RR NO.2 SEAT

 1
73241A - CASE, SEAT BELT RETRACTOR, RH
73241-28010

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73241-28020

CR21,YR2#,31..ARL,EUR

RR NO.2 SEAT

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73241-28040

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73241-28020

CR21,YR2#,31..ARL,EUR

RR NO.2 SEAT

 1
73242-28010

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73241-28040

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73241-28020

CR21,YR2#,31..ARL,EUR

RR NO.2 SEAT

 1
73242-28010

CR21,YR2#,31..ARL,EUR

RR NO.1 SEAT

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-2801003

CR21,YR2#..GL..(ARL,EUR)

RH,GRAY,GRAY,TRIM1#

 1
73298-2801003

CR21,YR2#..GL..(ARL,EUR)

LH,GRAY,GRAY,TRIM1#

 1
73297-2801005

CR21,YR2#..ARL,EUR

RH,BEIGE,BEIGE,TRIM4#

 1
73298-2801005

CR21,YR2#..ARL,EUR

LH,BEIGE,BEIGE,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73350-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73360-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73370-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73380-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73390-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73550-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73560-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-2802002

CR21,YR2#..ARL

WINE,RED/MAROON,TRIM4#

 1
73570-2802004

YR2#..GL..ARL

BLUE,BLUE,TRIM1#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-2801002

CR21,YR2#..ARL,EUR

WINE,RED/MAROON,TRIM4#

 1
73580-2801004

CR21,YR2#..GL..(ARL,EUR)

BLUE,BLUE,TRIM1#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-2801004

CR21,YR2#..GL..(ARL,EUR)

BLUE,BLUE,TRIM1#

 1
73580-2801002

CR21,YR2#..ARL,EUR

WINE,RED/MAROON,TRIM4#

 1
Common parts
90189-06018
91611-41020
93270-18020
93540-16012
93540-55016
