YR20RG-PQQ (1982)
Toyota Model-F
Production
Nov 1982
-
Jan 1984
Engine
2YC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )4FC

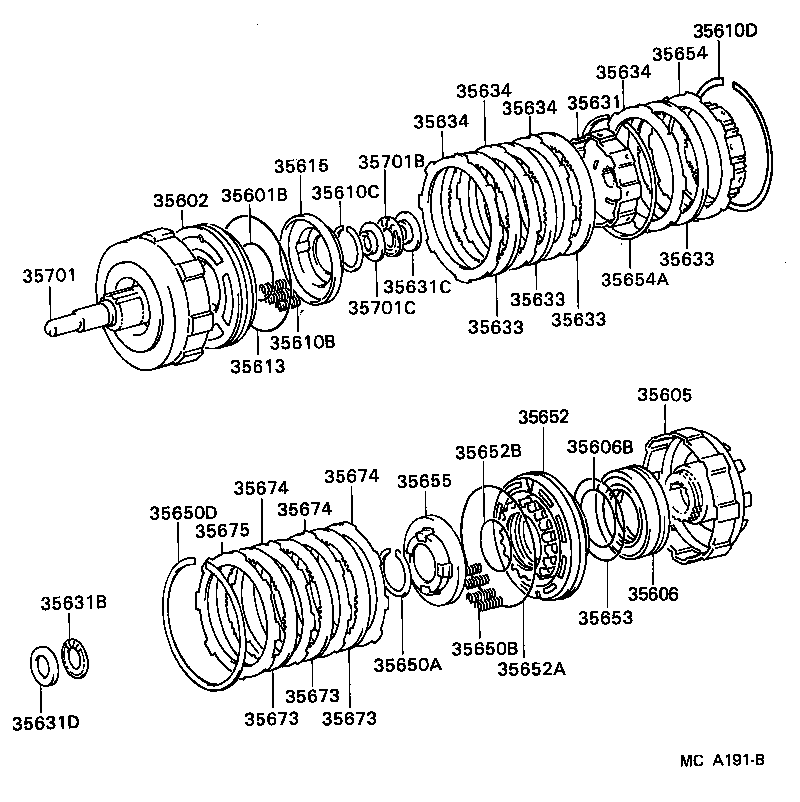

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-12031 |
YR20..4FC |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-30021 |
YR20,21..4FC |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-22010 |
YR2#,31..4FC |
1 | ||
| 35606B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
YR2#,31..4FC |
1 | ||
| 35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) | ||||
| 90501-10671 |
YR20..4FC |
18 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-39261 |
YR2#,31..4FC |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
YR2#,31..4FC |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 90301-99016 |
YR2#,31..4FC |
1 | ||
| 35615 - SEAT, CLUTCH PISTON RETURN SPRING | ||||
| 35615-30020 |
YR2#,31..4FC |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30030 |
YR20..4FC |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-28014 |
YR2#,31..4FC |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-22050 |
YR2#,31..4FC |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-22020 |
YR2#,31..4FC |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC T=1.8,T=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC T=1.8,T=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC T=1.8,T=1.8 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC T=1.8,T=1.8 |
4 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90520-39261 |
YR2#,31..4FC |
1 | ||
| 35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN) | ||||
| 90501-10671 |
YR2#,31..4FC |
18 | ||
| 35650D - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
YR2#,31..4FC |
1 | ||
| 35652 - PISTON, REAR CLUTCH, NO.2 | ||||
| 35602-30041 |
YR2#,31..4FC |
1 | ||
| 35652A - RING (FOR REAR CLUTCH OUTER) | ||||
| 90301-99016 |
YR2#,31..4FC |
1 | ||
| 35652B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
YR2#,31..4FC |
1 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 90301-84184 |
YR2#,31..4FC |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-22010 |
YR20..4FC |
1 | ||
| 35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB) | ||||
| 90521-99146 |
YR2#,31..4FC |
1 | ||
| 35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING | ||||
| 35615-30020 |
YR2#,31..4FC |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-22020 |
YR20..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-22040 |
YR2#,31..4FC |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-22010 |
YR2#,31..4FC T=4.0 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-22022 |
YR20..4FC |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
YR2#,31..4FC |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
YR2#,31..4FC |
1 | ||
