YR20RG-PDQ (1983)
Toyota Model-F
Production
Aug 1983
-
Jan 1984
Engine
2YC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8211-8508)YR2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
CR21,YR2#,31 |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
CR21,YR2#,31 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
YR2# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-28050 |
YR20 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-28010 |
CR21,YR2#..RHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-28010 |
CR21,YR2#..RHD |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-28070 |
YR2# |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16141 |
YR2# |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-28010 |
CR21,YR2#..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-28010 |
CR21,YR2#..RHD |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
CR21,YR2# |
2 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 90461-10221 | ||||
| 91611-40814 | ||||
| 91651-40820 | ||||

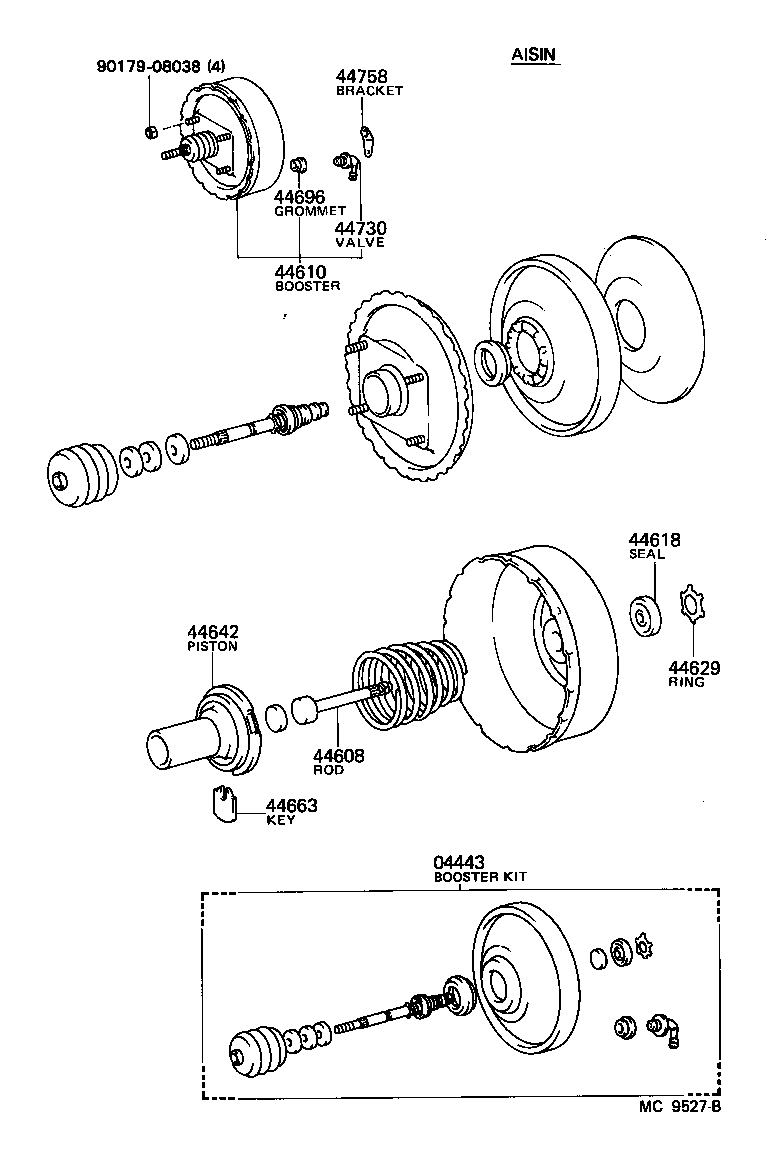

ILLUST NO. 1 OF 2(8211-8508)ARL,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-28070 |
YR2#..ARL,GEN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-32010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-28140 |
YR2#..RHD..(ARL,GEN) |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CR21,YR2#..ARL,GEN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
CR21,YR2#..ARL,GEN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
CR21,YR2#..ARL,GEN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
CR21,YR2#..ARL,GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
YR2#..ARL,GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
YR2#..ARL,GEN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-28050 |
YR2#..RHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
