YR20RG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )5F

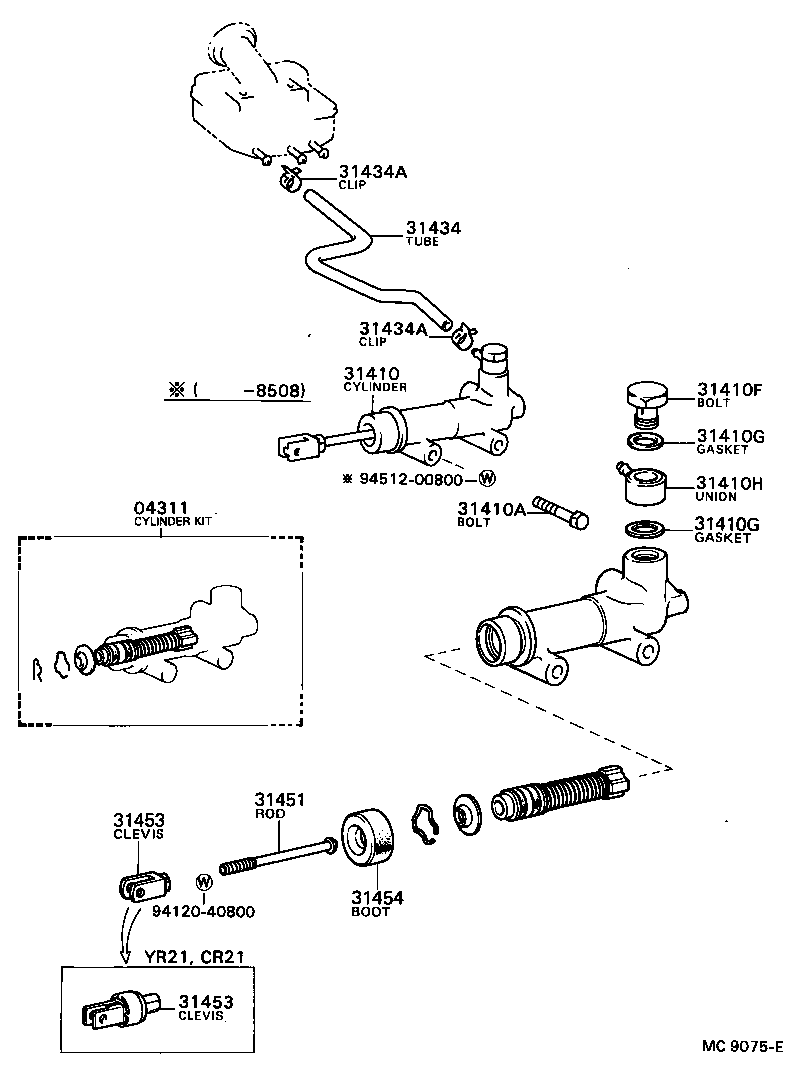

Click highlighted areas on diagram

diagram 04311 31410 31410A 31410F 31410G 31410G 31410H 31434 31434A 31434A 31451 31453 31453 31454 9412040800 9451200800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-14011

YR20..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-28020

YR20..RHD..5F

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91121-40865

CR21,YR2#..5F

 2
31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER)
90401-16078

CR21,YR2#..5F

 1
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

CR21,YR2#,31..5F

 2
31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION)
90430-16242

CR21,YR2#,31..5F

 2
31410H - UNION(FOR CLUTCH MASTER CYLINDER)
90405-10125

CR21,YR2#..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-28020

CR21,YR2#..RHD..5F

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

CR21,YR2#,31..5F

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

CR21,YR2#,31..5F

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-22050

YR20..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YR20..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YR20..5F

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

CR21,YR2#,31..5F

 1
Common parts
94120-40800
94512-00800
