YR20RG-MQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

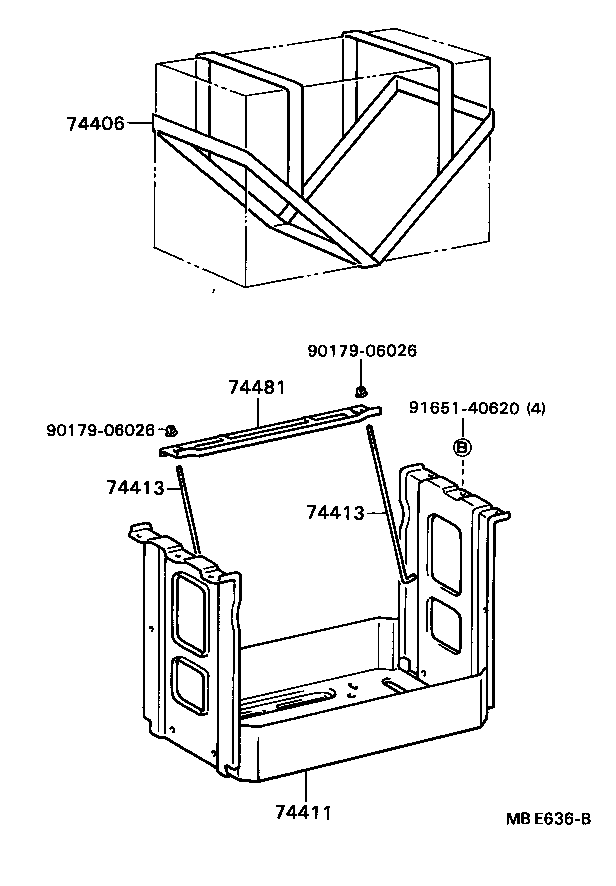

Click highlighted areas on diagram

diagram 74406 74411 74413 74413 74481 9017906026 9017906026 9165140620
Part # Description Qty Price
74406 - BELT SUB-ASSY, BATTERY
74446-95700

YR20..ARL,GEN

34B19R(NS40ZA)

 1
74411 - CARRIER, BATTERY
74403-87003

CR21,YR20

 1
74413 - BOLT, BATTERY CLAMP
74451-87002

CR21,YR2#,31

 2
74413 - BOLT, BATTERY CLAMP
74451-87002

CR21,YR2#,31

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-87007

YR2#,31

 1
Common parts
90179-06026
91651-40620
