YR20RG-MQQ (1982)

Toyota Model-F

Production Nov 1982 - Jan 1984
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

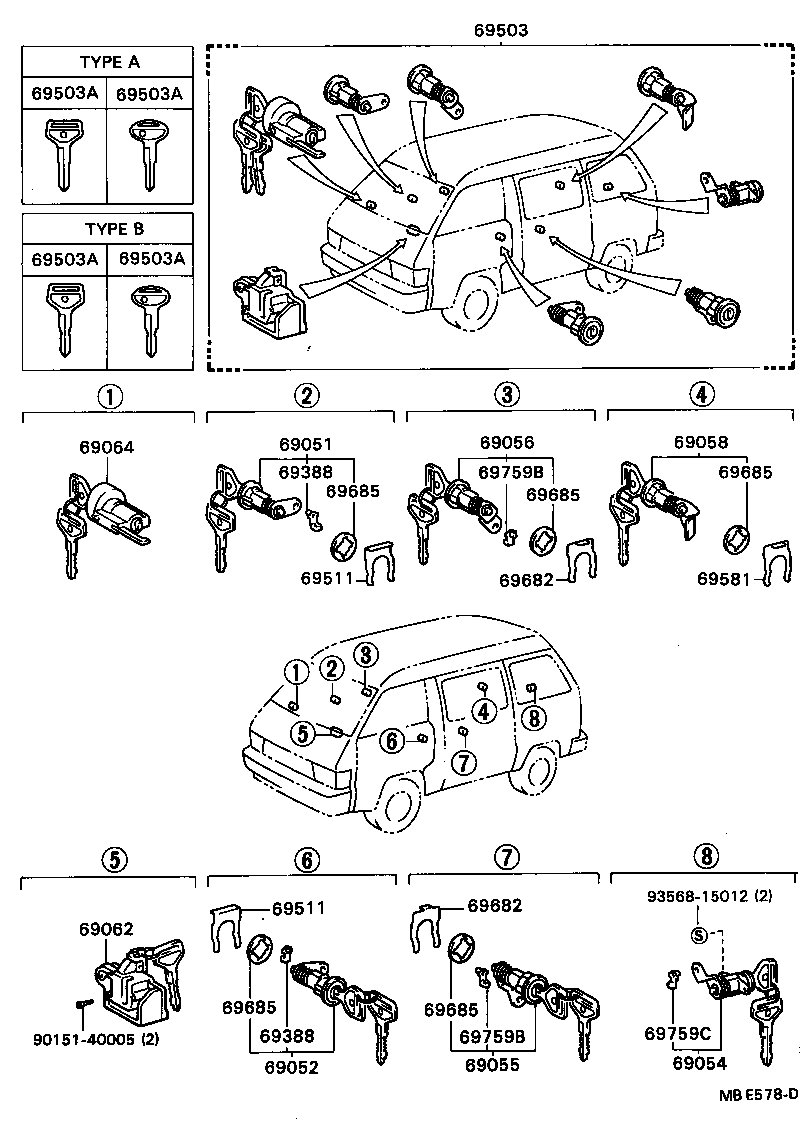

Click highlighted areas on diagram

diagram 69051 69052 69054 69055 69056 69058 69062 69064 69388 69388 69503 69503A 69503A 69503A 69503A 69511 69511 69581 69682 69682 69685 69685 69685 69685 69685 69759B 69759B 69759C 9015140005 9356815012
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-87003

CR21,YR2#..ARL,GEN

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-87003

CR21,YR2#..ARL,GEN

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-87005

CR21,YR2#..ARL,GEN

 1
69055 - CYLINDER & KEY SET, REAR DOOR LOCK, LH
69054-87001

CR21,YR2#..RHD..(ARL,GEN)

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-87005

CR21,YR2#,31..ARL,GEN

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-8700105

YR2#..GL..(ARL,GEN)

BEIGE,BEIGE,TRIM4#

 1
69056-8700103

YR2#..GL..(ARL,GEN)

GRAY,GRAY,TRIM1#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-87001

CR21,YR2#,31..ARL,GEN

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

CR21,YR2#

RH

 1
69759-24090

CR21,YR2#

LH

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

CR21,YR2#

RH

 1
69759-24090

CR21,YR2#

LH

 1
69503 - CYLINDER SET, LOCK
69005-8702103

YR2#..GL..ARL

GRAY,GRAY,TRIM1#

 1
69005-8702105

YR2#..GL..ARL

BEIGE,BEIGE,TRIM4#

 1
69503A - KEY, BLANK
90999-00067

CR21,YR2#,31..ARL,GEN

MASTER KEY,TYPE A,MASTER KEY

 2
90999-00071

CR21,YR2#..ARL,GEN

SUB KEY,TYPE A,SUB KEY

 1
69503A - KEY, BLANK
90999-00067

CR21,YR2#,31..ARL,GEN

MASTER KEY,TYPE A,MASTER KEY

 2
90999-00071

CR21,YR2#..ARL,GEN

SUB KEY,TYPE A,SUB KEY

 1
69503A - KEY, BLANK
90999-00067

CR21,YR2#,31..ARL,GEN

MASTER KEY,TYPE A,MASTER KEY

 2
90999-00071

CR21,YR2#..ARL,GEN

SUB KEY,TYPE A,SUB KEY

 1
69503A - KEY, BLANK
90999-00067

CR21,YR2#,31..ARL,GEN

MASTER KEY,TYPE A,MASTER KEY

 2
90999-00071

CR21,YR2#..ARL,GEN

SUB KEY,TYPE A,SUB KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

CR21,YR2#,31

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

CR21,YR2#,31

 2
69581 - RETAINER, FUEL FILLER LID CYLINDER
69512-87001

CR21,YR2#,31

 1
69682 - RETAINER, LOCK CYLINDER
69512-87001

CR21,YR2#,31

 1
69682 - RETAINER, LOCK CYLINDER
69512-87001

CR21,YR2#,31

 1
69685 - PAD, LOCK CYLINDER
69513-87001

CR21,YR2#,31

 4
69685 - PAD, LOCK CYLINDER
69513-87001

CR21,YR2#,31

 4
69685 - PAD, LOCK CYLINDER
69513-87001

CR21,YR2#,31

 4
69685 - PAD, LOCK CYLINDER
69513-87001

CR21,YR2#,31

 4
69685 - PAD, LOCK CYLINDER
69513-87001

CR21,YR2#,31

 4
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-24090

CR21,YR2#..RHD

 1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-24090

CR21,YR2#..RHD

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24090

CR21,YR2#

 1
Common parts
90151-40005
93568-15012
