YR20RG-MDW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8508)

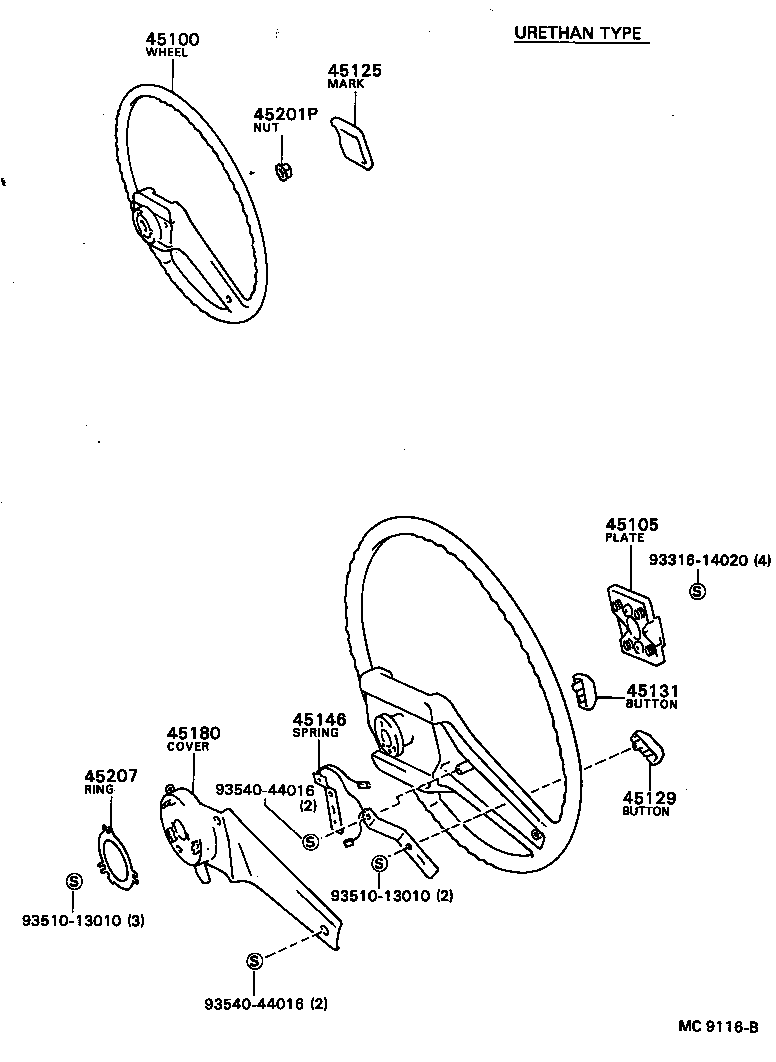

Click highlighted areas on diagram

diagram 45100 45105 45125 45129 45131 45146 45180 45201P 45207 9331614020 9351013010 9351013010 9354044016 9354044016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3202002

YR2#..DLX

URETHAN TYPE,WINE,RED/MAROON,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32020

CR21,YR2#

URETHAN TYPE

 1
45125 - MARK, STEERING WHEEL PAD
45125-2806002

CR21,YR2#..DLX

WINE,RED/MAROON,TRIM4#

 1
45129 - BUTTON, HORN, NO.2
45129-3201012

CR21,YR2#..DLX

WINE,RED/MAROON,TRIM4#

 1
45131 - BUTTON, HORN, NO.1
45131-3201005

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 2
45131-3201002

CR21,YR2#..DLX

WINE,RED/MAROON,TRIM4#

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-32020

CR21,YR2#

URETHAN TYPE

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-3201002

YR2#..DLX

WINE,RED/MAROON,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CR21,YR2#,31

 1
45207 - RING, HORN CONTACT
45176-32010

CR21,YR2#

URETHAN TYPE

 1
Common parts
93316-14020
93510-13010
93540-44016
