YR20RG-MD (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211-8408)

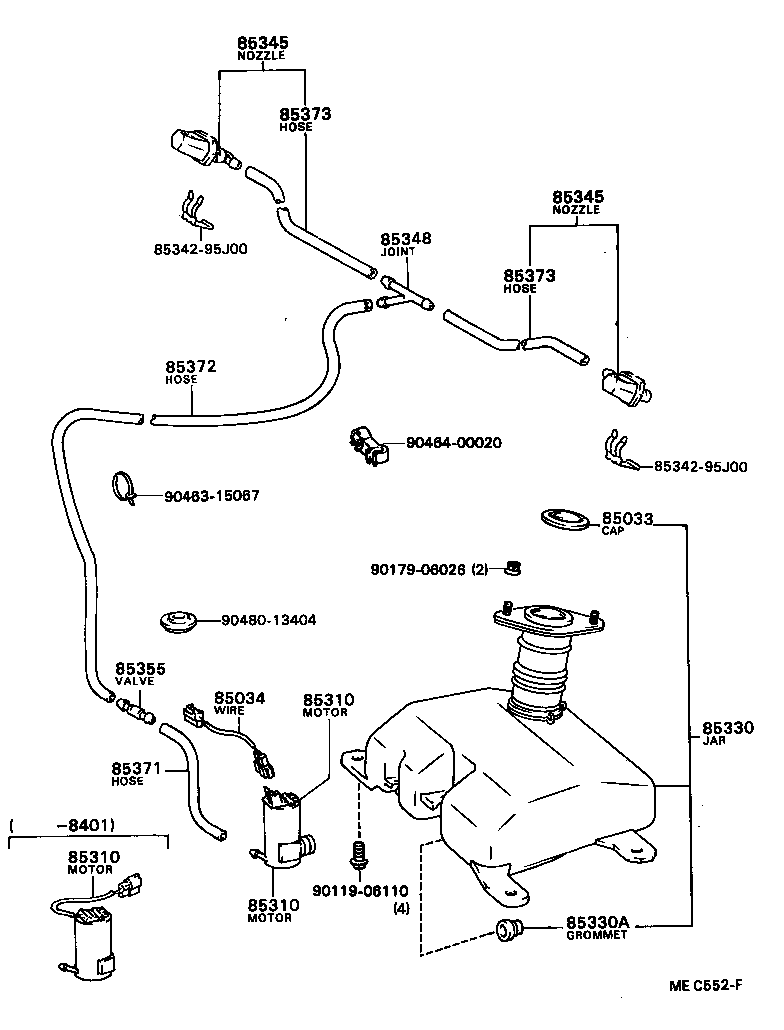

Click highlighted areas on diagram

diagram 85033 85034 85310 85310 85310 85330 85330A 8534295J00 8534295J00 85345 85345 85348 85355 85371 85372 85373 85373 9011906110 9017906026 9046315067 9046400020 9048013404
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-28010

CR21,YR2#

 1
85332-28011

CR21,YR2#

 1
85034 - WIRE, WASHER
85034-87001

CR21,YR2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-87003

CR21,YR20

 1
85310-95703

CR21,YR2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-87003

CR21,YR20

 1
85310-95703

CR21,YR2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-87003

CR21,YR20

 1
85310-95703

CR21,YR2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-87003

CR21,YR2#..RHD

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

CR21,YR2#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-87007

CR21,YR2#,31..RHD

RH

 1
85035-87008

CR21,YR2#,31..RHD

LH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-60010

CR21,YR2#

3 WAY

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

CR21,YR2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85354-28010

CR21,YR2#..RHD

L=630

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CR21,YR2#..RHD

*H,L=560

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

CR21,YR2#,31..RHD

*H,L=150

 1
85343-28010

CR21,YR2#..RHD

*H,L=390

 1
Common parts
85342-95J00
90119-06110
90179-06026
90463-15067
90464-00020
90480-13404
