YR20RG-MD (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

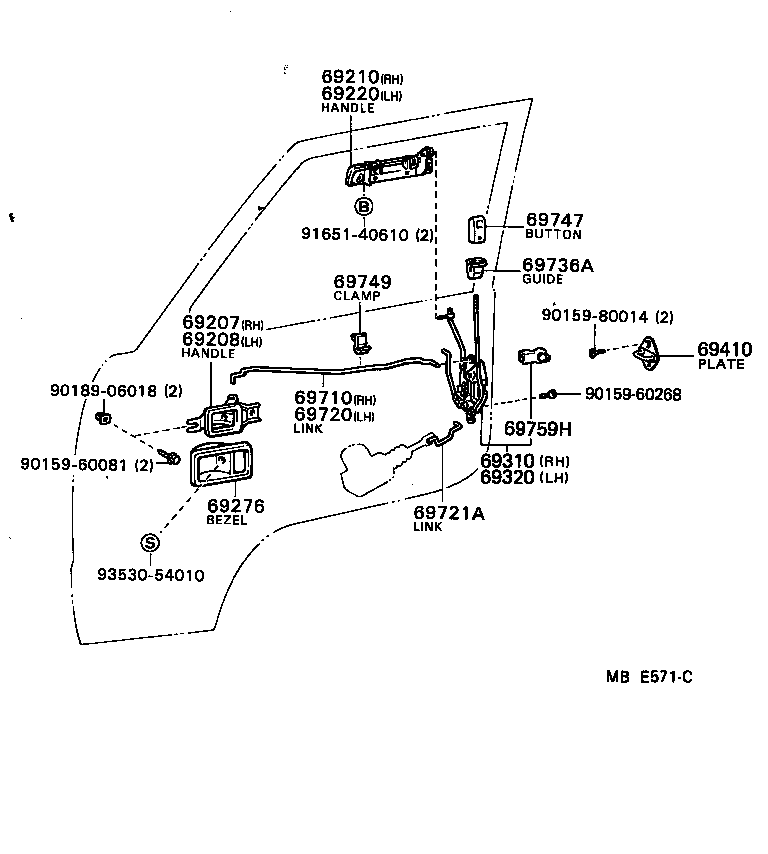

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69276 69310 69320 69410 69710 69720 69721A 69736A 69747 69749 69759H 9015960081 9015960268 9015980014 9018906018 9165140610 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-3201005

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-3201005

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-87001

YR20

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-87001

YR20

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-3202005

CR21,YR20

BEIGE,BEIGE,TRIM4#

 2
69277-8910405

CR21,YR2#

BEIGE,BEIGE,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-87001

CR21,YR2#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-87001

CR21,YR2#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

CR21,YR2#,31

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-87001

CR21,YR2#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-87001

CR21,YR2#

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22021

CR21,YR2#

 2
69747 - BUTTON, DOOR LOCKING
69741-3201001

CR21,YR2#

BLACK,BLACK,TRIM1#,4#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-30020

CR21,YR2#

 2
Common parts
90159-60081
90159-60268
90159-80014
90189-06018
91651-40610
93530-54010
