YR20RG-MD (1982)
Toyota Model-F

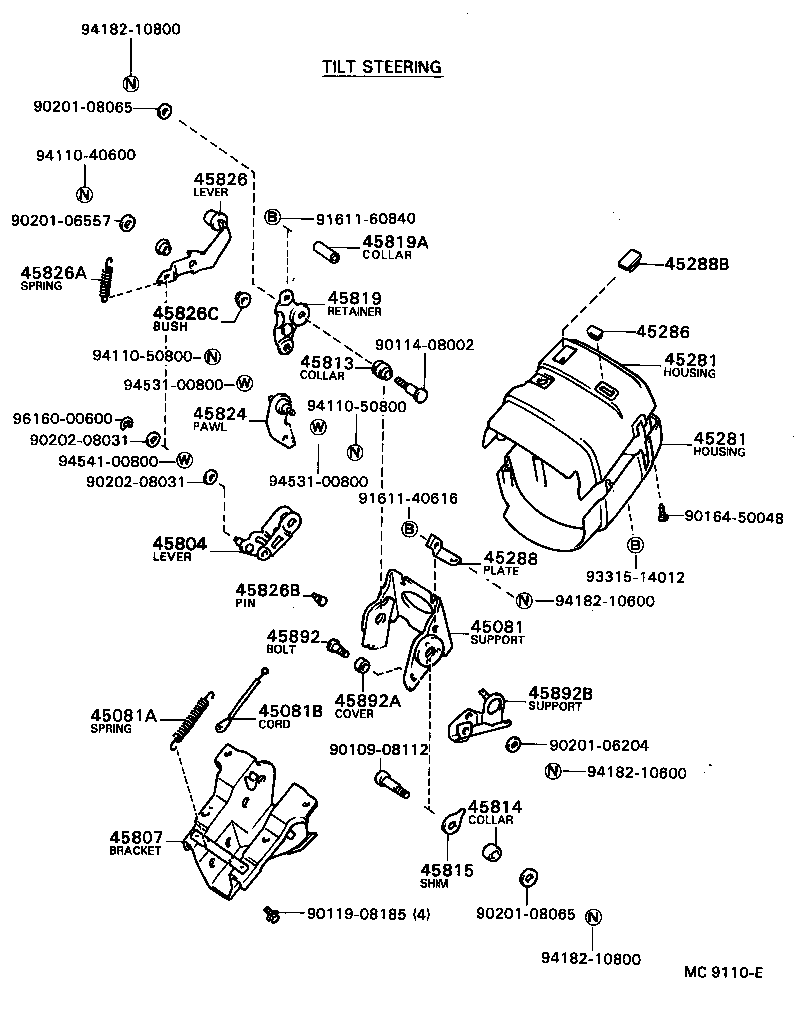

ILLUST NO. 2 OF 3(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-28010 |
CR21,YR20 |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
CR21,YR2#,31 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
CR21,YR2#,31 L=107.5 |
2 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805002 |
CR21,YR20..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805002 |
CR21,YR20..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR2#..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2805102 |
CR21,YR2#..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805002 |
CR21,YR20..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805002 |
CR21,YR20..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR2#..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2805102 |
CR21,YR2#..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2810002 |
CR21,YR2#..RHD..DLX WINE,RED/MAROON,TRIM4# |
1 | ||
| 45288 - PLATE, STEERING COLUMN COVER | ||||
| 45288-28020 |
CR21,YR2#,31 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-30010 |
CR21,YR2#,31 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-28020 |
CR21,YR2#,31 |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22040 |
CR21,YR2#,31 OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22020 |
CR21,YR2#,31 OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22010 |
CR21,YR2#,31 OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22030 |
CR21,YR2#,31 OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22050 |
CR21,YR2#,31 OD=17.989-17.996,D=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
CR21,YR2#,31 OD=17.982-18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
CR21,YR2#,31 OD=18.000-18.018,OD=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22080 |
CR21,YR2#,31 T=0.8,T=0.8 |
1 | ||
| 45815-22060 |
CR21,YR2#,31 T=0.2,T=0.2 |
1 | ||
| 45815-22100 |
CR21,YR2#,31 T=1.8,T=1.8 |
1 | ||
| 45815-22090 |
CR21,YR2#,31 T=1.4,T=1.4 |
1 | ||
| 45815-22070 |
CR21,YR2#,31 T=0.5,T=0.5 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45809-30021 |
CR21,YR2#,31 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
CR21,YR2#,31 |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-30020 |
CR21,YR2#,31 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-28010 |
CR21,YR20 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
CR21,YR2#,31 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
CR21,YR2#,31 |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-08123 |
CR21,YR2#,31 |
2 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
CR21,YR2#,31 |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
CR21,YR2#,31 |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-28020 |
CR21,YR2#,31 |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-06557 | ||||
| 90201-08065 | ||||
| 90202-08031 | ||||
| 91611-40616 | ||||
| 91611-60840 | ||||
| 93315-14012 | ||||
| 94110-40600 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 94541-00800 | ||||
| 96160-00600 | ||||

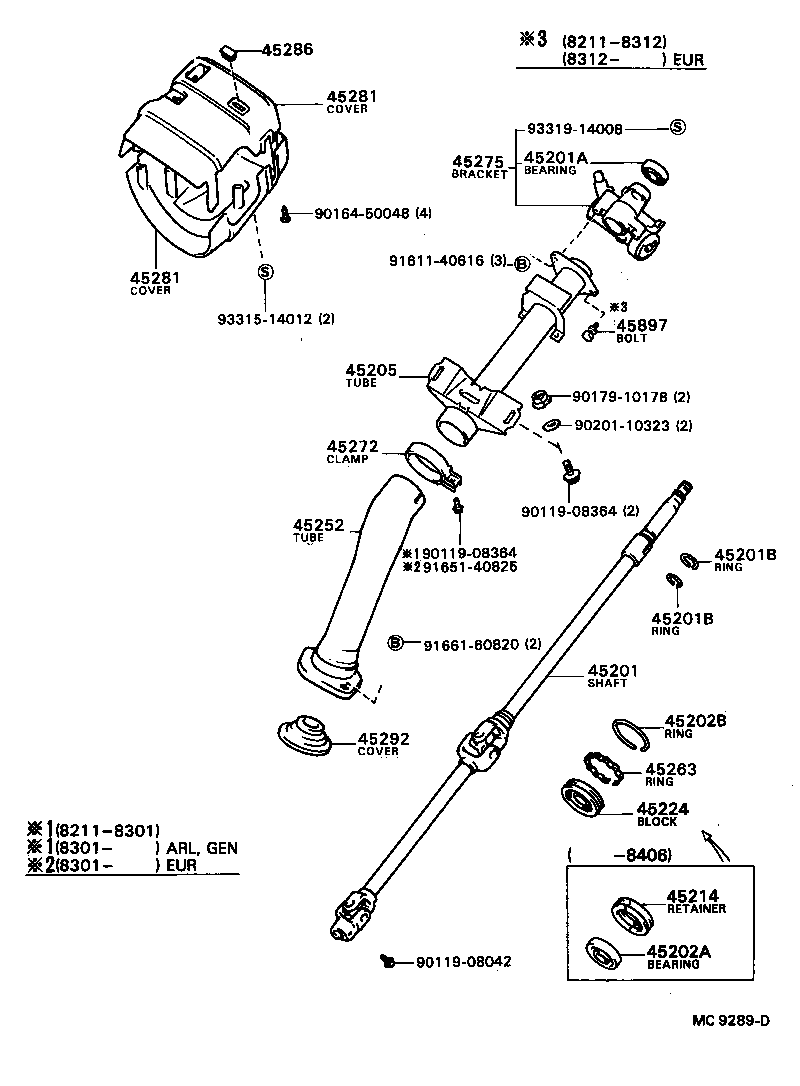

(8211-8508)DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28010 |
CR21,YR20..DLX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90363-30007 |
CR21,YR2# |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-28010 |
CR21,YR2# |
2 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805002 |
CR21,YR20..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805002 |
CR21,YR20..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR2#..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2805102 |
CR21,YR2#..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2805002 |
CR21,YR20..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805002 |
CR21,YR20..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2805102 |
CR21,YR2#..RHD..DLX UPR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2805102 |
CR21,YR2#..RHD..DLX LWR,W/TILT STEERING,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286-2806002 |
CR21,YR2#..RHD..DLX UPR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45287-2806002 |
CR21,YR2#..RHD..DLX LWR,WINE,RED/MAROON,TRIM4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2810002 |
CR21,YR2#..RHD..DLX WINE,RED/MAROON,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
CR21,YR20 |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40616 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||

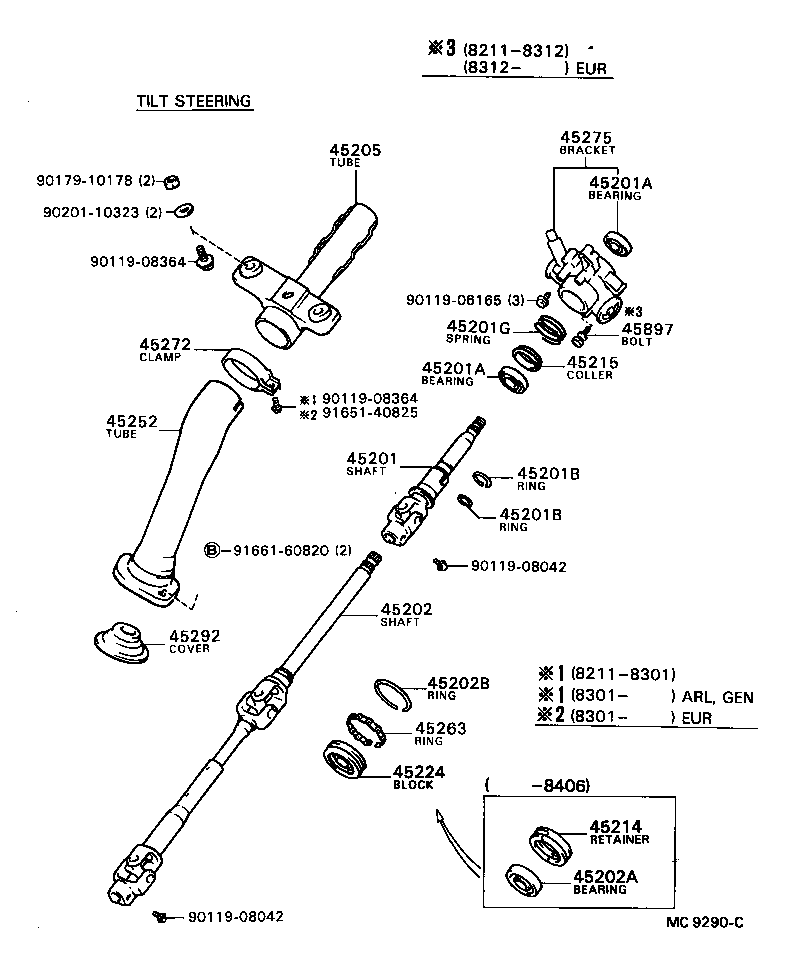

(8211-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45210-28010 |
CR21,YR20..DLX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
CR21,YR2#,31 UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
CR21,YR2#,31..DLX |
1 | ||
| 90363-28001 |
CR21,YR2#,31 LWR,W/TILT STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
CR21,YR2#,31 T=1.20,UPR |
1 | ||
| 90520-17269 |
CR21,YR2#,31 T=1.20,LWR |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
CR21,YR2#,31 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-28030 |
CR21,YR20 |
1 | ||
| 45202A - BEARING, RADIAL BALL(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90363-30007 |
CR21,YR2# |
1 | ||
| 45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 96152-00300 |
CR21,YR2#,31 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28070 |
CR21,YR2#,31 W/TILT STEERING |
1 | ||
| 45205-28060 |
CR21,YR2#,31..DLX |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-28010 |
CR21,YR2# |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
CR21,YR2#,31 |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-28020 |
CR21,YR2#..RHD..(ARL,GEN) |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
CR21,YR2#,31 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-28030 |
CR21,YR2#,31 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-28050 |
CR21,YR2#..RHD..DLX |
1 | ||
| 45280-28040 |
CR21,YR2#,31..RHD W/TILT STEERING |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-28020 |
CR21,YR2#,31 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
CR21,YR20 |
1 | ||
| Common parts | ||||
| 90119-06165 | ||||
| 90119-08042 | ||||
| 90119-08364 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91651-40825 | ||||
| 91661-60820 | ||||
