YR20LG-MQW (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 6(8211- )

Click highlighted areas on diagram

diagram 8271112500 8271114100 8271114120 8271114560 8271122220 8271124010 8271130070 8271130130 8271130380 8271187006 8281987001 9004461157 9004464009 9004480123 9046104009 9046105038 9046108401 9046310031 9046310050 9046400159 9046400161 9046400162 9046400166 9048020391 9048040507
Part # Description Qty Price
Common parts
82711-12500
82711-14100
82711-14120
82711-14560
82711-22220
82711-24010
82711-30070
82711-30130
82711-30380
82711-87006
82819-87001
90044-61157
90044-64009
90044-80123
90461-04009
90461-05038
90461-08401
90463-10031
90463-10050
90464-00159
90464-00161
90464-00162
90464-00166
90480-20391
90480-40507

ILLUST NO. 3 OF 6(8211- )

Click highlighted areas on diagram

diagram 6325487001 8271114110 8271887001 8271887002 8281710130 8281722330 8281728010 8281728030 8281728040 8281730340 8281787006 8281787009 8281787012 8281787013 8281787015 8281795708 8299187001 8299187002 8299187207
Part # Description Qty Price
Common parts
63254-87001
82711-14110
82718-87001
82718-87002
82817-10130
82817-22330
82817-28010
82817-28030
82817-28040
82817-30340
82817-87006
82817-87009
82817-87012
82817-87013
82817-87015
82817-95708
82991-87001
82991-87002
82991-87207

ILLUST NO. 1 OF 6(8211- )

Click highlighted areas on diagram

diagram 82001 82111 82112 82121 82121 82122 82123 82124 82131 82132 82133 82133 82171 82210C 82210C 82210D 82345 82345 82345 82345 82345 82345 82345 82620 82620 82671 82821A 82823 82823A 82823A 8401 9011908063 9011908063 9017906158 9165140820
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07222

CR21,YR2#..5F

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-28040

YR20..LHD..5F..GL..EUR

W/RR HEATER

 1
82111-28030

YR20..LHD..5F..GL..EUR

 1
82111-28041

YR20..LHD..5F..GL..EUR

W/RR HEATER

 1
82111-28031

YR20..LHD..5F..GL..EUR

 1
82122 - WIRE, ENGINE, NO.2
82122-87007

YR21;YR20..LHD;YR20..ARL

 1
82124 - WIRE, ENGINE, NO.4
82124-87001

YR2#..LHD

 1
82124-87006

YR2#

W/POWER STEERING

 1
82131 - WIRE, COWL
82131-28120

YR20..LHD..GL..EUR

W/*REH

 1
82131-28030

YR20..LHD..GL..EUR

 1
82131-28040

YR20..LHD..GL..EUR

SWEDEN SPEC & W/*REH

 1
82131-28031

YR20..LHD..GL..EUR

 1
82131-28041

YR20..LHD..GL..EUR

SWEDEN SPEC & W/*REH

 1
82131-28121

YR20..LHD..GL..EUR

W/*REH

 1
82132 - WIRE, COWL, NO.2
82132-28030

CR21,YR20..LHD..GL..EUR

 1
82132-28050

CR21,YR20..LHD..GL..EUR

W/*PW

 1
82171 - WIRE, ROOF, NO.1
82171-87002

CR21,YR2#..GL

 1
82171-87003

CR21,YR2#..GL

W/*PSR

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210D - FUSIBLE LINK
90982-08204

CR21,YR2#,31..LHD

L=110 0.5,0.5 GREEN

 1
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82345 - DIODE
82345-12010

CR21,YR2#..LHD

 4
82671 - BLOCK, JUNCTION
82671-28010

YR2#,31

 1
Common parts
90119-08063
90179-06158
91651-40820
Linked diagrams
8401

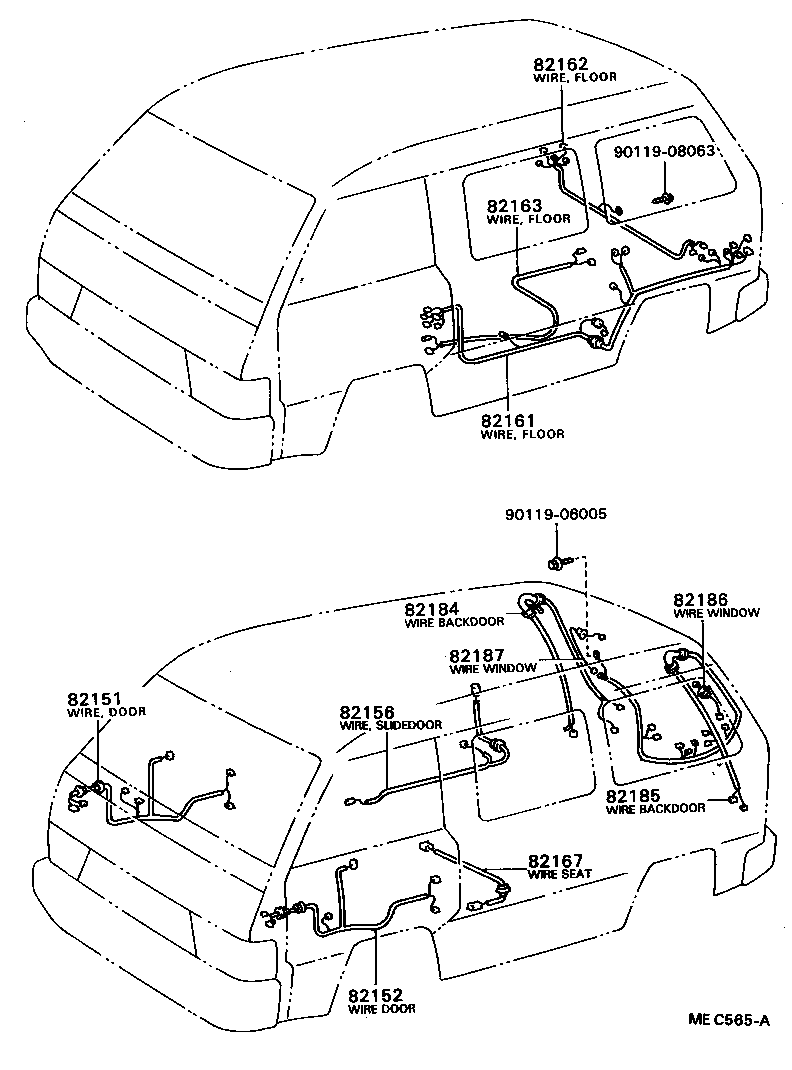

ILLUST NO. 2 OF 6(8211- )LHD

Click highlighted areas on diagram

diagram 82151 82152 82156 82161 82162 82163 82167 82184 82185 82186 82187 9011906005 9011908063
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-28010

YR20..LHD..GL

 1
82151-28020

YR20..LHD..GL

W/*PW

 1
82152 - WIRE, FRONT DOOR, LH
82152-28020

YR20..LHD..GL

W/*PW

 1
82152-28010

YR20..LHD..GL

 1
82152-28021

CR21,YR2#..LHD..GL

W/*PW

 1
82152-28011

CR21,YR2#..LHD..GL

 1
82156 - WIRE, SLIDE DOOR
82156-28010

CR21,YR2#..LHD..GL

 1
82161 - WIRE, FLOOR
82161-28020

CR21,YR20..LHD..EUR

W/*RW

 1
82162 - WIRE, FLOOR, NO.2
82162-28020

CR21,YR20..LHD..EUR

W/*RW

 1
82163 - WIRE, FLOOR, NO.3
82163-28010

CR21,YR20,21..LHD..EUR

 1
82184 - WIRE, BACK DOOR, NO.1
82184-87009

CR21,YR2#

W/*RW

 1
82184-87006

YR20

W/*RW

 1
82185 - WIRE, BACK DOOR, NO.2
82185-87007

CR21,YR2#..GL

 1
82186 - WIRE, REAR WINDOW, NO.1
82187-87001

CR21,YR2#,31

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-87001

CR21,YR2#

 1
Common parts
90119-06005
90119-08063

ILLUST NO. 5 OF 6(8211- )

Click highlighted areas on diagram

diagram 7818395406 8271112180 8271112200 8271122860 8271130370 8271140020 8271187006 8271187007 8271187008 8271187009 8271187010 8271187011 8271187013 9004464004 9046105038 9046107037 9046108183 9046108309 9046108972 9046110275 9046208018 9046208019 9046313003 9046400102 9046400331
Part # Description Qty Price
Common parts
78183-95406
82711-12180
82711-12200
82711-22860
82711-30370
82711-40020
82711-87006
82711-87007
82711-87008
82711-87009
82711-87010
82711-87011
82711-87013
90044-64004
90461-05038
90461-07037
90461-08183
90461-08309
90461-08972
90461-10275
90462-08018
90462-08019
90463-13003
90464-00102
90464-00331

ILLUST NO. 6 OF 6(8211- )

Click highlighted areas on diagram

diagram 8281987007 9004464004 9046705018 9048050489 9095001061 9095001065 9098901024 9098901025
Part # Description Qty Price
Common parts
82819-87007
90044-64004
90467-05018
90480-50489
90950-01061
90950-01065
90989-01024
90989-01025

(8211- )

Click highlighted areas on diagram

diagram 82210C 82210C 82210C 82210C 82210C 82210D 82210D 9098208037 9098208189 9098208202 9098208203 9098208204 9098208242 9098288188
Part # Description Qty Price
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210C - FUSIBLE LINK
90982-08188

CR21,YR2#,31

30A,TERM.:FEMALE,PNK,30A

 2
90982-08202

CR21,YR2#

60A,TERM.:MALE,YEL,60A

 1
90982-08189

CR21,YR2#,31

40A,TERM.:FEMALE,GRN,40A

 1
82210D - FUSIBLE LINK
90982-08204

CR21,YR2#,31..LHD

L=110 0.5,0.5 GREEN

 1
82210D - FUSIBLE LINK
90982-08204

CR21,YR2#,31..LHD

L=110 0.5,0.5 GREEN

 1
Common parts
90982-08037
90982-08189
90982-08202
90982-08203
90982-08204
90982-08242
