YR20LG-MQ (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

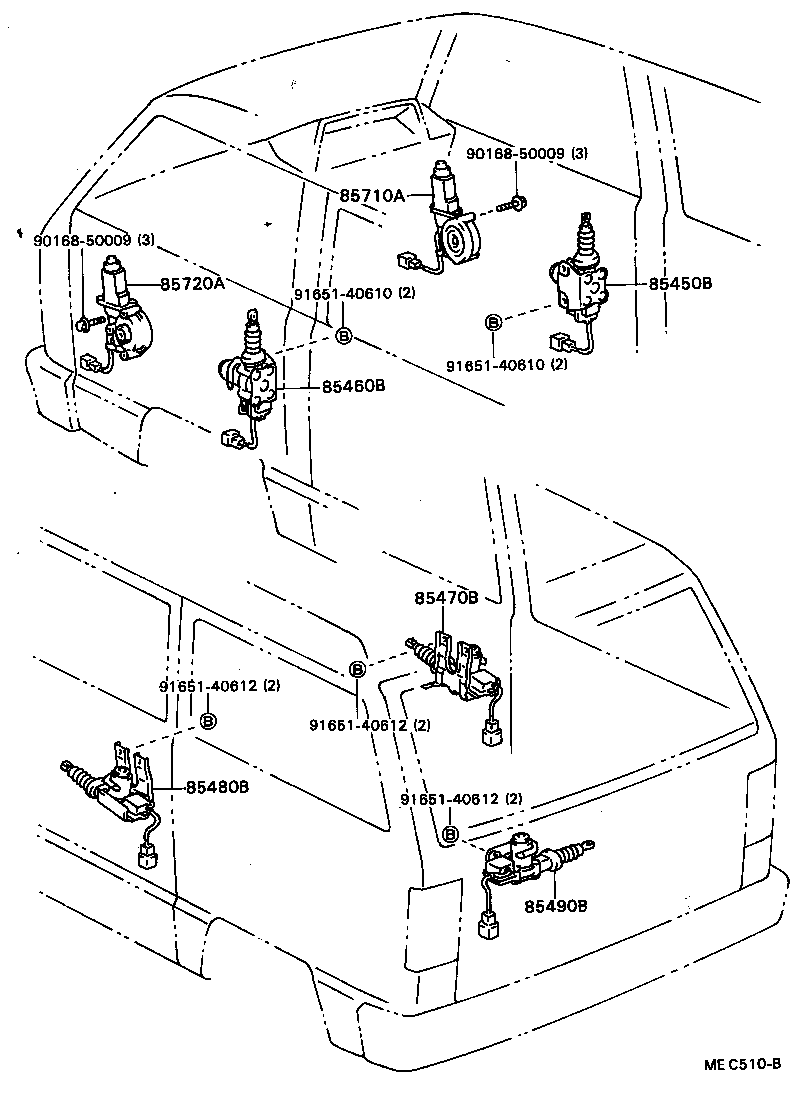

Click highlighted areas on diagram

diagram 85450B 85460B 85470B 85480B 85490B 85710A 85720A 9016850009 9016850009 9165140610 9165140610 9165140612 9165140612 9165140612
Part # Description Qty Price
85470B - MOTOR ASSY, DOOR CONTROL, REAR RH
85470-87001

CR21,YR2#,31..LHD..GL

 1
85490B - MOTOR ASSY, BACK DOOR CONTROL
85470-87002

CR21,YR2#..GL

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-87101

CR21,YR20,21,31..GL

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-87101

CR21,YR20,21,31..GL

 1
Common parts
90168-50009
91651-40610
91651-40612
