YR20LG-MQ (1982)

Toyota Model-F

Production Nov 1982 - Aug 1984
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

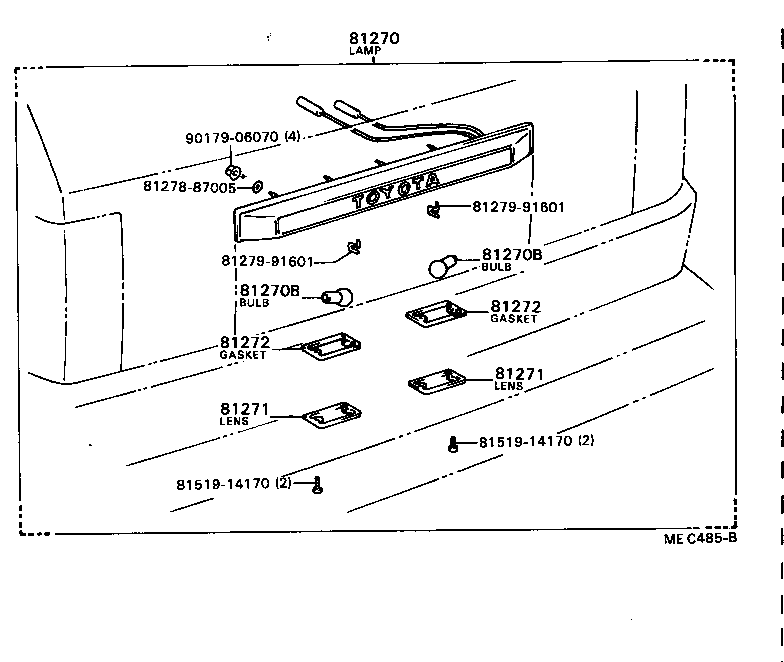

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81271 81272 81272 8127887005 8127991601 8127991601 8151914170 8151914170 9017906070
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29835

CR21,YR2#..EUR,GEN

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

CR21,YR2#,31..EUR,GEN

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

CR21,YR2#,31..EUR,GEN

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

CR21,YR2#,31

 2
81271 - LENS, LICENSE PLATE LAMP
81271-87004

CR21,YR2#,31

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

CR21,YR2#,31

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004

CR21,YR2#,31

 2
Common parts
81278-87005
81279-91601
81519-14170
90179-06070
