YR20LG-MQ (1982)
Toyota Model-F

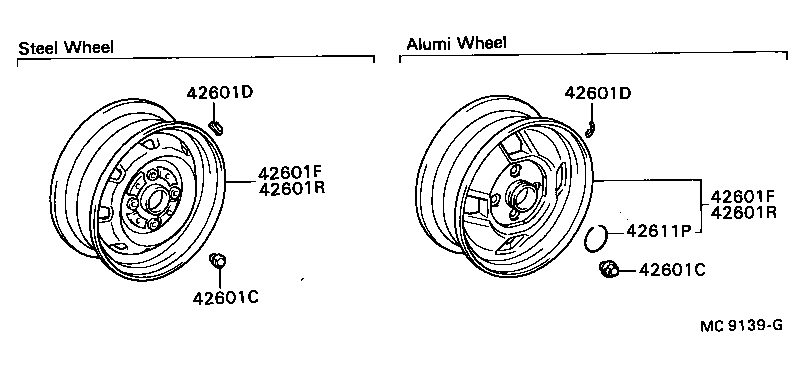

ILLUST NO. 1 OF 2(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01027 |
CR21,YR2# CAP NUT,BLACK |
16 | ||
| 90942-01042 |
CR21,YR2# W/ALUMI WHEEL |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01027 |
CR21,YR2# CAP NUT,BLACK |
16 | ||
| 90942-01042 |
CR21,YR2# W/ALUMI WHEEL |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03025 |
CR21,YR2#,31 50G,T=9.5,50G |
1 | ||
| 90942-03027 |
CR21,YR2#,31 60G,T=9.5,60G |
1 | ||
| 90942-03022 |
CR21,YR2#,31 40G,T=9.5,40G |
1 | ||
| 90942-03041 |
CR21,YR2#,31 10G,T=7.5,10G |
1 | ||
| 90942-03093 |
CR21,YR2# 20G,20G,W/ALUMI WHEEL |
1 | ||
| 90942-03020 |
CR21,YR2#,31 30G,T=10,30G |
1 | ||
| 90942-03031 |
CR21,YR2#,31 80G,T=9.5,80G |
1 | ||
| 90942-03017 |
CR21,YR2#,31 20G,T=8,20G |
1 | ||
| 90942-03029 |
CR21,YR2#,31 70G,T=9.5,70G |
1 | ||
| 90942-03092 |
CR21,YR2# 10G,10G,W/ALUMI WHEEL |
1 | ||
| 90942-03096 |
CR21,YR2# 50G,50G,W/ALUMI WHEEL |
1 | ||
| 90942-03097 |
CR21,YR2# 60G,60G,W/ALUMI WHEEL |
1 | ||
| 90942-03095 |
CR21,YR2# 40G,40G,W/ALUMI WHEEL |
1 | ||
| 90942-03094 |
CR21,YR2# 30G,30G,W/ALUMI WHEEL |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03025 |
CR21,YR2#,31 50G,T=9.5,50G |
1 | ||
| 90942-03027 |
CR21,YR2#,31 60G,T=9.5,60G |
1 | ||
| 90942-03022 |
CR21,YR2#,31 40G,T=9.5,40G |
1 | ||
| 90942-03041 |
CR21,YR2#,31 10G,T=7.5,10G |
1 | ||
| 90942-03093 |
CR21,YR2# 20G,20G,W/ALUMI WHEEL |
1 | ||
| 90942-03020 |
CR21,YR2#,31 30G,T=10,30G |
1 | ||
| 90942-03031 |
CR21,YR2#,31 80G,T=9.5,80G |
1 | ||
| 90942-03017 |
CR21,YR2#,31 20G,T=8,20G |
1 | ||
| 90942-03029 |
CR21,YR2#,31 70G,T=9.5,70G |
1 | ||
| 90942-03092 |
CR21,YR2# 10G,10G,W/ALUMI WHEEL |
1 | ||
| 90942-03096 |
CR21,YR2# 50G,50G,W/ALUMI WHEEL |
1 | ||
| 90942-03097 |
CR21,YR2# 60G,60G,W/ALUMI WHEEL |
1 | ||
| 90942-03095 |
CR21,YR2# 40G,40G,W/ALUMI WHEEL |
1 | ||
| 90942-03094 |
CR21,YR2# 30G,30G,W/ALUMI WHEEL |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-14030 |
YR20 5.5JJ-14,ALUMI WHEEL,TOPY |
2 | ||
| 42601-14010 |
YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
2 | ||
| 42601-14011 |
CR21,YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-14030 |
YR20 5.5JJ-14,ALUMI WHEEL,TOPY |
2 | ||
| 42601-14010 |
YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
2 | ||
| 42601-14011 |
CR21,YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-14010 |
YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
3 | ||
| 42601-14011 |
CR21,YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
3 | ||
| 42601-14030 |
YR20 5.5JJ-14,ALUMI WHEEL,TOPY |
3 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-14010 |
YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
3 | ||
| 42601-14011 |
CR21,YR20 5.5JJ-14,ALUMI WHEEL,TOYOTA |
3 | ||
| 42601-14030 |
YR20 5.5JJ-14,ALUMI WHEEL,TOPY |
3 | ||
| 42611P - RING, SET | ||||
| 90522-64001 |
CR21,YR2# |
5 | ||

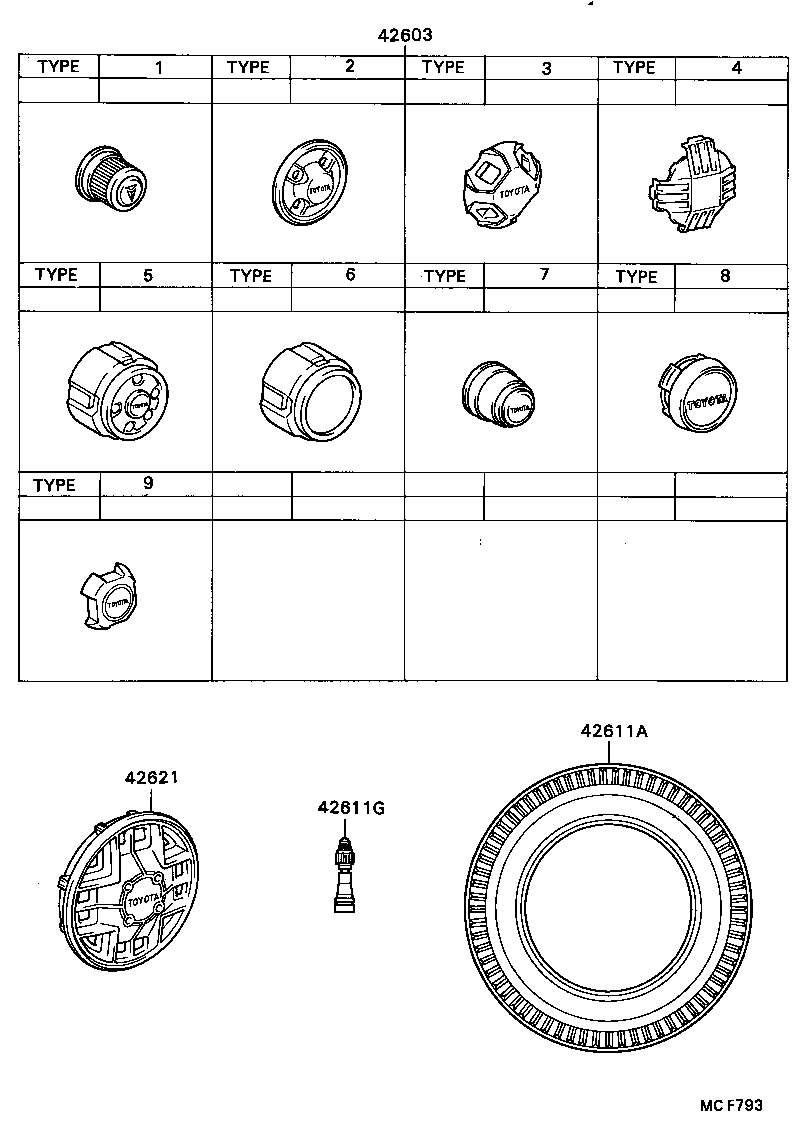

ILLUST NO. 2 OF 2(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-14160 |
CR21,YR20 TYPE 3,W/ALUMI WHEEL |
4 | ||
| 42603-28030 |
CR21,YR20,21 TYPE 1 |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-22250 |
CR21,YR20,21..GEN 185/70HR14 |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
CR21,YR2#,31 |
5 | ||
