CR21RG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )2C

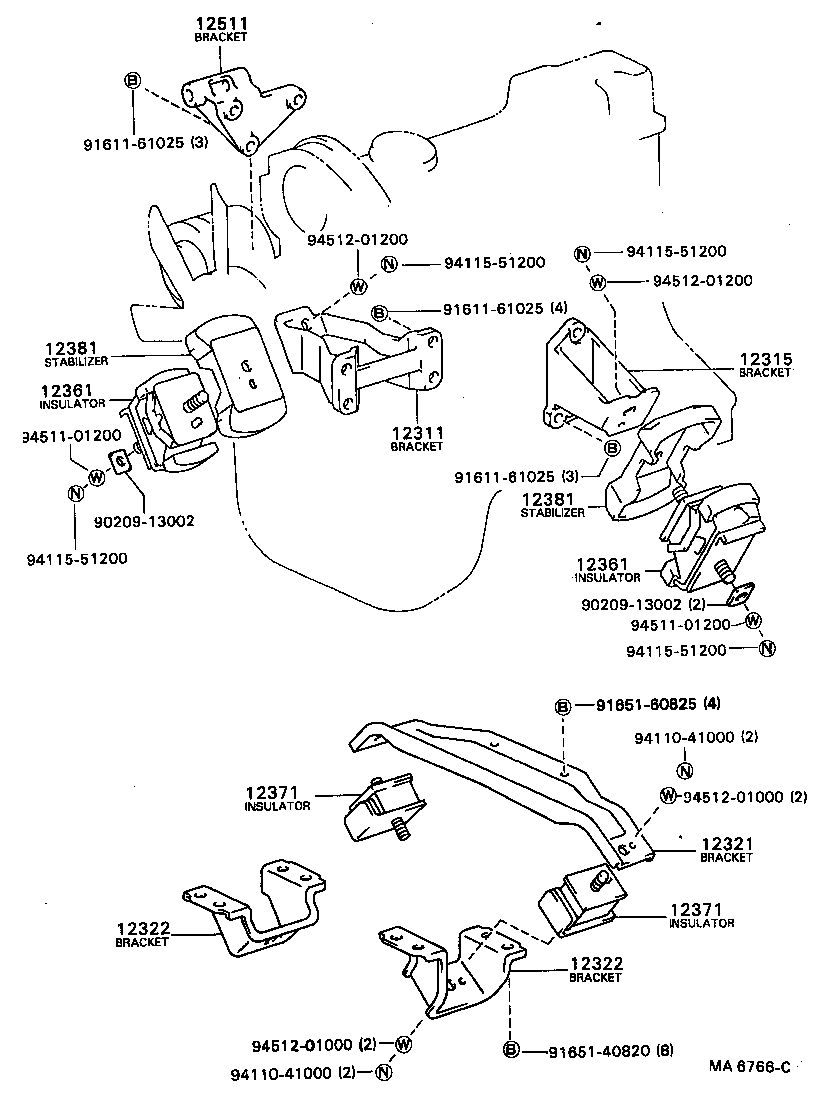

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12361 12361 12371 12371 12381 12381 12511 9020913002 9020913002 9161161025 9161161025 9161161025 9165140820 9165160825 9411041000 9411041000 9411551200 9411551200 9411551200 9411551200 9451101200 9451101200 9451201000 9451201000 9451201200 9451201200
Part # Description Qty Price
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13010

2C..CR21

LH

 1
12322-13030

2C..CR21

RH

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13010

2C..CR21

LH

 1
12322-13030

2C..CR21

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13051

2C..CR21

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13051

2C..CR21

 2
Common parts
90209-13002
91611-61025
91651-40820
91651-60825
94110-41000
94115-51200
94511-01200
94512-01000
94512-01200
