CR21RG-MDQ (1983)

Toyota Model-F

Production May 1983 - Aug 1988
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ARL

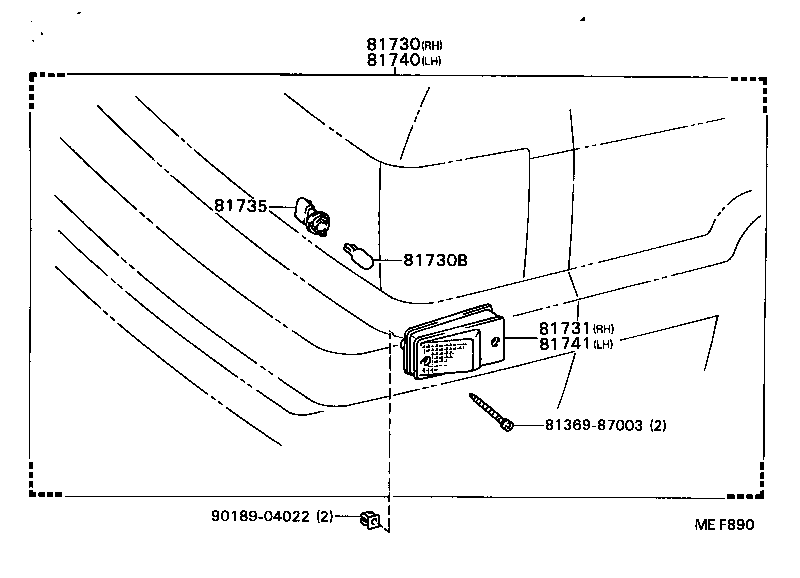

Click highlighted areas on diagram

diagram 8136987003 81730 81730B 81731 81735 81740 81741 9018904022
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-29235

CR21,YR2#

 1
81730-29265

CR21,YR2#,31..ARL

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

CR21,YR2#,31

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-87004

CR21,YR2#

 1
81731-87007

CR21,YR2#,31..ARL

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81735-12180

CR21,YR2#,31..ARL

 2
81735-87004

CR21,YR2#

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-29225

CR21,YR2#

 1
81740-29255

CR21,YR2#,31..ARL

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-87004

CR21,YR2#

 1
81741-87007

CR21,YR2#,31..ARL

 1
Common parts
81369-87003
90189-04022
