CR21RG-MDQ (1983)
Toyota Model-F

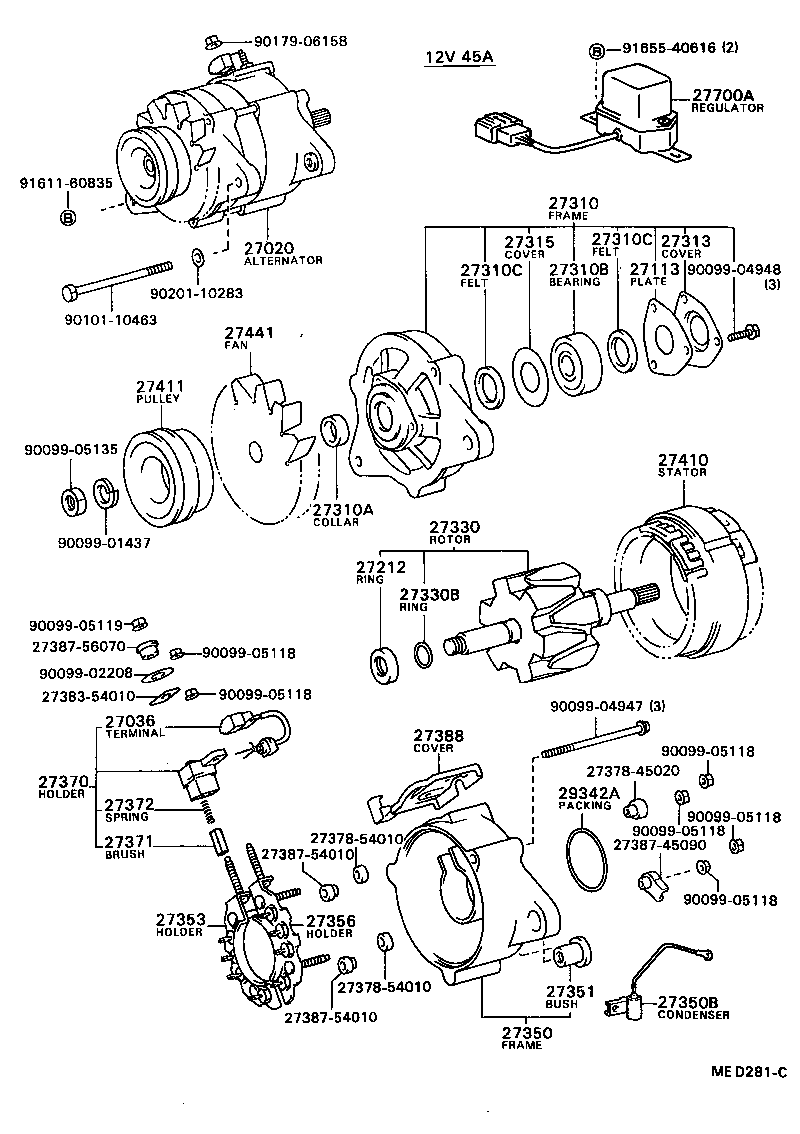

(8305-8508)2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64090 |
2C..CR21 12V 45A |
1 | ||
| 27060-64020 |
2C..CR21 12V 55A,12V 55A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
2C..CR21 12V 45A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2C..CR21 12V 45A |
1 | ||
| 27312-64130 |
2C..CR21 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
2C..CR21 12V 45A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64050 |
2C..CR21 12V 45A |
1 | ||
| 27310-64140 |
2C..CR21 12V 55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
2C..CR21 12V 45A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2C..CR21 12V 45A |
1 | ||
| 90099-10165 |
2C..CR21 12V 55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2C..CR21 12V 45A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
2C..CR21 12V 45A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
2C..CR21 12V 45A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
2C..CR21 12V 45A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54200 |
2C..CR21 12V 45A |
1 | ||
| 27330-64140 |
2C..CR21 12V 55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
2C..CR21 12V 45A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-64050 |
2C..CR21 12V 45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
2C..CR21 12V 45A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-64010 |
2C..CR21 12V 45A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
2C..CR21 12V 45A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
2C..CR21 12V 45A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
2C..CR21 12V 55A |
1 | ||
| 27370-54010 |
2C..CR21 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2C..CR21 12V 45A |
1 | ||
| 27371-63020 |
2C..CR21 12V 55A |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
2C,3Y#,4YEC..CR21,YR2#,31 12V 55A,60A,70A |
1 | ||
| 27372-56070 |
2C..CR21 12V 45A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-64011 |
2C..CR21 12V 45A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-54200 |
2C..CR21 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64040 |
2C..CR21 12V 45A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
2C..CR21 12V 45A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72010 |
2C,2Y#,3Y#..CR21,YR20,21 |
1 | ||
| 27700-63021 |
2C..CR21 12V 55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2C..CR21 12V 45A |
1 | ||
| 29341-64130 |
2C..CR21 12V 55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10463 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 91611-60835 | ||||
| 91655-40616 | ||||
(8508- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64090 |
2C..CR21 12V 45A |
1 | ||
| 27060-64020 |
2C..CR21 12V 55A,12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
2C..CR21 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
2C..CR21 12V 45A |
1 | ||
| 27312-64130 |
2C..CR21 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64050 |
2C..CR21 12V 45A |
1 | ||
| 27310-64140 |
2C..CR21 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
2C..CR21 12V 45A |
1 | ||
| 90099-10165 |
2C..CR21 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54200 |
2C..CR21 12V 45A |
1 | ||
| 27330-64140 |
2C..CR21 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C..CR21 12V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63040 |
2C..CR21 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64140 |
2C..CR21 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
2C..CR21 12V 55A |
1 | ||
| 27370-54010 |
2C..CR21 12V 45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
2C..CR21 12V 45A |
1 | ||
| 27371-63020 |
2C..CR21 12V 55A |
1 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
2C,3Y#,4YEC..CR21,YR2#,31 12V 55A,60A,70A |
1 | ||
| 27372-56070 |
2C..CR21 12V 45A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2C..CR21 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72010 |
2C,2Y#,3Y#..CR21,YR20,21 |
1 | ||
| 27700-63021 |
2C..CR21 12V 55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
2C..CR21 12V 45A |
1 | ||
| 29341-64130 |
2C..CR21 12V 55A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00167 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90105-10133 | ||||
| 90119-08365 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
