CR21LG-MDW (1983)

Toyota Model-F

Production May 1983 - Aug 1984
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

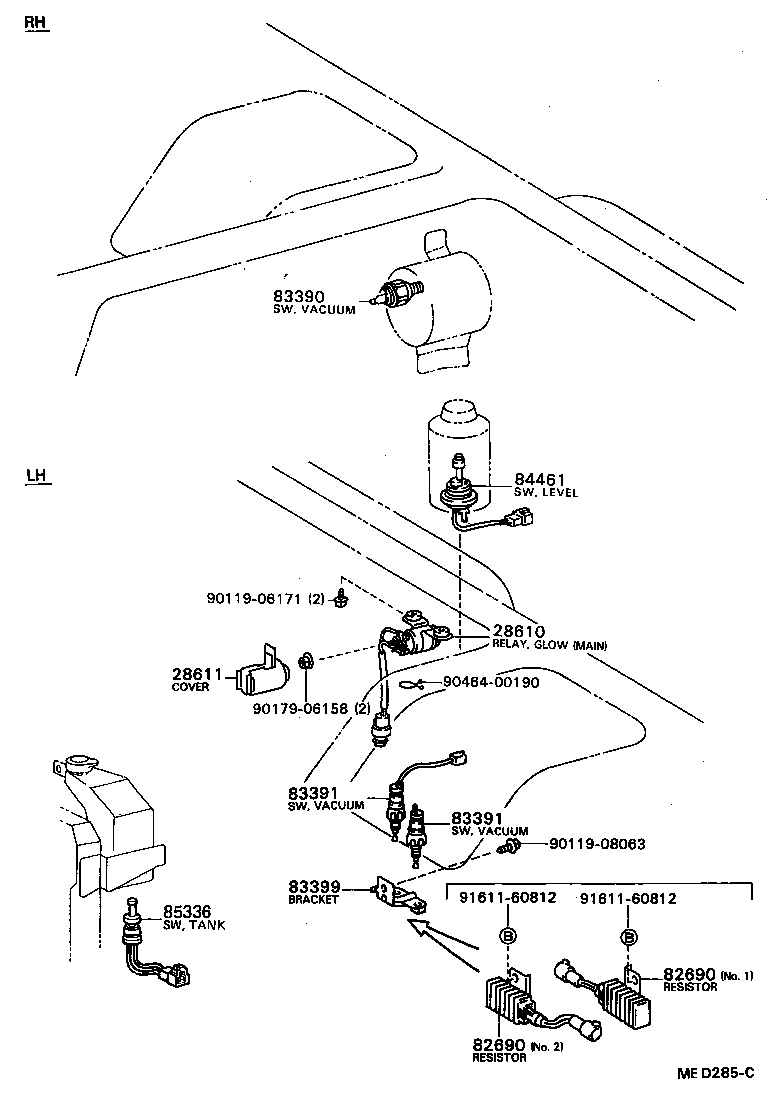

Click highlighted areas on diagram

diagram 28610 28611 82690 82690 83390 83391 83391 83399 84461 85336 9011906171 9011908063 9017906158 9046400190 9161160812 9161160812
Part # Description Qty Price
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54190

2C..CR21..EUR

MAIN

 1
28611 - COVER, GLOW PLUG RELAY
28611-54020

2C..CR21..EUR

 1
Common parts
90119-06171
90119-08063
90179-06158
90464-00190
91611-60812
