CR21LG-MDW (1983)
Toyota Model-F

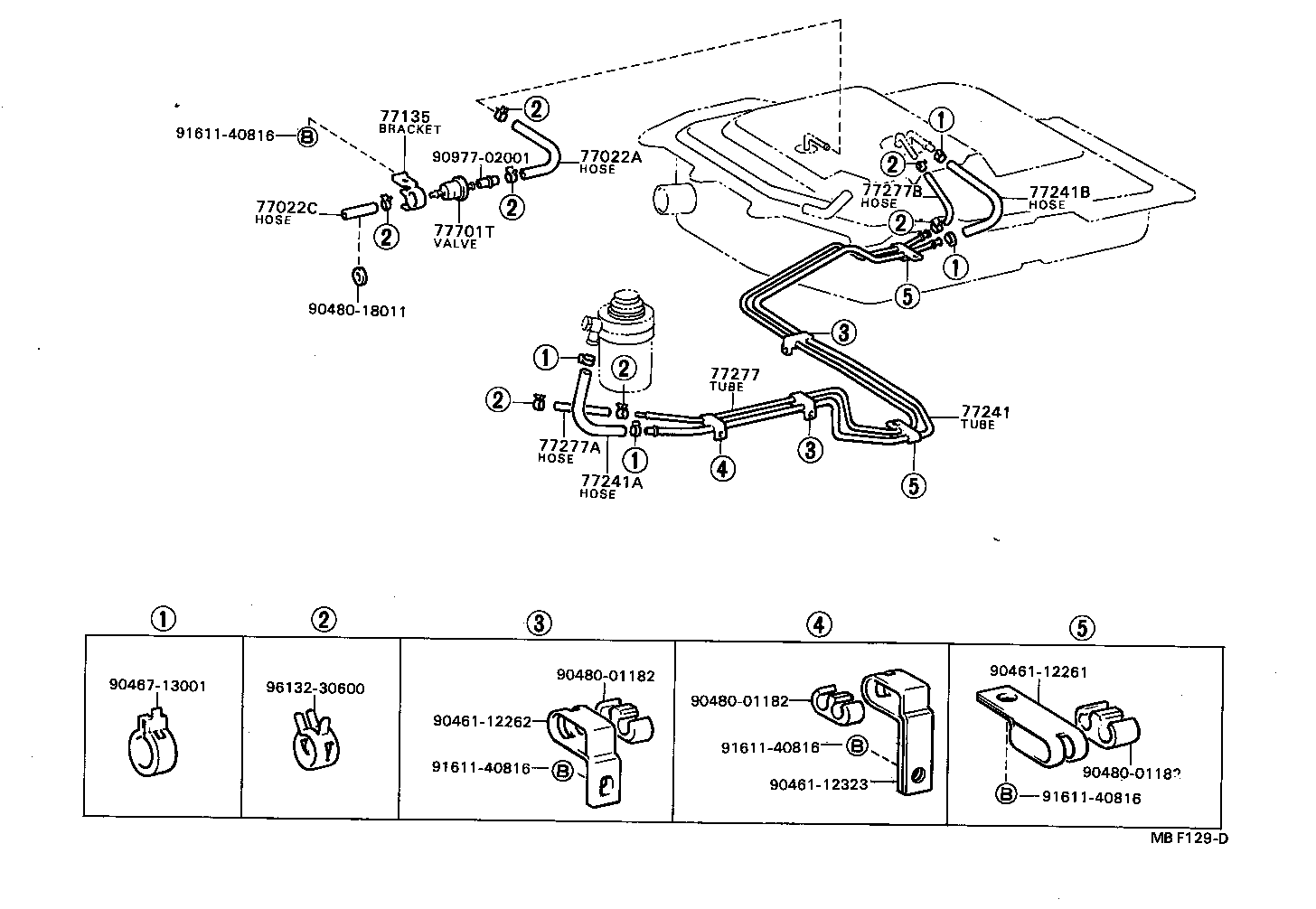

ILLUST NO. 2 OF 2(8305- )CR21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77277-28010 |
CR21 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-28040 |
CR21 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
CR21 *H,L=260,ID=7.6 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-28020 |
CR21 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-04030 |
YR20,21 *H,L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
CR21 *H,L=200 |
1 | ||
| 95332-04030 |
YR20,21 *H,L=220 |
1 | ||
| 95332-06020 |
CR21 *H,L=200 |
1 | ||
| 95332-06020 |
CR21 *H,L=190 |
1 | ||
| Common parts | ||||
| 90461-12261 | ||||
| 90461-12262 | ||||
| 90461-12323 | ||||
| 90467-13001 | ||||
| 90480-01182 | ||||
| 90480-18011 | ||||
| 90977-02001 | ||||
| 91611-40816 | ||||
| 96132-30600 | ||||

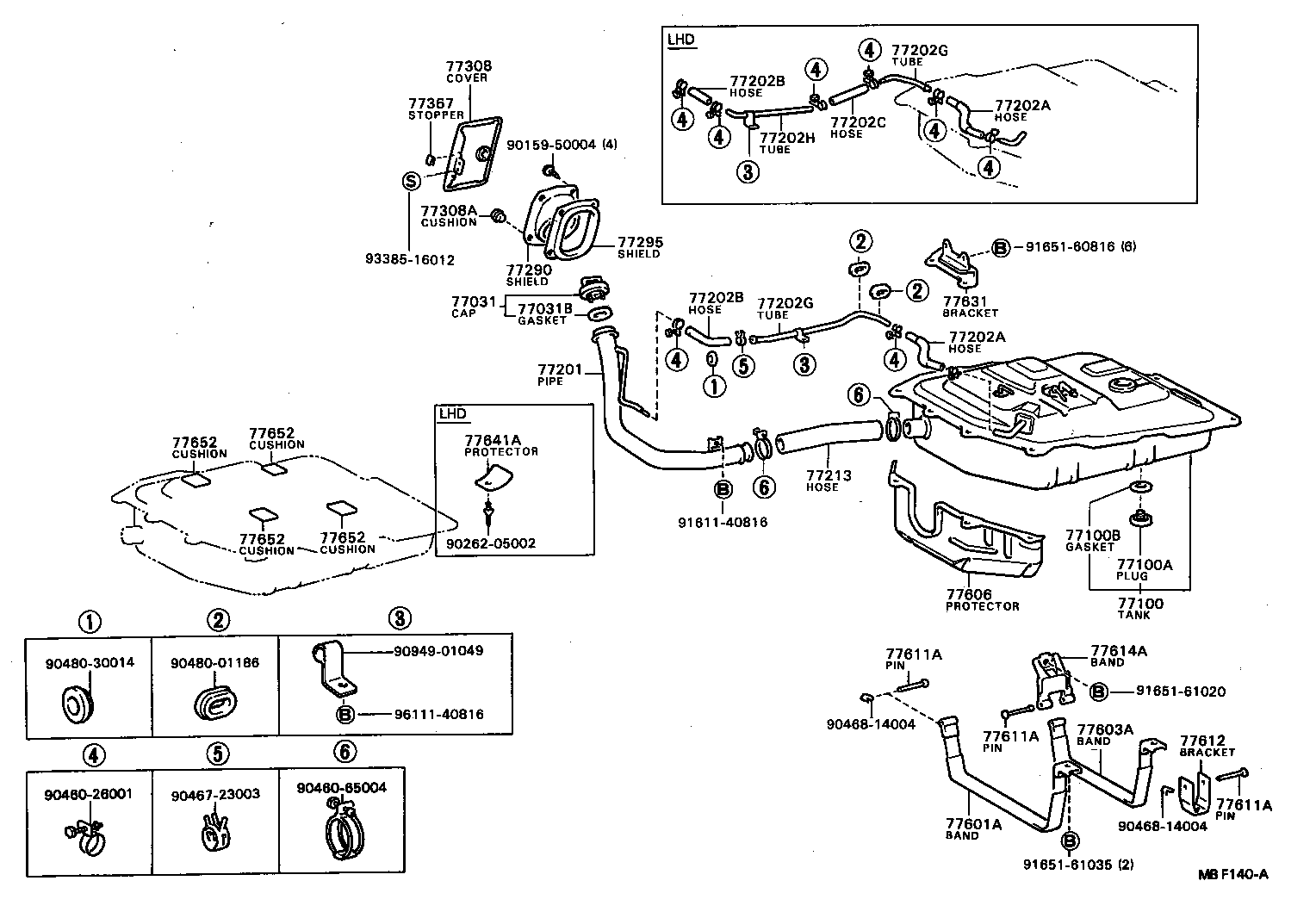

ILLUST NO. 1 OF 2(8211-8312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CR21,YR2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-28020 |
CR21 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
CR21,YR2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
CR21,YR2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28050 |
CR21,YR2# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-28030 |
CR21,YR2#,31 L=290 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-28030 |
CR21,YR2#,31 L=290 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-24029 |
CR21,YR2#,31..LHD |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-24029 |
CR21,YR2#,31..LHD |
1 | ||
| 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 90445-24010 |
CR21,YR2#,31..LHD L=130 |
1 | ||
| 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77222-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77222-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77202H - TUBE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 77223-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-28010 |
CR21,YR2#,31 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-28010 |
CR21,YR2#,31 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-28010 |
CR21,YR2#,31 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-87002 |
CR21,YR2#,31 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06001 |
CR21,YR2#,31 |
2 | ||
| 77367 - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-87001 |
CR21,YR2#,31 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-28010 |
CR21,YR2# |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77613-28030 |
CR21,YR20 |
1 | ||
| 77614A - BAND, FUEL TANK, NO.2 RH | ||||
| 77614-28010 |
CR21,YR2#,31 |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77501-28030 |
CR21,YR20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28010 |
CR21,YR20,21..LHD |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90262-05002 | ||||
| 90460-26001 | ||||
| 90460-65004 | ||||
| 90467-23003 | ||||
| 90468-14004 | ||||
| 90480-01186 | ||||
| 90480-30014 | ||||
| 90949-01049 | ||||
| 91611-40816 | ||||
| 91651-60816 | ||||
| 91651-61020 | ||||
| 91651-61035 | ||||
| 93385-16012 | ||||
| 96111-40816 | ||||

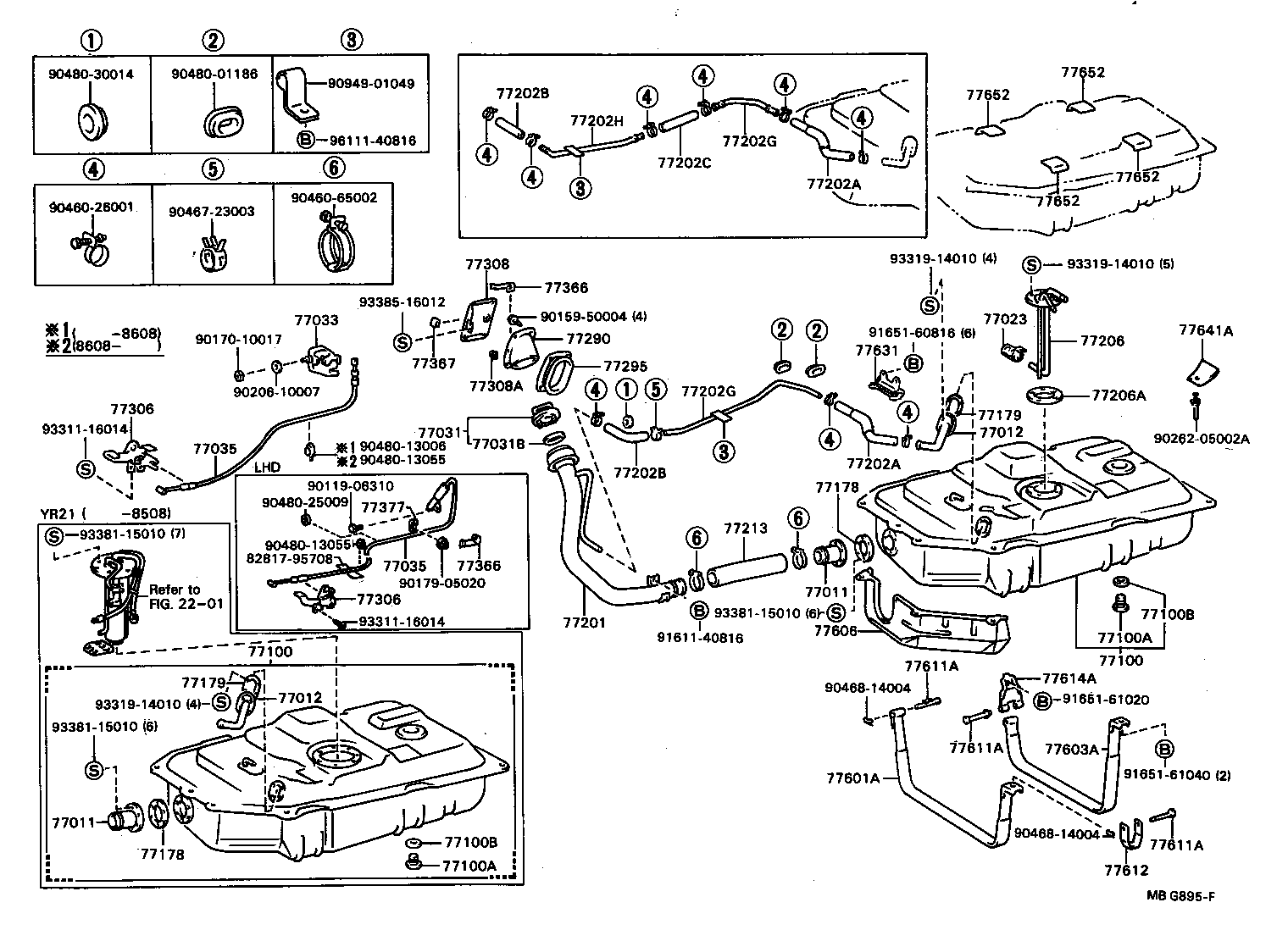

ILLUST NO. 1 OF 2(8312- )CR21,YR2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CR21,YR2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-28020 |
CR21 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-28020 |
CR21 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
CR21,YR2# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20003 |
CR21,YR2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
CR21,YR2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
CR21,YR2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-28050 |
CR21,YR2# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-28030 |
CR21,YR2#,31 L=290 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-28030 |
CR21,YR2#,31 L=290 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-24029 |
CR21,YR2#,31..LHD |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-24029 |
CR21,YR2#,31..LHD |
1 | ||
| 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 90445-24010 |
CR21,YR2#,31..LHD L=130 |
1 | ||
| 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77222-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77222-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77202H - TUBE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 77223-28030 |
CR21,YR2#,31..LHD |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-28010 |
CR21,YR2#,31 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-28010 |
CR21,YR2#,31 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-28010 |
CR21,YR2#,31 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-87002 |
CR21,YR2#,31 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06001 |
CR21,YR2#,31 |
2 | ||
| 77367 - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-87001 |
CR21,YR2#,31 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-28010 |
CR21,YR2# |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
CR21,YR2# FR RH,L=69.5 |
1 | ||
| 90240-08047 |
CR21,YR2# FR LH,L=81 |
1 | ||
| 77653-28010 |
CR21,YR2#,31 RR RH,L=73 |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77613-28030 |
CR21,YR20 |
1 | ||
| 77614A - BAND, FUEL TANK, NO.2 RH | ||||
| 77614-28010 |
CR21,YR2#,31 |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77501-28030 |
CR21,YR20 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-28010 |
CR21,YR20,21..LHD |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-28010 |
CR21,YR20 70X70 |
4 | ||
| Common parts | ||||
| 82817-95708 | ||||
| 90119-06310 | ||||
| 90159-50004 | ||||
| 90170-10017 | ||||
| 90179-05020 | ||||
| 90206-10007 | ||||
| 90262-05002 | ||||
| 90460-26001 | ||||
| 90460-65002 | ||||
| 90467-23003 | ||||
| 90468-14004 | ||||
| 90480-01186 | ||||
| 90480-13006 | ||||
| 90480-13055 | ||||
| 90480-25009 | ||||
| 90480-30014 | ||||
| 90949-01049 | ||||
| 91611-40816 | ||||
| 91651-60816 | ||||
| 91651-61020 | ||||
| 91651-61040 | ||||
| 93311-16014 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-16012 | ||||
| 96111-40816 | ||||
| Linked diagrams | ||||
| 2201 | ||||
