JPD20R-CEDSSW (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 6(2011- )
Click highlighted areas on diagram

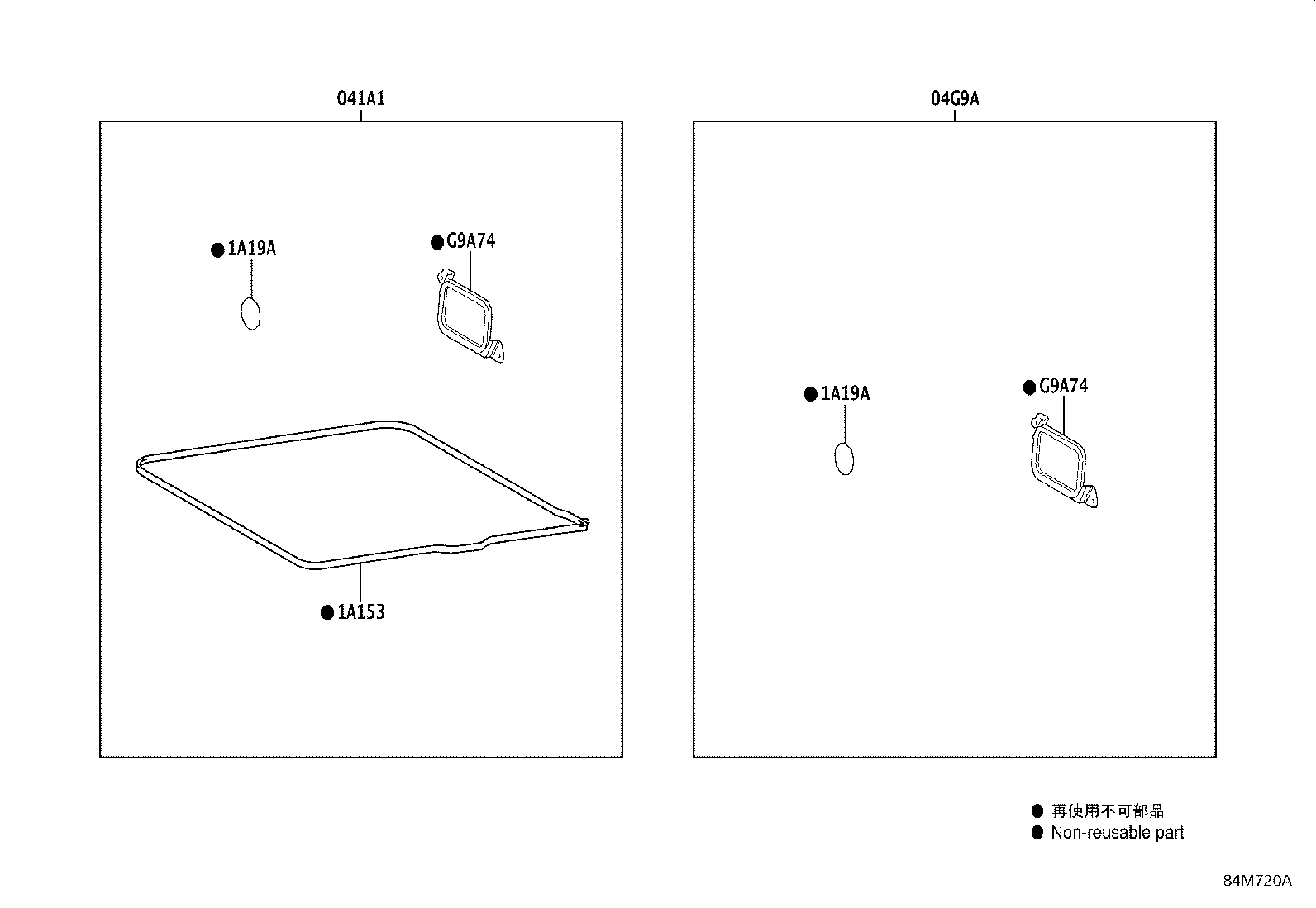

FC STACK(KIT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 041A1 - STACK KIT, FC | ||||
| 041A1-77010 |
3KM..JPD20 |
1 | ||
| 04G9A - CONVERTER KIT, FC | ||||
| 04G9A-62010 |
JPD20 |
1 | ||
| 1A153 - GASKET, FC STACK CASE, UPPER | ||||
| 1A153-77010 |
3KM..JPD20 |
1 | ||
| 1A19A - PLUG, FC STACK CASE, NO.1 | ||||
| 1A19A-77020 |
3KM..JPD20 |
1 | ||
| 1A19A - PLUG, FC STACK CASE, NO.1 | ||||
| 1A19A-77020 |
3KM..JPD20 |
1 | ||
| G9A74 - COVER, FC CONVERTER VENT | ||||
| G9A74-62010 |
JPD20 |
1 | ||
| G9A74 - COVER, FC CONVERTER VENT | ||||
| G9A74-62010 |
JPD20 |
1 | ||
ILLUST NO. 3 OF 6(2011- )
Click highlighted areas on diagram

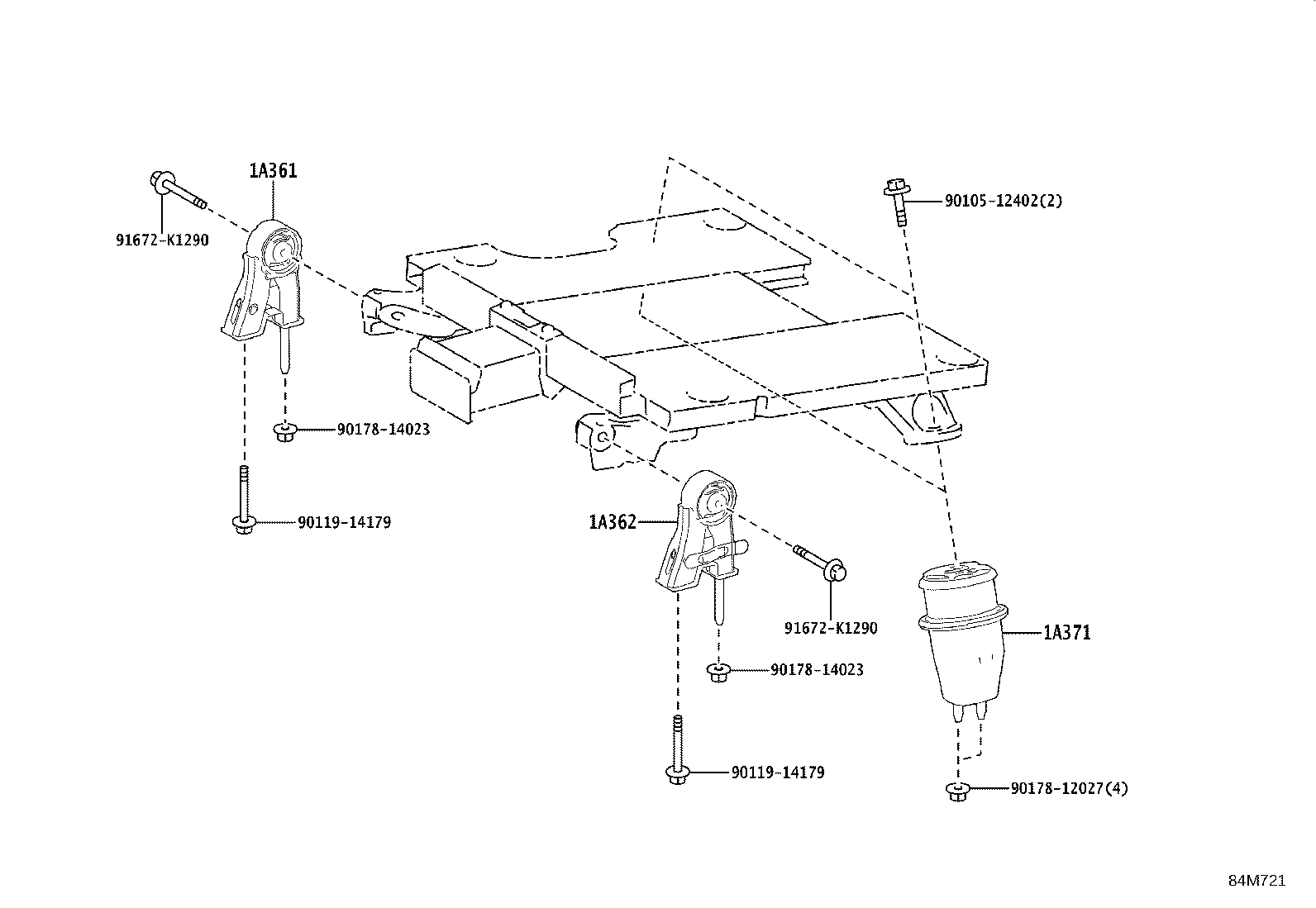

MOUNTING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 1A361 - INSULATOR, FC MOUNTING, FRONT RH | ||||
| 1A361-77010 |
3KM..JPD20 |
1 | ||
| 1A362 - INSULATOR, FC MOUNTING, FRONT LH | ||||
| 1A362-77010 |
3KM..JPD20 |
1 | ||
| 1A371 - INSULATOR, FC MOUNTING, REAR | ||||
| 1A371-77010 |
3KM..JPD20 |
2 | ||
| Common parts | ||||
| 90105-12402 | ||||
| 90119-14179 | ||||
| 90178-12027 | ||||
| 90178-14023 | ||||
| 91672-K1290 | ||||
ILLUST NO. 4 OF 6(2011- )RHD
Click highlighted areas on diagram

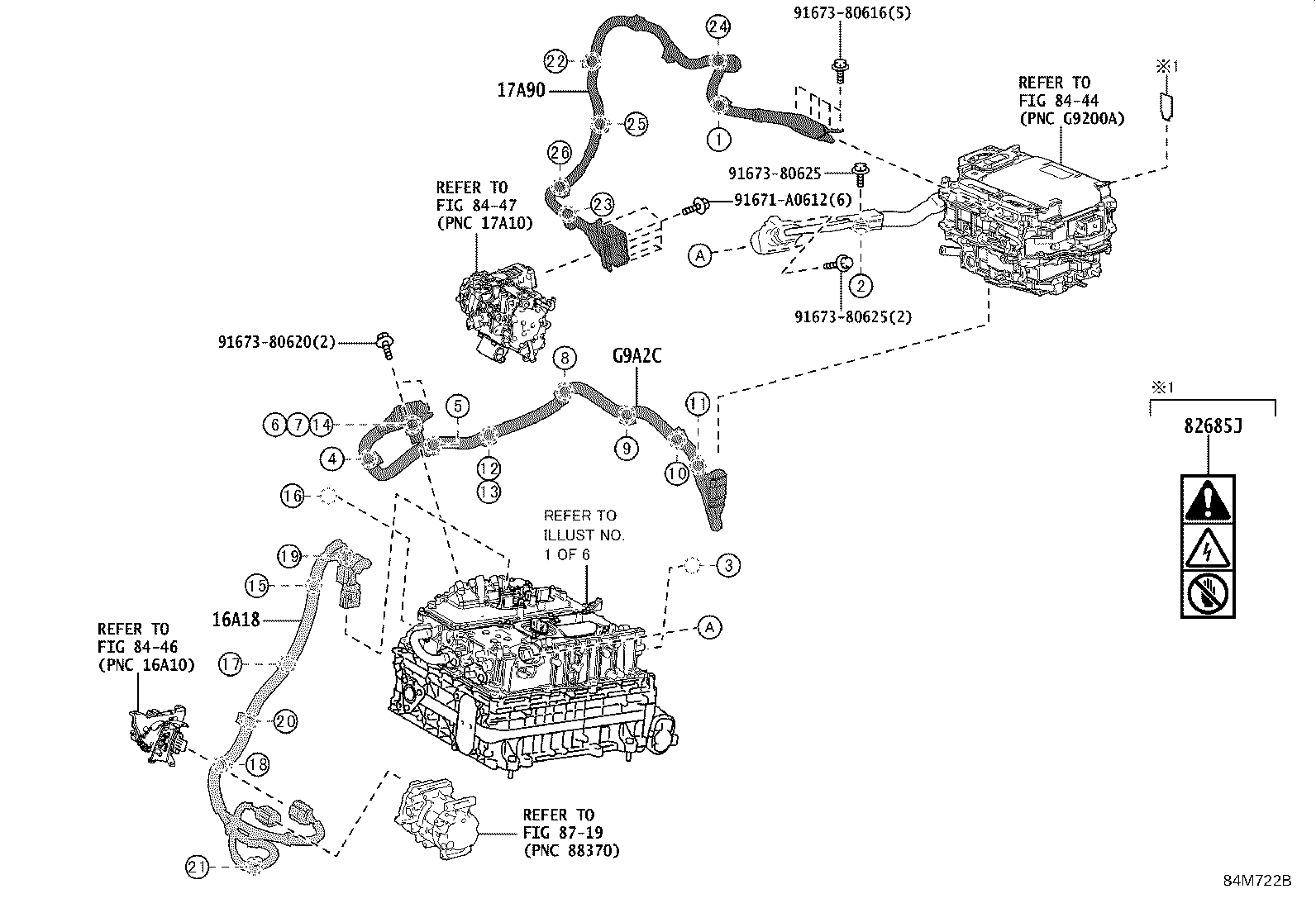

CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16A18 - CABLE, FC COOLING WATER PUMP | ||||
| 16A18-77010 |
3KM..JPD20 |
1 | ||
| 17A90 - CABLE ASSY, FC AIR COMPRESSOR MOTOR | ||||
| 17A90-77030 |
3KM..JPD20..RHD |
1 | ||
| 82685J - PLATE, CAUTION | ||||
| 82685-76020 |
JPD20 |
1 | ||
| G9A2C - CABLE, FC JUNCTION | ||||
| G9A2C-62010 |
JPD20..RHD |
1 | ||
| Common parts | ||||
| 91671-A0612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| Linked diagrams | ||||
| 8444 | ||||
| 8446 | ||||
| 8447 | ||||
| 8719 | ||||
ILLUST NO. 5 OF 6(2011- )RHD
Click highlighted areas on diagram

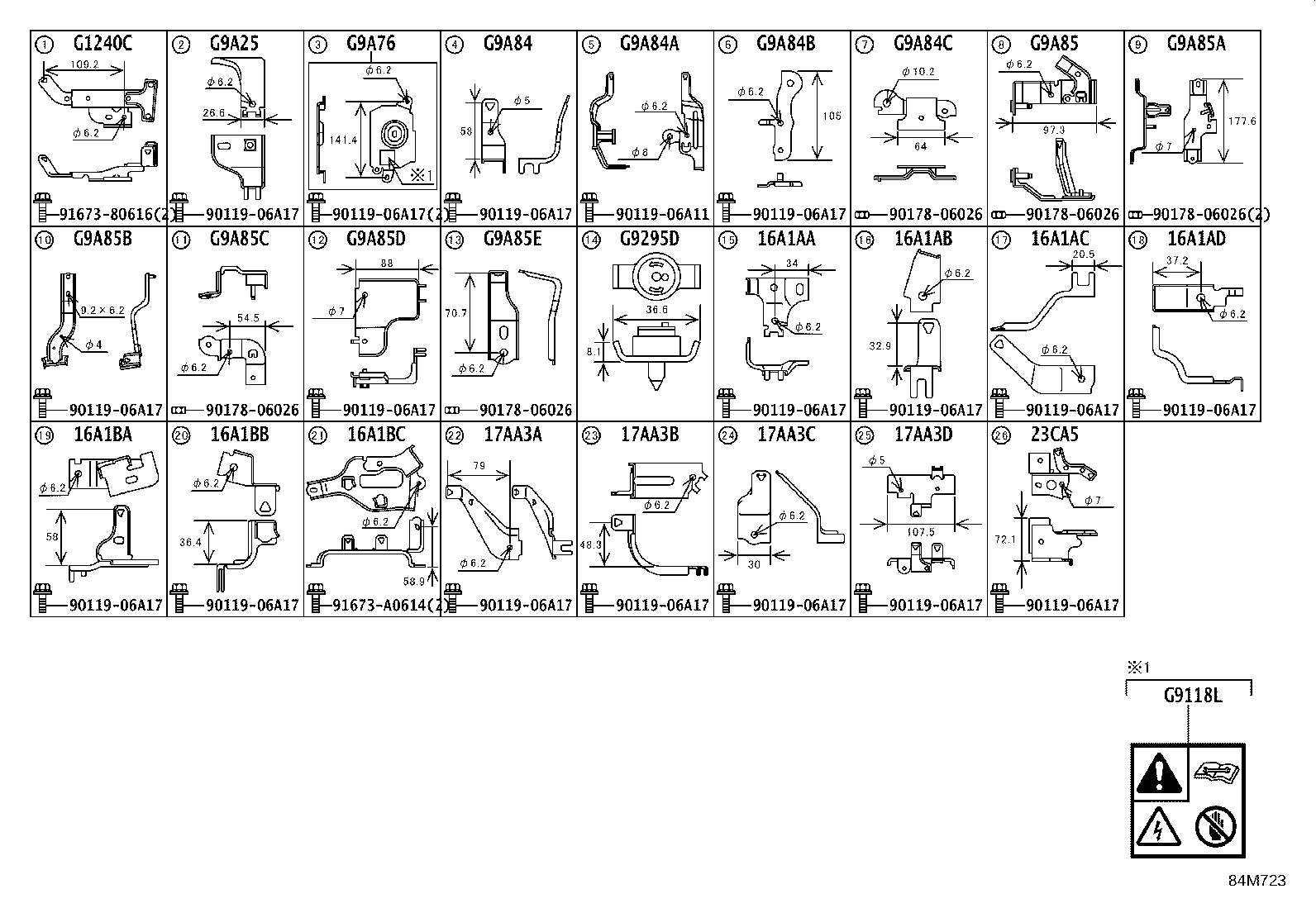

BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16A1AA - BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.1 | ||||
| 16A1A-77020 |
3KM..JPD20 |
1 | ||
| 16A1AB - BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.2 | ||||
| 16A1A-77030 |
3KM..JPD20 |
1 | ||
| 16A1AC - BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.3 | ||||
| 16A1A-77040 |
3KM..JPD20 |
1 | ||
| 16A1AD - BRACKET, FC WATER & HYDROGEN PUMP CABLE, NO.4 | ||||
| 16A1A-77050 |
3KM..JPD20 |
1 | ||
| 16A1BA - BRACKET, FC COOLING WATER PUMP CABLE, NO.1 | ||||
| 16A1B-77020 |
3KM..JPD20 |
1 | ||
| 16A1BB - BRACKET, FC COOLING WATER PUMP CABLE, NO.2 | ||||
| 16A1B-77030 |
3KM..JPD20 |
1 | ||
| 16A1BC - BRACKET, FC COOLING WATER PUMP CABLE, NO.3 | ||||
| 16A1B-77040 |
3KM..JPD20 |
1 | ||
| 17AA3A - BRACKET, FC AIR COMPRESSOR CABLE, NO.1 | ||||
| 17AA3-77020 |
3KM..JPD20 |
1 | ||
| 17AA3B - BRACKET, FC AIR COMPRESSOR CABLE, NO.2 | ||||
| 17AA3-77030 |
3KM..JPD20 |
1 | ||
| 17AA3C - BRACKET, FC AIR COMPRESSOR CABLE, NO.3 | ||||
| 17AA3-77050 |
3KM..JPD20..RHD |
1 | ||
| 17AA3D - BRACKET, FC AIR COMPRESSOR CABLE, NO.4 | ||||
| 17AA3-77060 |
3KM..JPD20 |
1 | ||
| 23CA5 - BRACKET, HYDROGEN PUMP CABLE | ||||
| 23CA5-77050 |
3KM..JPD20 |
1 | ||
| G1240C - BRACKET ASSY, INVERTER MOTOR CABLE | ||||
| G1240-62010 |
JPD20..RHD |
1 | ||
| G9118L - LABEL, UNIT CONTROLLER CAUTION, NO.3 | ||||
| G9118-62010 |
JPD20 |
1 | ||
| G9295D - STRIKER, BATTERY COVER LOCK | ||||
| G9295-30020 |
JPD20 |
1 | ||
| G9A25 - BRACKET, FC CONVERTER POWER OUTLET | ||||
| G9A25-62020 |
JPD20 |
1 | ||
| G9A76 - PLATE, FC CONVERTER SUPPORT | ||||
| G9A76-62020 |
JPD20 |
1 | ||
| G9A84 - BRACKET, FC JUNCTION CABLE, NO.1 | ||||
| G9A84-62010 |
JPD20 |
1 | ||
| G9A84A - BRACKET, FC JUNCTION CABLE, NO.2 | ||||
| G9A84-62020 |
JPD20 |
1 | ||
| G9A84B - BRACKET, FC JUNCTION CABLE, NO.3 | ||||
| G9A84-62030 |
JPD20 |
1 | ||
| G9A84C - BRACKET, FC JUNCTION CABLE, NO.4 | ||||
| G9A84-62040 |
JPD20 |
1 | ||
| G9A85 - BRACKET, FC JUNCTION CABLE RH STEERING, NO.1 | ||||
| G9A85-62010 |
JPD20..RHD |
1 | ||
| G9A85A - BRACKET, FC JUNCTION CABLE RH STEERING, NO.2 | ||||
| G9A85-62020 |
JPD20..RHD |
1 | ||
| G9A85B - BRACKET, FC JUNCTION CABLE RH STEERING, NO.3 | ||||
| G9A85-62030 |
JPD20..RHD |
1 | ||
| G9A85C - BRACKET, FC JUNCTION CABLE RH STEERING, NO.4 | ||||
| G9A85-62040 |
JPD20..RHD |
1 | ||
| G9A85D - BRACKET, FC JUNCTION CABLE RH STEERING, NO.5 | ||||
| G9A85-62050 |
JPD20..RHD |
1 | ||
| G9A85E - BRACKET, FC JUNCTION CABLE RH STEERING, NO.6 | ||||
| G9A85-62060 |
JPD20..RHD |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-06A17 | ||||
| 90178-06026 | ||||
| 91673-80616 | ||||
| 91673-A0614 | ||||
ILLUST NO. 6 OF 6(2011- )
Click highlighted areas on diagram

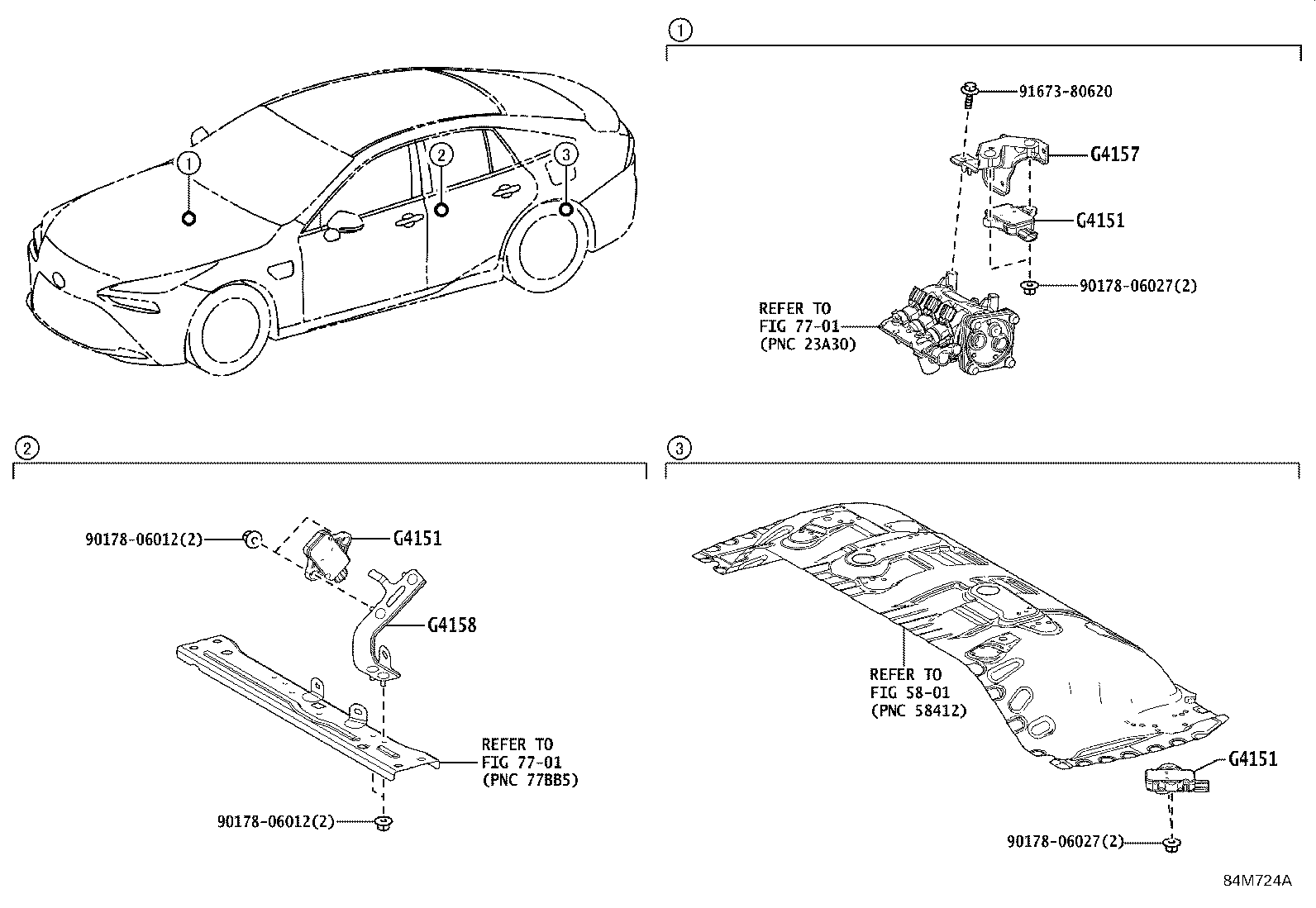

HYDROGEN DETECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G4151 - DETECTOR, HYDROGEN | ||||
| G4151-62020 |
JPD20 |
3 | ||
| G4151 - DETECTOR, HYDROGEN | ||||
| G4151-62020 |
JPD20 |
3 | ||
| G4151 - DETECTOR, HYDROGEN | ||||
| G4151-62020 |
JPD20 |
3 | ||
| G4157 - BRACKET, HYDROGEN DETECTOR, NO.1 | ||||
| G4157-62010 |
JPD20 |
1 | ||
| G4158 - BRACKET, HYDROGEN DETECTOR, NO.2 | ||||
| G4158-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90178-06027 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 6(2011- )
Click highlighted areas on diagram

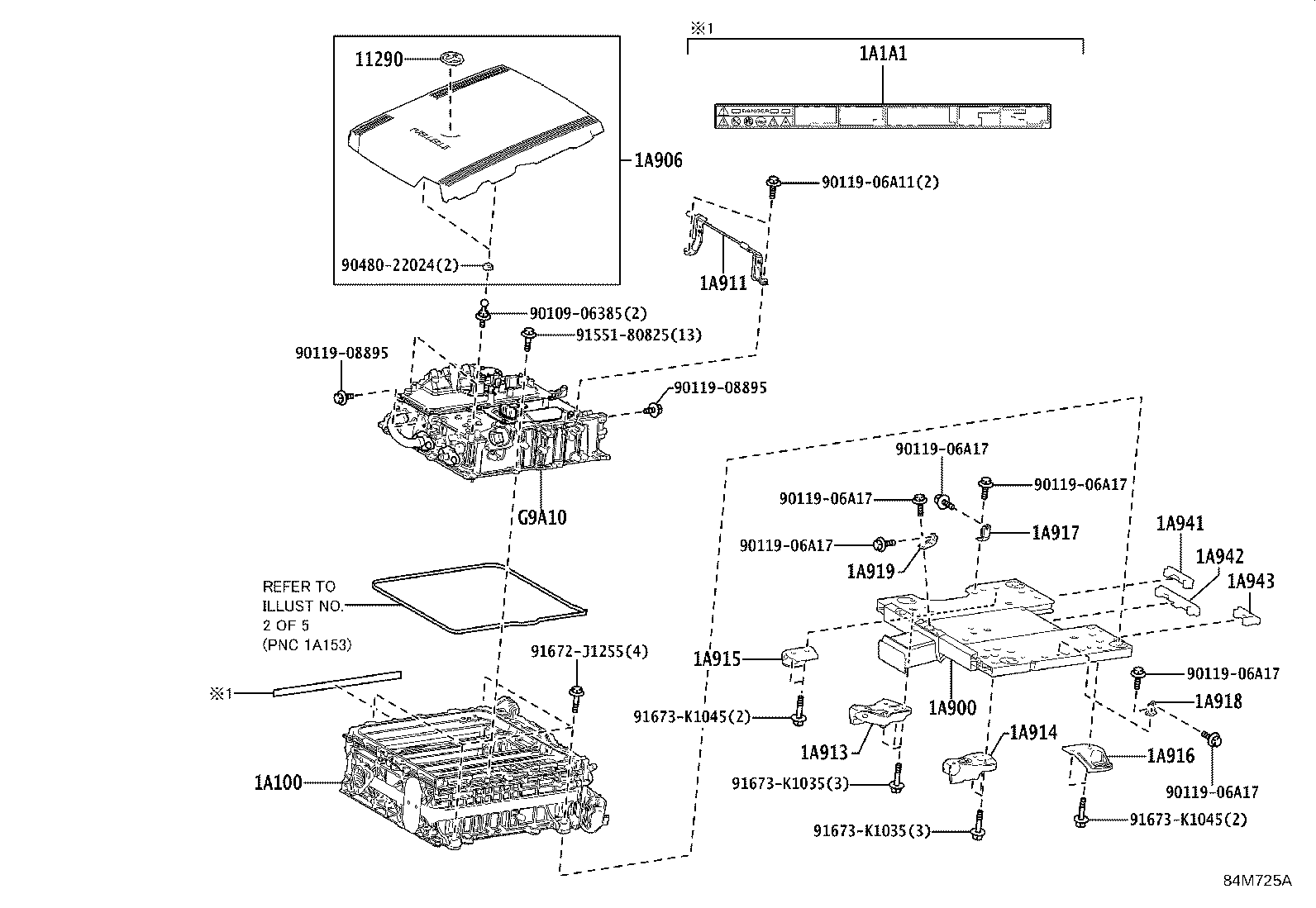

FC STACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11290 - PLATE ASSY, FC STACK NAME | ||||
| 11290-37010 |
3KM..JPD20 |
1 | ||
| 1A100 - STACK ASSY, FC | ||||
| 1A1H0-77010 |
3KM..JPD20 |
1 | ||
| 1A1A1 - LABEL, FC STACK CAUTION, NO.1 | ||||
| 1A1A1-77030 |
3KM..JPD20 |
1 | ||
| 1A900 - FRAME ASSY, FC STACK | ||||
| 1A900-77010 |
3KM..JPD20 |
1 | ||
| 1A906 - COVER SUB-ASSY, FC STACK | ||||
| 1A906-77010 |
3KM..JPD20 |
1 | ||
| 1A911 - BRACKET, FC STACK COVER | ||||
| 1A911-77010 |
3KM..JPD20 |
1 | ||
| 1A913 - BRACKET, FC MOUNTING, FRONT RH | ||||
| 1A913-77010 |
3KM..JPD20 |
1 | ||
| 1A914 - BRACKET, FC MOUNTING, FRONT LH | ||||
| 1A914-77010 |
3KM..JPD20 |
1 | ||
| 1A915 - BRACKET, FC MOUNTING, REAR RH | ||||
| 1A915-77020 |
3KM..JPD20 |
1 | ||
| 1A916 - BRACKET, FC MOUNTING, REAR LH | ||||
| 1A916-77010 |
3KM..JPD20 |
1 | ||
| 1A917 - BRACKET, FC STACK FRAME SUPPORT, RH | ||||
| 1A917-77010 |
3KM..JPD20 |
1 | ||
| 1A918 - BRACKET, FC STACK FRAME SUPPORT, LH | ||||
| 1A918-77010 |
3KM..JPD20 |
1 | ||
| 1A919 - BRACKET, FC STACK FRAME SUPPORT, FRONT | ||||
| 1A919-77010 |
3KM..JPD20 |
1 | ||
| 1A941 - COVER, FC STACK FRAME, NO.1 | ||||
| 1A941-77010 |
3KM..JPD20 |
1 | ||
| 1A942 - COVER, FC STACK FRAME, NO.2 | ||||
| 1A942-77010 |
3KM..JPD20 |
1 | ||
| 1A943 - COVER, FC STACK FRAME, NO.3 | ||||
| 1A943-77010 |
3KM..JPD20 |
1 | ||
| G9A10 - CONVERTER ASSY, FC | ||||
| G9A10-62020 |
JPD20 *614 |
1 | ||
| Common parts | ||||
| 90109-06385 | ||||
| 90119-06A11 | ||||
| 90119-06A17 | ||||
| 90119-08895 | ||||
| 90480-22024 | ||||
| 91551-80825 | ||||
| 91672-J1255 | ||||
| 91673-K1035 | ||||
| 91673-K1045 | ||||
