JPD20R-CEDSSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )RHD

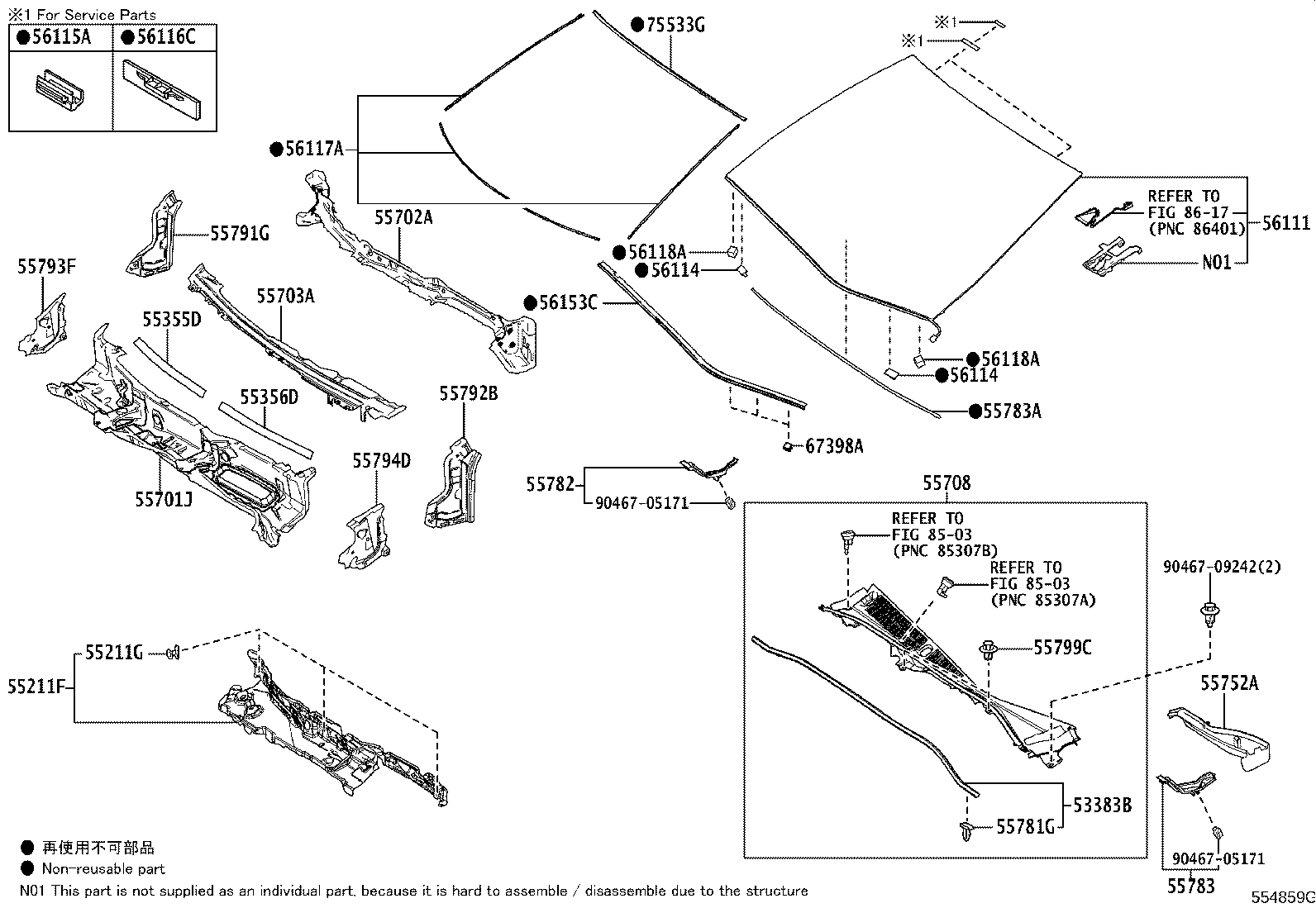

Click highlighted areas on diagram

diagram 53383B 55211F 55211G 55355D 55356D 55701J 55702A 55703A 55708 55752A 55781G 55782 55783 55783A 55791G 55792B 55793F 55794D 55799C 56111 56114 56114 56115A 56116C 56117A 56118A 56118A 56153C 67398A 75533G 8503 8503 8617 9046705171 9046705171 9046709242
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-62020

JPD20

 1
55211F - COVER, DASH PANEL INSULATOR
55211-62040

JPD20..RHD

 1
55211G - CLIP, DASH PANEL INSULATOR COVER
90467-11122

JPD20

 3
55355D - CUSHION, INSTRUMENT PANEL, NO.1
55355-62030

JPD20

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55357-62040

JPD20

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-62040

JPD20..RHD

 1
55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT
55702-62020

JPD20..RHD

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-62040

JPD20..RHD

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-62130

JPD20..RHD

COLD AREA SPEC

 1
55708-62110

JPD20..RHD

 1
55752A - SHIELD, COWL VENTILATOR SPLASH, LH
55752-50020

JPD20..RHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08108

JPD20

 14
55782 - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55773-62010

JPD20

 1
55783 - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55783-62030

JPD20

 1
55783A - PAD, COWL TOP SILENCER
55783-33130

JPD20

 1
55791G - COVER, COWL REINFORCEMENT, UPPER RH
55791-62010

JPD20

 1
55792B - COVER, COWL REINFORCEMENT, UPPER LH
55792-62010

JPD20

 1
55793F - COVER, COWL REINFORCEMENT, UPPER NO.2 RH
55793-62010

JPD20

 1
55794D - COVER, COWL REINFORCEMENT, UPPER NO.2 LH
55794-62010

JPD20

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-07224

JPD20

 2
56111 - GLASS, WINDSHIELD
56101-62936

JPD20..RHD..H

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

 1
56101-62929

JPD20..RHD

 1
56101-62927

JPD20..RHD

COLD AREA SPEC

 1
56101-62930

JPD20..RHD..H

MOON ROOF-PANORAMA ROOF

 1
56101-62937

JPD20..RHD..H

HEAD-UP DISPLAY-WITH

 1
56101-62939

JPD20..RHD..H

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 1
56101-62928

JPD20..RHD..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

 1
56101-62938

JPD20..RHD..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30120

JPD20

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-30120

JPD20

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

JPD20

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

JPD20

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

JPD20..H

*D,L=1387 OR 650,COLD AREA SPEC&HEAD-UP DISPLAY-WITH

 1
56117-64010

JPD20..H

*D,L=1387 OR 650,COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 1
56117-64010

JPD20..H

*D,L=1387 OR 650,MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 1
56117-64010

JPD20

*D,L=1387 OR 650,COLD AREA SPEC

 1
56117-64010

JPD20

*D,L=1387 OR 650

 1
56117-64010

JPD20..H

*D,L=1387 OR 650,HEAD-UP DISPLAY-WITH

 1
56117-64010

JPD20..H

*D,L=1387 OR 650,MOON ROOF-PANORAMA ROOF

 1
56117-64010

JPD20..H

*D,L=1387 OR 650,COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-30140

JPD20

COLD AREA SPEC

 2
56118-30140

JPD20

 2
56118-30140

JPD20..H

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

 2
56118-30140

JPD20..H

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

MOON ROOF-PANORAMA ROOF

 2
56118-30140

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

HEAD-UP DISPLAY-WITH

 2
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-30140

JPD20

COLD AREA SPEC

 2
56118-30140

JPD20

 2
56118-30140

JPD20..H

MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

 2
56118-30140

JPD20..H

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

MOON ROOF-PANORAMA ROOF

 2
56118-30140

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 2
56118-30140

JPD20..H

HEAD-UP DISPLAY-WITH

 2
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-62010

JPD20..RHD

 1
67398A - GUIDE(FOR WINDOW DEFOGGER WIRE)
67398-60010

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF

 3
67398-60010

JPD20..H

COLD AREA SPEC&MOON ROOF-PANORAMA ROOF&HEAD-UP DISPLAY-WITH

 3
67398-60010

JPD20..H

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

 3
67398-60010

JPD20

COLD AREA SPEC

 3
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-62010

JPD20

 1
Common parts
90467-05171
90467-09242
Linked diagrams
8503
8617
