JPD20R-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )RHD

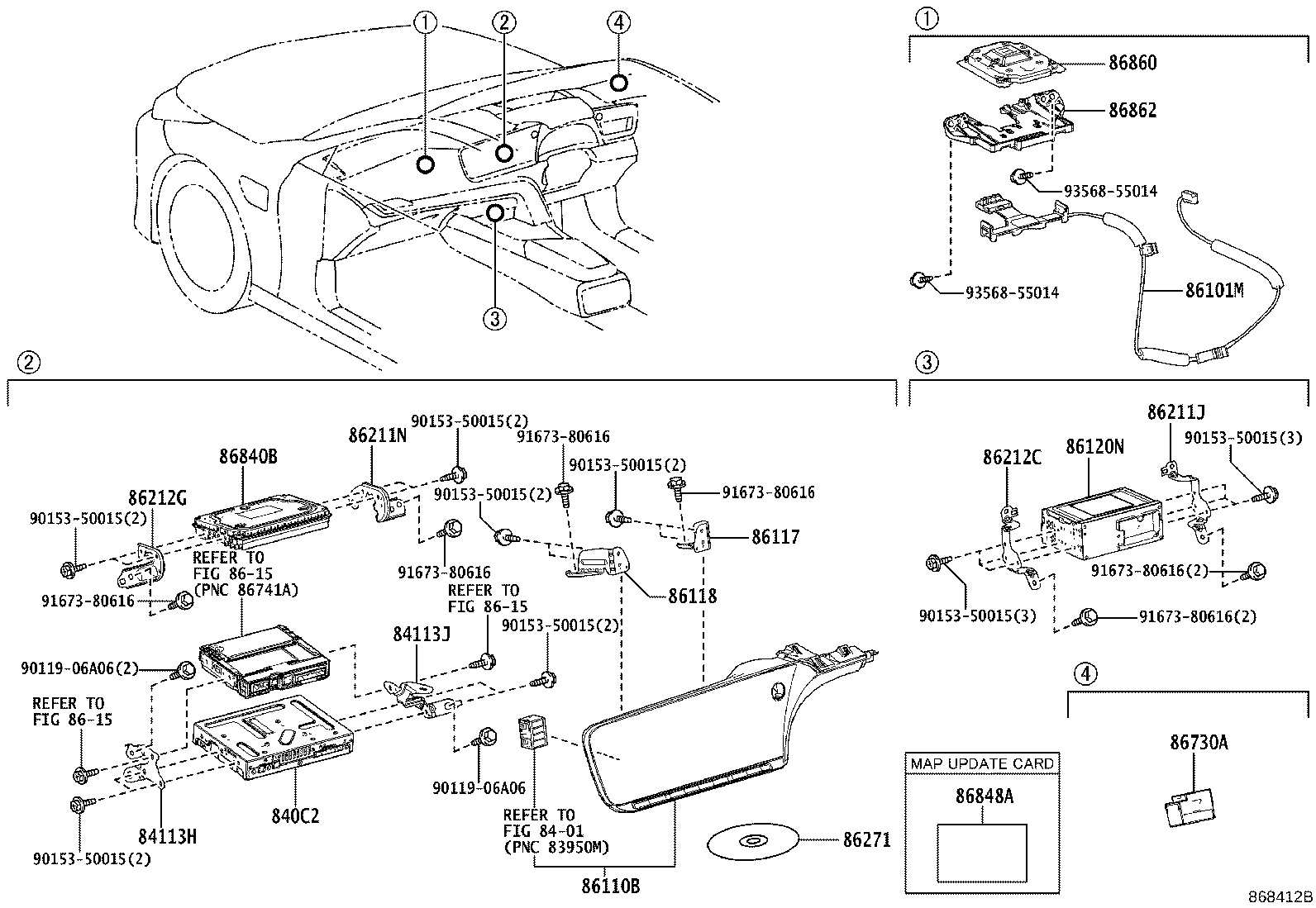

Click highlighted areas on diagram

diagram 8401 840C2 84113H 84113J 86101M 86110B 86117 86118 86120N 8615 8615 8615 86211J 86211N 86212C 86212G 86271 86730A 86840B 86848A 86860 86862 9011906A06 9011906A06 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9356855014 9356855014
Part # Description Qty Price
840C2 - CONTROL SUB-ASSY, INTEGRATION
840C2-62010

JPD20

 1
84113H - BRACKET, INTEGRATION CONTROL, NO.1
84113-62010

JPD20

 1
84113J - BRACKET, INTEGRATION CONTROL, NO.2
84113-62020

JPD20

 1
86101M - CORD SUB-ASSY, ANTENNA
86101-62320

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86110B - MULTI-DISPLAY ASSY
86110-62050

JPD20..RHD

DENSO

 1
86110-62060

JPD20..RHD..S

DENSO,AUSTRALIA, NEW ZEALAND SPEC

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-62010

JPD20..RHD

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-62010

JPD20..RHD

 1
86120N - RECEIVER ASSY, RADIO
86120-62070

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86120-62041

JPD20

 1
86120-62040

JPD20

 1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-62040

JPD20

 1
86211N - BRACKET, NAVIGATION COMPUTER, NO.1
86211-62080

JPD20

 1
86212C - BRACKET, RADIO RECEIVER, NO.2
86212-62040

JPD20

 1
86212G - BRACKET, NAVIGATION COMPUTER, NO.2
86212-62080

JPD20

 1
86271 - DISC, DISC PLAYER
86807-11043

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48110

JPD20

 1
86840B - COMPUTER ASSY, NAVIGATION
86840-62060

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86840-K0010

JPD20

 1
86848A - CARD, SERIAL NUMBER MAP UPDATE
86848-33040

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-52020

JPD20

 1
86860-78010

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010

JPD20

 1
Common parts
90119-06A06
90153-50015
91673-80616
93568-55014
Linked diagrams
8401
8615
