JPD20R-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

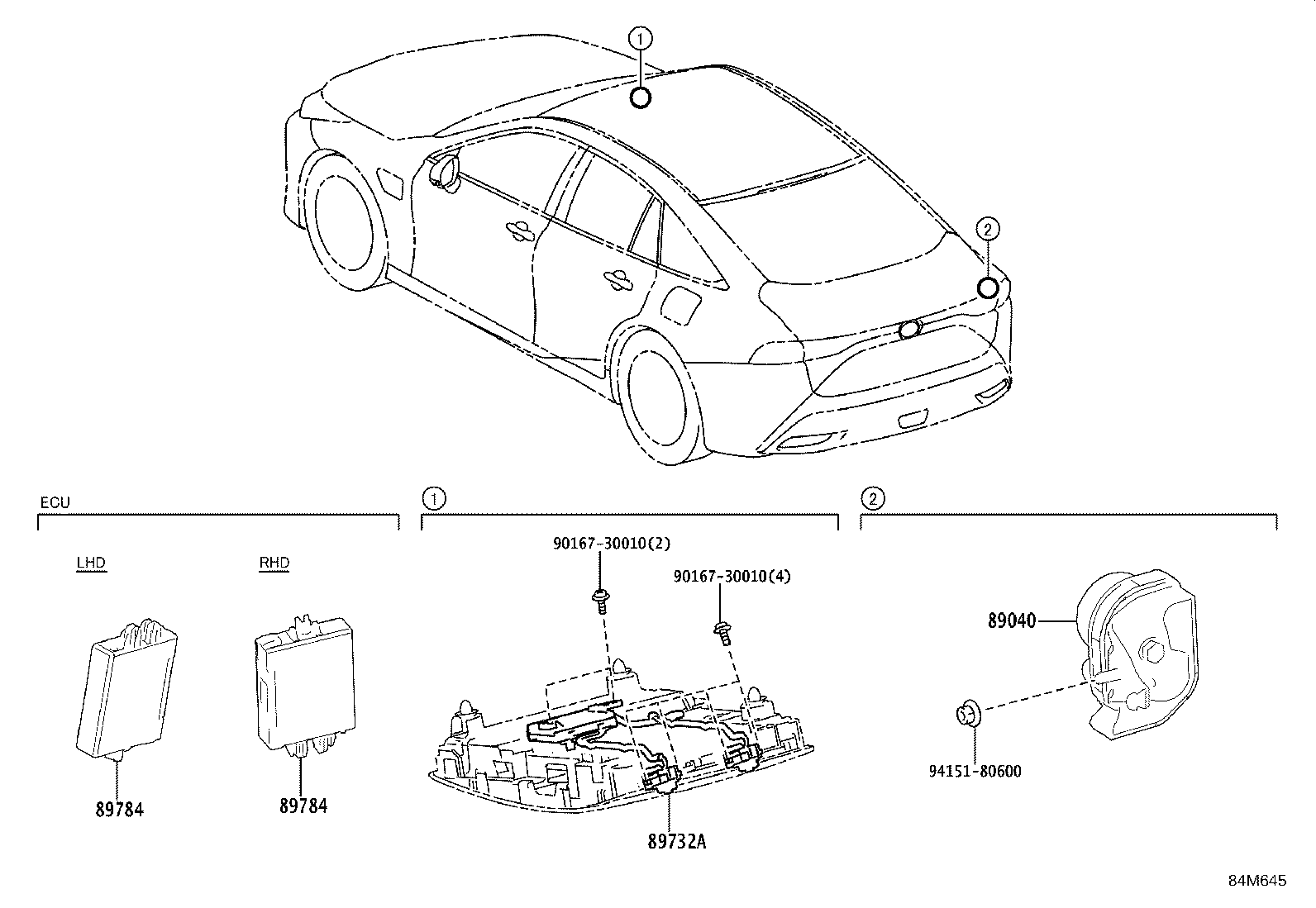

Click highlighted areas on diagram

diagram 89040 89732A 89784 89784 9016730010 9016730010 9415180600
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-50070

JPD20

 1
89732A - SENSOR, THEFT WARNING ULTRASONIC
8973B-62040

JPD20..RHD

ENGLAND SPEC

 1
89732-78020

JPD20

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-12040

JPD20

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-12040

JPD20

 1
Common parts
90167-30010
94151-80600
