JPD20R-CEDHSW (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

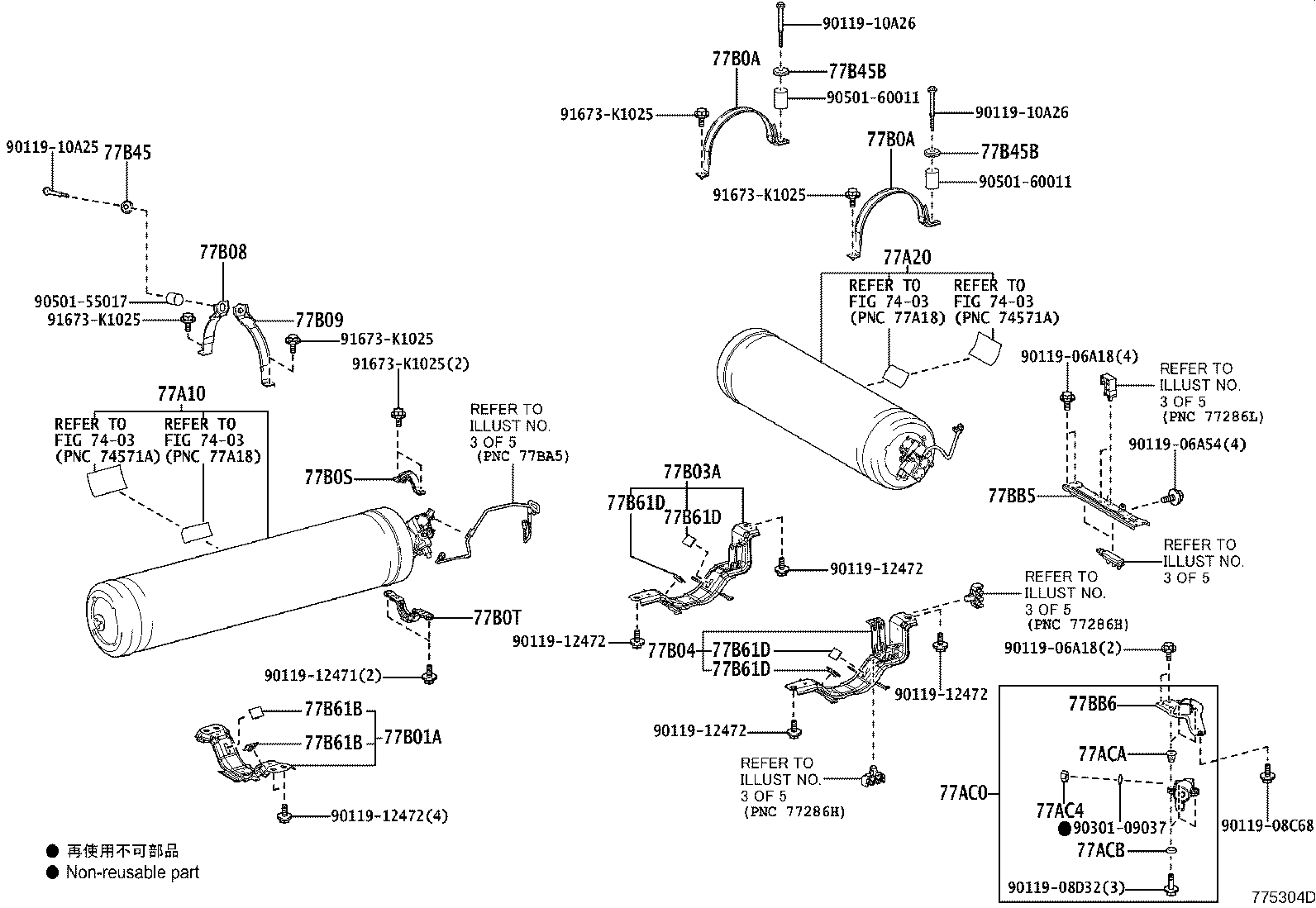

ILLUST NO. 1 OF 5(2011- )
Click highlighted areas on diagram
FUEL TANK NO.1,NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77A10 - TANK ASSY, HYDROGEN, NO.1 | ||||
| 77A10-62081 |
JPD20 |
1 | ||
| 77A20 - TANK ASSY, HYDROGEN, NO.2 | ||||
| 77A20-62081 |
JPD20 |
1 | ||
| 77AC0 - REGULATOR ASSY, HYDROGEN SUPPLY | ||||
| 77AC0-62040 |
JPD20 |
1 | ||
| 77AC4 - PLUG, HYDROGEN SUPPLY REGULATOR, NO.1 | ||||
| 77AC4-62020 |
JPD20 |
1 | ||
| 77ACA - CUSHION, HYDROGEN SUPPLY REGULATOR, UPPER | ||||
| 77ACA-62010 |
JPD20 |
3 | ||
| 77ACB - CUSHION, HYDROGEN SUPPLY REGULATOR, LOWER | ||||
| 77ACB-62010 |
JPD20 |
3 | ||
| 77B01A - FRAME SUB-ASSY, HYDROGEN TANK, NO.1 | ||||
| 77B01-62030 |
JPD20 |
1 | ||
| 77B03A - FRAME SUB-ASSY, HYDROGEN TANK, NO.2 RH | ||||
| 77B03-62020 |
JPD20 |
1 | ||
| 77B04 - FRAME SUB-ASSY, HYDROGEN TANK, NO.2 LH | ||||
| 77B04-62010 |
JPD20 |
1 | ||
| 77B08 - BAND SUB-ASSY, HYDROGEN TANK, NO.1 RH | ||||
| 77B08-62010 |
JPD20 |
1 | ||
| 77B09 - BAND SUB-ASSY, HYDROGEN TANK, NO.1 LH | ||||
| 77B09-62010 |
JPD20 |
1 | ||
| 77B0A - BAND SUB-ASSY, HYDROGEN TANK, NO.2 | ||||
| 77B0A-62010 |
JPD20 |
2 | ||
| 77B0A - BAND SUB-ASSY, HYDROGEN TANK, NO.2 | ||||
| 77B0A-62010 |
JPD20 |
2 | ||
| 77B0S - BRACKET SUB-ASSY, HYDROGEN TANK, UPPER | ||||
| 77B0S-62010 |
JPD20 |
1 | ||
| 77B0T - BRACKET SUB-ASSY, HYDROGEN TANK, LOWER | ||||
| 77B0T-62010 |
JPD20 |
1 | ||
| 77B45 - CUP, HYDROGEN TANK SPRING BOLT, FRONT | ||||
| 77B45-62020 |
JPD20 |
1 | ||
| 77B45B - CUP, HYDROGEN TANK SPRING BOLT, NO.2 | ||||
| 77B45-62030 |
JPD20 |
2 | ||
| 77B45B - CUP, HYDROGEN TANK SPRING BOLT, NO.2 | ||||
| 77B45-62030 |
JPD20 |
2 | ||
| 77B61B - SEAT, HYDROGEN TANK FRAME, NO.1 | ||||
| 77B61-62020 |
JPD20 |
2 | ||
| 77B61-62021 |
JPD20 |
2 | ||
| 77B61B - SEAT, HYDROGEN TANK FRAME, NO.1 | ||||
| 77B61-62020 |
JPD20 |
2 | ||
| 77B61-62021 |
JPD20 |
2 | ||
| 77B61D - SEAT, HYDROGEN TANK FRAME, NO.3 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61D - SEAT, HYDROGEN TANK FRAME, NO.3 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61D - SEAT, HYDROGEN TANK FRAME, NO.3 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61D - SEAT, HYDROGEN TANK FRAME, NO.3 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77BB5 - BRACKET, HYDROGEN TANK, NO.1 | ||||
| 77BB5-62010 |
JPD20 |
1 | ||
| 77BB6 - BRACKET, HYDROGEN TANK, NO.2 | ||||
| 77BB6-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-06A54 | ||||
| 90119-08C68 | ||||
| 90119-08D32 | ||||
| 90119-10A25 | ||||
| 90119-10A26 | ||||
| 90119-12471 | ||||
| 90119-12472 | ||||
| 90301-09037 | ||||
| 90501-55017 | ||||
| 90501-60011 | ||||
| 91673-K1025 | ||||
| Linked diagrams | ||||
| 7403 | ||||

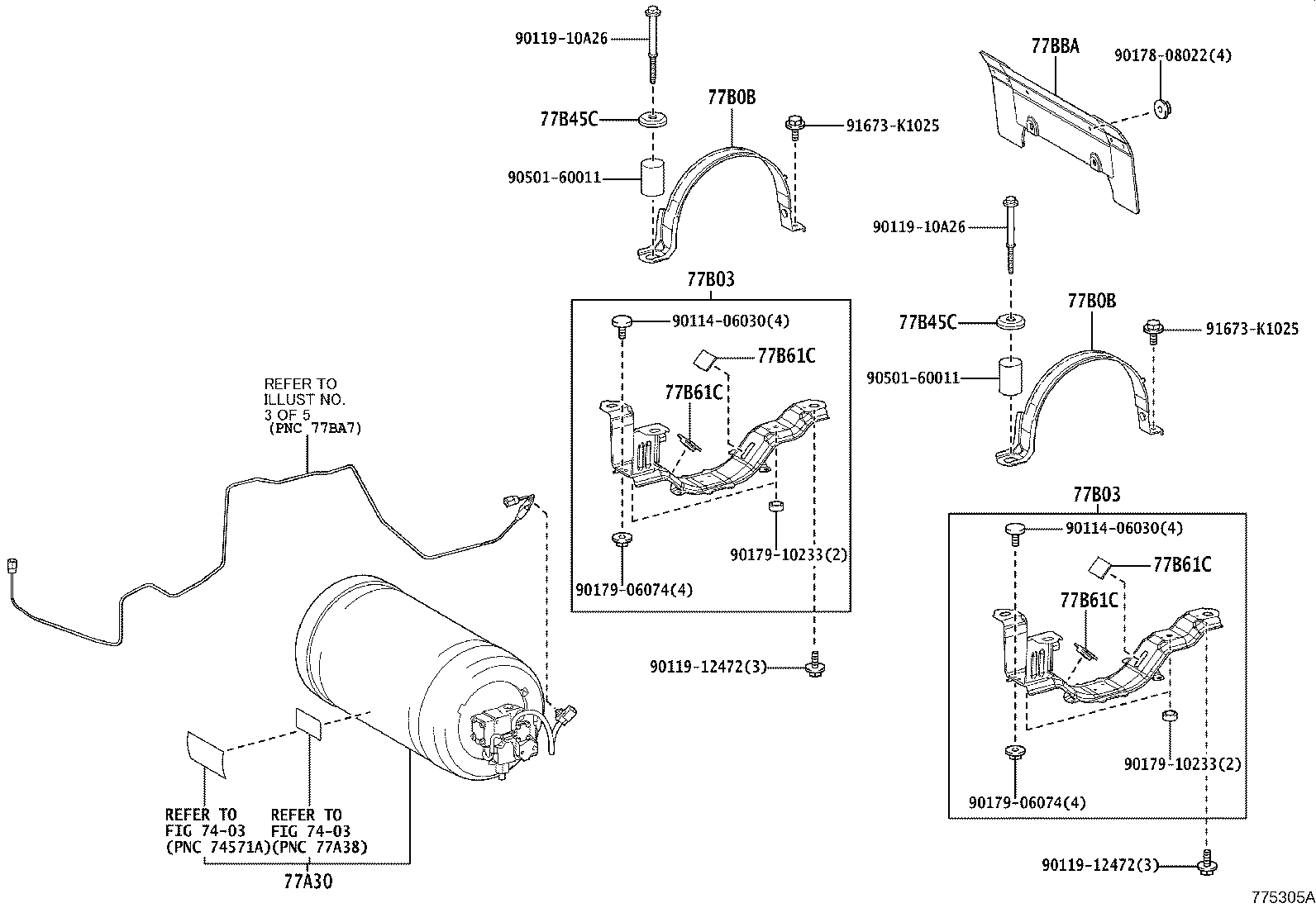

ILLUST NO. 2 OF 5(2011- )
Click highlighted areas on diagram
FUEL TANK NO.3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77A30 - TANK ASSY, HYDROGEN, NO.3 | ||||
| 77A30-62031 |
JPD20 |
1 | ||
| 77B03 - FRAME SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B05-62030 |
JPD20 |
2 | ||
| 77B03 - FRAME SUB-ASSY, HYDROGEN TANK, REAR | ||||
| 77B05-62030 |
JPD20 |
2 | ||
| 77B0B - BAND SUB-ASSY, HYDROGEN TANK, NO.3 | ||||
| 77B0B-62010 |
JPD20 |
2 | ||
| 77B0B - BAND SUB-ASSY, HYDROGEN TANK, NO.3 | ||||
| 77B0B-62010 |
JPD20 |
2 | ||
| 77B45C - CUP, HYDROGEN TANK SPRING BOLT, NO.3 | ||||
| 77B45-62030 |
JPD20 |
2 | ||
| 77B45C - CUP, HYDROGEN TANK SPRING BOLT, NO.3 | ||||
| 77B45-62030 |
JPD20 |
2 | ||
| 77B61C - SEAT, HYDROGEN TANK FRAME, NO.2 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61C - SEAT, HYDROGEN TANK FRAME, NO.2 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61C - SEAT, HYDROGEN TANK FRAME, NO.2 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77B61C - SEAT, HYDROGEN TANK FRAME, NO.2 | ||||
| 77B61-62021 |
JPD20 |
4 | ||
| 77B61-62020 |
JPD20 |
4 | ||
| 77BBA - PLATE, HYDROGEN TANK PROTECTOR | ||||
| 77BBA-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90114-06030 | ||||
| 90119-10A26 | ||||
| 90119-12472 | ||||
| 90178-08022 | ||||
| 90179-06074 | ||||
| 90179-10233 | ||||
| 90501-60011 | ||||
| 91673-K1025 | ||||
| Linked diagrams | ||||
| 7403 | ||||

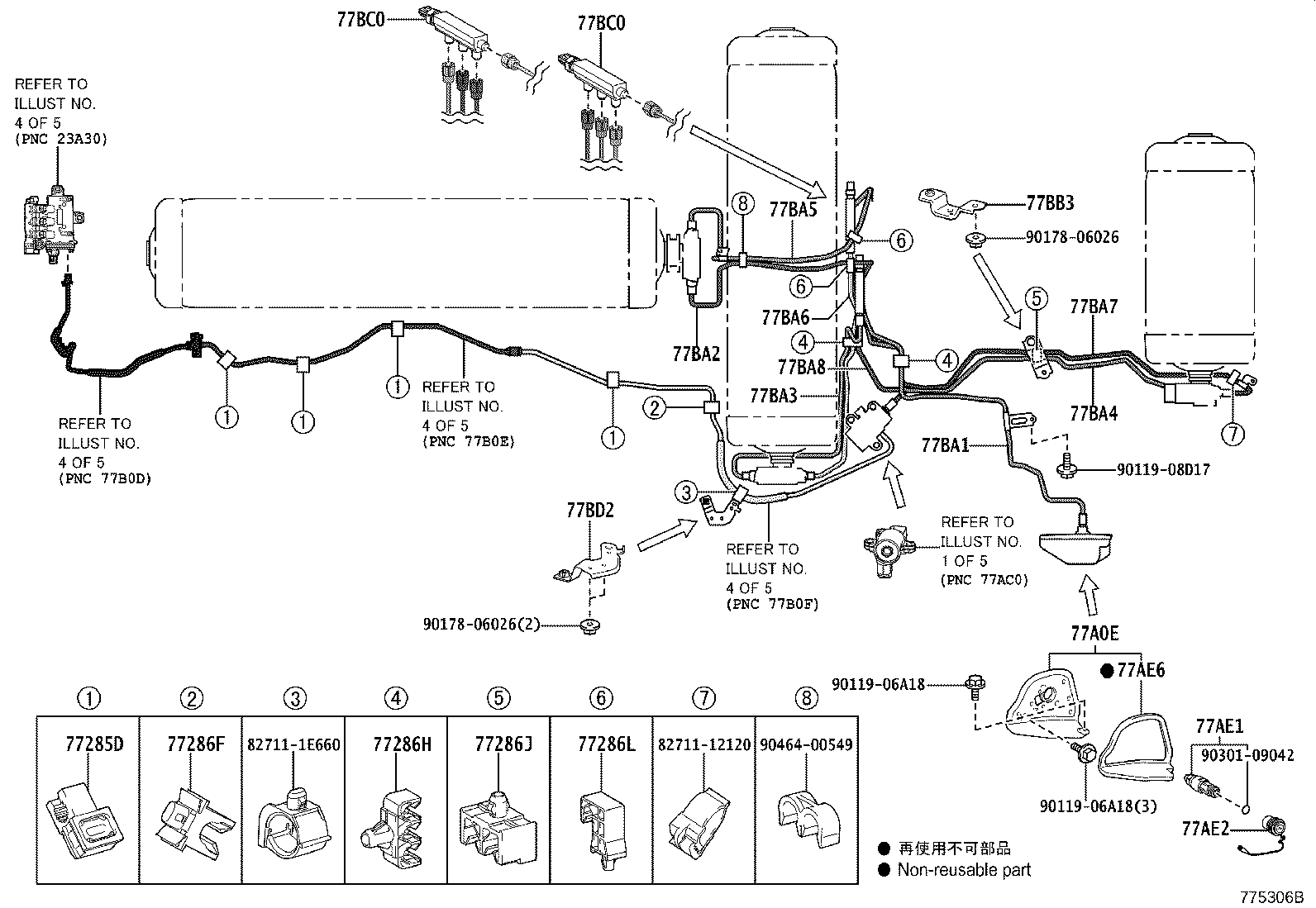

ILLUST NO. 3 OF 5(2011- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-62010 |
JPD20 |
4 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-62010 |
JPD20 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-62020 |
JPD20 |
2 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-62030 |
JPD20 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-62020 |
JPD20 |
2 | ||
| 77A0E - BRACKET SUB-ASSY, HYDROGEN INLET RECEPTACLE | ||||
| 77A0E-62020 |
JPD20 |
1 | ||
| 77AE1 - RECEPTACLE, HYDROGEN INLET | ||||
| 77AE1-62030 |
JPD20 |
1 | ||
| 77AE2 - CAP, HYDROGEN INLET RECEPTACLE | ||||
| 77AE2-62020 |
JPD20 |
1 | ||
| 77AE6 - CUSHION, HYDROGEN INLET RECEPTACLE BRACKET, NO.1 | ||||
| 77AE6-62020 |
JPD20 |
1 | ||
| 77BA1 - TUBE, HYDROGEN TANK, NO.1 | ||||
| 77BA1-62020 |
JPD20 |
1 | ||
| 77BA2 - TUBE, HYDROGEN TANK, NO.2 | ||||
| 77BA2-62020 |
JPD20 |
1 | ||
| 77BA3 - TUBE, HYDROGEN TANK, NO.3 | ||||
| 77BA3-62020 |
JPD20 |
1 | ||
| 77BA4 - TUBE, HYDROGEN TANK NO.4 | ||||
| 77BA4-62020 |
JPD20 |
1 | ||
| 77BA5 - TUBE, HYDROGEN TANK NO.5 | ||||
| 77BA5-62020 |
JPD20 |
1 | ||
| 77BA6 - TUBE, HYDROGEN TANK, NO.6 | ||||
| 77BA6-62030 |
JPD20 |
1 | ||
| 77BA7 - TUBE, HYDROGEN TANK, NO.7 | ||||
| 77BA7-62010 |
JPD20 |
1 | ||
| 77BA8 - TUBE, HYDROGEN TANK, NO.8 | ||||
| 77BA8-62010 |
JPD20 |
1 | ||
| 77BB3 - BRACKET, HYDROGEN TANK TUBE CLAMP | ||||
| 77BB3-62020 |
JPD20 |
1 | ||
| 77BC0 - JOINT ASSY, HYDROGEN TANK TUBE | ||||
| 77BC0-62010 |
JPD20 |
2 | ||
| 77BC0 - JOINT ASSY, HYDROGEN TANK TUBE | ||||
| 77BC0-62010 |
JPD20 |
2 | ||
| 77BD2 - BRACKET, HYDROGEN SUPPLY TUBE | ||||
| 77BD2-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82711-1E660 | ||||
| 90119-06A18 | ||||
| 90119-08D17 | ||||
| 90178-06026 | ||||
| 90301-09042 | ||||
| 90464-00549 | ||||

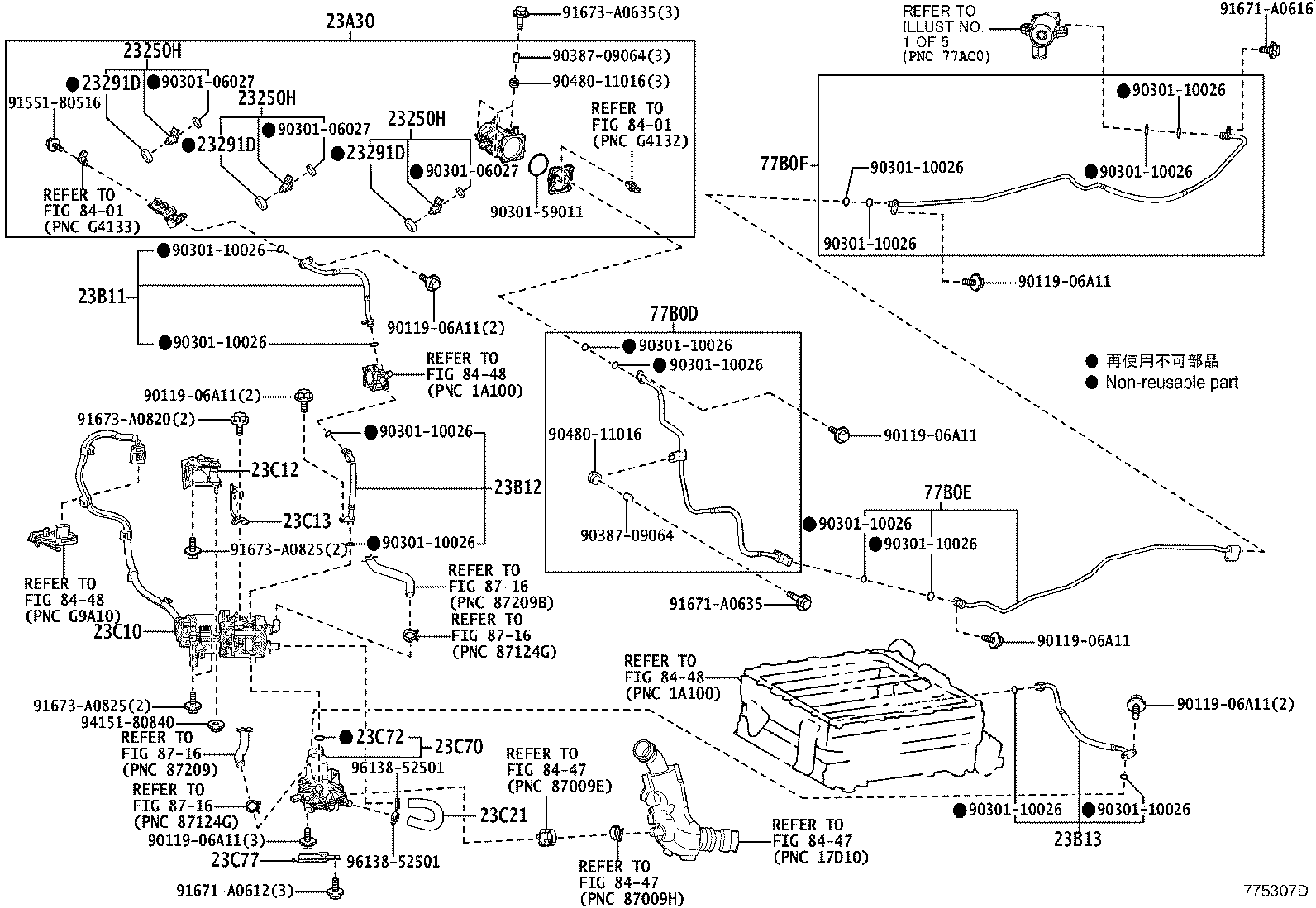

ILLUST NO. 4 OF 5(2011- )
Click highlighted areas on diagram
HYDROGEN SUPPLY SYSTEM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23250H - INJECTOR ASSY, FUEL | ||||
| 23250-77010 |
3KM..JPD20 |
3 | ||
| 23250H - INJECTOR ASSY, FUEL | ||||
| 23250-77010 |
3KM..JPD20 |
3 | ||
| 23250H - INJECTOR ASSY, FUEL | ||||
| 23250-77010 |
3KM..JPD20 |
3 | ||
| 23291D - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-77010 |
3KM..JPD20 |
3 | ||
| 23291D - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-77010 |
3KM..JPD20 |
3 | ||
| 23291D - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-77010 |
3KM..JPD20 |
3 | ||
| 23A30 - REGULATOR ASSY, HYDROGEN SUPPLY PRESSURE | ||||
| 23A30-77030 |
3KM..JPD20 |
1 | ||
| 23B11 - TUBE, HYDROGEN, NO.1 | ||||
| 23B11-77030 |
3KM..JPD20 |
1 | ||
| 23B12 - TUBE, HYDROGEN, NO.2 | ||||
| 23B12-77020 |
3KM..JPD20 |
1 | ||
| 23B13 - TUBE, HYDROGEN, NO.3 | ||||
| 23B13-77020 |
3KM..JPD20 |
1 | ||
| 23C10 - PUMP ASSY, HYDROGEN RECIRCULATION | ||||
| 23C10-77070 |
3KM..JPD20 |
1 | ||
| 23C12 - BRACKET, HYDROGEN PUMP, NO.1 | ||||
| 23C12-77030 |
3KM..JPD20 |
1 | ||
| 23C13 - BRACKET, HYDROGEN PUMP, NO.2 | ||||
| 23C13-77030 |
3KM..JPD20 |
1 | ||
| 23C21 - HOSE, HYDROGEN PUMP COOLING INLET | ||||
| 23C21-77030 |
3KM..JPD20 |
1 | ||
| 23C70 - SEPARATOR ASSY, HYDROGEN RECIRCULATION | ||||
| 23C70-77030 |
3KM..JPD20 |
1 | ||
| 23C72 - GASKET, HYDROGEN RECIRCULATION SEPARATOR | ||||
| 23C72-77010 |
3KM..JPD20 |
1 | ||
| 23C77 - COVER, HYDROGEN RECIRCULATION SEPARATOR | ||||
| 23C77-77010 |
3KM..JPD20 |
1 | ||
| 77B0D - TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.1 | ||||
| 77B0D-62020 |
JPD20 |
1 | ||
| 77B0E - TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.2 | ||||
| 77B0E-62020 |
JPD20 |
1 | ||
| 77B0F - TUBE SUB-ASSY, HYDROGEN SUPPLY, NO.3 | ||||
| 77B0F-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90301-06027 | ||||
| 90301-10026 | ||||
| 90301-59011 | ||||
| 90387-09064 | ||||
| 90480-11016 | ||||
| 91551-80516 | ||||
| 91671-A0612 | ||||
| 91671-A0616 | ||||
| 91671-A0635 | ||||
| 91673-A0635 | ||||
| 91673-A0820 | ||||
| 91673-A0825 | ||||
| 94151-80840 | ||||
| 96138-52501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8447 | ||||
| 8448 | ||||
| 8716 | ||||

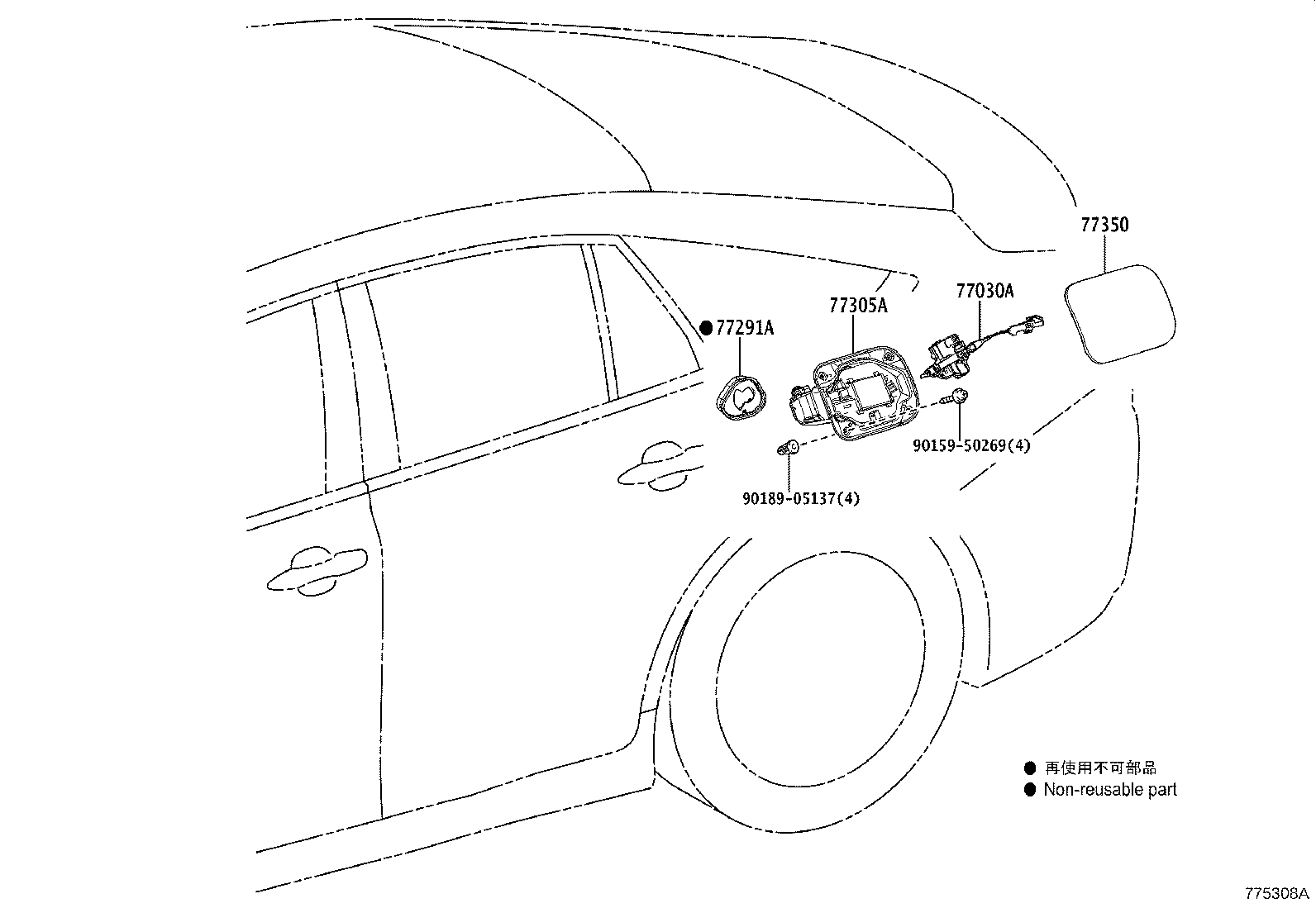

ILLUST NO. 5 OF 5(2011- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-62030 |
JPD20 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-62020 |
JPD20 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-62030 |
JPD20 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-62030 |
JPD20 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
