JPD20R-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )RHD

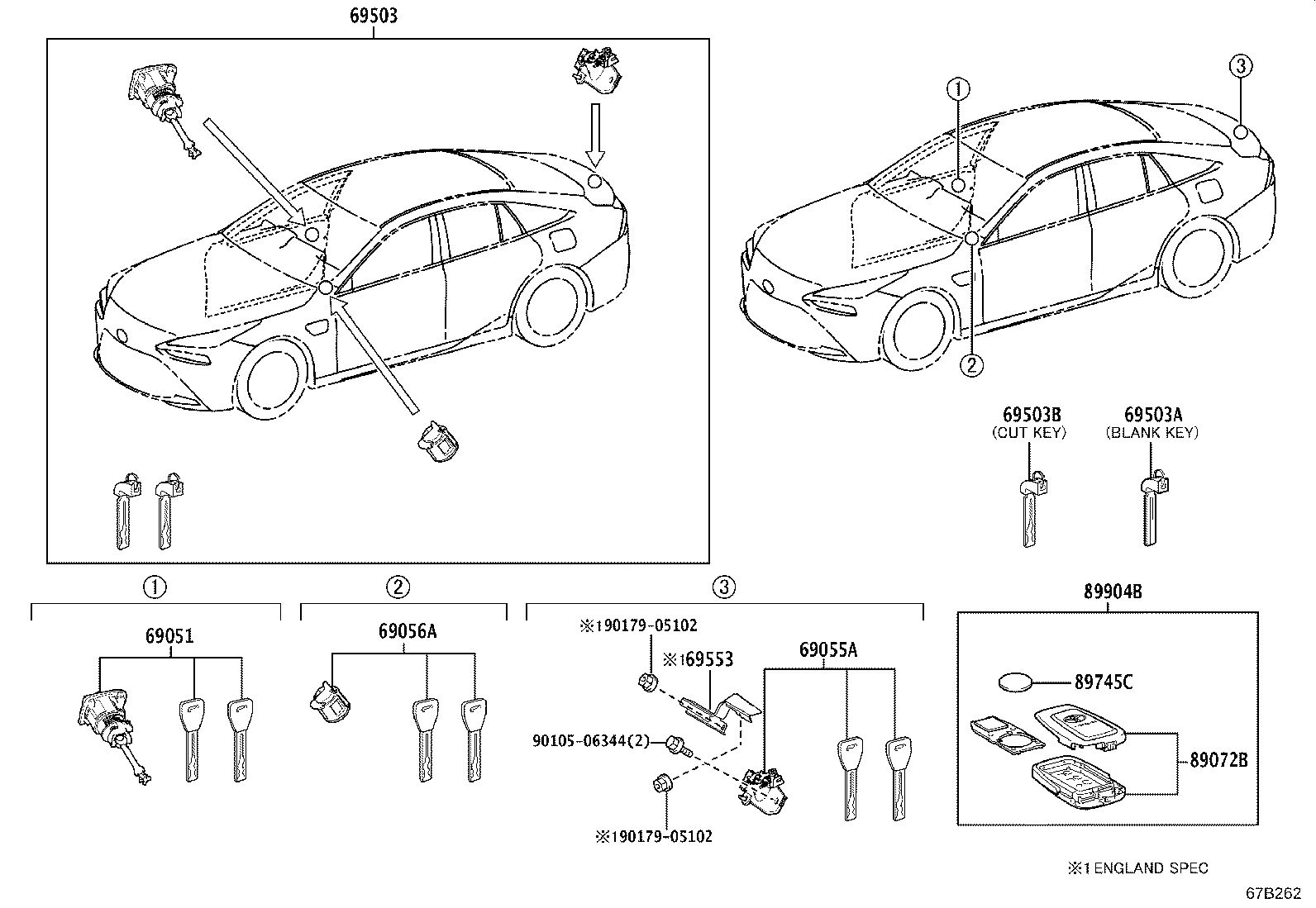

Click highlighted areas on diagram

diagram 69051 69055A 69056A 69503 69503A 69503B 69553 89072B 89745C 89904B 9010506344 9017905102 9017905102
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-62040

JPD20..RHD

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-62010

JPD20..RHD

ENGLAND SPEC

 1
69055-62020

JPD20

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30270

JPD20

 1
69503 - CYLINDER SET, LOCK
69005-62100

JPD20..RHD

ENGLAND SPEC

 1
69005-62090

JPD20..RHD

 1
69503A - KEY, BLANK
69515-47030

JPD20

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

JPD20

MASTER KEY,W(*68)

 1
69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
69553-62010

JPD20..RHD

ENGLAND SPEC

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-62070

JPD20..S

 2
89072-62080

JPD20..H

 2
89072-62050

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 2
89745C - BATTERY, TRANSMITTER
89745-50020

JPD20

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-62050

JPD20..S

 1
8990H-62060

JPD20..H

 1
8990H-62030

JPD20..RHD..S

AUSTRALIA, NEW ZEALAND SPEC

 1
Common parts
90105-06344
90179-05102
