JPD20R-CEDHSW (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )

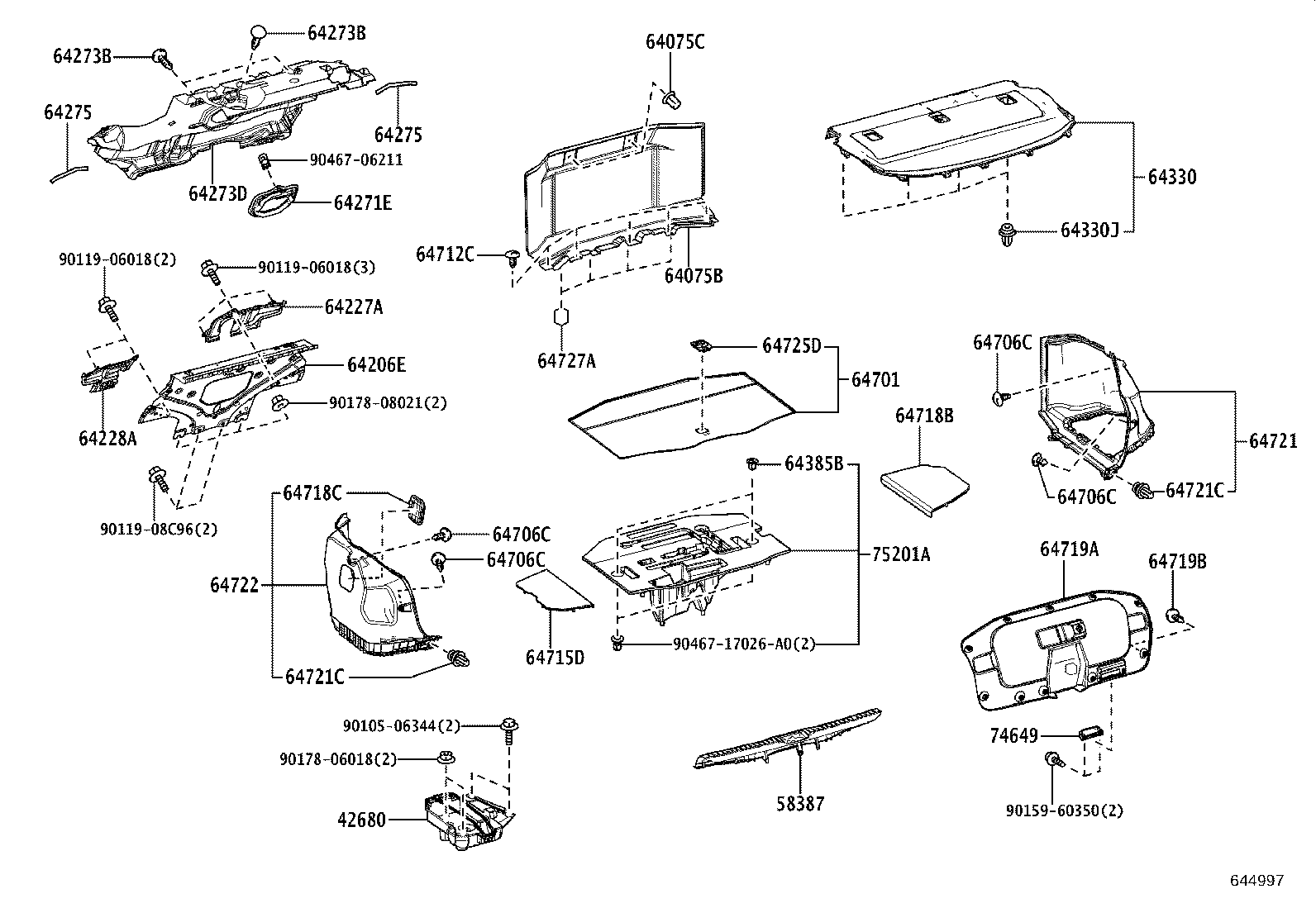

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42680 - CASE ASSY, TIRE REPAIR KIT | ||||
| 42680-62010 |
JPD20 |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64075B - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-62050C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64075C - CLIP, LUGGAGE COMPARTMENT TRIM COVER | ||||
| 90467-05145 |
JPD20 |
2 | ||
| 64206E - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-62010 |
JPD20 |
1 | ||
| 64227A - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-62010 |
JPD20 |
1 | ||
| 64228A - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-62010 |
JPD20 |
1 | ||
| 64271E - PANEL, ROOM PARTITION | ||||
| 64298-62010 |
JPD20 |
1 | ||
| 64273B - CLIP | ||||
| 90467-05164B8 |
JPD20 LT.GRAY |
3 | ||
| 64273B - CLIP | ||||
| 90467-05164B8 |
JPD20 LT.GRAY |
3 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-62010 |
JPD20 |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-62020 |
JPD20 |
2 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-62020 |
JPD20 |
2 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-62050C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
JPD20 |
4 | ||
| 64385B - CLIP | ||||
| 90467-17027C0 |
JPD20 BLACK |
2 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64706C - CLIP | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
4 | ||
| 64706C - CLIP | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
4 | ||
| 64706C - CLIP | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
4 | ||
| 64706C - CLIP | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
4 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
5 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64718C - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
JPD20 |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-62060C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C3 |
JPD20 BLACK,TRIM0#,2# |
12 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-10161 |
JPD20 |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-10161 |
JPD20 |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33100 |
JPD20 |
1 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-62010 |
JPD20 |
4 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C3 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-62020 |
JPD20 |
1 | ||
| Common parts | ||||
| 90105-06344 | ||||
| 90119-06018 | ||||
| 90119-08C96 | ||||
| 90159-60350 | ||||
| 90178-06018 | ||||
| 90178-08021 | ||||
| 90467-06211 | ||||
| 90467-17026A0 | ||||
