JPD20L-CEDSSW (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

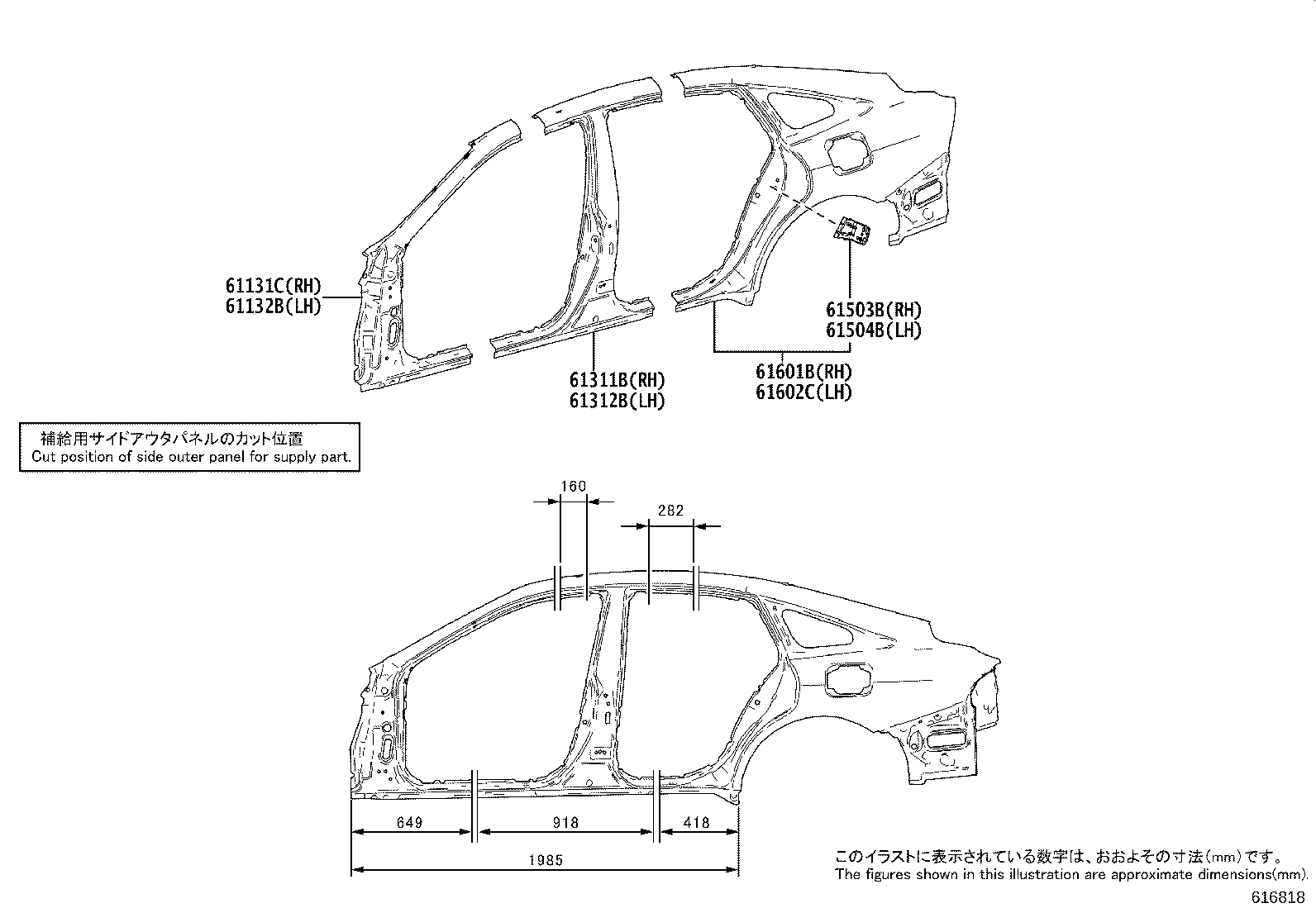

ILLUST NO. 1 OF 3(2011- )
Click highlighted areas on diagram
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-62020 |
JPD20 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-62020 |
JPD20 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-62020 |
JPD20 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-62020 |
JPD20 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-62020 |
JPD20 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-62020 |
JPD20 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-62010 |
JPD20 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-62010 |
JPD20 |
1 | ||

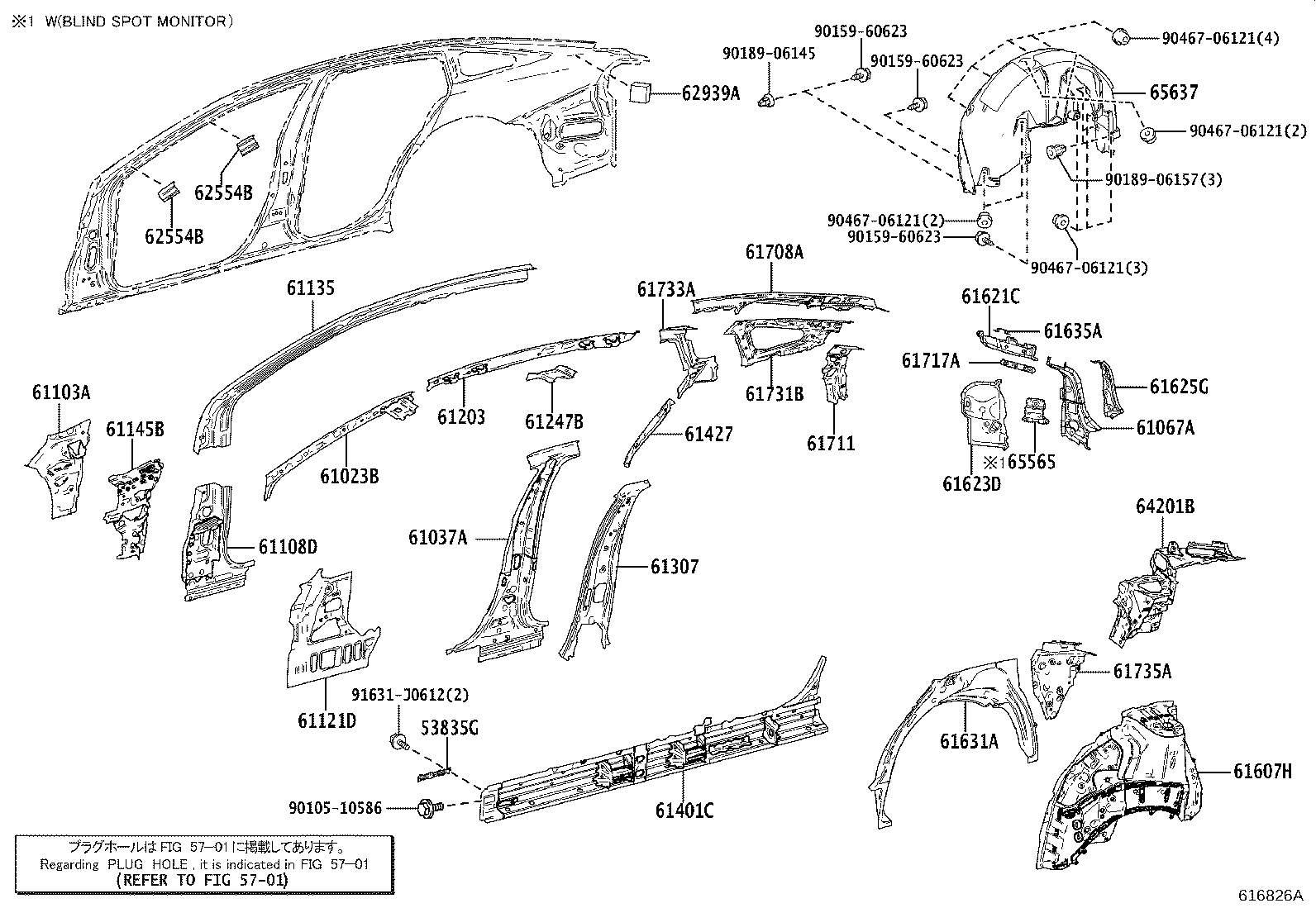

ILLUST NO. 2 OF 3(2011- )
Click highlighted areas on diagram
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53835G - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-62020 |
JPD20 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-62020 |
JPD20 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-62020 |
JPD20 |
1 | ||
| 61067A - EXTENSION SUB-ASSY, QUARTER PANEL, INNER REAR RH | ||||
| 61067-62010 |
JPD20 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-62020 |
JPD20 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-62020 |
JPD20 |
1 | ||
| 61121D - PANEL, COWL SIDE, RH | ||||
| 61121-62020 |
JPD20 |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-62020 |
JPD20 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61015-62010 |
JPD20 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-62020 |
JPD20 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-62020 |
JPD20 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-62020 |
JPD20 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-62900 |
JPD20 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-62040 |
JPD20 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-62900 |
JPD20 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-62020 |
JPD20 |
1 | ||
| 61623D - EXTENSION, QUARTER PANEL, FRONT RH | ||||
| 61623-62020 |
JPD20 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-62030 |
JPD20 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-62020 |
JPD20 |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-62010 |
JPD20 |
1 | ||
| 61708A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH | ||||
| 61708-62020 |
JPD20 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-62020 |
JPD20 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-30030 |
JPD20 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-62020 |
JPD20 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-62010 |
JPD20 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-62020 |
JPD20 |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
JPD20 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
JPD20 |
4 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
JPD20 |
2 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-62010 |
JPD20 |
1 | ||
| 65565 - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-62010 |
JPD20..S CLEARANCE & BACK SONAR- WITH |
1 | ||
| 65565-62010 |
JPD20..H |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-62020 |
JPD20 |
1 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90159-60623 | ||||
| 90189-06145 | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5701 | ||||

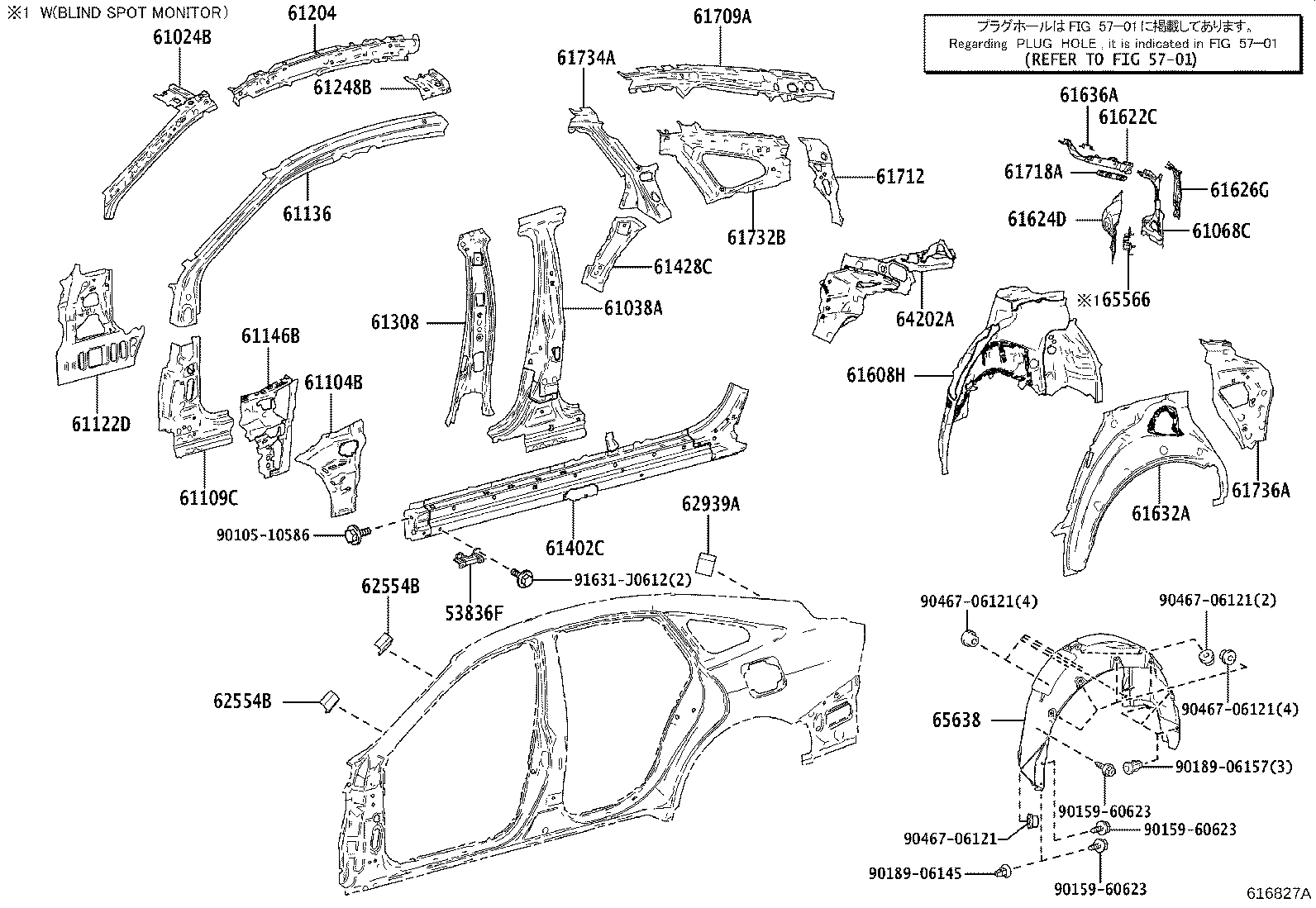

ILLUST NO. 3 OF 3(2011- )
Click highlighted areas on diagram
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53836F - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-62020 |
JPD20 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-62020 |
JPD20 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-62020 |
JPD20 |
1 | ||
| 61068C - EXTENSION SUB-ASSY, QUARTER PANEL, INNER REAR LH | ||||
| 61068-62010 |
JPD20 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-62020 |
JPD20 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-62020 |
JPD20 |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-62020 |
JPD20 |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-62020 |
JPD20 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61016-62010 |
JPD20 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-62020 |
JPD20 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-62010 |
JPD20 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-62020 |
JPD20 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-62900 |
JPD20 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-62020 |
JPD20 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-62900 |
JPD20 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-62020 |
JPD20 |
1 | ||
| 61624D - EXTENSION, QUARTER PANEL, FRONT LH | ||||
| 61624-62020 |
JPD20 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-62030 |
JPD20 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-62900 |
JPD20 |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61635-62010 |
JPD20 |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-62010 |
JPD20 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-62020 |
JPD20 |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-30020 |
JPD20 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-62020 |
JPD20 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-62010 |
JPD20 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-62020 |
JPD20 |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
JPD20 |
4 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
JPD20 |
4 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
JPD20 |
2 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-62010 |
JPD20 |
1 | ||
| 65566 - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-62010 |
JPD20..S CLEARANCE & BACK SONAR- WITH |
1 | ||
| 65565-62010 |
JPD20..H |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-62020 |
JPD20 |
1 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90159-60623 | ||||
| 90189-06145 | ||||
| 90189-06157 | ||||
| 90467-06121 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
