JPD20L-CEDHSW (2020)
Toyota Mirai
Production
Nov 2020
-
Sep 9999
Engine
3KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

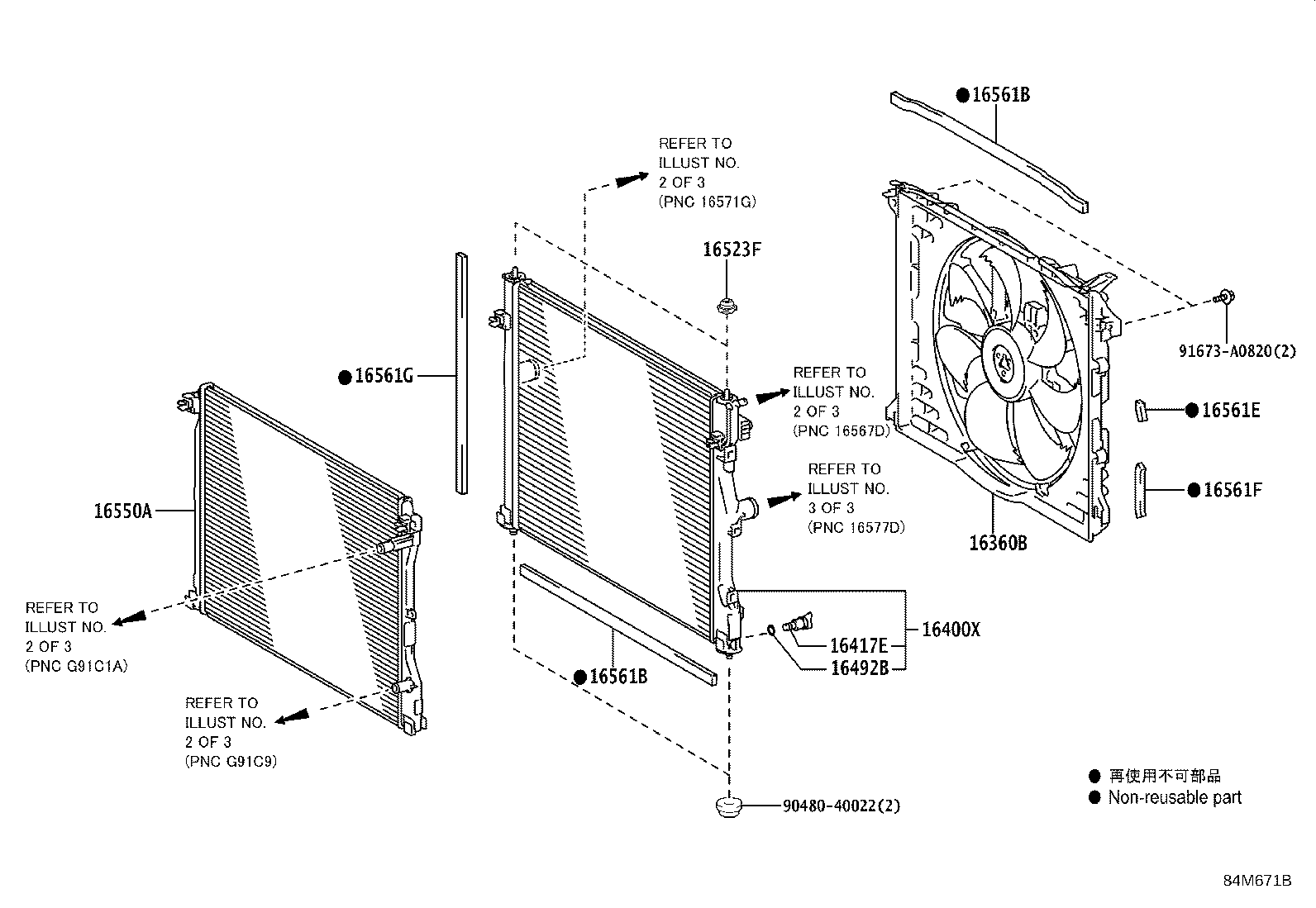

ILLUST NO. 1 OF 3(2011- )LHD
Click highlighted areas on diagram
RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360B - FAN ASSY, W/MOTOR | ||||
| 16360-77040 |
3KM..JPD20 |
1 | ||
| 16400X - RADIATOR ASSY, FC | ||||
| 16400-77110 |
3KM..JPD20 |
1 | ||
| 16417E - COCK, RADIATOR DRAIN | ||||
| 16417-21280 |
3KM..JPD20 |
1 | ||
| 16492B - RING, O(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3KM..JPD20 |
1 | ||
| 16523F - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
3KM..JPD20 |
2 | ||
| 16550A - RADIATOR ASSY, EV | ||||
| 16550-77010 |
3KM..JPD20 |
1 | ||
| 16561B - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
3KM..JPD20 |
2 | ||
| 16561B - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
3KM..JPD20 |
2 | ||
| 16561E - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31180 |
3KM..JPD20 |
1 | ||
| 16561F - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-31190 |
3KM..JPD20 |
1 | ||
| 16561G - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16561-77020 |
3KM..JPD20 |
1 | ||
| Common parts | ||||
| 90480-40022 | ||||
| 91673-A0820 | ||||

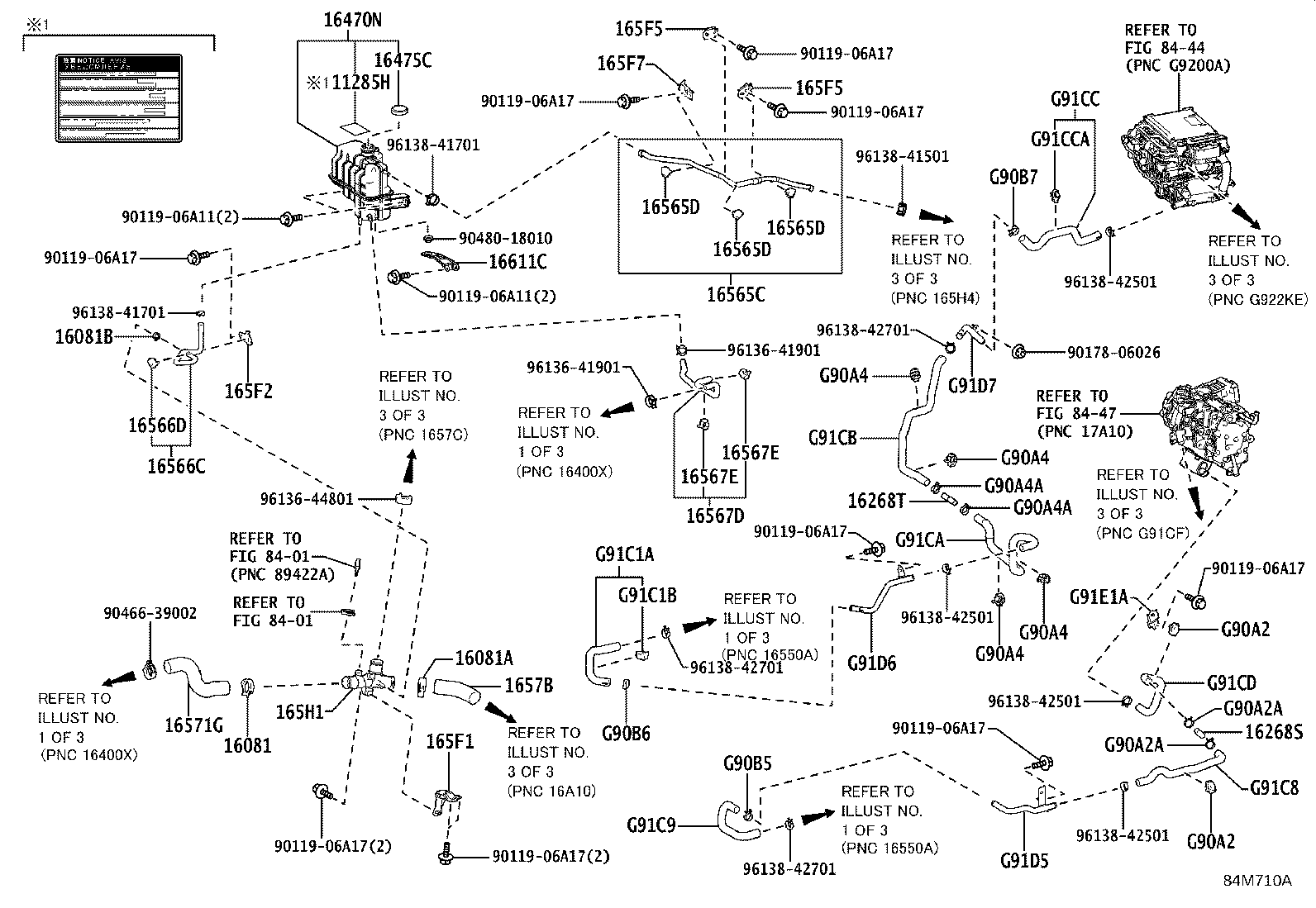

ILLUST NO. 2 OF 3(2011- )LHD
Click highlighted areas on diagram
COOLING HOSE(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285H - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-77040 |
3KM..JPD20 |
1 | ||
| 16081 - CLIP, NO.1(FOR FC RADIATOR HOSE, NO.1) | ||||
| 90466-39002 |
3KM..JPD20 |
1 | ||
| 16081A - CLIP, NO.2(FOR FC RADIATOR HOSE, NO.1) | ||||
| 96136-44801 |
3KM..JPD20 |
1 | ||
| 16081B - CLIP, NO.3(FOR FC RADIATOR HOSE, NO.1) | ||||
| 96138-41501 |
3KM..JPD20 |
1 | ||
| 16268S - PIPE, WATER BY-PASS | ||||
| 16268-47040 |
3KM..JPD20 |
1 | ||
| 16268T - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-47040 |
3KM..JPD20..LHD |
1 | ||
| 16470N - TANK ASSY, FC RADIATOR RESERVE | ||||
| 16470-77080 |
3KM..JPD20 |
1 | ||
| 16475C - CAP, RESERVE TANK | ||||
| 16475-28140 |
3KM..JPD20 |
1 | ||
| 16565C - HOSE, RESERVE TANK INLET | ||||
| 16565-77020 |
3KM..JPD20 |
1 | ||
| 16565D - CLAMP(FOR RESERVE TANK INLET HOSE) | ||||
| 16581-77050 |
3KM..JPD20 |
3 | ||
| 16565D - CLAMP(FOR RESERVE TANK INLET HOSE) | ||||
| 16581-77050 |
3KM..JPD20 |
3 | ||
| 16565D - CLAMP(FOR RESERVE TANK INLET HOSE) | ||||
| 16581-77050 |
3KM..JPD20 |
3 | ||
| 16566C - HOSE, RESERVE TANK OUTLET | ||||
| 16566-77010 |
3KM..JPD20 |
1 | ||
| 16566D - CLAMP(FOR RESERVE TANK OUTLET) | ||||
| 16581-77050 |
3KM..JPD20 |
1 | ||
| 16567D - HOSE, RADIATOR TO RESERVE TANK | ||||
| 16567-77020 |
3KM..JPD20 |
1 | ||
| 16567E - CLAMP(FOR RADIATOR TO RESERVE TANK HOSE) | ||||
| 16581-77060 |
3KM..JPD20 |
2 | ||
| 16567E - CLAMP(FOR RADIATOR TO RESERVE TANK HOSE) | ||||
| 16581-77060 |
3KM..JPD20 |
2 | ||
| 16571G - HOSE, FC RADIATOR, NO.1 | ||||
| 16571-77060 |
3KM..JPD20 |
1 | ||
| 1657B - HOSE, FC RADIATOR, NO.11 | ||||
| 1657B-77010 |
3KM..JPD20 |
1 | ||
| 165F1 - BRACKET, RADIATOR HOSE, NO.1 | ||||
| 165F1-77010 |
3KM..JPD20 |
1 | ||
| 165F2 - BRACKET, RADIATOR HOSE, NO.2 | ||||
| 165F2-77010 |
3KM..JPD20 |
1 | ||
| 165F5 - BRACKET, RADIATOR HOSE, NO.5 | ||||
| 165F5-77010 |
3KM..JPD20 |
1 | ||
| 165F5 - BRACKET, RADIATOR HOSE, NO.5 | ||||
| 165F5-77010 |
3KM..JPD20 |
1 | ||
| 165F7 - BRACKET, RADIATOR HOSE, NO.7 | ||||
| 165F7-77010 |
3KM..JPD20 |
1 | ||
| 165H1 - PIPE, FC RADIATOR, NO.1 | ||||
| 165H1-77010 |
3KM..JPD20 |
1 | ||
| 16611C - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-77030 |
3KM..JPD20 |
1 | ||
| G90A2 - CLAMP(FOR FC INVERTER COOLING HOSE NO.2) | ||||
| 16581-77030 |
JPD20 |
2 | ||
| G90A2 - CLAMP(FOR FC INVERTER COOLING HOSE NO.2) | ||||
| 16581-77030 |
JPD20 |
2 | ||
| G90A2A - CLIP(FOR FC INVERTER COOLING HOSE NO.2) | ||||
| 96138-42501 |
JPD20 |
2 | ||
| G90A2A - CLIP(FOR FC INVERTER COOLING HOSE NO.2) | ||||
| 96138-42501 |
JPD20 |
2 | ||
| G90A4 - CLAMP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 16581-77030 |
JPD20..LHD |
4 | ||
| G90A4 - CLAMP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 16581-77030 |
JPD20..LHD |
4 | ||
| G90A4 - CLAMP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 16581-77030 |
JPD20..LHD |
4 | ||
| G90A4 - CLAMP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 16581-77030 |
JPD20..LHD |
4 | ||
| G90A4A - CLIP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 96138-42501 |
JPD20..LHD |
2 | ||
| G90A4A - CLIP(FOR FC INVERTER COOLING HOSE NO.4) | ||||
| 96138-42501 |
JPD20..LHD |
2 | ||
| G90B5 - CLIP(FOR FC INVERTER COOLING PIPE NO.5) | ||||
| 96138-42501 |
JPD20 |
1 | ||
| G90B6 - CLIP(FOR FC INVERTER COOLING PIPE NO.6) | ||||
| 96138-42501 |
JPD20..LHD |
1 | ||
| G90B7 - CLIP(FOR FC INVERTER COOLING PIPE NO.7) | ||||
| 96138-42701 |
JPD20..LHD |
1 | ||
| G91C1A - HOSE, FC INVERTER COOLING, NO.1 | ||||
| G91C1-62010 |
JPD20 |
1 | ||
| G91C1B - CLAMP(FOR FC INVERTER COOLING HOSE NO.1) | ||||
| 16581-77030 |
JPD20 |
1 | ||
| G91C8 - HOSE, FC INVERTER COOLING, NO.8 | ||||
| G91C8-62010 |
JPD20 |
1 | ||
| G91C9 - HOSE, FC INVERTER COOLING, NO.9 | ||||
| G91C9-62010 |
JPD20 |
1 | ||
| G91CA - HOSE, FC INVERTER COOLING, NO.10 | ||||
| G91CA-62010 |
JPD20..LHD |
1 | ||
| G91CB - HOSE, FC INVERTER COOLING, NO.11 | ||||
| G91CB-62010 |
JPD20..LHD |
1 | ||
| G91CC - HOSE, FC INVERTER COOLING, NO.12 | ||||
| G91CC-62010 |
JPD20..LHD |
1 | ||
| G91CCA - CLAMP(FOR FC INVERTER COOLING HOSE NO.12) | ||||
| 16581-25160 |
JPD20..LHD |
1 | ||
| G91CD - HOSE, FC INVERTER COOLING, NO.13 | ||||
| G91CD-62010 |
JPD20 |
1 | ||
| G91D5 - PIPE, FC INVERTER COOLING, NO.5 | ||||
| G91D5-62010 |
JPD20 |
1 | ||
| G91D6 - PIPE, FC INVERTER COOLING, NO.6 | ||||
| G91D6-62010 |
JPD20..LHD |
1 | ||
| G91D7 - PIPE, FC INVERTER COOLING, NO.7 | ||||
| G91D7-62010 |
JPD20..LHD |
1 | ||
| G91E1A - BRACKET, FC INVERTER COOLING, NO.1 | ||||
| G91E1-62010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-06A17 | ||||
| 90178-06026 | ||||
| 90466-39002 | ||||
| 90480-18010 | ||||
| 96136-41901 | ||||
| 96136-44801 | ||||
| 96138-41501 | ||||
| 96138-41701 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8444 | ||||
| 8447 | ||||

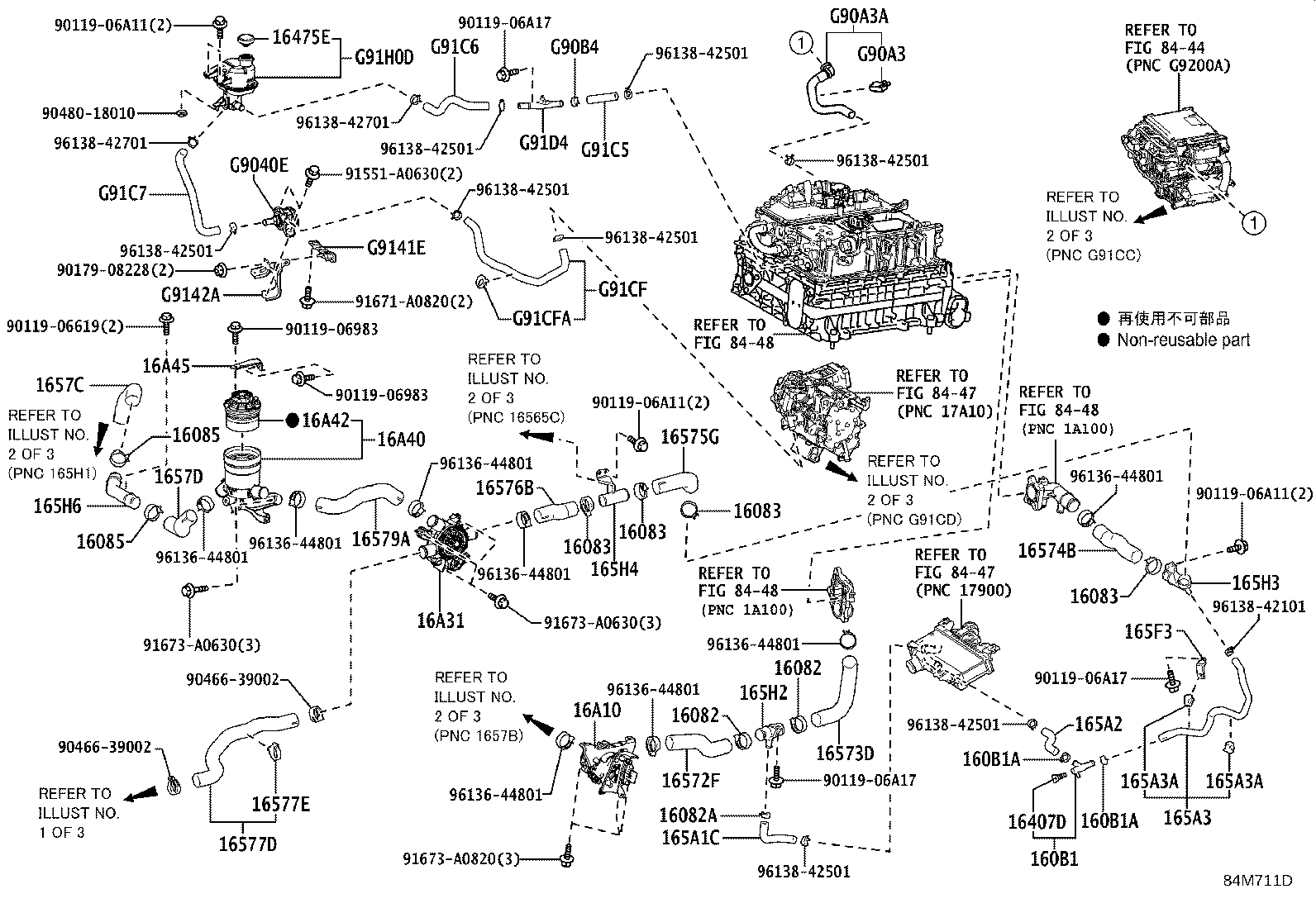

ILLUST NO. 3 OF 3(2011- )LHD
Click highlighted areas on diagram
COOLING HOSE(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16082 - CLIP, NO.1(FOR FC RADIATOR HOSE, NO.2) | ||||
| 96136-44801 |
3KM..JPD20 |
2 | ||
| 16082 - CLIP, NO.1(FOR FC RADIATOR HOSE, NO.2) | ||||
| 96136-44801 |
3KM..JPD20 |
2 | ||
| 16082A - CLIP, NO.2(FOR FC RADIATOR HOSE, NO.2) | ||||
| 96138-42501 |
3KM..JPD20 |
1 | ||
| 16083 - CLIP(FOR FC RADIATOR HOSE, NO.3) | ||||
| 96136-44801 |
3KM..JPD20 |
4 | ||
| 16083 - CLIP(FOR FC RADIATOR HOSE, NO.3) | ||||
| 96136-44801 |
3KM..JPD20 |
4 | ||
| 16083 - CLIP(FOR FC RADIATOR HOSE, NO.3) | ||||
| 96136-44801 |
3KM..JPD20 |
4 | ||
| 16083 - CLIP(FOR FC RADIATOR HOSE, NO.3) | ||||
| 96136-44801 |
3KM..JPD20 |
4 | ||
| 16085 - CLIP, NO.1(FOR FC RADIATOR HOSE, NO.5) | ||||
| 96136-44801 |
3KM..JPD20 |
2 | ||
| 16085 - CLIP, NO.1(FOR FC RADIATOR HOSE, NO.5) | ||||
| 96136-44801 |
3KM..JPD20 |
2 | ||
| 160B1 - COCK ASSY, DRAIN | ||||
| 90910-09134 |
3KM..JPD20 |
1 | ||
| 160B1A - CLIP(FOR FC INTERCOOLER HOSE) | ||||
| 96138-42501 |
3KM..JPD20 |
2 | ||
| 160B1A - CLIP(FOR FC INTERCOOLER HOSE) | ||||
| 96138-42501 |
3KM..JPD20 |
2 | ||
| 16407D - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-64010 |
3KM..JPD20 |
1 | ||
| 16475E - CAP, EV RESERVE TANK | ||||
| 16475-28140 |
3KM..JPD20 |
1 | ||
| 16572F - HOSE, FC RADIATOR, NO.2 | ||||
| 16572-77040 |
3KM..JPD20 |
1 | ||
| 16573D - HOSE, FC RADIATOR, NO.3 | ||||
| 16573-77040 |
3KM..JPD20 |
1 | ||
| 16574B - HOSE, FC RADIATOR, NO.4 | ||||
| 16574-77010 |
3KM..JPD20 |
1 | ||
| 16575G - HOSE, FC RADIATOR, NO.5 | ||||
| 16575-77030 |
3KM..JPD20 |
1 | ||
| 16576B - HOSE, FC RADIATOR, NO.6 | ||||
| 16576-77010 |
3KM..JPD20 |
1 | ||
| 16577D - HOSE, FC RADIATOR, NO.7 | ||||
| 16577-77070 |
3KM..JPD20 |
1 | ||
| 16577E - CLAMP(FOR FC RADIATOR HOSE NO.7) | ||||
| 16581-31040 |
3KM..JPD20 |
1 | ||
| 16579A - HOSE, FC RADIATOR, NO.9 | ||||
| 16579-77010 |
3KM..JPD20 |
1 | ||
| 1657C - HOSE, FC RADIATOR, NO.12 | ||||
| 1657C-77010 |
3KM..JPD20 |
1 | ||
| 1657D - HOSE, FC RADIATOR, NO.13 | ||||
| 1657D-77010 |
3KM..JPD20 |
1 | ||
| 165A1C - HOSE, FC INTERCOOLER, NO.1 | ||||
| 165A1-77030 |
3KM..JPD20 |
1 | ||
| 165A2 - HOSE, FC INTERCOOLER, NO.2 | ||||
| 165A2-77010 |
3KM..JPD20 |
1 | ||
| 165A3 - HOSE, FC INTERCOOLER, NO.3 | ||||
| 165A3-77010 |
3KM..JPD20 |
1 | ||
| 165A3A - CLAMP(FOR FC INTERCOOLER HOSE NO.3) | ||||
| 16581-77070 |
3KM..JPD20 |
2 | ||
| 165A3A - CLAMP(FOR FC INTERCOOLER HOSE NO.3) | ||||
| 16581-77070 |
3KM..JPD20 |
2 | ||
| 165F3 - BRACKET, RADIATOR HOSE, NO.3 | ||||
| 165F3-77010 |
3KM..JPD20 |
1 | ||
| 165H2 - PIPE, FC RADIATOR, NO.2 | ||||
| 165H2-77010 |
3KM..JPD20 |
1 | ||
| 165H3 - PIPE, FC RADIATOR, NO.3 | ||||
| 165H3-77010 |
3KM..JPD20 |
1 | ||
| 165H4 - PIPE, FC RADIATOR, NO.4 | ||||
| 165H4-77010 |
3KM..JPD20 |
1 | ||
| 165H6 - PIPE, FC RADIATOR, NO.6 | ||||
| 165H6-77010 |
3KM..JPD20 |
1 | ||
| 16A10 - PUMP ASSY, FC COOLING WATER | ||||
| 16A10-77050 |
3KM..JPD20 |
1 | ||
| 16A31 - VALVE, FC COOLING WATER TEMPERATURE CONTROL | ||||
| 16A31-77040 |
3KM..JPD20 |
1 | ||
| 16A40 - EXCHANGER ASSY, FC COOLING WATER ION | ||||
| 16A40-77030 |
3KM..JPD20 |
1 | ||
| 16A42 - ELEMENT, FC COOLING WATER ION EXCHANGER | ||||
| 16A42-77020 |
3KM..JPD20 |
1 | ||
| 16A45 - BRACKET, FC COOLING WATER ION EXCHANGER | ||||
| 16A45-77030 |
3KM..JPD20 |
1 | ||
| G9040E - PUMP ASSY, WATER W/MOTOR | ||||
| G9040-62010 |
JPD20 |
1 | ||
| G90A3 - CLAMP(FOR FC INVERTER COOLING HOSE NO.3) | ||||
| 16581-25160 |
JPD20..LHD |
1 | ||
| G90A3A - HOSE SUB-ASSY, FC INVERTER COOLING, NO.3 | ||||
| G90A3-62010 |
JPD20..LHD |
1 | ||
| G90B4 - CLIP(FOR FC INVERTER COOLING PIPE NO.4) | ||||
| 96138-42501 |
JPD20 |
1 | ||
| G9141E - BRACKET, WATER PUMP, NO.1 | ||||
| G9141-62020 |
JPD20 |
1 | ||
| G9142A - BRACKET, WATER PUMP, NO.2 | ||||
| G9142-62010 |
JPD20 |
1 | ||
| G91C5 - HOSE, FC INVERTER COOLING, NO.5 | ||||
| G91C5-62010 |
JPD20 |
1 | ||
| G91C6 - HOSE, FC INVERTER COOLING, NO.6 | ||||
| G91C6-62010 |
JPD20 |
1 | ||
| G91C7 - HOSE, FC INVERTER COOLING, NO.7 | ||||
| G91C7-62010 |
JPD20 |
1 | ||
| G91CF - HOSE, FC INVERTER COOLING, NO.15 | ||||
| G91CF-62010 |
JPD20 |
1 | ||
| G91CFA - CLAMP(FOR FC INVERTER COOLING HOSE NO.15) | ||||
| 16581-77030 |
JPD20 |
1 | ||
| G91D4 - PIPE, FC INVERTER COOLING, NO.4 | ||||
| G91D4-62010 |
JPD20 |
1 | ||
| G91H0D - TANK ASSY, EV RESERVE | ||||
| G91H0-62020 |
JPD20 |
1 | ||
| Common parts | ||||
| 90119-06619 | ||||
| 90119-06983 | ||||
| 90119-06A11 | ||||
| 90119-06A17 | ||||
| 90179-08228 | ||||
| 90466-39002 | ||||
| 90480-18010 | ||||
| 91551-A0630 | ||||
| 91671-A0820 | ||||
| 91673-A0630 | ||||
| 91673-A0820 | ||||
| 96136-44801 | ||||
| 96138-42101 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 8444 | ||||
| 8447 | ||||
| 8448 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
