JPD20L-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )LHD

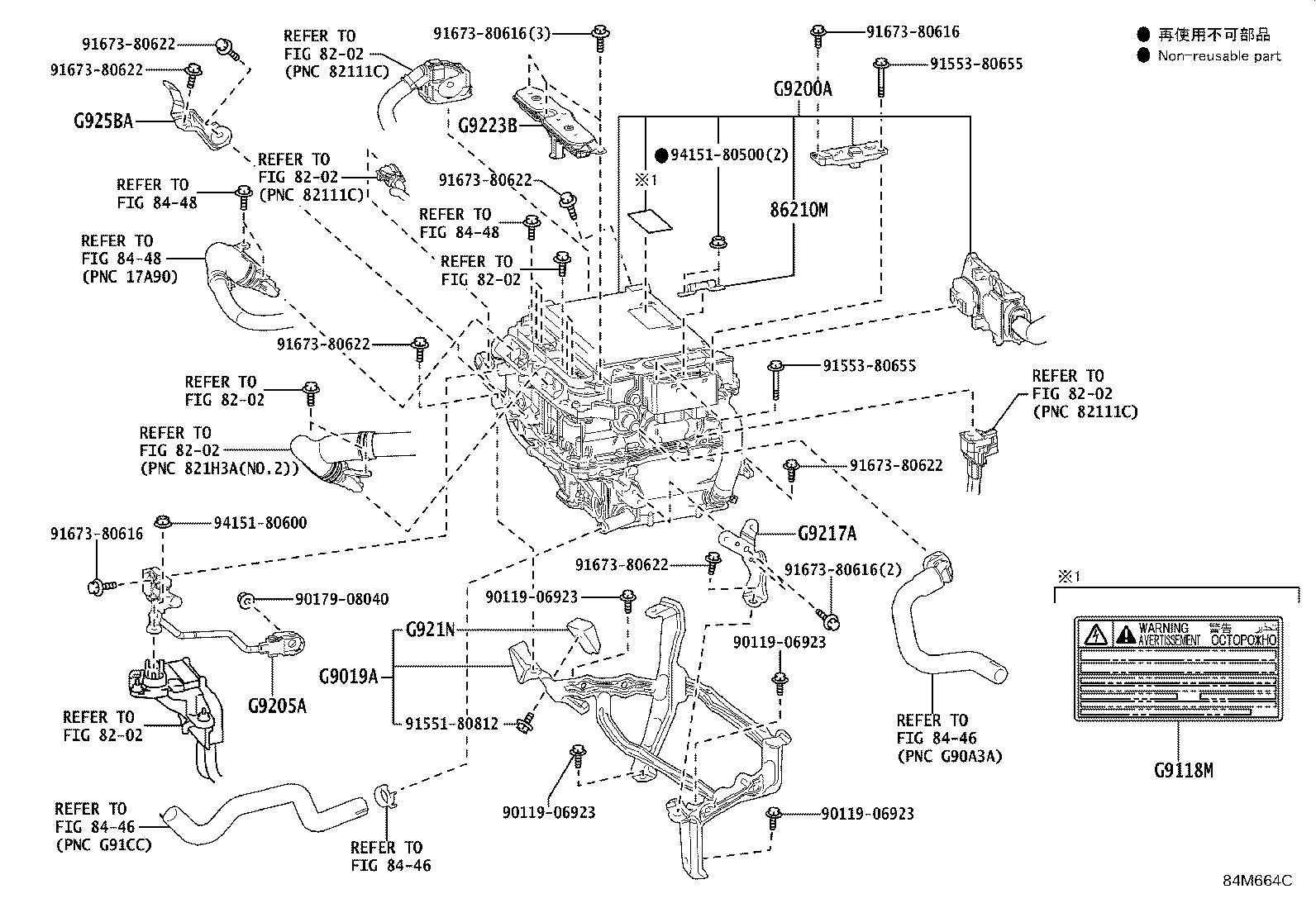

Click highlighted areas on diagram

diagram 8202 8202 8202 8202 8202 8202 8202 8446 8446 8446 8448 8448 8448 86210M 9011906923 9011906923 9011906923 9011906923 9017908040 9155180812 9155380655 9155380655 9167380616 9167380616 9167380616 9167380616 9167380622 9167380622 9167380622 9167380622 9167380622 9167380622 9415180500 9415180600 G9019A G9118M G9200A G9205A G9217A G921N G9223B G925BA
Part # Description Qty Price
86210M - FUSE, HIGH VOLTAGE
90982-11050

JPD20

 1
G9019A - BRACKET SUB-ASSY, INVERTER TRAY
G9019-62020

JPD20..LHD

 1
G9118M - LABEL, UNIT CONTROLLER CAUTION, NO.1
G9118-76010

JPD20

 1
G9200A - INVERTER ASSY, W/CONVERTER
G92A0-62020

JPD20..LHD

 1
G9205A - PLATE SUB-ASSY, INVERTER BUS-BAR
G9205-11010

JPD20..LHD

 1
G9217A - BRACKET, INVERTER, NO.4
G9217-62020

JPD20..LHD

 1
G921N - DAMPER, INVERTER BRACKET
G921N-62020

JPD20..LHD

 1
G9223B - COVER, INVERTER TERMINAL
G9223-11010

JPD20..LHD

 1
G925BA - BRACKET, INVERTER, NO.6
G925B-11020

JPD20..LHD

 1
Common parts
90119-06923
90179-08040
91551-80812
91553-80655
91673-80616
91673-80622
94151-80500
94151-80600
Linked diagrams
8202
8446
8448
