JPD20L-CEDHSW (2020)
Toyota Mirai
(2011- )

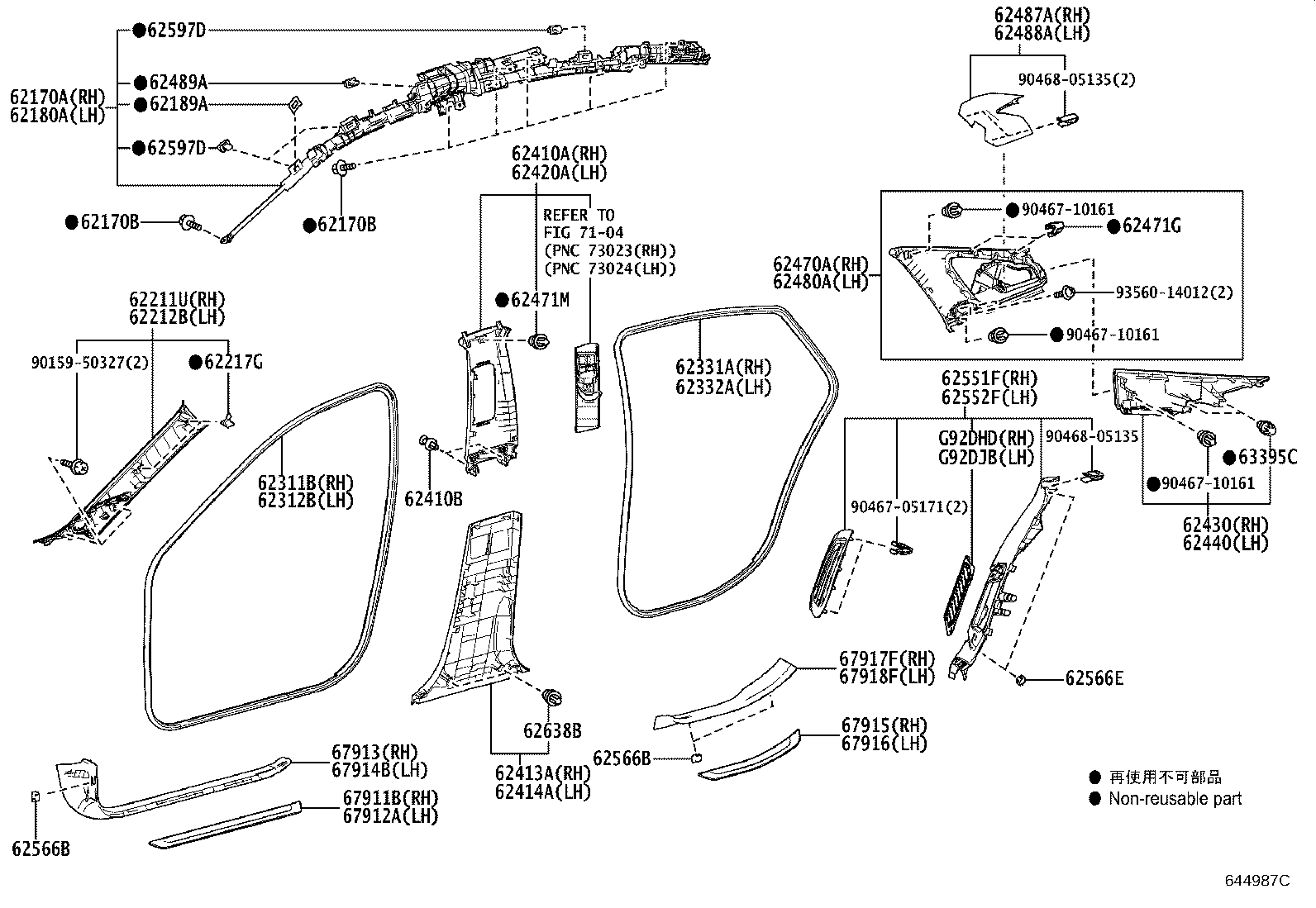

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-62030 |
JPD20 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 91673-80616 |
JPD20 |
6 | ||
| 62170B - BOLT, W/WASHER | ||||
| 91673-80616 |
JPD20 |
6 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-62030 |
JPD20 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
JPD20 |
2 | ||
| 62211U - GARNISH ASSY, FRONT PILLAR, RH | ||||
| 62210-62030B1 |
JPD20 LT.GRAY/BLACK,TRIM0#,2# |
1 | ||
| 62210-62020B1 |
JPD20..LHD..H COSTA RICA SPEC,LT.GRAY/BLACK,TRIM0#,2# |
1 | ||
| 62212B - GARNISH ASSY, FRONT PILLAR, LH | ||||
| 62220-62030B1 |
JPD20 LT.GRAY/BLACK,TRIM0#,2# |
1 | ||
| 62220-62020B1 |
JPD20..LHD..H COSTA RICA SPEC,LT.GRAY/BLACK,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-42050 |
JPD20 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-62020 |
JPD20 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-62020 |
JPD20 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-62020 |
JPD20 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-62020 |
JPD20 |
1 | ||
| 62410A - GARNISH ASSY, CENTER PILLAR, RH | ||||
| 62410-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62410B - CLIP | ||||
| 90467-10216 |
JPD20 |
4 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62420A - GARNISH ASSY, CENTER PILLER, LH | ||||
| 62420-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62430-62010B0 |
JPD20 LT. GRAY,TRIM0#,2# |
1 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62440-62010B0 |
JPD20 LT. GRAY,TRIM0#,2# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62471G - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-05172 |
JPD20 |
4 | ||
| 62471M - CLIP | ||||
| 90467-10167 |
JPD20 |
2 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
JPD20 |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-62030C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
JPD20 |
2 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
JPD20 |
2 | ||
| 62566E - CLAMP, REAR SEAT SIDE GARNISH | ||||
| 62566-30010 |
JPD20 |
2 | ||
| 62597D - CLIP | ||||
| 90467-18017 |
JPD20 |
6 | ||
| 62597D - CLIP | ||||
| 90467-18017 |
JPD20 |
6 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
JPD20 |
4 | ||
| 63395C - CLIP(FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-09240 |
JPD20 |
4 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-62020C0 |
JPD20..LHD..H SAUDI ARABIA SPEC,BLACK,TRIM0#,2# |
1 | ||
| 67911-62020C0 |
JPD20..LHD..H U.A.E. SPEC,BLACK,TRIM0#,2# |
1 | ||
| 67911-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-62020C0 |
JPD20..LHD..H U.A.E. SPEC,BLACK,TRIM0#,2# |
1 | ||
| 67912-62020C0 |
JPD20..LHD..H SAUDI ARABIA SPEC,BLACK,TRIM0#,2# |
1 | ||
| 67912-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-62010C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67917F - PLATE, REAR DOOR SCUFF, INSIDE RH | ||||
| 67917-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| 67918F - PLATE, REAR DOOR SCUFF, INSIDE LH | ||||
| 67918-62020C0 |
JPD20 BLACK,TRIM0#,2# |
1 | ||
| G92DHD - FILTER, EV BATTERY INTAKE, NO.1 | ||||
| G92DH-30100 |
JPD20 |
1 | ||
| G92DJB - FILTER, EV BATTERY INTAKE, NO.2 | ||||
| G92DJ-30010 |
JPD20 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-10161 | ||||
| 90468-05135 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
