JPD20L-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

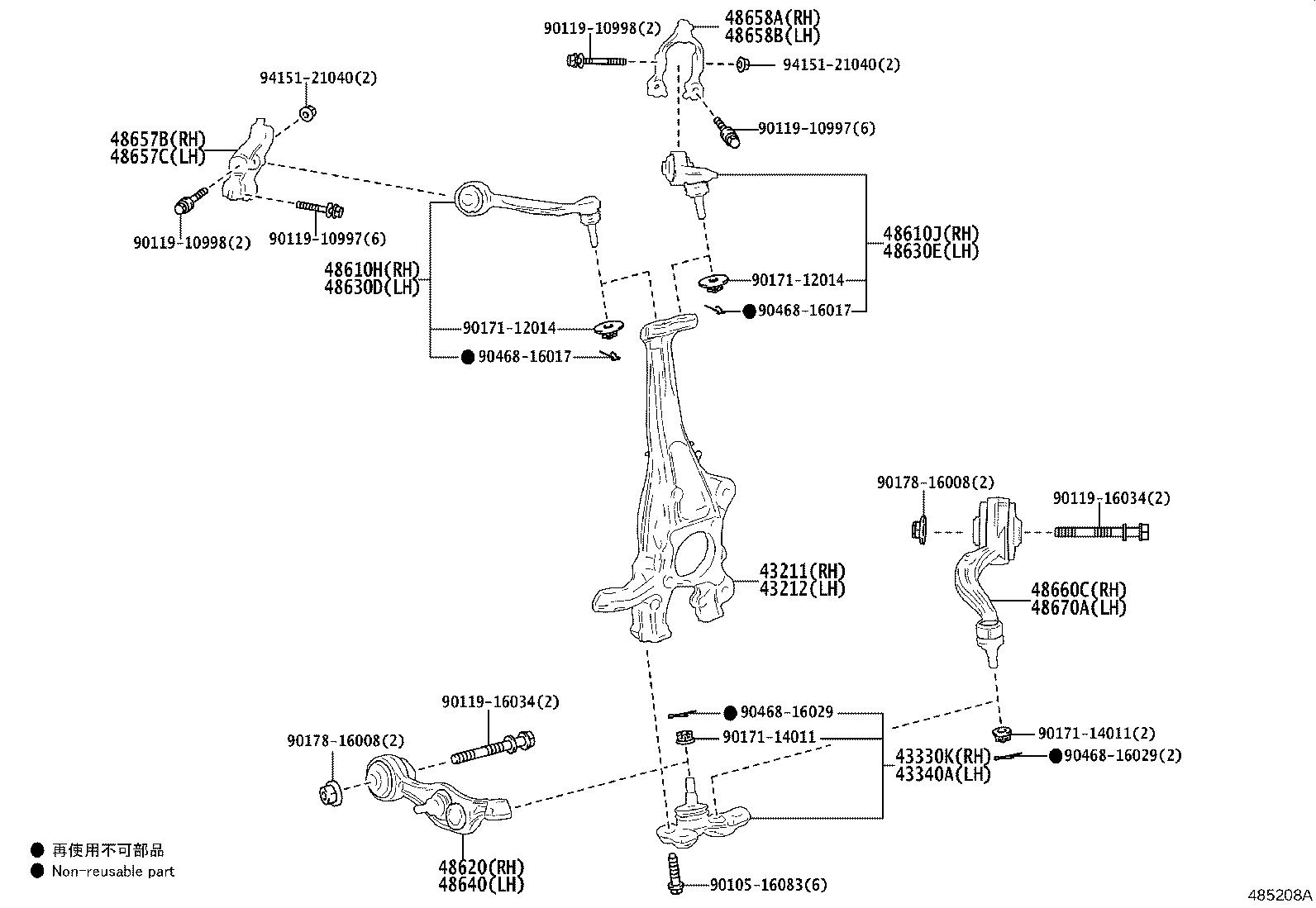

Click highlighted areas on diagram

diagram 43211 43212 43330K 43340A 48610H 48610J 48620 48630D 48630E 48640 48657B 48657C 48658A 48658B 48660C 48670A 9010516083 9011910997 9011910997 9011910998 9011910998 9011916034 9011916034 9017112014 9017112014 9017114011 9017114011 9017816008 9017816008 9046816017 9046816017 9046816029 9046816029 9415121040
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-50050

JPD20

 1
43212 - KNUCKLE, STEERING, LH
43202-50050

JPD20

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-59145

JPD20

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-59145

JPD20

 1
48610H - ARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH
48610-59155

JPD20

 1
48610J - ARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH
48610-59165

JPD20

 1
48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH
48620-62011

JPD20

 1
48630D - ARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH
48630-59155

JPD20

 1
48630E - ARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH
48630-59165

JPD20

 1
48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH
48640-62011

JPD20

 1
48657B - BRACKET, FRONT UPPER ARM, NO.1 RH
48657-50030

JPD20

 1
48657C - BRACKET, FRONT UPPER ARM, NO.1 LH
48657-50040

JPD20

 1
48658A - BRACKET, FRONT UPPER ARM, NO.2 RH
48658-50020

JPD20

 1
48658B - BRACKET, FRONT UPPER ARM, NO.2 LH
48658-50030

JPD20

 1
48660C - ARM ASSY, SUSPENSION, LOWER NO.2 RH
48660-62011

JPD20

 1
48670A - ARM ASSY, SUSPENSION, LOWER NO.2 LH
48670-62011

JPD20

 1
Common parts
90105-16083
90119-10997
90119-10998
90119-16034
90171-12014
90171-14011
90178-16008
90468-16017
90468-16029
94151-21040
