JPD20L-CEDHSW (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

Click highlighted areas on diagram

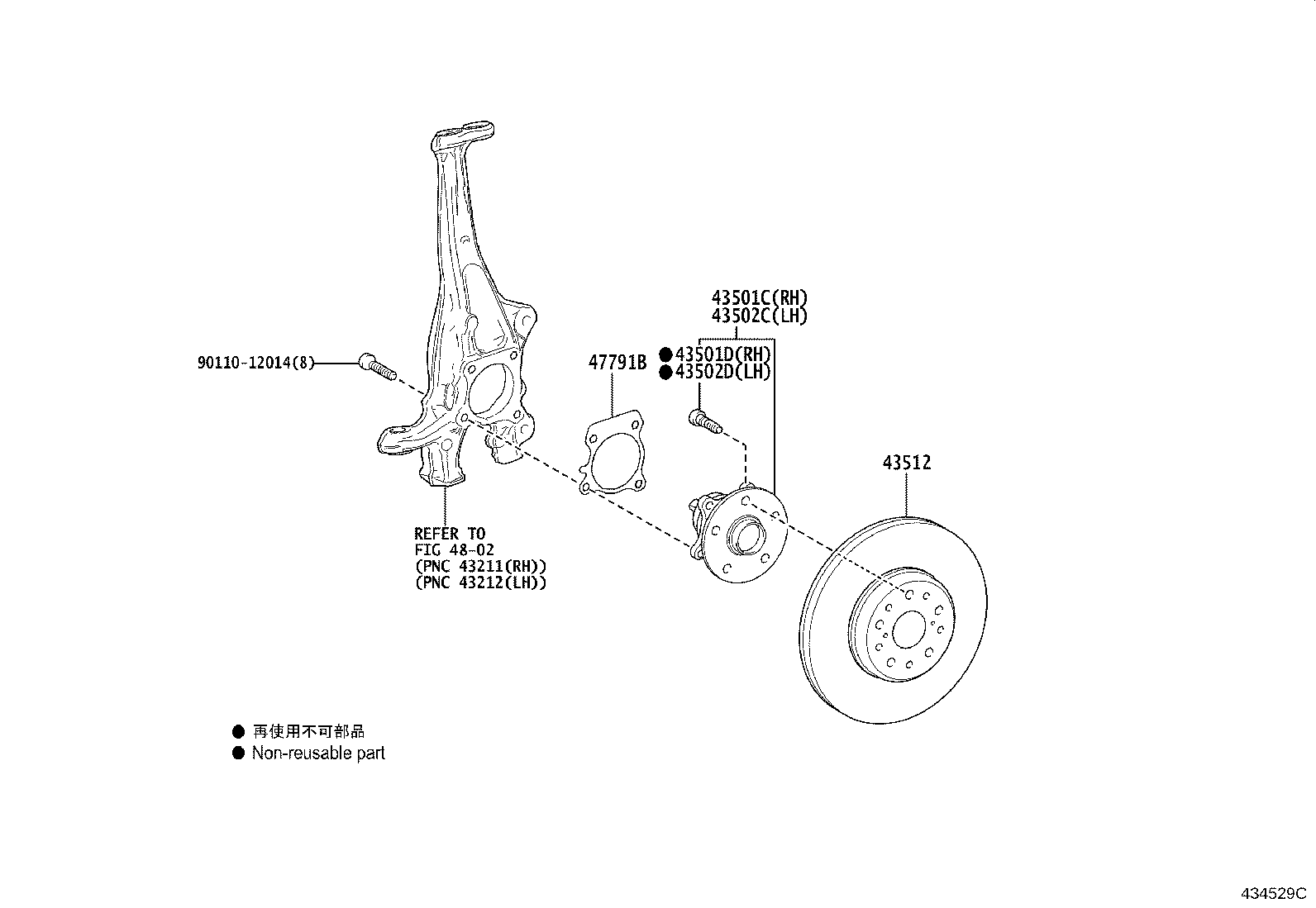

diagram 43501C 43501D 43502C 43502D 43512 47791B 4802 9011012014
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-62020

JPD20

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02083

JPD20

 5
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-62020

JPD20

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02083

JPD20

 5
43512 - DISC, FRONT
43512-50240

JPD20

 2
47791B - PLATE, DISC BRAKE AIR GUIDE
47791-11010

JPD20

 2
Common parts
90110-12014
Linked diagrams
4802
