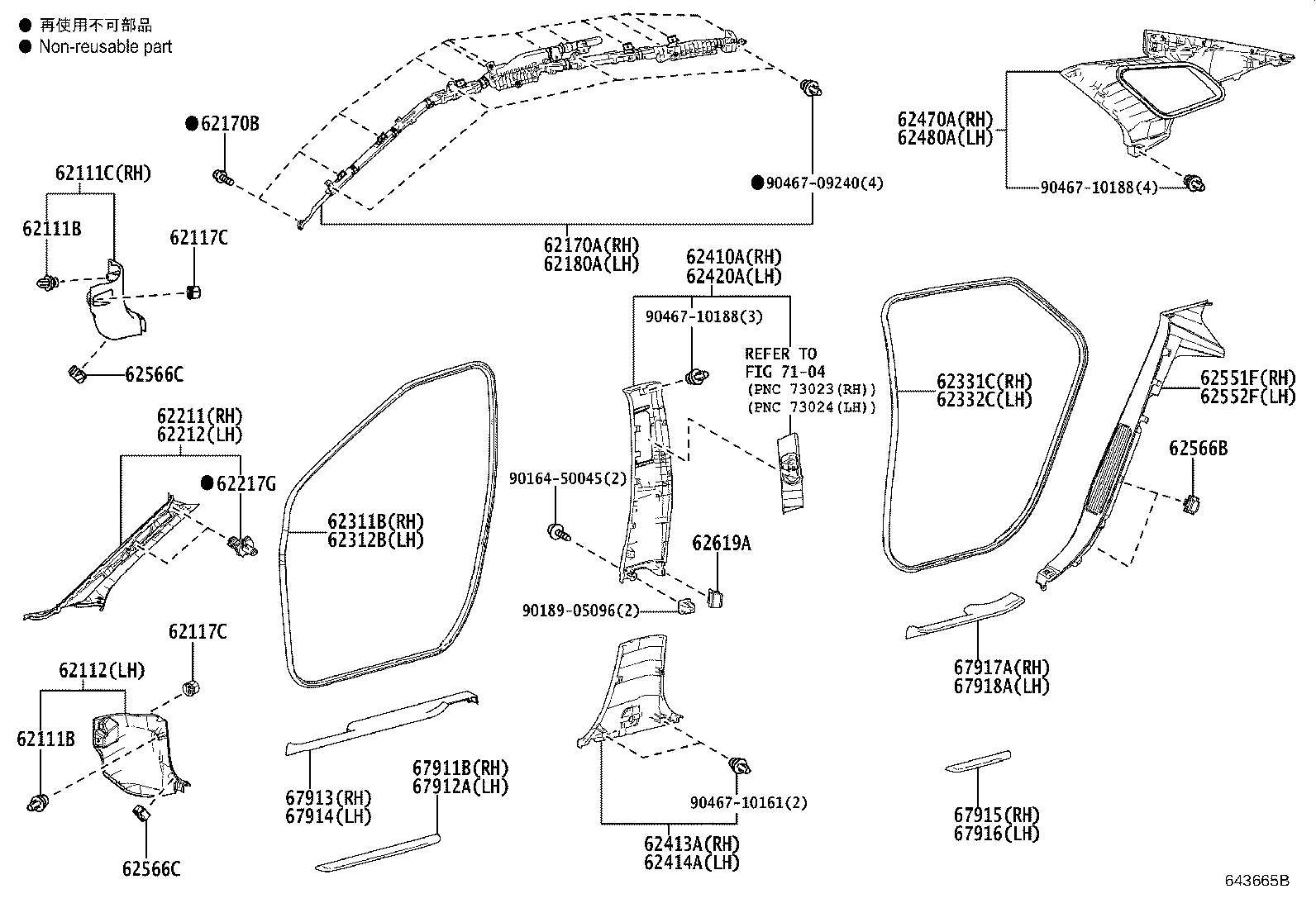

JPD10R-CEDSSW (2015)
Toyota Mirai
(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
JPD10 |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
JPD10 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
JPD10 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
JPD10 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-62010 |
JPD10 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
JPD10 |
24 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-62010 |
JPD10 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-62010C1 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-62010C1 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
JPD10 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-62010 |
JPD10 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-62010 |
JPD10 |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-62010 |
JPD10 |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-62010 |
JPD10 |
1 | ||
| 62410A - GARNISH ASSY, CENTER PILLAR, RH | ||||
| 62410-62010C0 |
JPD10 BLACK,TRIM8# |
1 | ||
| 62410-62010A0 |
JPD10 WARM WHITE,TRIM0# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-62010C1 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-62010C1 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62420A - GARNISH ASSY, CENTER PILLER, LH | ||||
| 62420-62010A0 |
JPD10 WARM WHITE,TRIM0# |
1 | ||
| 62420-62010C0 |
JPD10 BLACK,TRIM8# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-62010A1 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-62010A1 |
JPD10 WARM WHITE,TRIM0#,8# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
JPD10 |
4 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 62566-30010 |
JPD10 |
2 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 62566-30010 |
JPD10 |
2 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
JPD10 |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-12080C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-12080C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67915-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-62010C0 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| Common parts | ||||
| 90164-50045 | ||||
| 90189-05096 | ||||
| 90467-09240 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 7104 | ||||
