JPD10L-CEDSSW (2015)

Toyota Mirai

Production Jun 2015 - May 2020
Engine 4JM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

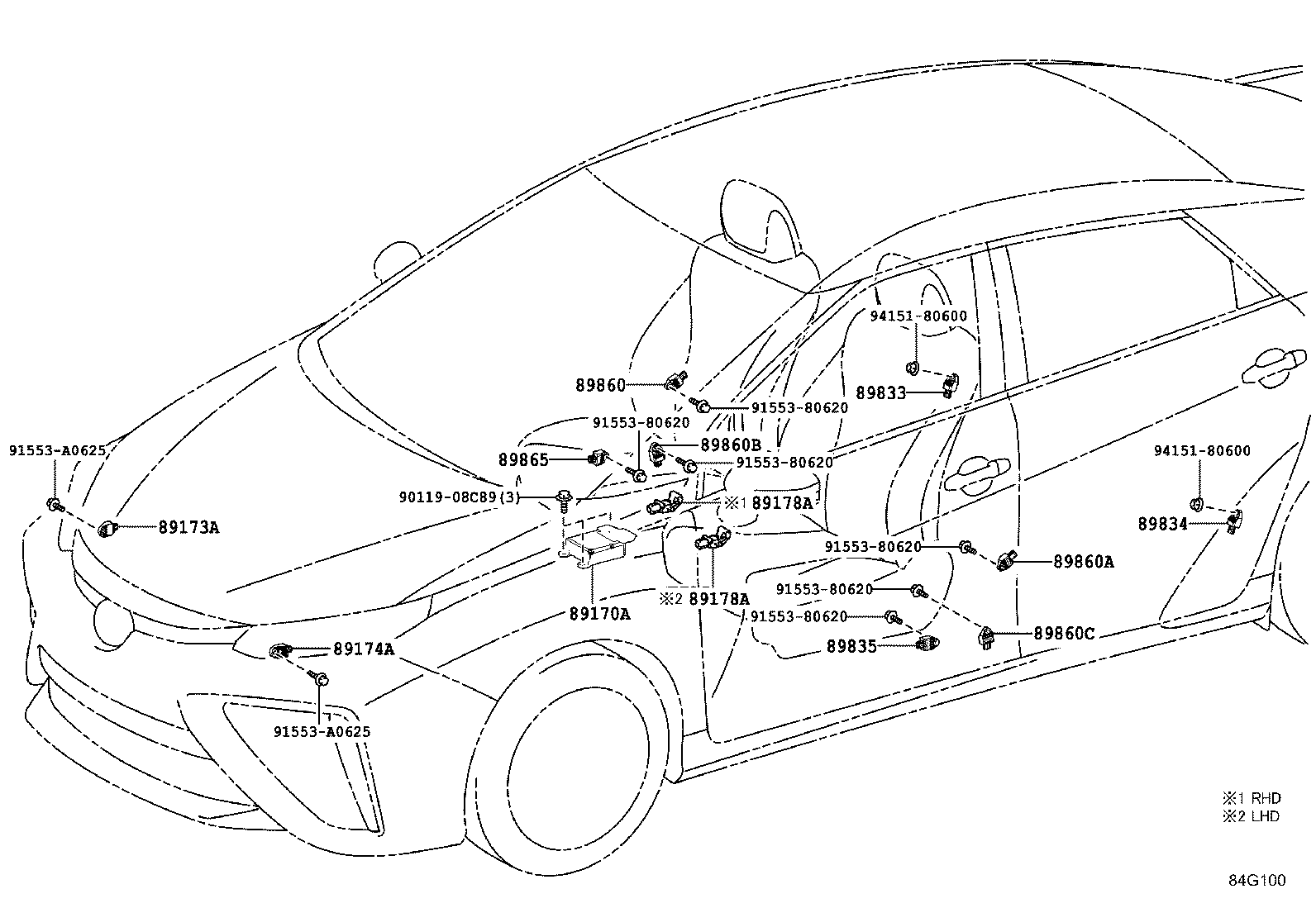

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89178A 89178A 89833 89834 89835 89860 89860A 89860B 89860C 89865 9011908C89 9155380620 9155380620 9155380620 9155380620 9155380620 9155380620 91553A0625 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-62030

JPD10..LHD

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19445

JPD10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-19445

JPD10

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

JPD10

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

JPD10

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-21020

JPD10

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-21020

JPD10

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-52040

JPD10

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-52020

JPD10

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-52020

JPD10

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-33040

JPD10

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-33040

JPD10

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-52040

JPD10

 1
Common parts
90119-08C89
91553-80620
91553-A0625
94151-80600
