JPD10L-CEDSSW (2015)
Toyota Mirai
Production
Jun 2015
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

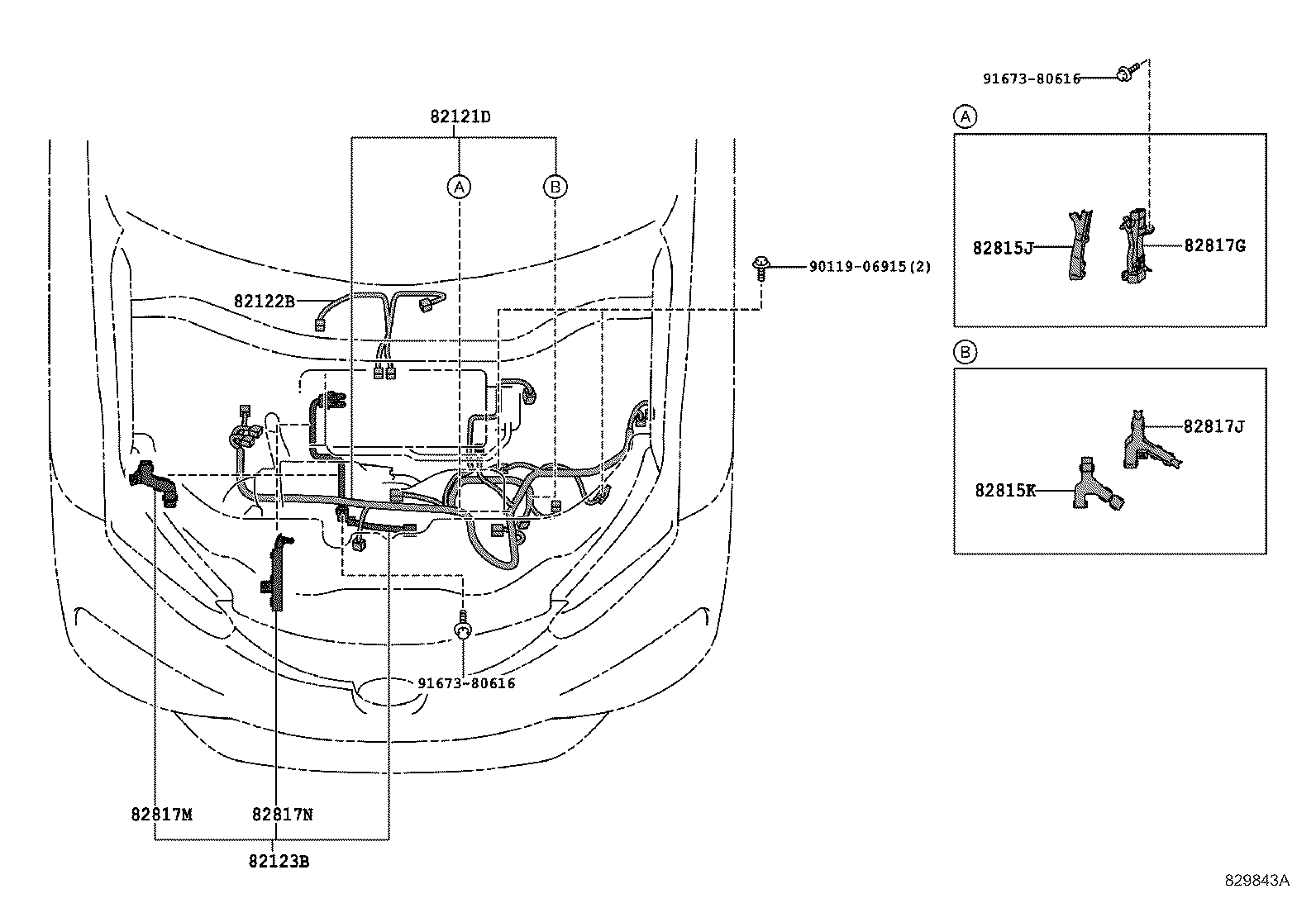

ILLUST NO. 2 OF 9(1506- )
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121D - WIRE, MOTOR | ||||
| 82121-62010 |
JPD10 |
1 | ||
| 82122B - WIRE, MOTOR, NO.2 | ||||
| 82122-62010 |
JPD10 |
1 | ||
| 82123B - WIRE, MOTOR, NO.3 | ||||
| 82123-62010 |
JPD10 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-62070 |
JPD10 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-75100 |
JPD10 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-62110 |
JPD10 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-75220 |
JPD10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-62130 |
JPD10 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-62140 |
JPD10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80616 | ||||

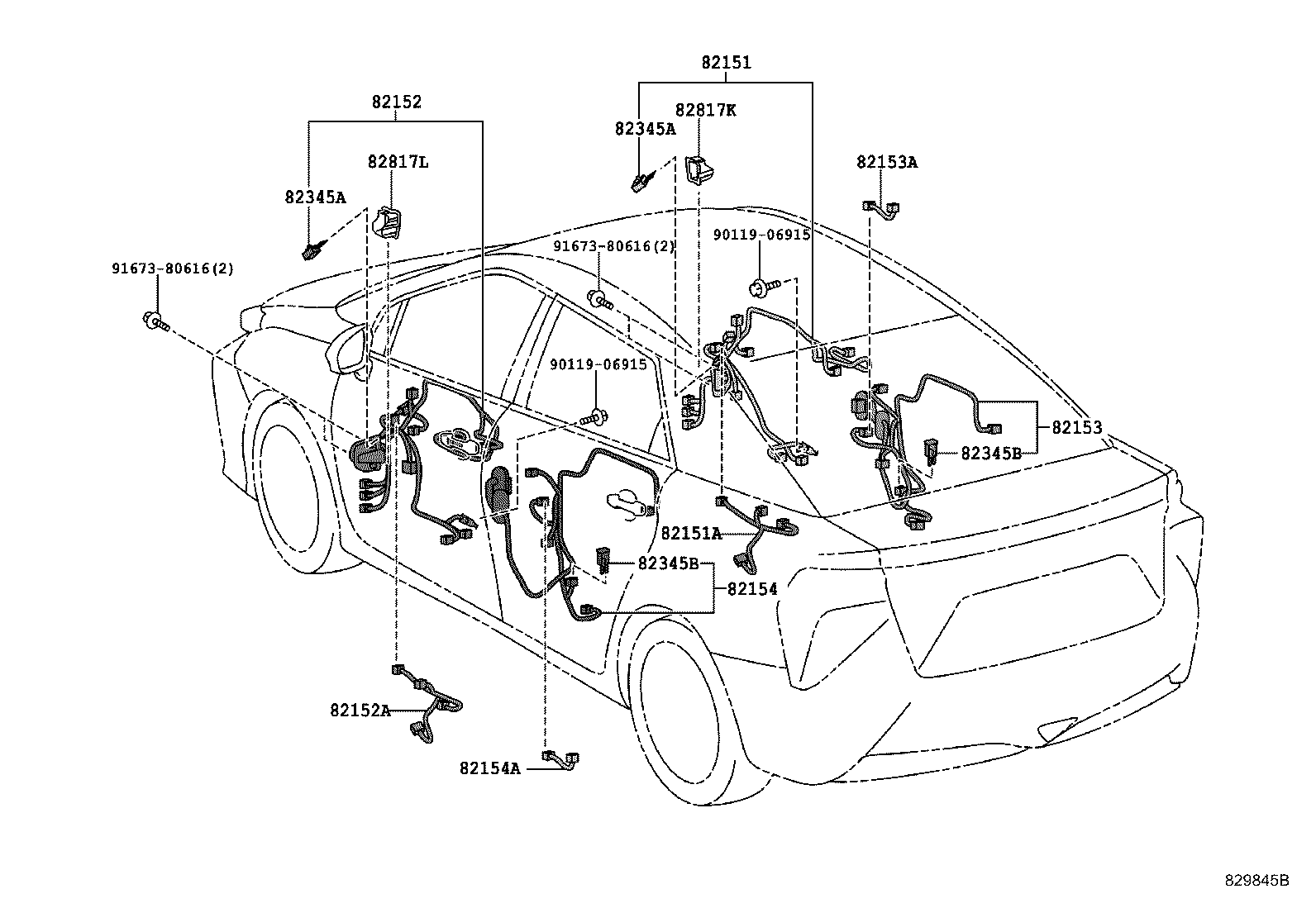

ILLUST NO. 4 OF 9(1506- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-62020 |
JPD10..LHD |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-62010 |
JPD10..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-62020 |
JPD10..LHD |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-62010 |
JPD10..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-62010 |
JPD10 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-62010 |
JPD10 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-62010 |
JPD10 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82157-62010 |
JPD10 |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82345B - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82345B - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-62100 |
JPD10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-62100 |
JPD10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80616 | ||||

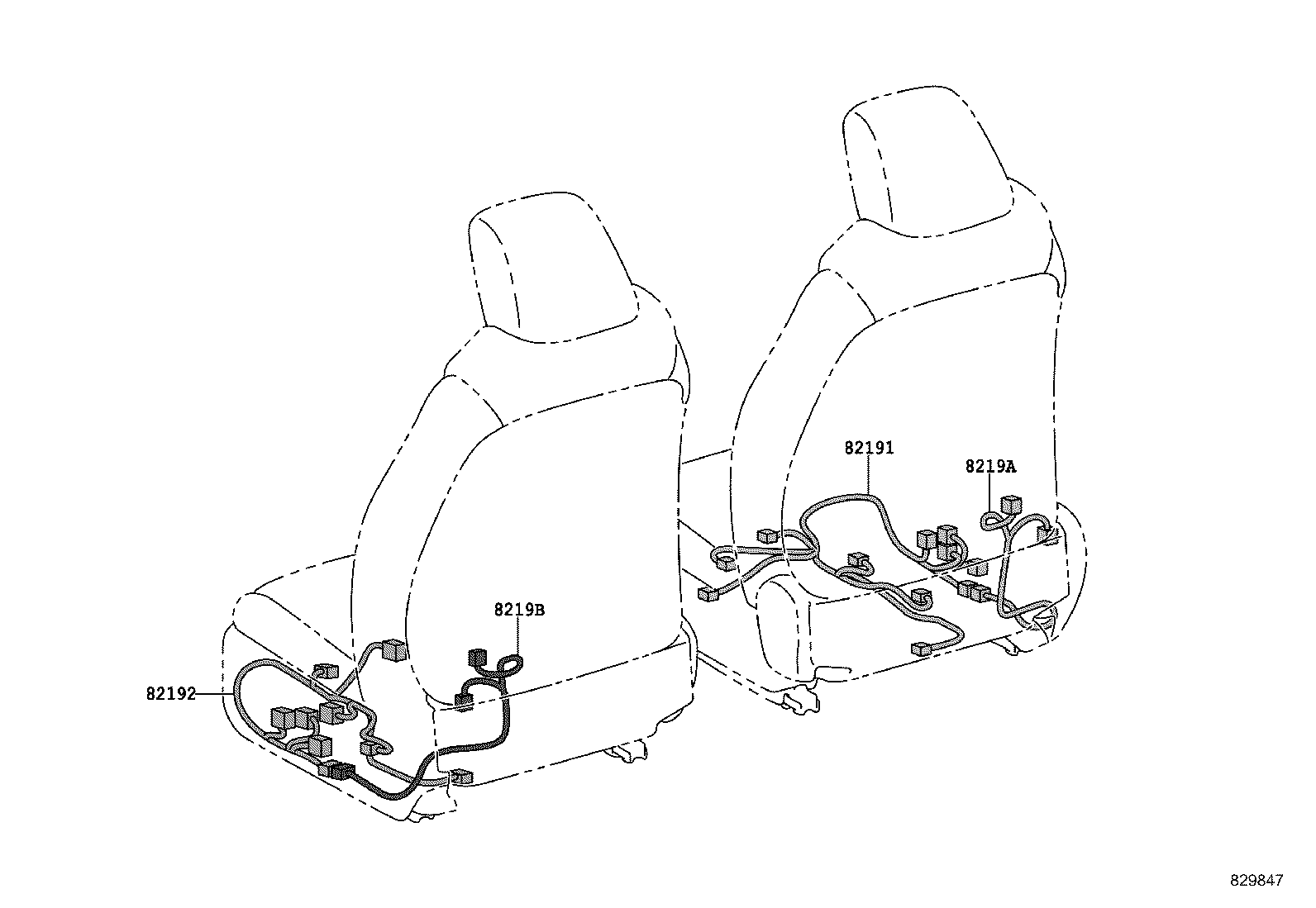

ILLUST NO. 6 OF 9(1506- )
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-62040 |
JPD10..LHD |
1 | ||
| 82191-62030 |
JPD10..LHD |
1 | ||
| 82191-62040 |
JPD10..LHD COLD AREA SPEC |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-62010 |
JPD10..LHD |
1 | ||
| 82192-62020 |
JPD10..LHD |
1 | ||
| 82192-62020 |
JPD10..LHD COLD AREA SPEC |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-42010 |
JPD10 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-42010 |
JPD10 |
1 | ||

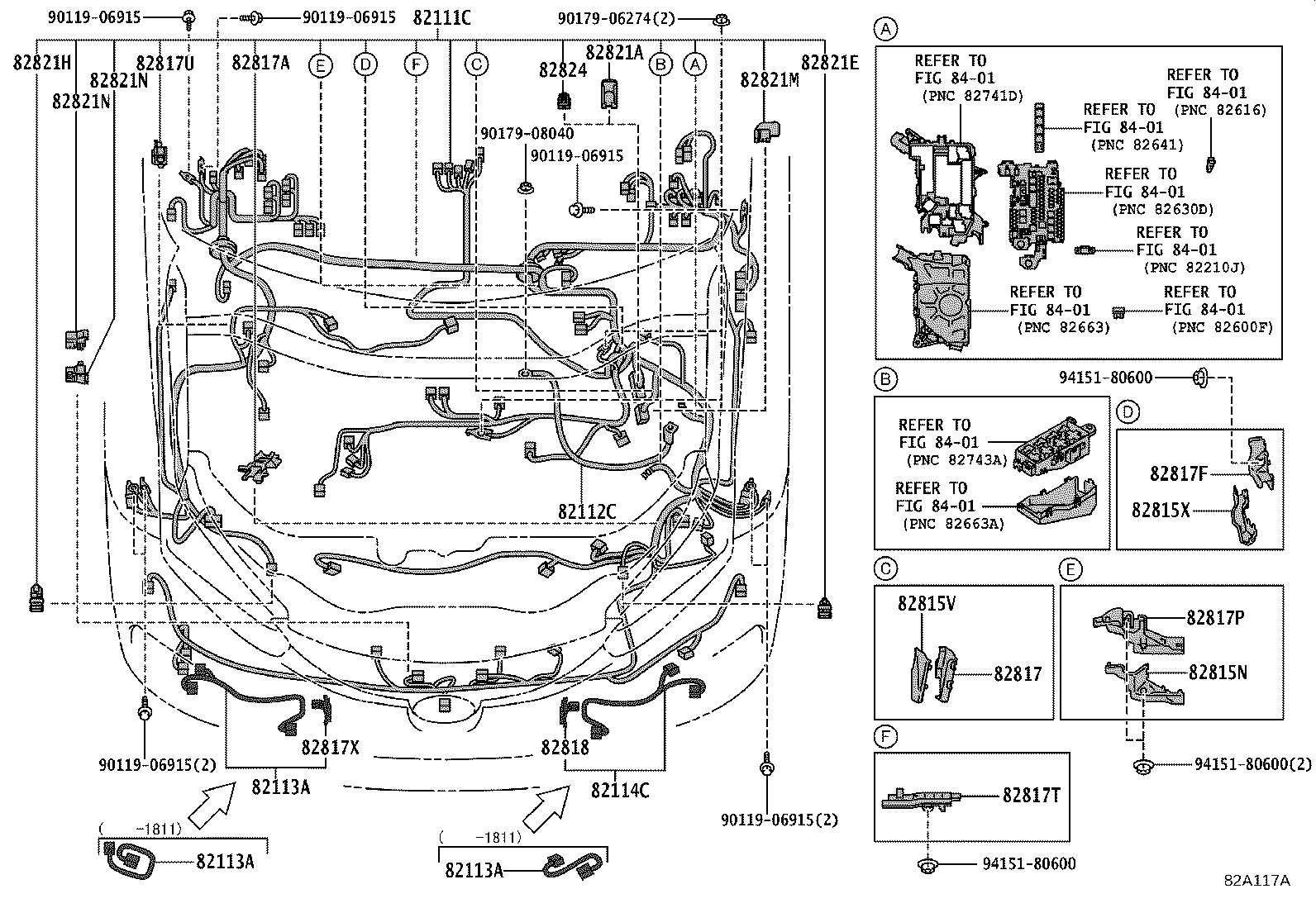

ILLUST NO. 1 OF 9(1506- )LHD
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111C - WIRE, FRONT COMPARTMENT, MAIN | ||||
| 82111-62040 |
JPD10..LHD |
1 | ||
| 82111-62160 |
JPD10..LHD |
1 | ||
| 82111-62041 |
JPD10..LHD |
1 | ||
| 82112C - WIRE, FROMT COMPARTMENT, NO.2 | ||||
| 82112-62010 |
JPD10 |
1 | ||
| 82113A - WIRE, FRONT COMPARTMENT, NO.3 | ||||
| 82113-62070 |
JPD10 |
1 | ||
| 82113-62010 |
JPD10 |
2 | ||
| 82113A - WIRE, FRONT COMPARTMENT, NO.3 | ||||
| 82113-62070 |
JPD10 |
1 | ||
| 82113-62010 |
JPD10 |
2 | ||
| 82113A - WIRE, FRONT COMPARTMENT, NO.3 | ||||
| 82113-62070 |
JPD10 |
1 | ||
| 82113-62010 |
JPD10 |
2 | ||
| 82114C - WIRE, FRONT COMPARTMENT, NO.4 | ||||
| 82113-62080 |
JPD10 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-75050 |
JPD10..LHD |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47390 |
JPD10 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-62020 |
JPD10..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47620 |
JPD10 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-75541 |
JPD10 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-75130 |
JPD10..LHD |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-75140 |
JPD10..LHD |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-75150 |
JPD10..LHD |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-75850 |
JPD10..LHD |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-62320 |
JPD10 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-62330 |
JPD10 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
JPD10 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
JPD10 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-42040 |
JPD10 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-76010 |
JPD10 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-48040 |
JPD10 |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-48040 |
JPD10 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
JPD10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90179-08040 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

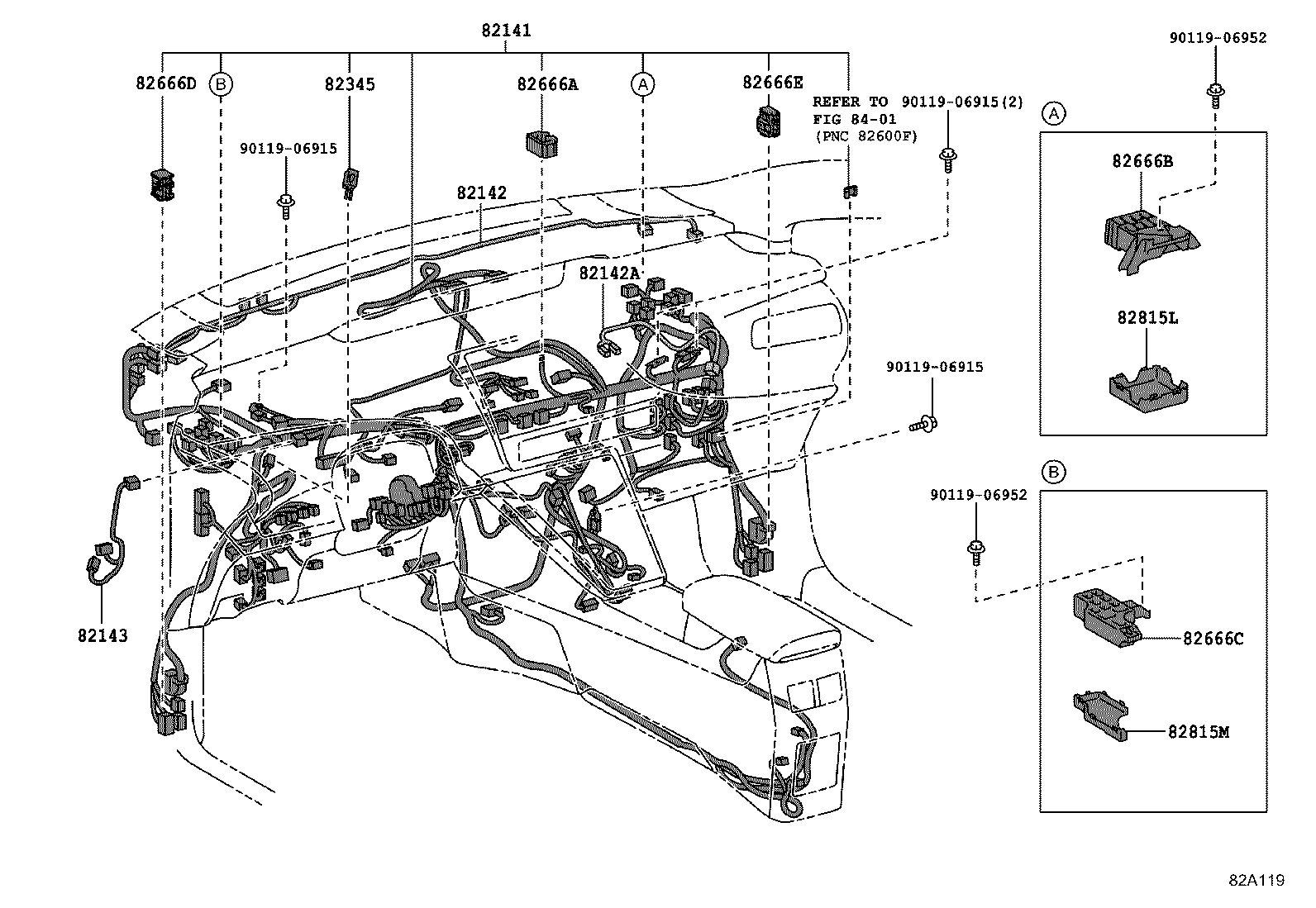

ILLUST NO. 3 OF 9(1506- )LHD
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-62040 |
JPD10..LHD |
1 | ||
| 82141-62041 |
JPD10..LHD |
1 | ||
| 82141-62400 |
JPD10..LHD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-62020 |
JPD10 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-62010 |
JPD10 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-62020 |
JPD10..LHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28B20 |
JPD10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-75020 |
JPD10..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-75060 |
JPD10..LHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-75070 |
JPD10 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-75080 |
JPD10 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-75180 |
JPD10 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-75210 |
JPD10..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||

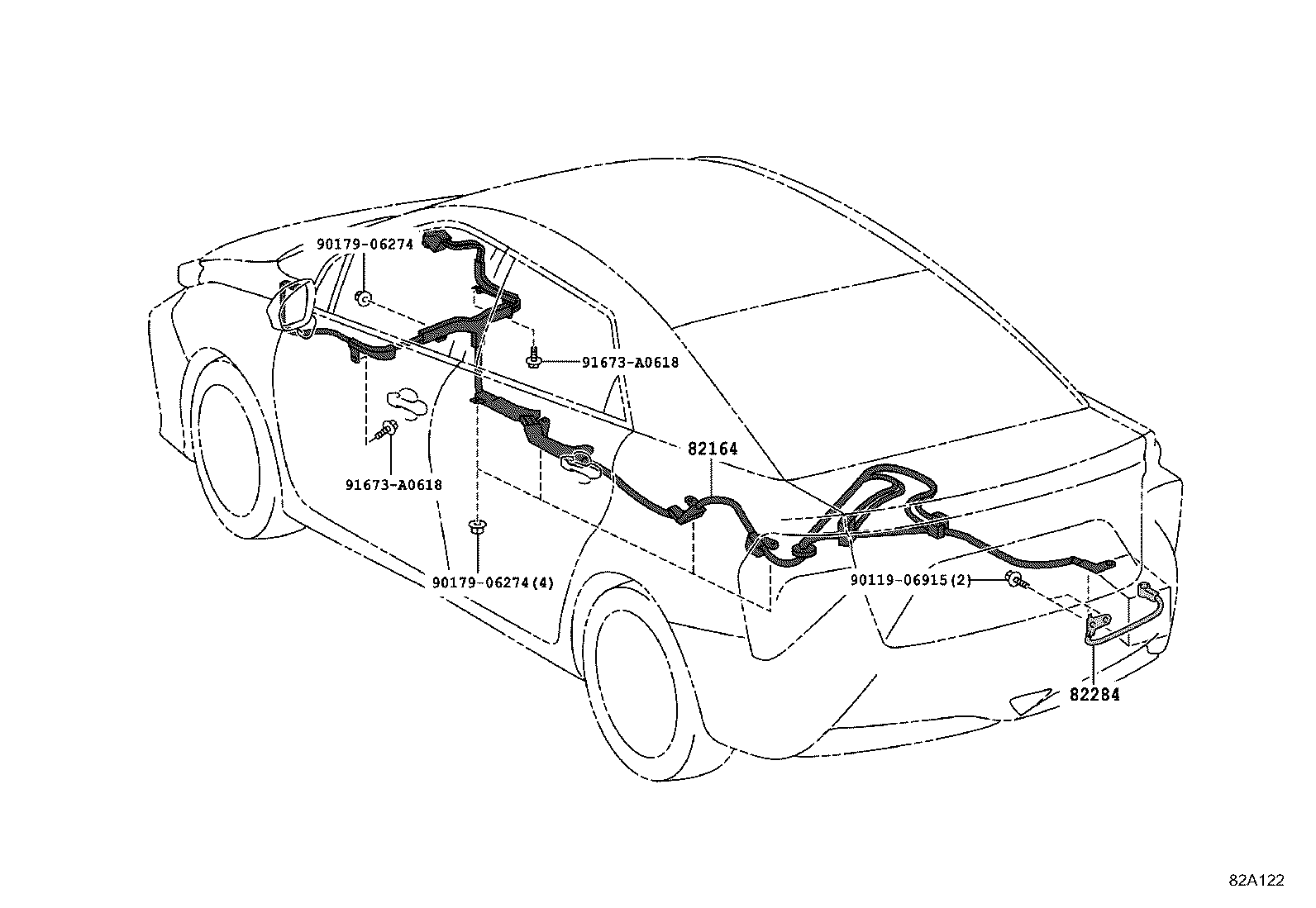

ILLUST NO. 7 OF 9(1506- )
Click highlighted areas on diagram
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-62030 |
JPD10..LHD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-62010 |
JPD10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91673-A0618 | ||||
ILLUST NO. 5 OF 9(1506- )LHD

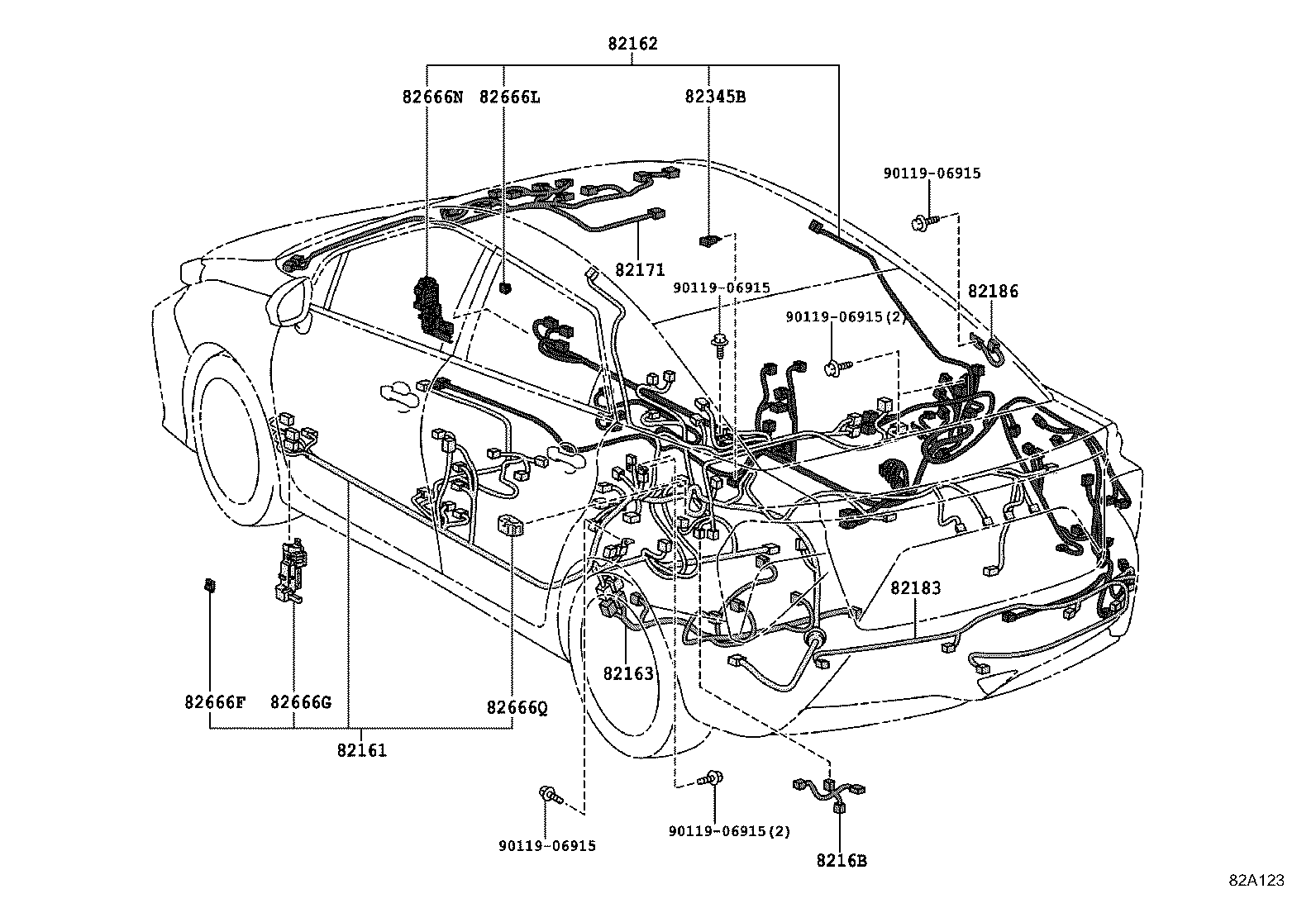

Click highlighted areas on diagram
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-62030 |
JPD10..LHD |
1 | ||
| 82161-62350 |
JPD10..LHD |
1 | ||
| 82161-62031 |
JPD10..LHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-62130 |
JPD10..LHD |
1 | ||
| 82162-62040 |
JPD10..LHD |
1 | ||
| 82162-62041 |
JPD10..LHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-62010 |
JPD10 |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-62010 |
JPD10 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-62330 |
JPD10 |
1 | ||
| 82171-62070 |
JPD10..LHD |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-62030 |
JPD10 |
1 | ||
| 82183-62090 |
JPD10 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-62010 |
JPD10 |
1 | ||
| 82345B - DIODE | ||||
| 82345-32010 |
JPD10 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-62020 |
JPD10 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-75100 |
JPD10 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-62020 |
JPD10 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-75090 |
JPD10 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28B20 |
JPD10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 8 OF 9(1506- )LHD
Click highlighted areas on diagram

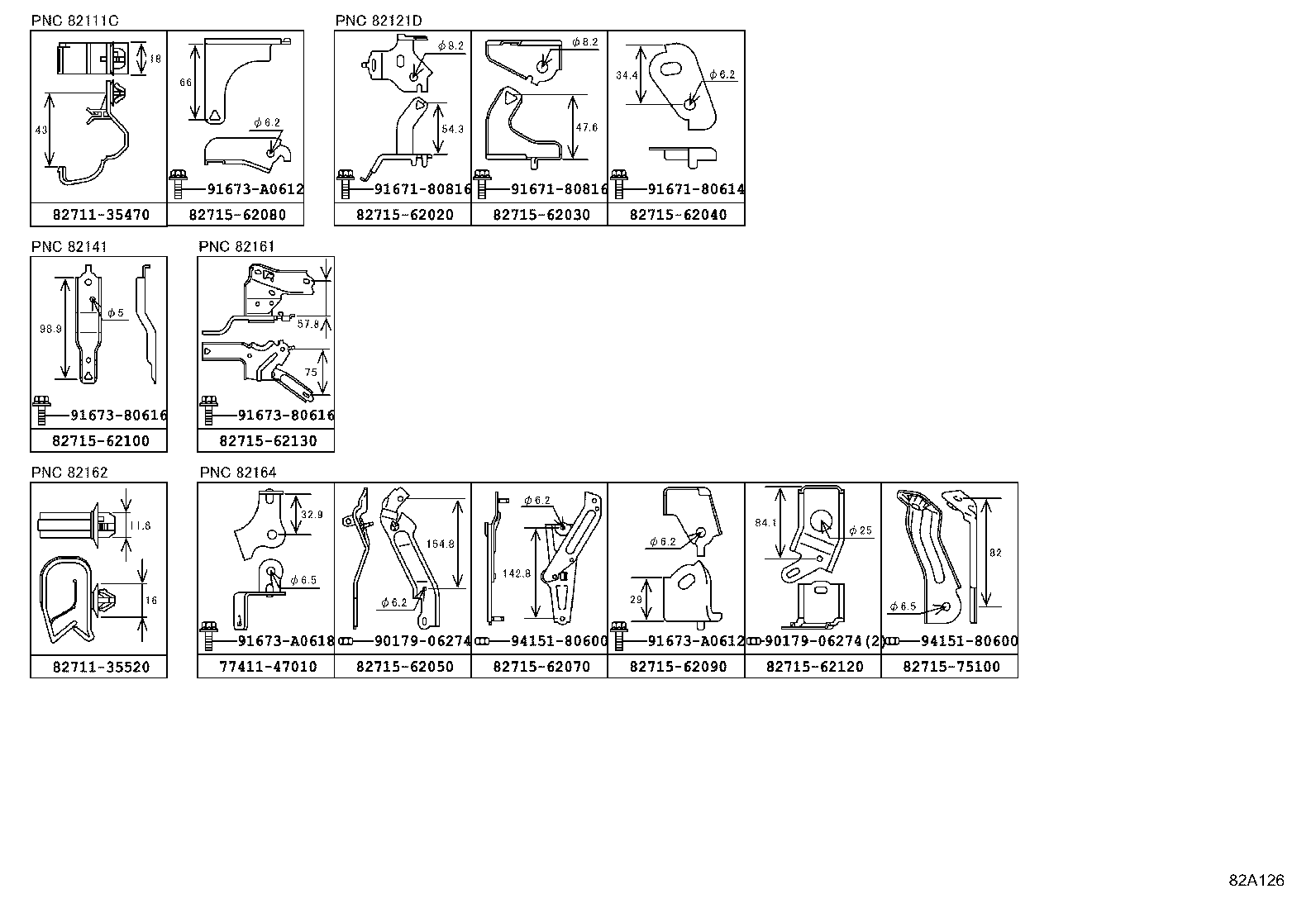

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77411-47010 | ||||
| 82711-35470 | ||||
| 82711-35520 | ||||
| 82715-62020 | ||||
| 82715-62030 | ||||
| 82715-62040 | ||||
| 82715-62050 | ||||
| 82715-62070 | ||||
| 82715-62080 | ||||
| 82715-62090 | ||||
| 82715-62100 | ||||
| 82715-62120 | ||||
| 82715-62130 | ||||
| 82715-75100 | ||||
| 90179-06274 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-A0612 | ||||
| 91673-A0618 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF 9(1506- )
Click highlighted areas on diagram

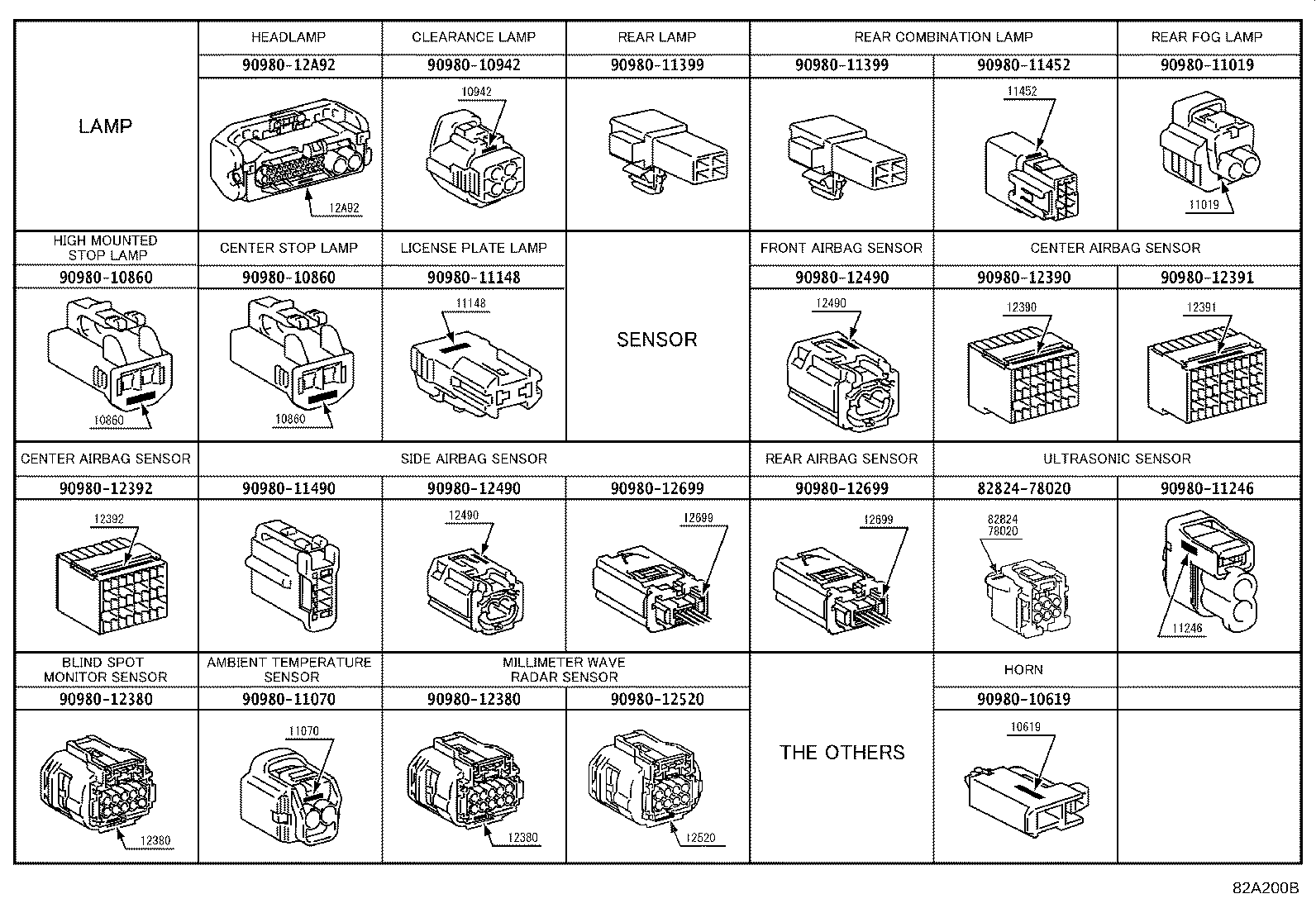

CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-11452 | ||||
| 90980-11490 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
ILLUST NO. 9 OF 9(1506- )
Click highlighted areas on diagram

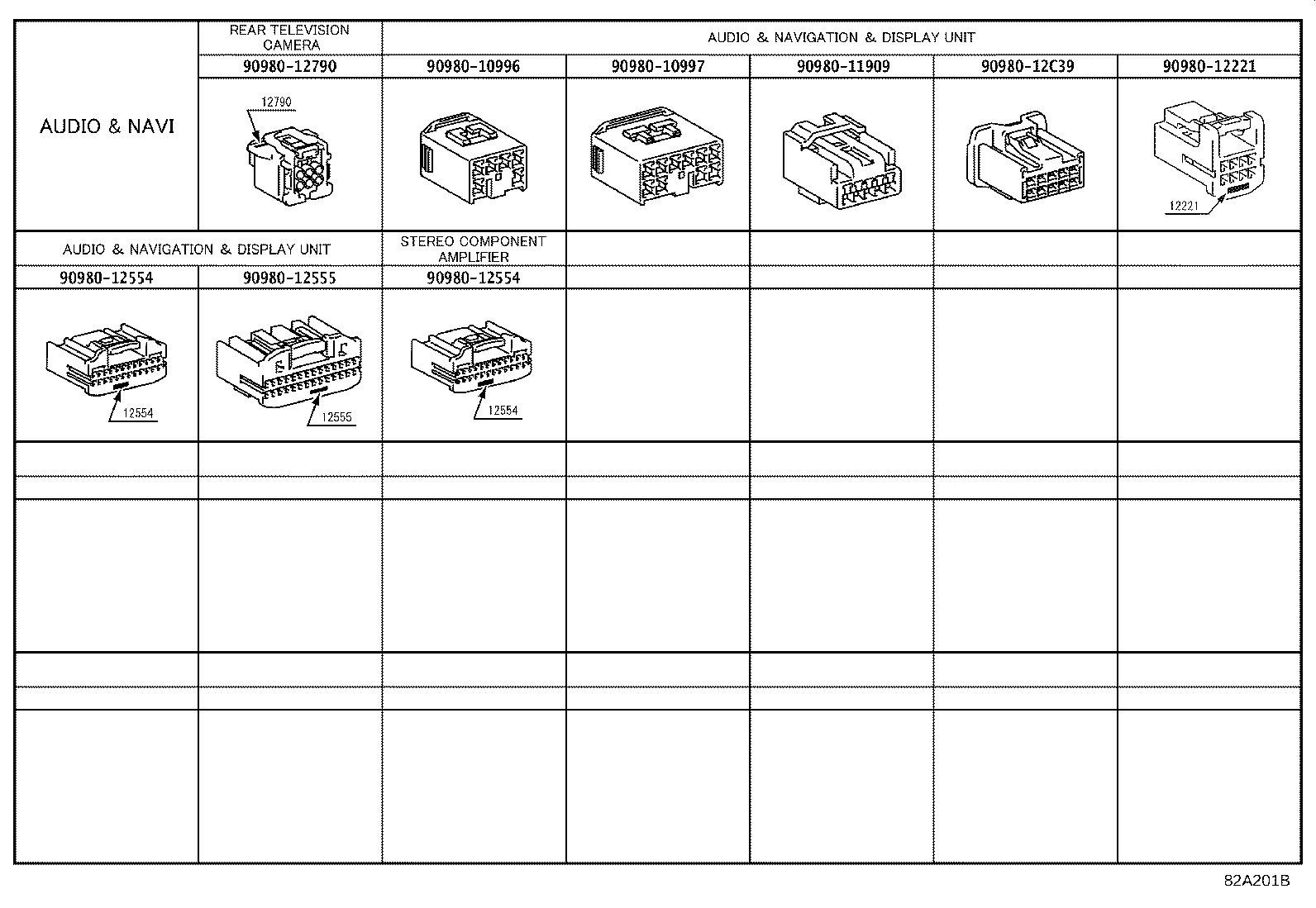

CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12221 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
